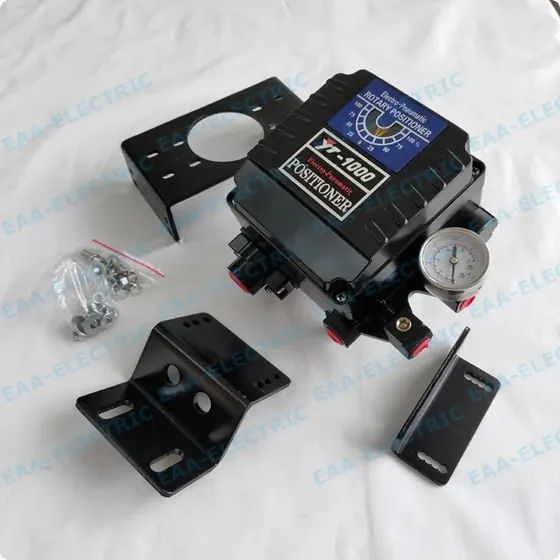

YT1000R+PTM+410B L/S Electro Pneumatic Valve Positioner
The YT-1000R with PTM and 410B limit switch box is an electro pneumatic valve positioner assembly configured for pneumatic...
What This Model Does

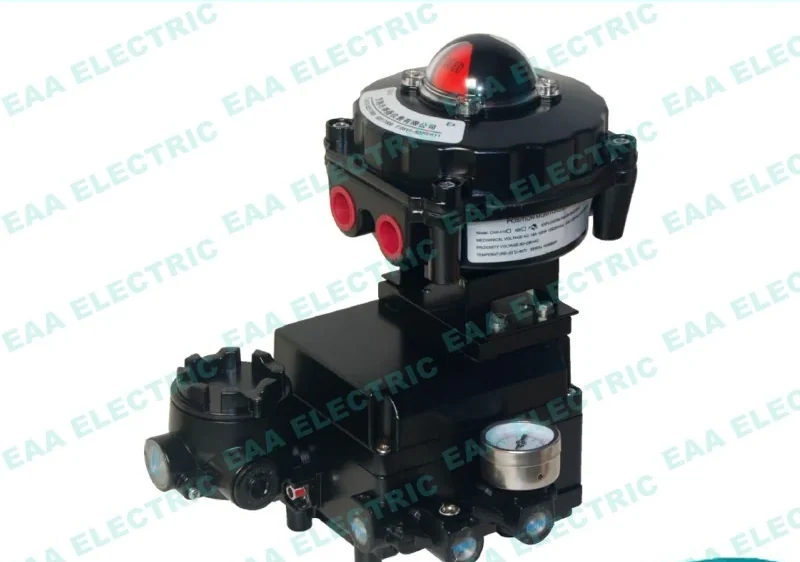

The YT-1000R with PTM and 410B limit switch box is an electro pneumatic valve positioner assembly configured for pneumatic rotary valve actuators. It operates from a DC 4 to 20 mA analog input signal or split ranges supplied by an electrical controller or DCS, converting the electrical control signal into electromagnetic force to output a pneumatic driving signal to the valve actuator. The integrated combination includes the rotary positioner, a position transmitter module (PTM) for reporting electrical feedback to the control room, and a 410B limit switch box for discrete valve end-position confirmation. It serves as a direct form fit and function replacement for YTC rotary positioner assemblies running on quarter-turn plant control valves.
| Model | YT-1000R+PTM+410B |
|---|---|
| Type | Electro pneumatic valve positioner with PTM and limit switch box |
| Actuator compatibility | Pneumatic rotary valve actuator |
| Input signal | DC 4 to 20 mA, split ranges available |
| Action direction | One-way (single acting) or two-way (bidirectional double acting) |
| Gain operation | Positive acting or reaction (reverse acting) |
| Position transmitter | PTM module fitted |
| Limit switch box | Model 410B |
| Housing colour | Black, blue, yellow or painted to customer requirement |
| Warranty | 18 months |
Why Buyers Specify This Model
- Operates pneumatic rotary valve actuators directly from an analog DC 4 to 20 mA controller signal
- Supports split range calibration to sequence two control valves from a single analog output loop
- Integrated 410B limit switch box provides discrete electrical switch feedback at travel end points
- Position transmitter module reports continuous stem position back to the supervisory control system
- Converts electrical current into electromagnetic force to drive single-acting or double-acting piston actuators
- Standard YTC rotary mounting pattern simplifies direct replacement on existing quarter-turn actuators
- Fast factory delivery of 2 to 3 days on regular quantities keeps maintenance schedules on track
Problems It Solves
- Actuator fails to stroke accurately because process medium pressure fluctuations create unbalanced forces on the valve trim
- Control system lacks continuous valve travel feedback without adding external position transmitter hardware
- Plant needs discrete open and closed switch confirmation alongside proportional electro-pneumatic position control
- Original brand rotary positioner assemblies are subject to extended supply chain lead times
- DCS output card count is limited and requires split range control across two independent rotary valves
Application Scenarios
- Rotary control valve on a chemical processing line requiring both analog positioning and discrete limit switch feedback
- Pneumatic quarter-turn actuator where the DCS needs a continuous electrical position feedback signal via PTM
- Split range rotary valve installations where two valves operate across one shared 4 to 20 mA controller loop
- Replacing a worn or damaged YTC rotary positioner assembly without changing the mounting bracket or actuator
- OEM valve and actuator packages requiring a fully assembled rotary positioner, transmitter and switch unit
Who It Is For
- Plant instrument technicians servicing pneumatic rotary control valves with integrated limit switches
- Valve and actuator automation shops needing pre-assembled rotary positioners with PTM and switch boxes
- EPC project engineers specifying field instrumentation packages for process piping skids
- Instrumentation distributors stocking form fit and function replacements for YTC rotary pattern positioners
- Control valve OEMs requiring private-label positioner assemblies branded in customer housing colours
Technical Features
- Electro-pneumatic conversion transforms DC 4 to 20 mA current input into proportional electromagnetic force
- Compatible with split range analog control signals for staged valve operation
- Configurable for one-way single acting or two-way bidirectional double-acting pneumatic piston actuators
- Positive acting and reverse reaction gain configurations available to match fail-safe requirements
- Integrated 410B limit switch box for open and closed end-of-travel indication
- Position transmitter module (PTM) transmits electrical position status back to the control system
- Rotary feedback mechanism engineered specifically for quarter-turn pneumatic valve actuators
Materials and Construction
- Cast housing with protective painted industrial finish
- Precision electromagnetic coil and internal torque conversion components
- Mechanical rotary feedback shaft and mounting hardware
- Datasheet PDF contains full breakdown of housing alloys and internal elastomer seals
Dimensions and Connection Detail
Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control
Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Machining and preparation of positioner housing and switch box enclosures
Assembly of electromagnetic coil, nozzle flapper mechanism and pilot relay components
Integration of the 410B limit switch box and position transmitter module
Bench calibration of zero, span and electrical stroke feedback across the 4 to 20 mA range
Verification of single-acting or double-acting pneumatic output ports and switch contacts
Surface finishing and spray painting in black, blue, yellow or specified customer colours

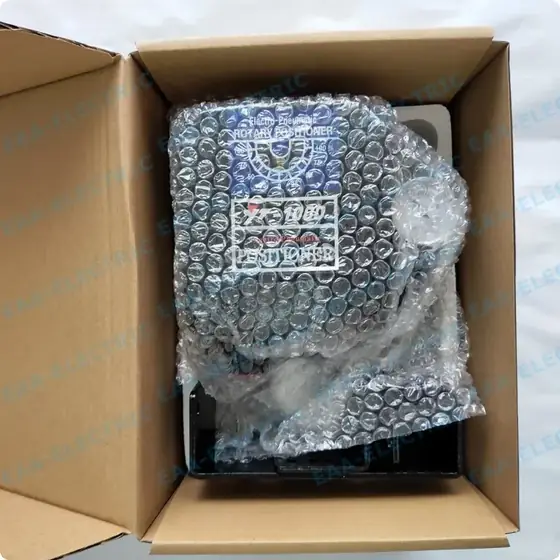

Final inspection, protective port capping and secure boxing in standard or customised packaging
Quality Control
- Every completed assembly undergoes zero, span and pneumatic output testing prior to dispatch
- Limit switch continuity and PTM electrical feedback signals are verified on the test bench
- Real product photographs and bench test videos can be recorded in the sample room upon request
- Faulty units covered by the 18 month warranty are replaced based on photo or video evidence
- Emergency replacements for urgent plant downtime are dispatched via the fastest shipping method
Customisation Options
- Housing painted in black, blue, yellow or custom specified brand colours
- Custom nameplate marking including buyer company logo and specific model designations
- Customised outer cartons and inner protective packaging modules
- Newly designed shape modules developed to match customer mechanical specifications
- Supplied as a fully integrated stack with positioner, PTM and 410B switch box ready to mount
How It Compares With the Alternatives
| YT-1000L linear valve positioner | YT-1000R is built for quarter-turn rotary actuators, while the YT-1000L is designed for linear stem travel |
|---|---|
| Pneumatic positioner with 20 to 100 kPa input | YT-1000R accepts standard DC 4 to 20 mA signals directly without requiring a separate upstream I/P converter |
| Standalone YT-1000R positioner without accessories | This configuration integrates the PTM and 410B switch box in a single assembly, eliminating separate field wiring |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Mount the YT-1000R assembly securely to the pneumatic rotary actuator using standard bracket hardware
Align the positioner rotary feedback shaft with the actuator drive stem to eliminate mechanical binding
Connect clean, dry instrument air supply piping to the positioner air inlet port
Pneumatically pipe output ports according to whether the rotary actuator is single acting or double acting
Wire the DC 4 to 20 mA analog control signal to the positioner input terminals observing polarity
Connect the 410B limit switch contacts and PTM transmitter loop wiring to the plant junction box
Apply 4 mA to set the zero rotary position, apply 20 mA to adjust span, and verify travel stops
YT1000R+PTM+410B L/S Electro Pneumatic Valve Positioner FAQ
What is the delivery time for this positioner assembly?
Regular quantities typically dispatch in 2 to 3 days from stock. Large project quantities require 7 to 10 days.
Does this unit fit rotary actuators currently using YTC positioners?
Yes. It uses the standard YTC rotary mounting footprint and drops directly onto existing brackets.
Can the positioner housing be supplied in custom colours with our logo?
Yes. We supply housings painted in black, blue, yellow or custom colours with your brand logo on the nameplate.
What does the PTM module do inside this assembly?
The position transmitter module converts the rotary valve stem position into an electrical signal to report status back to the DCS.
What is the warranty policy if a positioner fails in service?
All units carry an 18 month warranty. Verified faulty units are replaced with new units rather than repaired, usually shipped with your next order.
Can you provide photos or video of the units prior to shipment?
Yes. Real product photos and operational videos can be taken in our sample room or warehouse on request before dispatch.
Can this assembly operate both single acting and double acting actuators?
Yes. The unit can be configured for one-way single acting spring-return actuators or two-way bidirectional double-acting cylinders.
