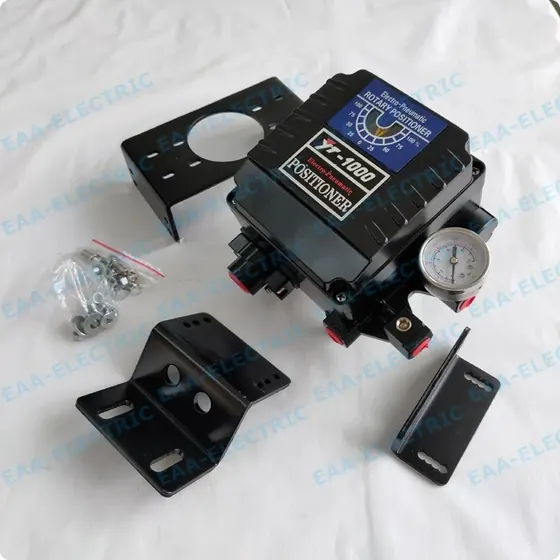

YT1000R+410A L/S Electro Pneumatic Valve Positioner
The YT-1000R with 410A limit switch box is an electro pneumatic valve positioner assembly for pneumatic rotary valve...
What This Model Does

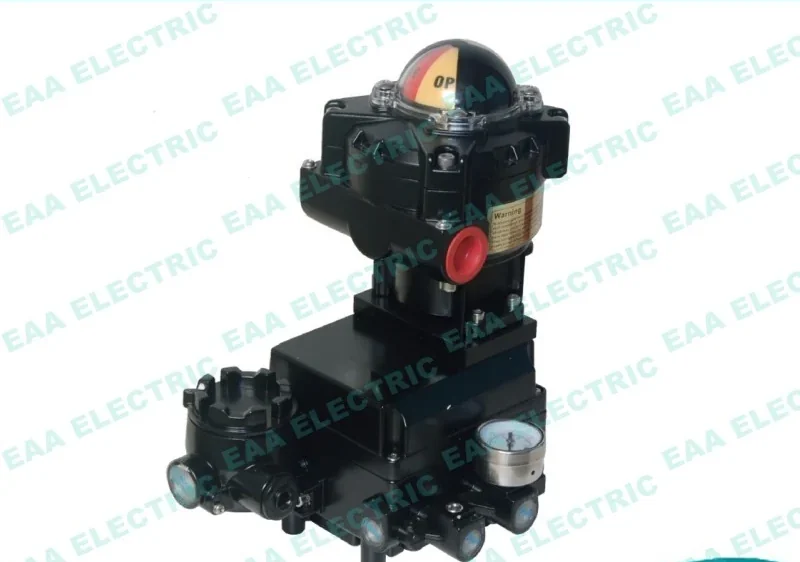

The YT-1000R with 410A limit switch box is an electro pneumatic valve positioner assembly for pneumatic rotary valve actuators. It operates from a DC 4 to 20 mA analog signal or split range signals supplied by an electrical controller or DCS, driving quarter turn rotary actuators to the required position. The integrated unit combines electro pneumatic positioning with the 410A limit switch box, reading rotary position directly and confirming end of travel status back to the control system. It serves as a direct form fit and function replacement for YTC rotary positioner assemblies installed on ball and butterfly control valves.
| Model | YT-1000R + 410A |
|---|---|
| Type | Electro pneumatic rotary valve positioner with limit switch box |
| Actuator compatibility | Pneumatic rotary valve actuators |
| Input signal | DC 4 to 20 mA, split ranges available |
| Signal pressure ranges | 20 to 100 kPa standard, 40 to 200 kPa non-standard |
| Limit switch model | 410A |
| Action | Proportional action, counter action capable |
| Housing colour | Black, blue, yellow or painted to customer requirement |
| Warranty | 18 months |
Why Buyers Specify This Model
- Combines electro pneumatic positioning and limit switch position feedback in a single compact assembly
- Accepts DC 4 to 20 mA signals directly, serving the dual role of an I/P converter and positioner
- Overcomes valve stem friction and cancels the effects of medium pressure changes across the valve
- Improves actuator stroking speed and dynamic response across the full quarter turn stroke
- Enables split range operation so two control valves can be sequenced from one controller output
- Allows reverse or counter action directly at the positioner without changing external controller logic
- Converts two position piston actuator movements into proportional modulating control
- Operates actuators with non-standard signal pressures of 40 to 200 kPa from standard supply pressures
Problems It Solves
- Actuator stalls or moves erratically because static packing friction exceeds signal pressure
- Two separate mounting brackets and linkages required for positioner and external switch box
- Process pressure fluctuations and high differential pressure shift the valve off its setpoint
- Discontinued original positioner leaves the plant waiting on long overseas delivery lead times
- Piston actuators restricted to on-off action cannot modulate without a dedicated positioner
Application Scenarios
- Quarter turn ball valve on a chemical line requiring precise throttling and end position feedback
- Butterfly control valve on a cooling loop where packing friction causes sticking or hunting
- Split range control service where one analog output sequences two rotary control valves
- Replacing worn or discontinued YTC rotary positioners fitted with mechanical limit switch boxes
- OEM rotary actuator assembly requiring a pre-mounted positioner and limit switch box combination
Who It Is For
- Plant instrument technicians replacing worn positioners and limit switches on rotary control valves
- Valve and actuator OEMs requiring complete positioner and switch assemblies under their own branding
- EPC contractors sourcing valve instrumentation packages for industrial plant projects
- Distributors stocking replacement assemblies for YTC pattern rotary positioners and switch boxes
- Trading companies supplying replacement instrumentation for process plant maintenance teams
Technical Features
- Designed specifically for quarter turn pneumatic rotary valve actuators
- Accepts analog input signals of DC 4 to 20 mA including split range configurations
- Integrated 410A limit switch box provides discrete electrical valve position confirmation
- Combines the functions of an electro pneumatic converter and a pneumatic positioner in one unit
- Capable of counter action calibration to reverse actuator response relative to input signal
- Operates actuators requiring non-standard signal pressures from 40 to 200 kPa
- Corrects control valve flow characteristics and converts two-position piston motion into proportional travel
Materials and Construction
- Aluminium alloy housing with painted industrial finish
- Full material and finish breakdown is given in the datasheet PDF
Dimensions and Connection Detail
Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control
Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Machining of positioner and limit switch housing components
Assembly of torque motor and pneumatic pilot relay mechanism
Mounting and alignment of 410A limit switch box to the positioner shaft
Bench calibration of zero, span and split range stroke travel
Electrical continuity and switch contact trip testing at stroke limits
Surface preparation and painting in specified customer housing colour
Packaging in standard or customised shipping cartons
Quality Control
- Every positioner assembly is calibrated and stroke tested prior to packing
- Electrical limit switches are verified for correct actuation at travel limits
- Warehouse photos and video can be provided for review prior to dispatch
- Defective units under the 18 month warranty are replaced based on video or photo evidence
- Urgent replacement units are dispatched promptly when plant downtime requires it
Customisation Options
- OEM customer logo and nameplate marking
- Housing painting in blue, yellow, black or specific custom colours
- Newly designed shape modules developed to buyer specifications
- Custom outer cartons and protective packaging
- Alternative limit switch models or position transmitter modules fitted on request
How It Compares With the Alternatives
| YT1000L positioner | The YT-1000R is built for quarter turn rotary actuators, while the YT-1000L is for linear stems |
|---|---|
| Standalone YT1000R without switch box | The 410A combination integrates discrete open and closed position signals without extra mounting hardware |
| Separate pneumatic positioner and external I/P converter | The YT-1000R takes a 4 to 20 mA signal directly, removing the need for an external transducer |
| Direct solenoid valve control | The positioner enables proportional modulating travel rather than simple two-position open and close motion |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Mount the positioner assembly to the rotary actuator using standard YTC pattern mounting holes
Engage the rotary feedback shaft with the actuator drive stem ensuring zero backlash
Connect clean dry instrument supply air to the positioner air inlet port
Connect the output air ports to the rotary actuator pneumatic ports
Terminate the DC 4 to 20 mA loop wiring observing marked polarity
Wire the 410A limit switch terminals to the supervisory system or remote indicator
Calibrate zero and span at 4 mA and 20 mA, adjusting limit switch cams at end positions
Confirm reverse or direct action setup and verify smooth operation across the stroke
YT1000R+410A L/S Electro Pneumatic Valve Positioner FAQ
What is the standard delivery lead time?
Regular quantities normally ship in 2 to 3 days from stock. Large project orders take 7 to 10 days.
Will this assembly drop onto our existing rotary actuator bracket?
Yes, it matches standard YTC rotary mounting patterns. Send a photo of your actuator top works to confirm compatibility before ordering.
Can the positioner housing be supplied in custom colours?
Yes. Black, blue and yellow are standard options, and custom colours can be painted to your order specification.
What is the warranty policy if a unit fails in service?
We provide an 18 month warranty. Faulty units are replaced on photo or video evidence, usually shipped with your next order.
Does the assembly include both positioning and end position feedback?
Yes. The assembly includes the YT-1000R electro pneumatic positioner coupled directly with the 410A limit switch box.
Can this unit be calibrated for split range control?
Yes. The positioner accepts standard DC 4 to 20 mA signals as well as split range signal spans like 20 to 60 kPa equivalent ranges.
Can I inspect the units before shipment?
Yes. Real product photos and videos can be taken in our sample room or warehouse on request before dispatch.
