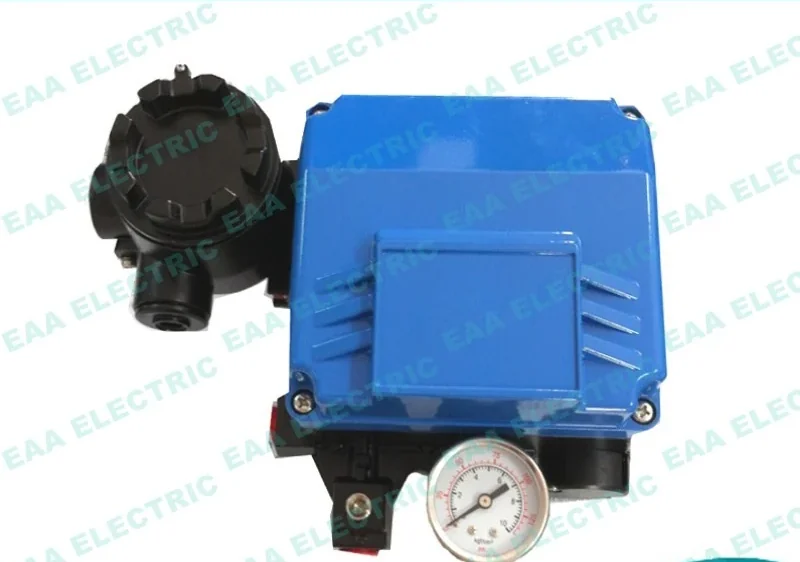

YT1000L Electro Pneumatic Valve Positioner-Blue
The YT-1000L Electro-pneumatic valve positioner in blue housing operates pneumatic linear valve actuators from an electrical...
What This Model Does
The YT-1000L Electro-pneumatic valve positioner in blue housing operates pneumatic linear valve actuators from an electrical controller or control system outputting DC 4 to 20 mA or split ranges. It converts the electrical control current to pneumatic output force while driving the actuator stem to its set position. Built-in amplification and air delivery allow linear control valves to operate against high differential pressure and tight process conditions without stalling. It serves as a form, fit, and function replacement for plant maintenance, OEM builds, and instrumentation skids requiring blue-finished YTC type positioners.
| Model | YT-1000L |
|---|---|
| Type | Electro-pneumatic valve positioner |
| Actuator type | Pneumatic linear valve actuator |
| Input signal | DC 4 to 20 mA, split ranges available |
| Split range options | 4 to 12 mA and 12 to 20 mA |
| Housing colour | Blue (black, yellow, and custom available) |
| Power supply modes | Without separate power supply (loop powered) or separate 24VDC power supply |
| Warranty | 18 months |
Why Buyers Specify This Model
- Drives pneumatic linear valve actuators directly from DC 4 to 20 mA control system current outputs
- Increases actuator output force for large diameter valves operating under high pressure or extreme temperatures
- Accelerates valve movement speed and improves regulating quality through internal pneumatic amplification
- Accepts split range inputs such as 4 to 12 mA and 12 to 20 mA to sequence two regulating valves
- Modifies valve flow characteristics from quick opening or approximate equal percentage to true linear or equal percentage
- Reverses valve action in the field, converting air-to-open operation into air-to-close or vice versa
- Overcomes transmission delays on long pneumatic signal piping runs of 150 meters or more
Problems It Solves
- Valve stems stalling under high process pressure differences or extreme medium temperatures
- Slow movement speed and delayed valve regulation caused by insufficient air supply delivery
- Two valves requiring sequential operation from a single process controller analog output channel
- Mismatch between native valve trim flow profile and the desired linear or equal percentage loop characteristic
- Actuator action orientation needing reversal between air-open and air-closed configurations
- Signal loss and sluggish pneumatic response on long instrument pipe runs over 150 meters
Application Scenarios
- Regulating valve on high differential pressure lines where stem load demands extra pneumatic output force
- Linear valves operating in high or low temperature process media requiring stable movement control
- Split range plant systems where one controller signal sequences a 4 to 12 mA and a 12 to 20 mA valve
- Long distance signal runs where pneumatic tubing lengths equal or exceed 150 meters from the control source
- Changing existing valve response from quick opening to equal percentage or linear flow characteristics
- Reversing valve action from air-to-open to air-to-close without altering the mechanical actuator build
Who It Is For
- Plant instrument technicians replacing worn or discontinued YTC pattern linear positioners
- Control valve OEMs requiring blue-housed positioners branded with their own nameplates
- EPC contractors purchasing linear valve automation packages for process plant projects
- Instrumentation distributors stocking replacement positioners for local chemical and power plants
- Skid builders looking to eliminate long lead times on standard linear electro-pneumatic positioners
Technical Features
- Electro-pneumatic conversion converting DC 4 to 20 mA analog electrical signals directly to pneumatic output
- Split range calibration capability supporting 4 to 12 mA and 12 to 20 mA sequencing setups
- Pneumatic amplifier stage providing high flow rate delivery to ensure rapid actuator movement
- Flow characteristic modification converting quick opening or linear inputs into linear or equal percentage travel
- Reversible operating action allowing conversion between air-to-open and air-to-close actuator configurations
- Linear feedback mechanism configured specifically for pneumatic linear valve actuators
- Blue painted housing finish suitable for plant colour-coding and original equipment manufacturing
Materials and Construction
- Metallic housing with industrial blue painted finish
- Internal pneumatic relay and electrical torque motor assembly components
- Mechanical feedback linkage hardware for linear valve stems
Dimensions and Connection Detail
Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control

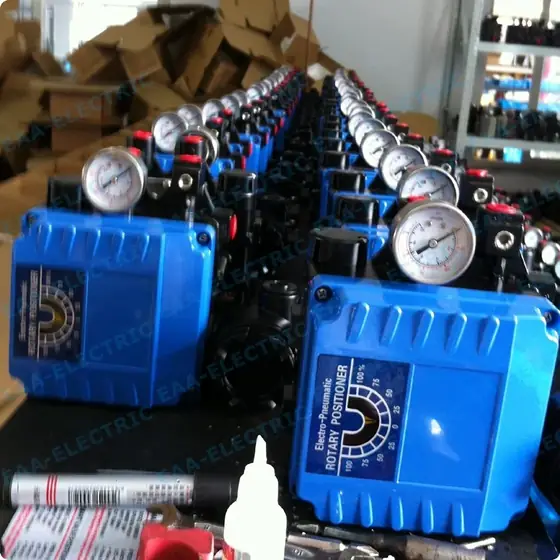

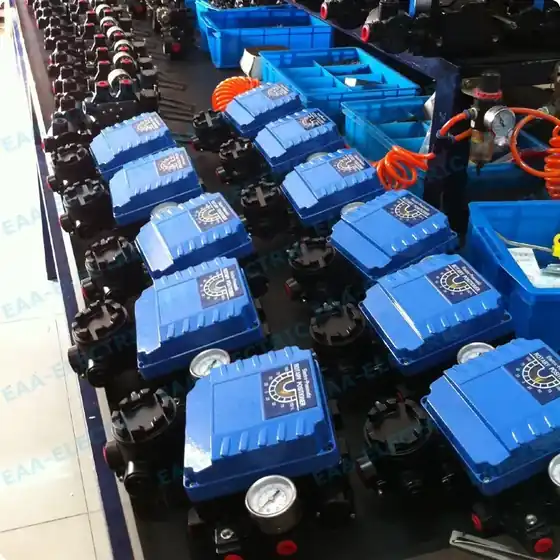

Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Machining and surface preparation of the positioner housing
Application of durable blue protective paint finish
Assembly of internal electrical torque motor and pneumatic amplifier relay
Mounting of mechanical linear feedback mechanism and input signal terminals
Bench calibration of DC 4 to 20 mA range and split range travel points
Testing of flow characteristic modification and reverse action mechanisms
OEM nameplate marking and final carton packaging
Quality Control
- Individual bench testing of electrical current response and pneumatic output pressure
- Inspection of split range calibration and action reversal before boxing
- Sample room or warehouse photos and videos available on request prior to shipment
- 18 month warranty with faulty units replaced rather than repaired based on photo or video evidence
Customisation Options
- Housing painted in custom blue or alternate colours including black and yellow
- Customer logo marking on the product nameplate
- Customised outer carton and protective inner packaging
- Newly designed shape modules developed to buyer specifications
- Pre-assembly with matching limit switch boxes, pilot valves, or pneumatic actuators
How It Compares With the Alternatives
| YT-1000R rotary positioner | The YT-1000L is engineered for linear stem motion, whereas the YT-1000R fits quarter-turn rotary actuators |
|---|---|
| Standard pneumatic positioner | The YT-1000L takes an analog 4 to 20 mA current directly without requiring a separate standalone I/P converter |
| Direct actuator air supply without positioner | The YT-1000L provides pneumatic amplification and positional feedback to overcome stem friction and high line pressure |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Mount the YT-1000L securely to the linear actuator yoke using the appropriate mounting bracket
Connect the mechanical feedback lever to the valve stem clamp, aligning it for linear travel
Supply clean, dry instrument air to the positioner air inlet port according to plant supply standards
Connect the actuator supply tubing to the positioner pneumatic output port
Wire the analog DC 4 to 20 mA control loop signal, observing correct terminal polarity
Calibrate zero and span to match actuator stroke, selecting split range (4 to 12 mA or 12 to 20 mA) if required
Set internal configuration for direct or reverse valve action (air-to-open or air-to-close) as specified by the process
YT1000L Electro Pneumatic Valve Positioner-Blue FAQ
What is the delivery time for regular orders?
Regular quantities normally ship in 2 to 3 days from stock. Large project orders take 7 to 10 days.
Can the positioner handle split range control signals?
Yes. It supports split-range operation, such as one valve receiving 4 to 12 mA and a second receiving 12 to 20 mA from the same controller.
Can I order this unit with our company branding?
Yes. We offer OEM and ODM services including customer logo marking on nameplates, customised cartons, and custom painted housings.
What is your replacement policy under warranty?
The warranty is 18 months. Faulty units are replaced rather than repaired, usually shipped with your next order upon photo or video evidence.
Can the YT-1000L reverse the action of my control valve?
Yes. The positioner can convert an air-open valve into an air-closed valve, or an air-closed valve into an air-open valve without changing the actuator.
Can you verify the order before it leaves the warehouse?
Yes. Real product photos and videos can be taken in our sample room or warehouse on request prior to dispatch.
