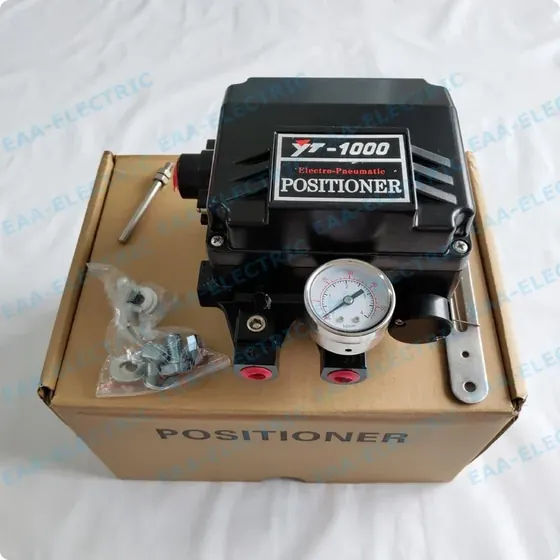

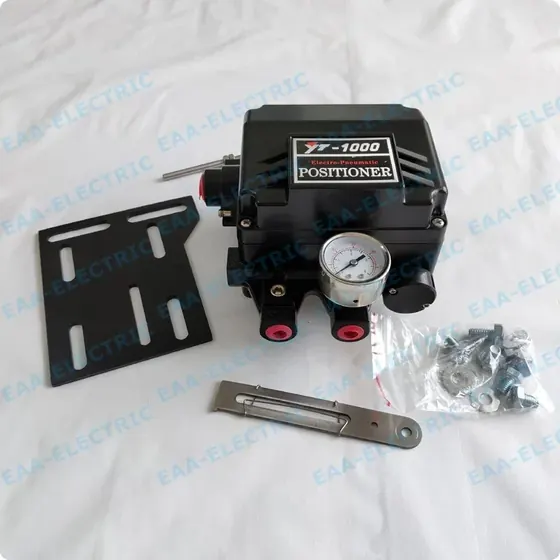

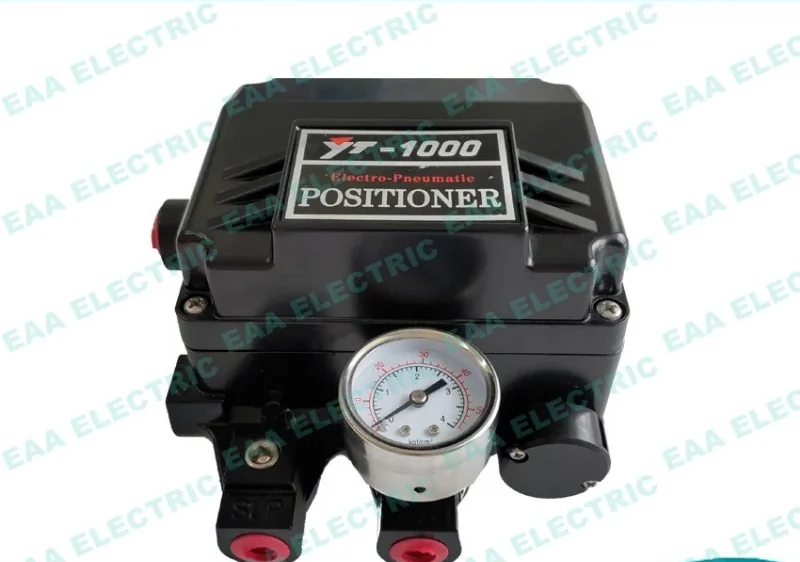

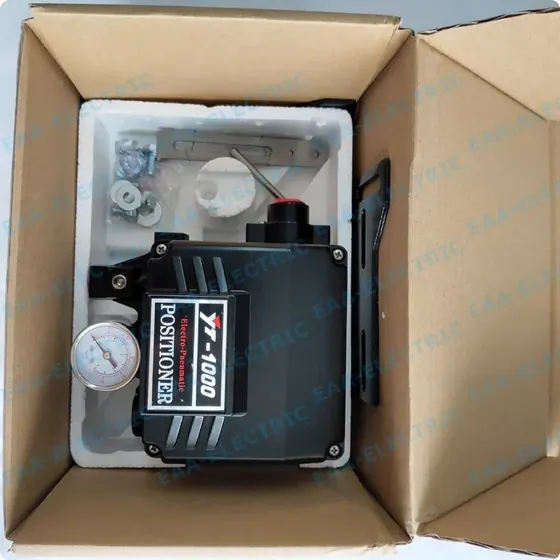

YT1000L Electro Pneumatic Valve Positioner-Black
The YT-1000L electro pneumatic valve positioner in black housing is designed for pneumatic linear valve actuators.
What This Model Does
The YT-1000L electro pneumatic valve positioner in black housing is designed for pneumatic linear valve actuators. It receives an analog DC 4 to 20 mA or split range signal from an electrical controller or DCS and converts it into electromagnetic force to deliver an air signal to the control valve. As an analog electro pneumatic unit without an internal CPU, it operates via direct signal conversion rather than digital processing. It provides a direct replacement for plants running YTC pattern positioners on linear control valves.
| Model | YT-1000L-Black |
|---|---|
| Type | Electro pneumatic valve positioner |
| Actuator type | Pneumatic linear valve actuator |
| Input signal | DC 4 to 20 mA, split ranges available |
| Housing colour | Black |
| Warranty | 18 months |
Why Buyers Specify This Model
- Converts DC 4 to 20 mA signals directly into an air signal without needing an upstream I/P transducer
- Supports split range analog signals so two control valves can operate sequentially from one loop
- Drives pneumatic linear valve actuators directly from an electrical controller or plant control system
- Black painted housing matches existing plant colour coding and OEM specification requirements
- Standard form fit and function replacement for YTC pattern positioners installed on linear actuators
- Simple analog electro pneumatic design provides reliable operation without the complexity of internal CPU firmware
- Offsets stem friction and unbalanced forces caused by process medium pressure fluctuations on the regulating valve
Problems It Solves
- Linear valve actuators cannot respond directly to electrical control room signals without electro pneumatic conversion
- Process medium pressure fluctuations generate unbalanced forces that disrupt valve stem positioning
- Stem friction causes regulating valves to stick or deviate from target control chamber signals
- Original brand positioners face long delivery times when emergency plant replacements are needed
- Control loops require split range operation but the existing hardware only accepts standard full-range inputs
Application Scenarios
- Operating pneumatic linear control valves using an analog DC 4 to 20 mA controller signal
- Sequencing two control valves from a single controller output using split range signal calibration
- Replacing damaged or worn YTC type positioners on existing linear valve assemblies
- OEM valve assembly where black painted electro pneumatic positioners are required by specification
- Stocking replacement positioners for maintenance teams servicing plants with linear regulating valves
Who It Is For
- Plant instrument technicians maintaining pneumatic linear control valves and regulating systems
- Valve and actuator manufacturers assembling control valves with black positioners under OEM arrangements
- EPC contractors procuring field instrumentation and positioners for plant construction packages
- Instrumentation distributors supplying YTC pattern replacement units to local process facilities
- Trading companies sourcing form fit and function replacements for plant maintenance spares
Technical Features
- Accepts standard DC 4 to 20 mA analog electrical input signals
- Calibratable for split range control from a single controller signal loop
- Converts electrical current signals into internal electromagnetic force to drive pneumatic output
- Operates without an internal CPU as a standard analog electro pneumatic valve positioner
- Designed specifically for operation with pneumatic linear valve actuators
- Black painted exterior housing finish
Materials and Construction
Dimensions and Connection Detail
Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control
Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Machining and finishing of the positioner housing
Assembly of internal coil and electromagnetic conversion mechanisms
Air calibration across the DC 4 to 20 mA analog input range
Application of black exterior paint finish
Final visual inspection and packaging into cartons
Quality Control
- Each positioner is calibrated across the input range prior to packaging
- Real product photos and videos can be provided from the sample room or warehouse prior to dispatch
- Faulty units are covered under an 18 month warranty and replaced upon photo or video confirmation
- Warranty replacement units are typically dispatched with the next scheduled order or sent immediately for urgent breakdowns
Customisation Options
- Housing supplied in factory black or painted in custom colours including blue and yellow
- Customer logo and branding printed on the nameplate
- Custom carton packaging options for distributors and OEMs
- Newly designed shape modules developed to match customer requirements
- Assembled alongside compatible accessories such as limit switch boxes or pilot valves
How It Compares With the Alternatives
| Smart intelligent valve positioners with CPU | Intelligent units include a CPU for PID and nonlinear compensation while the analog YT-1000L has no CPU |
|---|---|
| Pure pneumatic valve positioners | Pneumatic positioners require a 20 to 100 kPa air signal while the YT-1000L takes DC 4 to 20 mA directly |
| Rotary valve positioners | The YT-1000L is engineered for linear actuators whereas rotary models operate quarter turn valves |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Mount the YT-1000L positioner securely onto the pneumatic linear valve actuator yoke
Connect the instrument air supply line and actuator air output lines to the designated pneumatic ports
Terminate the electrical signal wiring observing correct polarity for DC 4 to 20 mA or split range input
Calibrate the zero and span settings to align valve stem travel with the analog input signal range
Verify smooth valve response across the full stroke to offset stem friction and process pressure effects
Inspect the instrument air supply routinely to prevent contamination of the internal electromagnetic mechanism
YT1000L Electro Pneumatic Valve Positioner-Black FAQ
What is the lead time for this positioner?
Regular quantities typically ship in 2 to 3 days from stock, while larger order volumes require 7 to 10 days.
What input signals does the YT-1000L accept?
It accepts an analog DC 4 to 20 mA electrical current signal, including split range signal configurations.
What is the difference between this and an intelligent positioner?
The YT-1000L is an analog electro pneumatic positioner without a CPU, whereas intelligent positioners use a CPU for calculations like nonlinear compensation.
Is this positioner suitable for rotary valves?
No, the YT-1000L is designed specifically for pneumatic linear valve actuators, not quarter turn rotary actuators.
What is your warranty policy for defective units?
We provide an 18 month warranty, replacing faulty units rather than repairing them based on photo or video evidence.
Can this unit be branded with our company logo?
Yes, we provide OEM branding with custom nameplate logos, custom cartons, and alternative housing colours.
Can I inspect the units before dispatch?
Yes, we can provide real photos and videos of your units taken in our sample room or warehouse before packing.
