YT1000R Valve Positioner Installation

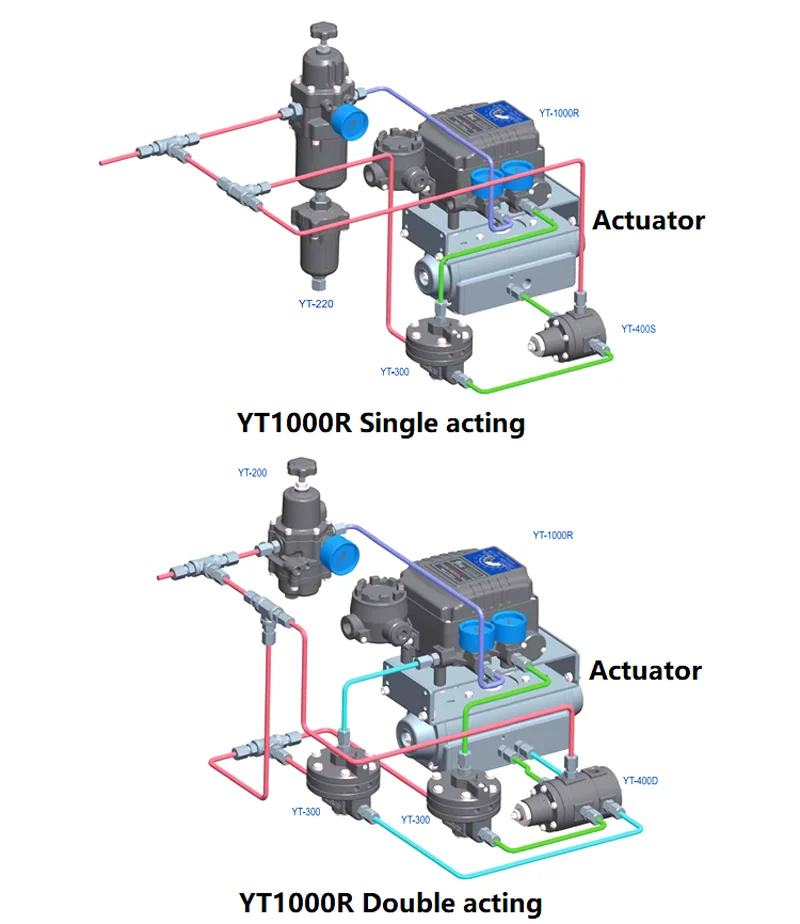

Mounting and connection reference for the YT1000R rotary valve positioner, including the published installation drawing from the original catalogue.

Products

Models This Article Refers To

YT1000R electro pneumatic valve positioner mounted on a rotary valve actuator
YTC Type Valve Positioner YT1000R Electro Pneumatic Valve Positioner-Black The YT-1000R is an electro pneumatic valve positioner for pneumatic rotary valve actuators. View Specifications →
YT1000R blue electro pneumatic rotary valve positioner front view with pressure gauges
YTC Type Valve Positioner YT1000R Electro Pneumatic Valve Positioner-Blue The YT-1000R is an electro pneumatic valve positioner designed for operating pneumatic rotary valve actuators from an... View Specifications →
YT1000R electro pneumatic rotary valve positioner with 410A limit switch box top assembly
YTC Type Valve Positioner YT1000R+410A L/S Electro Pneumatic Valve Positioner The YT-1000R with 410A limit switch box is an electro pneumatic valve positioner assembly for pneumatic rotary valve... View Specifications →
YT1000R rotary electro pneumatic valve positioner with internal PTM front view
YTC Type Valve Positioner YT1000R+PTM(Internal) Electro Pneumatic Valve Positioner The YT-1000R with internal PTM is an electro pneumatic valve positioner designed for pneumatic rotary valve actuators. View Specifications →
FAQ

Questions On This Topic

How does the rotary feedback differ from the linear version?

The R pattern reads shaft rotation through a cam rather than reading stem travel through a lever, so the alignment step is setting the cam to the closed position.

Which mounting standard does it use?

It follows the pattern used by the positioner it replaces. Send a photo of the existing bracket and we will confirm before you order.

Can position feedback be added?

Yes. The YT1000R is supplied with a 210, 410A or 410B limit switch box, or with an internal or external position transmitter module.

How is it calibrated?

Set the cam at the closed position, then trim zero at the low signal and span at the high signal, repeating until both ends hold.
