YT1000L Valve Positioner Installation

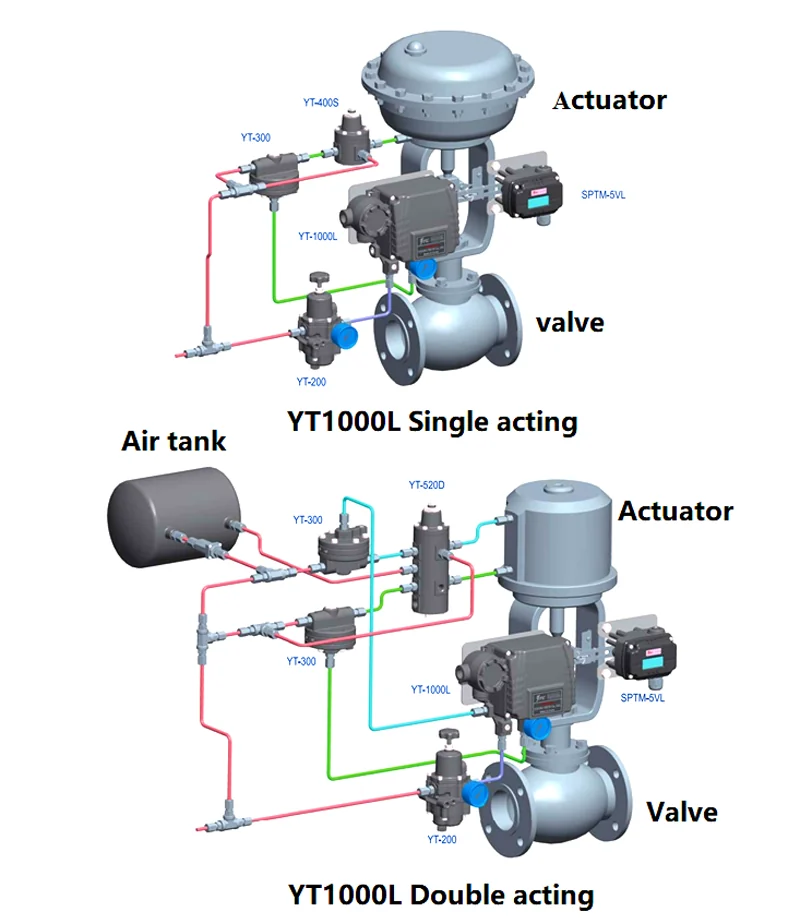

Mounting and connection reference for the YT1000L linear valve positioner, including the published installation drawing from the original catalogue.

Products

Models This Article Refers To

YT1000L electro pneumatic linear valve positioner front view with pressure gauges
YTC Type Valve Positioner YT1000L Electro Pneumatic Valve Positioner The YT-1000L is an electro-pneumatic valve positioner designed for operating pneumatic linear valve actuators. View Specifications →
YT1000L black electro pneumatic valve positioner front angle view
YTC Type Valve Positioner YT1000L Electro Pneumatic Valve Positioner-Black The YT-1000L electro pneumatic valve positioner in black housing is designed for pneumatic linear valve actuators. View Specifications →
YT1000L blue electro pneumatic valve positioner front view with pressure gauges
YTC Type Valve Positioner YT1000L Electro Pneumatic Valve Positioner-Blue The YT-1000L Electro-pneumatic valve positioner in blue housing operates pneumatic linear valve actuators from an electrical... View Specifications →
YT1000L yellow electro pneumatic valve positioner front angle view
YTC Type Valve Positioner YT1000L Electro Pneumatic Valve Positioner-Yellow The YT-1000L in yellow housing is an electro pneumatic valve positioner designed to operate pneumatic linear valve actuators... View Specifications →
FAQ

Questions On This Topic

How should the feedback lever sit?

Level at fifty percent of travel. That keeps the linkage in its linear region across the whole stroke.

In what order do I calibrate?

Zero at the low signal, span at the high signal, then repeat until both ends hold, because the two adjustments interact.

Does mounting angle matter?

Yes. Mounting in any position other than the intended one usually needs the zero adjustment redone.

What air do I need?

Clean dry instrument air through a filter regulator. Dirty or wet air is the most common cause of drift and sticking.
