QT4-15 Automatic Concrete Hollow Block Making Machine
Full hydraulic automatic machine producing 5000 to 7000 standard blocks per 8 hour shift from sand, fly ash, slag, gangue or construction waste.
Machine Overview
The QT4-15 is the entry point into the fully automatic range. A full hydraulic moulding system works with high-frequency vibration, so pressure output stays stable and the finished blocks come out dense, flat and dimensionally accurate. Feeding, distribution, moulding, demoulding and palletising all run under PLC control from a colour touch screen, with fault self-diagnosis built in. The moulding cycle is 15 to 20 seconds and a shift produces 5000 to 7000 standard blocks.
Key Benefits
- 5000 to 7000 standard blocks per 8 hour shift on a 15 to 20 second cycle
- Full hydraulic moulding gives a lower failure rate than mechanical presses
- One-key start with automatic feeding, distribution, moulding, demoulding and palletising
- Fault self-diagnosis in the PLC shortens daily troubleshooting
- Runs on sand, stone, cement, fly ash, slag, coal gangue and construction waste
At A Glance
- Model
- QT4-15
- Type
- Full Automatic Block Machine
- Family
- Automatic Concrete Block Machine
- Built in
- Linyi, Shandong, China
- Warranty
- 12 months from shipment on frame, vibration system, drive motors and PLC
Customisation
- Moulds designed from your block drawing and local wall standard
- Motor voltage and control cabinet built to your grid supply
- Free plant layout, machine foundation and batching plant drawings
- Free moulding test with your own aggregate before the order is confirmed
Who It Is For
- Medium and large brick plants running continuous shifts
- Producers who need certified dimensional accuracy on every block
- Plants under pressure to use recycled and industrial waste raw material
Problems It Solves
- Mechanical presses that lose pressure consistency and produce cracked blocks
- Labour cost that scales with output because handling is manual
- Mould wear that drifts block dimensions out of tolerance within months
Application Scenarios
- Exterior and load-bearing wall block production for housing projects
- Interlocking paver and road curbstone production by changing the mould
- Special-shaped building brick runs for a specific architectural detail
- Turning site demolition waste into saleable blocks instead of paying to dump it
Technical Features
- Full hydraulic moulding system with high-frequency vibration moulding
- Moulds cut by precision wire cutting and carburised for hardness and wear life
- Omron or Schneider control switches; Siemens or ABB main motors
- Industrial PLC with a colour touch screen human-machine interface
- Heavy steel plate welded body with integral stress relief treatment
Technical Parameters
Reproduced from the manufacturer specification. Where a figure is not published the table says so rather than carrying an estimate.
| Moulding cycle | 15-20 s |
| Output per 8 hour shift | 5000-7000 standard blocks |
| Moulding system | Full hydraulic with high-frequency vibration |
| Control | Industrial PLC with colour touch screen and fault self-diagnosis |
| Control switches | Omron or Schneider |
| Main motor | Siemens or ABB |
| Mould treatment | Precision wire cut and carburised |
| Raw materials | Sand, stone, cement, fly ash, slag, coal gangue, construction waste |
| Machine dimensions | Not published - confirmed with the quotation |
| Total power | Not published - confirmed with the quotation |
Quality Control In The Workshop
- Steel sheets are laser cut so parts carry no dimensional error
- Key stress points are welded by robotic arm for uniform strength
- The whole frame is shot blasted before automotive grade paint is applied
- Every machine is trial run in the Linyi workshop and can be witnessed on a factory visit
Use Guide
- Set the mix design for the aggregate in use before the first automatic run
- Start the line from the touch screen and let the cycle stabilise for several pallets before judging block quality
- Read the fault self-diagnosis screen first when the line stops; it names the station that halted
- Check mould wear on a schedule rather than after dimensions drift

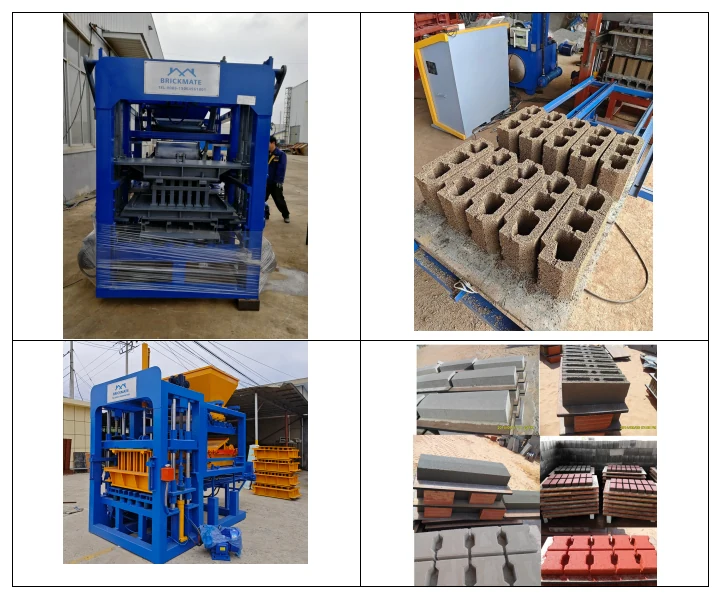

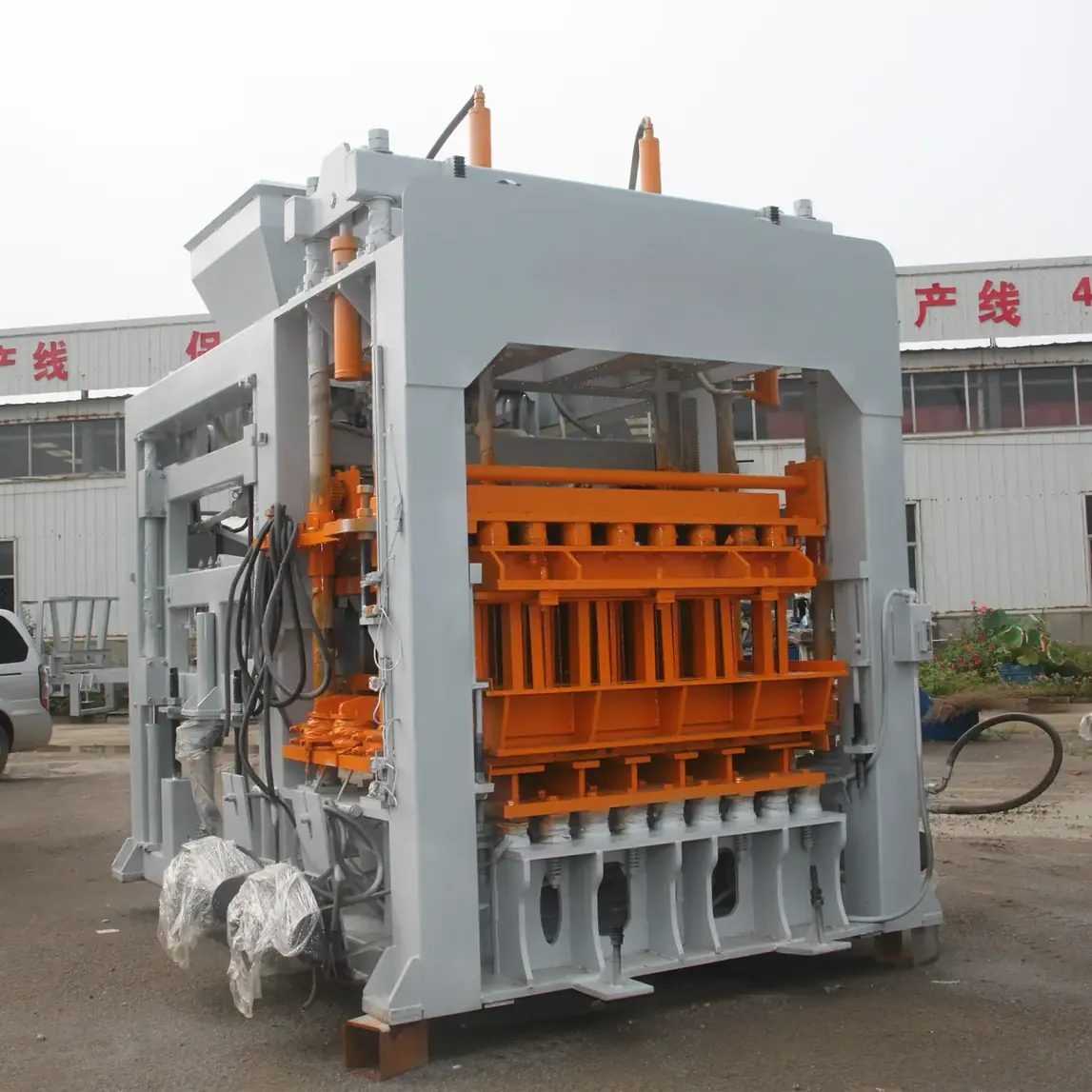

What The Machine Looks Like
How It Compares With The Alternatives
A technical comparison against the other ways of solving the same problem, using the figures each machine publishes for itself.
| QT4-25 electrical vibration machine | The QT4-25 uses electrical vibration at 70-90 kN. The QT4-15 moves to full hydraulic moulding with automatic palletising and a 15 to 20 second cycle. |
| QT5-15 automatic line | The QT5-15 publishes 1200 pieces per hour on a 400 x 200 x 200 mm block against the QT4-15's four-block mould, and supports a colour machine for layer blocks. |
| Clay brick production | Concrete blocks off this machine need no kiln firing and can be made from fly ash, slag, gangue and construction waste rather than topsoil. |
QT4-15 Automatic Concrete Hollow Block Making Machine Questions
How many blocks will a shift produce?
Which electrical brands are fitted?
Can it use construction waste as raw material?
What products can the machine make?
Why are the machine dimensions not listed?
Machines Usually Considered Alongside This One
QT5-15 Automatic Paver And Block Making Machine
Medium scale automatic plant at 1200 blocks per hour, with a colour machine option for two-layer paving blocks.
1200 pcs/hour at 400 x 200 x 200
QT4-25 Automatic Electrical Vibration Block Machine
PLC controlled press combining flat, mould and compression vibration for even density, with automatic plate supply and brick discharge.
576 pcs/hour at 400 x 200 x 200
QT6-15 Medium Large Scale Cement Brick Machine
Hydraulic automatic press moulding six hollow blocks per cycle at 40.5 kW, for plants moving into medium large scale output.
1440 pcs/hour at 400 x 200 x 200Request A Quotation For The QT4-15
Send your block sizes, target output per shift, local voltage and workshop dimensions. A configuration list, layout drawing and quotation come back.
