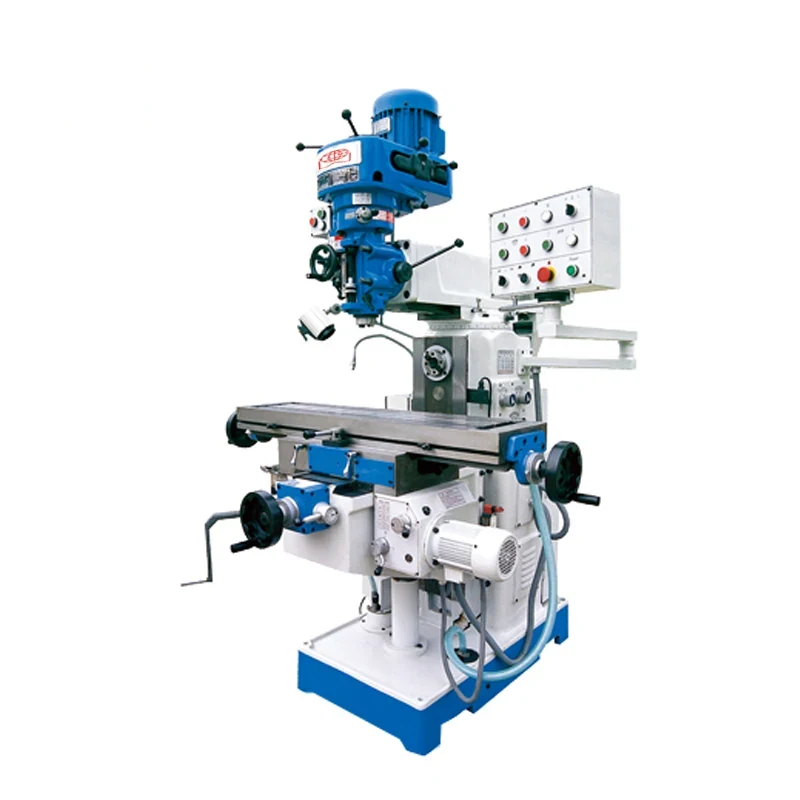

XZ6326B Universal Milling Machine
The XZ6326B is a drilling and milling machine built for shops that need one flexible machine rather than several specialised ones. Its head swivels plus or minus 45 degrees and the ram swivels through 180 degrees, so the spindle can be brought over the work from almost any direction and set at the angle the job needs, ...
What This Machine Does
The XZ6326B is a drilling and milling machine built for shops that need one flexible machine rather than several specialised ones. Its head swivels plus or minus 45 degrees and the ram swivels through 180 degrees, so the spindle can be brought over the work from almost any direction and set at the angle the job needs, without building a fixture to tilt the part. X and Y feed automatically and the Z direction is raised by motor. The table measures 1120 x 260 mm with three 14 mm T slots on 63 mm centres and carries up to 250 kg, with 600 mm longitudinal and 300 mm cross travel. For shipping, one machine is crated in a plywood case of 160 x 146 x 222 cm at 1350 kg net and 1500 kg gross, or two machines in a case of 220 x 146 x 222 cm at 2700 kg net and 2850 kg gross, loading four to eight sets in a 20 foot container and eight to sixteen in a 40 foot.
Why Buyers Choose This Machine
- Head swivel of plus or minus 45 degrees and 180 degree ram swivel reach features from almost any direction
- Drilling and milling on one machine so a small shop does not buy two
- Automatic feed on X and Y with motorised Z lift removes hand cranking from long passes
- Table of 1120 x 260 mm with 250 kg capacity suits small and medium part work
- Three 14 mm T slots on 63 mm centres take standard clamping kits
- Plywood case packing with known case sizes and weights makes freight costing straightforward
- Container loading of up to eight sets in a 20 foot and sixteen in a 40 foot keeps freight cost per machine low for dealers
Where XZ6326B Universal Milling Machine Earns Its Place
Problems It Solves
- Two separate machines for drilling and milling cost twice the floor space and capital
- Moving a part between machines loses its setting and adds error
- Fixed-column machines cannot reach features across a wide workpiece
- Angled holes and faces need a tilting fixture unless the head swivels
- Hand feeding long cuts gives uneven finish and slows the job
- Unknown packing dimensions make freight costing and container planning guesswork for importers
Who It Is For
- Small and medium workshops needing one flexible machine
- Maintenance departments handling varied repair work
- Dealers and distributors shipping machines by container
- Prototype and model workshops
- Technical schools teaching drilling and milling
Application Scenarios
- Drilling and milling the same part without moving it between machines
- Angled drilling and milling using the head swivel
- Reaching features across a wide part by swivelling the ram
- Small batch machining of parts within the 250 kg table load
- Maintenance and repair machining in a mixed workshop
- Training and general workshop milling
Technical Detail
Technical Features
- Drilling and milling machine with wide application range
- X and Y automatic feed with Z lifting motor
- Head swivel plus or minus 45 degrees
- Ram swivel 180 degrees
- Table size 1120 x 260 mm with three T slots 14 mm wide on 63 mm centres
- Maximum table load 250 kg
- Table longitudinal travel 600 mm and cross travel 300 mm
- Plywood case export packing at 160 x 146 x 222 cm for one machine
Specifications
| Machine type | Universal drilling and milling machine |
|---|---|
| Models | XZ6326B |
| Table size | 1120 x 260 mm |
| T slots | 3 slots 14 mm wide on 63 mm centres |
| Max table load | 250 kg |
| Longitudinal travel | 600 mm |
| Cross travel | 300 mm |
| Head swivel | ±45° |
| Ram swivel | 180° |
| Feed | Automatic on X and Y with Z lifting motor |
| Packing | Plywood case 160x146x222 cm one set N.W./G.W. 1350/1500 kg |
| Container loading | 20 ft 4 to 8 sets and 40 ft 8 to 16 sets |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Drilling
- Milling
- Angular milling
- Face milling
- Slot milling
Quality Control
- Spindle run-out measured after head assembly
- Head swivel and ram swivel checked for position accuracy and clamping
- Automatic X and Y feed and Z lift run over full travel
- Table surface and guideway contact checked for flatness
- Test drilling and milling cuts taken before crating
- Case contents checked against the packing list before the plywood case is closed
Customisation Options
- Drill chucks collets and milling holders specified for your tooling
- Supply voltage frequency and phase built for your market
- Digital readout offered where setting accuracy requires it
- One machine per case or two machines per case depending on your container plan
- Manual and machine plates prepared in your working language
How It Compares With the Alternatives
| XZ6350ZS universal vertical drilling and milling machine | The XZ6350ZS has a larger 1270 x 320 mm table with three-axis auto feed and tapping; the XZ6326B is the more compact machine with 180 degree ram swivel |
|---|---|
| XW6136 universal lifting table horizontal milling machine | The XW6136 is a larger lifting table machine with an ISO 50 horizontal spindle; the XZ6326B is the smaller drill-mill for shops with lighter work and less floor space |
| A pillar drill plus a bench mill | Two machines mean two setups and two sets of error on the same part; the XZ6326B drills and mills from one clamping |
Running the Machine
Step 1
Clamp the part in the 14 mm T slots within the 250 kg table load
Step 2
Swivel the ram to bring the spindle over the feature and clamp it
Step 3
Set the head swivel angle within plus or minus 45 degrees for angled work
Step 4
Fit the drill or cutter and set the spindle speed for the tool and material
Step 5
Engage automatic feed on X or Y or use the Z lift for drilling depth
Step 6
Take a trial cut and measure before machining the rest of the part
Step 7
Clear chips and follow the lubrication schedule in the manual
Other Machines in Milling
Related Applications and Guides
General Machining Job Shops
Job shops take whatever work comes through the door, which means their equipment has to cover a wide range rather than do one thing perfectly. XAIMC s
Heavy Equipment and Plant Maintenance
Mines quarries plantations and processing plants cannot wait for imported spares. XAIMC supplies the boring gear cutting turning and grinding machines
Machine Tool Installation and Commissioning Checklist
Installing an imported machine tool correctly means preparing the site, unpacking and positioning the machine, levelling it, connecting services and p
Preventive Maintenance for Manual Lathes and Milling Machines
Manual lathes and milling machines keep their accuracy through lubrication, cleanliness, correct adjustment of gibs and backlash, and regular geometri
Questions About XZ6326B Universal Milling Machine
What are the table size travels and load capacity?
The table is 1120 x 260 mm with three 14 mm T slots on 63 mm centres, a maximum load of 250 kg, 600 mm longitudinal travel and 300 mm cross travel.
How far can the head and ram be swivelled?
The head swivels plus or minus 45 degrees and the ram swivels 180 degrees.
Are the feeds automatic?
X and Y have automatic feed and Z is raised by a lifting motor.
How is the machine packed and how many fit in a container?
One machine is packed in a plywood case of 160 x 146 x 222 cm at 1350 kg net and 1500 kg gross, or two in a case of 220 x 146 x 222 cm at 2700 kg net and 2850 kg gross. A 20 foot container takes four to eight sets and a 40 foot takes eight to sixteen.
Which port do you ship from?
We ship through Qingdao or Shanghai. Tell us your destination port and we will quote CFR or CIF.
What supply voltage will the machine be built to?
Send us your voltage frequency and phase and the machine will be built to match.
What are your payment terms?
Payment is 30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight. We trade on FOB CFR and CIF.
Request a Quote on the XZ6326B Universal Milling Machine
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
