XZ6350ZB Vertical and Horizontal Auto Drill Machine

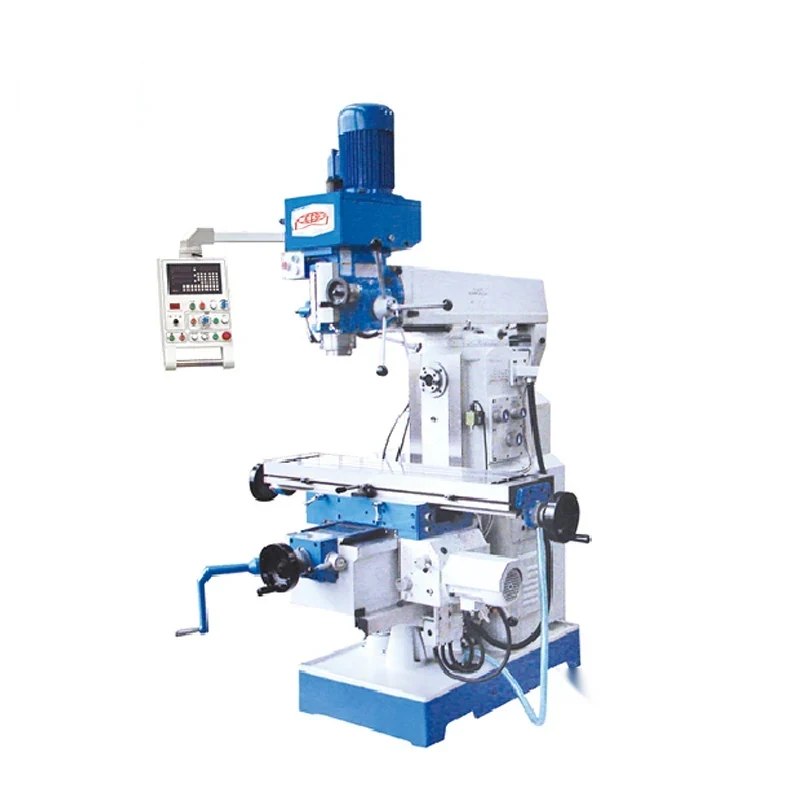

The XZ6350ZB is the horizontal and vertical version of the XZ6350 drilling and milling machine, which means work that would otherwise need the part re-clamped on its side can be reached from the front instead. The vertical milling head rotates 45 degrees to the right and to the left for angled holes and faces, the vert...
What This Machine Does
The XZ6350ZB is the horizontal and vertical version of the XZ6350 drilling and milling machine, which means work that would otherwise need the part re-clamped on its side can be reached from the front instead. The vertical milling head rotates 45 degrees to the right and to the left for angled holes and faces, the vertical milling spindle has automatic feed for controlled drilling, X and Y are fed mechanically and the Z axis is raised by motor. It is a manual universal machine used on aluminium and steel profile as well as general workshop parts. For shipping, one machine goes in a plywood case of 160 x 152 x 222 cm at 1400 kg net and 1650 kg gross, or two in a case of 220 x 152 x 222 cm at 2800 kg net and 2950 kg gross, giving three sets in a standard 20 foot container and six in a 40 foot, through Qingdao or Shanghai. Delivery is 45 to 60 days.
Why Buyers Choose This Machine
- Horizontal and vertical milling on one machine so profile work does not need re-clamping on its side
- Vertical milling head rotates 45 degrees right and left for angled holes and faces
- Automatic vertical milling spindle feed gives controlled drilling instead of hand pressure
- Mechanical feed on X and Y with motorised Z lift removes hand cranking
- Suited to aluminium and steel profile work as well as general parts
- Known case sizes and weights make freight costing and container planning straightforward
- Delivery in 45 to 60 days from order
Where XZ6350ZB Vertical and Horizontal Auto Drill Mach Earns Its Place
Problems It Solves
- Reaching a side face on a vertical-only machine means re-clamping the part and losing its datum
- Long profile sections are awkward to stand upright for vertical machining
- Hand-fed drilling varies feed pressure and breaks drills
- Angled features need a tilting fixture unless the head rotates
- Hand cranking X Y and Z is slow across a batch
- Importers cannot plan container loading without case sizes and weights
Who It Is For
- Fabricators machining aluminium and steel profile
- General workshops needing horizontal and vertical capability
- Maintenance and repair departments
- Window door and frame manufacturers working in profile
- Distributors and importers shipping machines by container
Application Scenarios
- Drilling and milling aluminium and steel profile sections
- Machining features on the side of a part using horizontal working
- Angled drilling and milling using the 45 degree head rotation
- Vertical drilling of hole patterns with automatic spindle feed
- General workshop milling and drilling on mixed parts
- Batch work in a small or medium manufacturing shop
Technical Detail
Technical Features
- Horizontal and vertical milling machine configuration
- Vertical milling head rotating 45 degrees to right and left
- Vertical milling spindle with automatic feed
- X and Y axis mechanical feed
- Z axis motor lift
- Manual universal machine suitable for aluminium and steel profile
- Plywood case packing at 160 x 152 x 222 cm for one machine and 220 x 152 x 222 cm for two
Specifications
| Machine type | Vertical and horizontal drilling and milling machine |
|---|---|
| Models | XZ6350ZB |
| Working modes | Horizontal and vertical milling |
| Vertical head rotation | 45° right and left |
| Vertical spindle feed | Automatic |
| X and Y feed | Mechanical feed |
| Z axis | Motor lift |
| Packing | Plywood case 160x152x222 cm one set N.W./G.W. 1400/1650 kg or 220x152x222 cm two sets 2800/2950 kg |
| Container loading | 3 sets in a 20 ft and 6 sets in a 40 ft container |
| Delivery | 45-60 days |
| Port | Qingdao or Shanghai |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Drilling
- Vertical milling
- Horizontal milling
- Angular machining
- Profile machining
Materials Handled
- Aluminium
- Steel
Quality Control
- Spindle run-out measured on the vertical head after assembly
- Head rotation checked for accurate setting and clamping at 45 degrees each side
- Automatic spindle feed run through its range under load
- Mechanical X and Y feed and the Z lift motor run over full travel
- Test drilling and milling cuts taken before crating
- Machine and accessories checked against the packing list before the case is closed
Customisation Options
- Tooling and holders specified for the profile sections and materials you machine
- Supply voltage frequency and phase built for your market
- Clamping and support accessories quoted for long profile work
- One or two machines per plywood case to match your container plan
- Manual and machine plates prepared in your working language
How It Compares With the Alternatives
| XZ6350ZS universal vertical drilling and milling machine | The ZS stays vertical but adds a rotating table adjustable Z feed speed and tapping; the ZB gives horizontal working with a head rotating 45 degrees to each side |
|---|---|
| XZ6350Z with spindle sleeve feed | The Z version is specified for threading with reversing three-speed sleeve feed; the ZB is specified where side-face and profile work needs horizontal milling |
| Re-clamping a part on an angle plate for side machining | Setting a part on an angle plate is slow and reduces rigidity; horizontal working reaches the side face with the part flat on the table |
Running the Machine
Step 1
Clamp the profile or part on the table with support along its length
Step 2
Choose horizontal or vertical working for the feature being machined
Step 3
Rotate the vertical milling head up to 45 degrees right or left if the feature is angled
Step 4
Fit the tool and set the spindle speed for the material whether aluminium or steel
Step 5
Engage the automatic vertical spindle feed for drilling or the mechanical X and Y feed for milling
Step 6
Use the Z lift motor to set the height and lock it before cutting
Step 7
Clear chips regularly especially when machining aluminium where swarf packs into the slots
Other Machines in Milling
Related Applications and Guides
General Machining Job Shops
Job shops take whatever work comes through the door, which means their equipment has to cover a wide range rather than do one thing perfectly. XAIMC s
Heavy Equipment and Plant Maintenance
Mines quarries plantations and processing plants cannot wait for imported spares. XAIMC supplies the boring gear cutting turning and grinding machines
Machine Tool Installation and Commissioning Checklist
Installing an imported machine tool correctly means preparing the site, unpacking and positioning the machine, levelling it, connecting services and p
Preventive Maintenance for Manual Lathes and Milling Machines
Manual lathes and milling machines keep their accuracy through lubrication, cleanliness, correct adjustment of gibs and backlash, and regular geometri
Questions About XZ6350ZB Vertical and Horizontal Auto Drill
Can the XZ6350ZB machine both horizontally and vertically?
Yes. It is a vertical and horizontal drilling and milling machine, and the vertical milling head also rotates 45 degrees to the right and to the left.
Is the spindle feed automatic?
The vertical milling spindle has automatic feed, X and Y are mechanically fed and the Z axis is raised by motor.
Is it suitable for aluminium profile?
Yes. It is used as a manual universal drilling and milling machine for aluminium and steel profile as well as general parts.
What is the delivery time?
Delivery is 45 to 60 days from order.
How is it packed and how many fit in a container?
One machine goes in a plywood case of 160 x 152 x 222 cm at 1400 kg net and 1650 kg gross, or two in a case of 220 x 152 x 222 cm at 2800 kg net and 2950 kg gross. A standard 20 foot container takes three sets and a 40 foot takes six.
Which port do you ship from?
Qingdao or Shanghai. Tell us your destination port and we will quote CFR or CIF.
What are your payment terms?
Payment is 30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the XZ6350ZB Vertical and Horizontal Auto Drill
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
