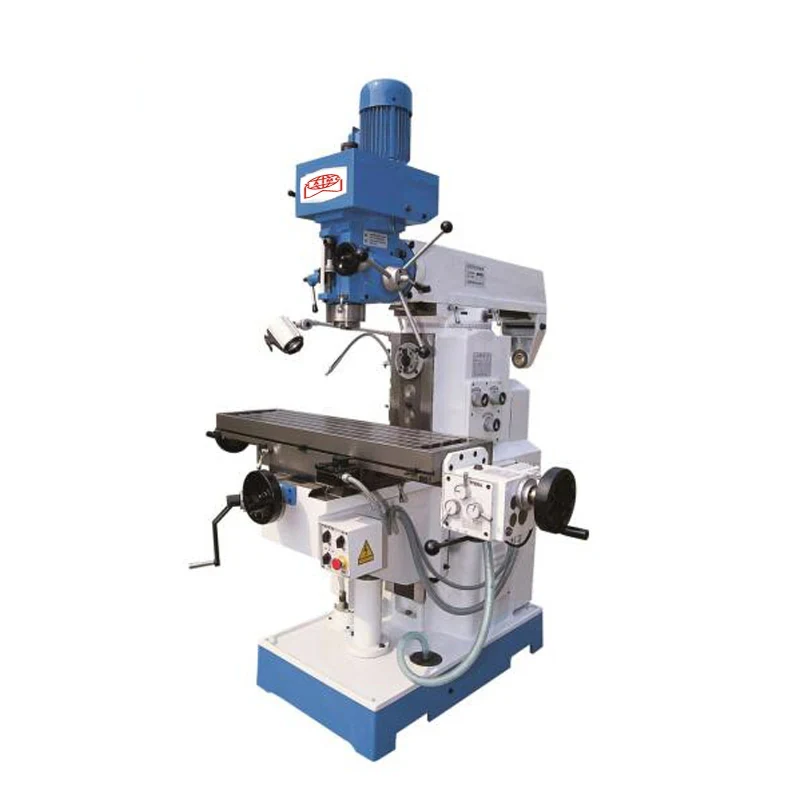

XZ6350Z Universal Vertical Drilling and Milling Machine
The XZ6350Z is the version of the XZ6350 drilling and milling machine built around spindle sleeve feed: the sleeve feeds automatically with three speeds and runs in both right and left hand rotation, which is what allows threading to be done on the machine rather than by hand afterwards. A drill depth stop with a measu...
What This Machine Does
The XZ6350Z is the version of the XZ6350 drilling and milling machine built around spindle sleeve feed: the sleeve feeds automatically with three speeds and runs in both right and left hand rotation, which is what allows threading to be done on the machine rather than by hand afterwards. A drill depth stop with a measurement display sets the hole depth so every hole in a batch stops at the same place. The Z-type milling head feeds automatically, three axis automatic feed is standard, and the machine carries a quartz working lamp, a coolant system and an emergency stop as part of the standard build. The table measures 1120 x 260 mm with 600 x 300 mm travel and the body is cast iron. Machines are crated in plywood cases of 170 x 165 x 225 cm for one machine or 226 x 165 x 225 cm for two, shipped through Qingdao or Shanghai, with a lead time of 60 days.
Why Buyers Choose This Machine
- Automatic spindle sleeve feed with three speeds gives controlled drilling instead of hand pressure
- Right and left hand rotation lets the machine cut threads and back the tap out under power
- Drill depth stop with measurement display repeats the same hole depth across a batch
- Three axis automatic feed removes hand cranking from milling passes
- Z-type milling head feeds automatically for controlled vertical cutting
- Quartz lamp and coolant supplied as standard parts rather than options
- Emergency stop fitted as part of the standard machine
- Cast iron body gives the mass to damp vibration during drilling and milling
Where XZ6350Z Universal Vertical Drilling and Milling Earns Its Place
Problems It Solves
- Hand-fed drilling varies the feed pressure and breaks drills in deep holes
- Hole depth judged by eye is inconsistent across a batch
- Tapping by hand after drilling is slow and snaps taps in blind holes
- Moving a part to a separate tapping station loses the hole position
- Poor lighting at the spindle causes setting errors which the quartz lamp removes
- Dry drilling overheats the tool and shortens its life without a coolant supply
Who It Is For
- Workshops drilling and threading batches of parts
- Maintenance departments with mixed repair machining
- Small manufacturers producing machined components
- Fabrication shops needing drilling milling and tapping in one place
- Distributors supplying drilling and milling machines by container
Application Scenarios
- Drilling batches of holes to a set depth using the depth stop
- Threading holes on the machine using the reversing spindle sleeve feed
- Vertical milling of planes slots and steps on small and medium parts
- Machining parts within the 1120 x 260 mm table and 600 x 300 mm travel
- Repair and maintenance work where drilling milling and threading all arise
- Small batch production in a workshop with limited floor space
Technical Detail
Technical Features
- Spindle sleeve feed automatic with three speeds
- Right and left handed rotation for threading
- Drill depth stop with display of measurement
- Z-type milling head that feeds automatically
- Three axis automatic feed
- Quartz lamp fitted as standard
- Coolant system fitted as standard
- Emergency stop fitted as standard
- Table size 1120 x 260 mm with table travel 600 x 300 mm
Specifications
| Machine type | Universal vertical drilling and milling machine |
|---|---|
| Models | XZ6350Z within the XZ6350C XZ6350A XZ6350Z range |
| Table size | 1120 x 260 mm |
| Table travel | 600 x 300 mm |
| Spindle sleeve feed | Automatic with 3 speeds |
| Spindle rotation | Right and left handed for threading |
| Depth control | Drill depth stop with measurement display |
| Feed | Three axis automatic feed with automatic Z-type milling head |
| Standard parts | Quartz lamp coolant system and emergency stop |
| Body material | Cast iron |
| Packing | Plywood case 170x165x225 cm one machine or 226x165x225 cm two machines |
| Lead time | 60 days |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Drilling
- Milling
- Threading
- Tapping
- Face milling
Materials Handled
- Cast iron
Quality Control
- Spindle run-out measured before the head is released to assembly
- All three spindle sleeve feed speeds run and checked under load
- Right and left hand rotation tested through the threading cycle
- Drill depth stop checked against measured depth on a test piece
- Three axis automatic feed run over full travel
- Coolant delivery quartz lamp and emergency stop function tested before crating
Customisation Options
- XZ6350C XZ6350A or XZ6350Z selected by whether you need head swivel or sleeve feed with threading
- Tapping tooling and holders specified for the thread sizes you cut
- Supply voltage frequency and phase built for your market
- One or two machines per plywood case to suit your container plan
- Manual and machine plates prepared in your working language
How It Compares With the Alternatives
| XZ6350C with 45 degree headstock swivel | The XZ6350C swivels the headstock 45 degrees for angled work; the XZ6350Z instead gives automatic three-speed sleeve feed with reversing rotation, which is the version to take when threading and repeat hole depth matter |
|---|---|
| XZ6350ZS universal vertical drilling and milling machine | The ZS version adds a larger 1270 x 320 mm table with adjustable Z axis speed and a table that rotates to 45 degrees; the Z version is the straightforward sleeve feed and threading machine |
| Drilling then tapping by hand at the bench | Hand tapping after drilling is slow and breaks taps in blind holes; reversing sleeve feed threads the hole under power in the same setting |
Running the Machine
Step 1
Clamp the part on the table and set the hole or cut position
Step 2
Set the drill depth stop and confirm the depth on its measurement display
Step 3
Select one of the three sleeve feed speeds for the drill diameter and material
Step 4
Check the coolant is reaching the tool and switch on the quartz lamp
Step 5
Drill the hole then change to the tap and select left or right hand rotation for threading
Step 6
For milling engage the three axis automatic feed and use the Z-type head feed for depth
Step 7
Confirm the emergency stop is accessible to the operator before starting production
Other Machines in Milling
Related Applications and Guides
General Machining Job Shops
Job shops take whatever work comes through the door, which means their equipment has to cover a wide range rather than do one thing perfectly. XAIMC s
Heavy Equipment and Plant Maintenance
Mines quarries plantations and processing plants cannot wait for imported spares. XAIMC supplies the boring gear cutting turning and grinding machines
Machine Tool Installation and Commissioning Checklist
Installing an imported machine tool correctly means preparing the site, unpacking and positioning the machine, levelling it, connecting services and p
Preventive Maintenance for Manual Lathes and Milling Machines
Manual lathes and milling machines keep their accuracy through lubrication, cleanliness, correct adjustment of gibs and backlash, and regular geometri
Questions About XZ6350Z Universal Vertical Drilling and Mill
What is the difference between the XZ6350Z and the XZ6350C?
The XZ6350C has a headstock that swivels 45 degrees. The XZ6350Z has automatic spindle sleeve feed with three speeds and right and left handed rotation for threading, plus a drill depth stop with a measurement display.
Can the machine cut threads?
Yes. The spindle runs in both right and left handed rotation, which is what lets you tap a hole and back the tap out under power.
What are the table size and travels?
The table is 1120 x 260 mm with table travel of 600 x 300 mm.
What is included as standard?
The Z-type milling head with automatic feed, quartz lamp, coolant system, emergency stop and three axis automatic feed are all standard parts.
What is your lead time and how is it packed?
Lead time is 60 days. Machines are crated in plywood cases of 170 x 165 x 225 cm for one machine or 226 x 165 x 225 cm for two, shipped through Qingdao or Shanghai.
What voltage and frequency do you build to?
Tell us your supply voltage frequency and phase and the machine will be built for your market.
What are your payment and trade terms?
We quote FOB CFR and CIF. Payment is 30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the XZ6350Z Universal Vertical Drilling and Mill
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
