XZ6350ZS Universal Vertical Drilling and Milling Machine

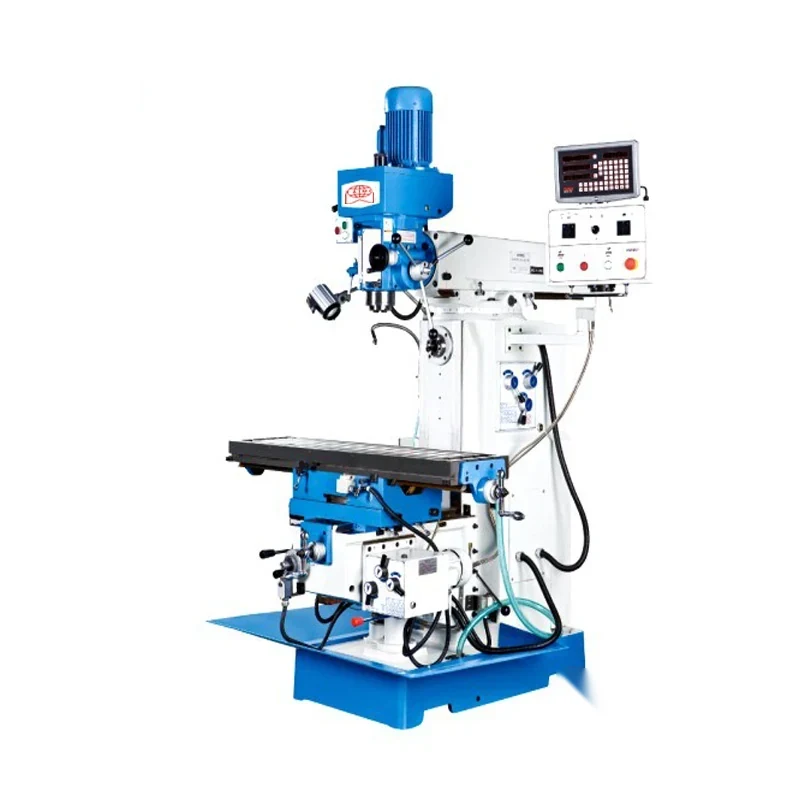

The XZ6350ZS is the largest table version in the XZ6350 milling and drilling family, with a 1270 x 320 mm table, three 14 mm T slots on 70 mm centres and a maximum load of 250 kg. What sets the ZS apart within the XZ6350Z X6350ZB XZ6350ZA XZ6350ZS range is the combination of three axis automatic feed with an adjustable...
What This Machine Does
The XZ6350ZS is the largest table version in the XZ6350 milling and drilling family, with a 1270 x 320 mm table, three 14 mm T slots on 70 mm centres and a maximum load of 250 kg. What sets the ZS apart within the XZ6350Z X6350ZB XZ6350ZA XZ6350ZS range is the combination of three axis automatic feed with an adjustable speed on the Z axis, a worktable that rotates to 45 degrees, and tapping on the machine. Adjustable Z speed matters in practice because drilling a large hole and milling down to depth want different rates, and a single fixed Z speed compromises both. Travels are 750 mm longitudinal, 270 mm cross and 380 mm vertical, and the spindle takes ISO 40 tooling. Machines ship in plywood cases of 170 x 165 x 225 cm for one machine or 226 x 165 x 225 cm for two, through Qingdao or Shanghai, with a lead time of 60 days.
Why Buyers Choose This Machine
- Three axis automatic feed with adjustable Z axis speed matches the feed rate to drilling or milling
- Worktable rotates to 45 degrees so angled work is set on the table not in a fixture
- Tapping on the machine keeps threading in the same setting as the drilled hole
- 1270 x 320 mm table with 250 kg capacity is the largest in the XZ6350 range
- Travels of 750 x 270 x 380 mm cover larger parts than the 1120 x 260 mm versions
- ISO 40 spindle taper accepts widely available tooling
- Two machines per plywood case reduces freight cost per unit for dealers
Where XZ6350ZS Universal Vertical Drilling and Milling Earns Its Place
Problems It Solves
- A fixed Z feed speed is wrong either for drilling or for milling depth
- Threading at a separate station loses the hole position set on the drilling machine
- Angled features need a tilting fixture unless the table itself rotates
- Smaller tables in the range run out of clamping area for larger parts
- Hand feeding three axes is slow and gives an uneven finish
- Uncertain packing details make container planning and freight costing difficult for importers
Who It Is For
- Workshops needing drilling milling and tapping in one machine
- Small and medium manufacturers of machined parts
- Maintenance and repair departments
- Fabrication shops finishing and threading welded assemblies
- Distributors and importers shipping by container
Application Scenarios
- Drilling milling and tapping the same part without changing machines
- Angled machining using the 45 degree table rotation
- Milling planes and slots on parts up to 250 kg
- Machining longer parts using the 750 mm longitudinal travel
- Batch production where Z feed speed is set for the operation
- General workshop and repair machining
Technical Detail
Technical Features
- Three axis automatic feed with speed adjustable on the Z axis
- Worktable rotating to 45 degrees
- Tapping capability on the machine
- Table size 1270 x 320 mm with three T slots 14 mm wide on 70 mm centres
- Maximum table load 250 kg
- Longitudinal travel 750 mm cross travel 270 mm and vertical travel 380 mm
- Spindle taper ISO 40
- Plywood case packing with one or two machines per case
Specifications
| Machine type | Universal vertical drilling and milling machine |
|---|---|
| Models | XZ6350ZS within the XZ6350Z X6350ZB XZ6350ZA XZ6350ZS range |
| Table size | 1270 x 320 mm |
| T slots | 3 slots 14 mm wide on 70 mm centres |
| Max table load | 250 kg |
| Longitudinal travel (X) | 750 mm |
| Cross travel (Y) | 270 mm |
| Vertical travel (Z) | 380 mm |
| Spindle taper | ISO 40 |
| Feed | 3 axis auto feed with adjustable speed on Z |
| Table rotation | To 45° |
| Packing | Plywood case 170x165x225 cm one machine or 226x165x225 cm two machines |
| Lead time | 60 days |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Drilling
- Milling
- Tapping
- Angular machining
- Slot milling
Quality Control
- Spindle run-out measured at the ISO 40 taper after head assembly
- Three axis automatic feed run over full travel and Z speed adjustment checked through its range
- Table rotation checked for accurate setting and clamping at 45 degrees
- Tapping function tested on a sample thread
- Table surface and guideway contact checked for flatness
- Test machining performed before the machine is crated
Customisation Options
- ZS ZA ZB or Z version chosen against the table size and functions you need
- Tapping tooling specified for your thread sizes
- ISO 40 holders and collets specified to match your existing tooling
- Supply voltage frequency and phase built for your market
- One or two machines per plywood case to fit your container loading plan
How It Compares With the Alternatives
| XZ6350Z with spindle sleeve feed | The Z version drives threading from a three-speed reversing sleeve feed on a 1120 x 260 mm table; the ZS gives the larger 1270 x 320 mm table, adjustable Z speed and a rotating worktable |
|---|---|
| XZ6350ZB vertical and horizontal drilling milling machine | The ZB gives horizontal and vertical working with a head rotating 45 degrees to each side; the ZS keeps to vertical work but adds table rotation adjustable Z feed and tapping |
| A separate drill press mill and tapping station | Three machines mean three setups on the same part and three chances of losing position; the ZS does all three from one clamping |
Running the Machine
Step 1
Clamp the part in the 14 mm T slots within the 250 kg table load
Step 2
Rotate the worktable to the required angle up to 45 degrees and lock it
Step 3
Fit the tool in the ISO 40 spindle and set the spindle speed for the operation
Step 4
Set the Z axis feed speed for drilling or for milling depth as the operation requires
Step 5
Engage the automatic feed on the axis being cut
Step 6
For tapping select the tapping mode and run the thread in the same setting as the drilled hole
Step 7
Measure the first part before running the batch and keep the ways clear of chips
Related Applications and Guides
General Machining Job Shops
Job shops take whatever work comes through the door, which means their equipment has to cover a wide range rather than do one thing perfectly. XAIMC s
Heavy Equipment and Plant Maintenance
Mines quarries plantations and processing plants cannot wait for imported spares. XAIMC supplies the boring gear cutting turning and grinding machines
Machine Tool Installation and Commissioning Checklist
Installing an imported machine tool correctly means preparing the site, unpacking and positioning the machine, levelling it, connecting services and p
Preventive Maintenance for Manual Lathes and Milling Machines
Manual lathes and milling machines keep their accuracy through lubrication, cleanliness, correct adjustment of gibs and backlash, and regular geometri
Questions About XZ6350ZS Universal Vertical Drilling and Mil
What makes the ZS different from the other XZ6350 versions?
The ZS has three axis automatic feed with adjustable speed on the Z axis, a worktable that rotates to 45 degrees, and tapping, on a larger 1270 x 320 mm table.
What are the travels and table load?
Longitudinal travel 750 mm, cross travel 270 mm, vertical travel 380 mm, with a maximum table load of 250 kg.
What spindle taper does it use?
ISO 40. Tell us the tool holders you already own and we will confirm compatibility.
Can it tap threads?
Yes, tapping is part of the ZS specification, so the thread is cut in the same setting as the drilled hole.
What is your lead time and packing?
Lead time is 60 days. Machines go in plywood cases of 170 x 165 x 225 cm for one machine or 226 x 165 x 225 cm for two, shipped from Qingdao or Shanghai.
What voltage can you build to?
Send us your supply voltage frequency and phase and the machine will be built to match.
What are your payment and trade terms?
FOB CFR and CIF are available. Payment is 30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the XZ6350ZS Universal Vertical Drilling and Mil
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
