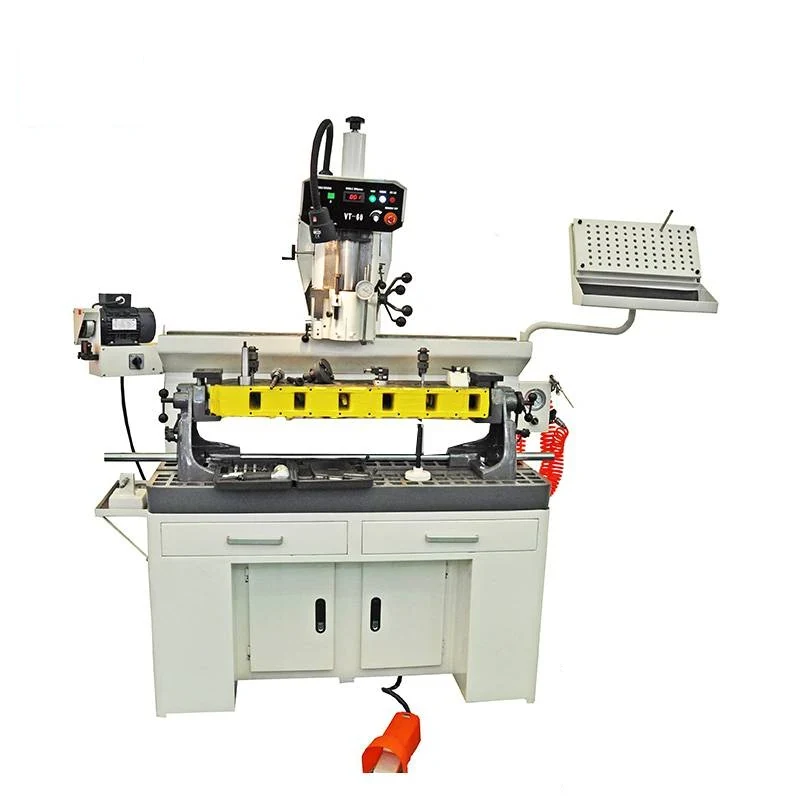

Valve Guide & Seat Cutting Machine VT60
The VT60, sold in the United States as the VSB60, is a guide and seat machine built for a shop that takes in everything from subcompacts to big diesels. It will set up and run any head up to 1220 mm long, and up to 1370 mm with a special fixture, which is the practical reason a shop buys it rather than a car-only machi...
What This Machine Does
The VT60, sold in the United States as the VSB60, is a guide and seat machine built for a shop that takes in everything from subcompacts to big diesels. It will set up and run any head up to 1220 mm long, and up to 1370 mm with a special fixture, which is the practical reason a shop buys it rather than a car-only machine. The work it covers is the full head job, not just the seat: installation of valve guide inserts, cutting of valve insert pockets in aluminium or cast iron, simultaneous multi-angle cutting of valve seats, drilling and tapping for threaded studs or removal of broken exhaust studs, and bronze guide liner installation and reaming. Simultaneous multi-angle seat cutting is the part that changes the day's throughput, because the seat form is produced in one pass instead of one angle at a time. Operating air pressure is 0.8 MPa.
Why Buyers Choose This Machine
- Takes heads up to 1220 mm long and 1370 mm with a special fixture, so subcompact and big diesel heads run on one machine
- Simultaneous multi-angle cutting produces the whole seat form in one pass instead of angle by angle
- Cuts valve insert pockets in both aluminium and cast iron heads
- Installs valve guide inserts and bronze guide liners and reams them on the same machine
- Drills and taps for threaded studs and removes broken exhaust studs, so stud work does not go to another bench
- One machine covers guide work seat work and stud work, which is the whole head job in one setup
Where Valve Guide & Seat Cutting Machine VT60 Earns Its Place
Problems It Solves
- A machine sized for car heads cannot take a big diesel head, which splits the work across two shops
- Cutting each seat angle separately is slow and gives an inconsistent seat form
- Guide insert installation and reaming on a separate setup loses the reference to the seat
- Broken exhaust studs stop a head job when there is no way to drill them out on the machine
- Insert pockets in aluminium and cast iron need different handling that hand tooling struggles with
Who It Is For
- Cylinder head specialists building a dedicated headwork business
- Engine rebuild shops handling both car and heavy diesel heads
- Workshops that currently send guide inserts and stud removal out to a subcontractor
- Distributors supplying head machining equipment to engine rebuilders
Application Scenarios
- Installing valve guide inserts in a worn cylinder head
- Cutting valve insert pockets in an aluminium head before fitting new inserts
- Cutting a multi-angle valve seat form in one operation
- Removing a broken exhaust stud and tapping the hole for a new threaded stud
- Installing and reaming bronze guide liners
- Running long diesel heads up to 1370 mm with the special fixture
Technical Detail
Technical Features
- Installation of valve guide inserts
- Cutting of valve insert pockets in aluminium or cast iron
- Simultaneous multi-angle cutting of valve seats
- Drilling and tapping for threaded studs
- Removal of broken exhaust studs
- Bronze guide liner installation and reaming
- Head capacity up to 1220 mm long, 1370 mm with special fixture
- Operating air pressure 0.8 MPa
Specifications
| Machine type | Valve guide and seat cutting machine |
|---|---|
| Models | VT60 (US model VSB60) |
| Max head length | 1220 mm (48 inch) |
| Max head length with special fixture | 1370 mm (54 inch) |
| Air pressure | 0.8 MPa |
| Seat cutting | Simultaneous multi-angle |
| Guide work | Valve guide insert installation, bronze guide liner installation and reaming |
| Stud work | Drilling and tapping for threaded studs, removal of broken exhaust studs |
| Head materials handled | Aluminium and cast iron |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Seat cutting
- Multi-angle seat cutting
- Boring of insert pockets
- Reaming
- Drilling
- Tapping
Materials Handled
- Aluminium
- Cast iron
- Bronze guide liners
Quality Control
- Multi-angle seat form checked on a sample head after cutting
- Guide reaming size verified on an installed bronze liner
- Fixture clamping tested at the full 1220 mm head length
- Air system checked at the 0.8 MPa operating pressure before shipment
- Machine run in and test cut before packing
Customisation Options
- Special fixture supplied where heads up to 1370 mm long must be run
- Multi-angle seat cutter sets specified for your seat forms and diameters
- Guide reamers and bronze liner tooling specified for your guide sizes
- Supply voltage frequency and manual language set to your market
How It Compares With the Alternatives
| XAIMC TS60 valve seat and guide cutting machine | The TS60 is built for motorcycle and small multivalve heads up to 600 mm; the VT60 runs heads up to 1220 mm and adds stud and guide insert work |
|---|---|
| Single-angle seat cutting | Cutting each angle in turn takes several setups and gives a seat form that varies; the VT60 cuts the angles simultaneously |
| Sending guide and stud work out | Subcontracting guide inserts and broken stud removal adds turnaround to every head; this machine keeps the whole job on one bench |
Running the Machine
Step 1
Set up the head on the machine, using the special fixture if the head is longer than 1220 mm
Step 2
Confirm shop air is available at 0.8 MPa
Step 3
Install valve guide inserts or bronze guide liners first and ream them to size
Step 4
Cut the valve insert pockets if new inserts are being fitted, to suit aluminium or cast iron
Step 5
Cut the valve seats with the multi-angle cutter in one pass
Step 6
Drill and tap for threaded studs or remove broken exhaust studs as required
Step 7
Check seat width and concentricity on the first valve before working through the head
Other Machines in Engine Rebuilding Machine
Universal Workstation TWS1100/TWB500
View Machine →
Vacuum Tester ZJ45
View Machine →
Auto Spare Parts Ultrasonic Cleaner Machine UCM1500
View Machine →
Drum and Disc Brake Cutting Lathe Machine C9350C/C9370C
View Machine →Related Applications and Guides
Engine Rebuilding Workshops
Engine rebuilding workshops recondition blocks heads crankshafts and valves to a geometry the engine will hold for a full service life. XAIMC supplies
Automotive Service and Fleet Workshops
Service centres and fleet depots keep vehicles moving. XAIMC supplies the lifting tyre wheel and fluid handling equipment those workshops use, includi
Cylinder Boring vs Honing - What Each Operation Does
Boring removes metal to bring a worn cylinder back to a round straight bore at a new oversize, while honing produces the final diameter, geometry and
How to Choose a Valve Seat Cutting Machine
A valve seat cutting machine machines the seat angles and the valve guide bore in a cylinder head so that the valve seals concentrically against the s
Questions About Valve Guide & Seat Cutting Machine VT60
How long a cylinder head will it take?
Any head up to 1220 mm long as standard, and up to 1370 mm with a special fixture. Send us the longest head you run and we will confirm whether you need the fixture.
Does it cut all the seat angles at once?
Yes. It performs simultaneous multi-angle cutting of valve seats, so the seat form is produced in one operation.
Can it remove broken exhaust studs?
Yes. Drilling and tapping for threaded studs and removal of broken exhaust studs are both jobs the machine is set up for.
Does it handle aluminium heads as well as cast iron?
Yes. Cutting of valve insert pockets is specified for both aluminium and cast iron.
What air supply does it need?
Operating air pressure is 0.8 MPa. Confirm your shop air supply can hold that before installation.
What is the VSB60?
VSB60 is the US model designation for the same machine.
What are your payment and trade terms?
FOB CFR and CIF. Payment is 30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the Valve Guide & Seat Cutting Machine VT60
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
