Vacuum Tester ZJ45

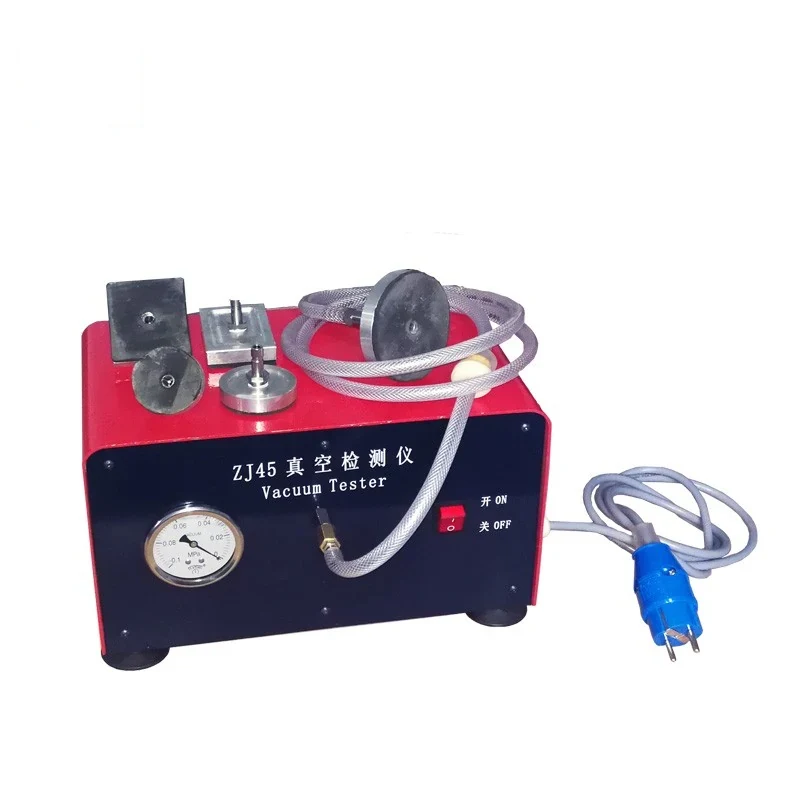

The ZJ45 is a portable vacuum tester used to check how well an engine valve is sealing against its seat. The cone faces of valve and seat decide whether the cylinder holds compression, and until they are tested the only evidence a rebuilder has is how the engine sounds once it is back together. The ZJ45 draws a vacuum ...
What This Machine Does
The ZJ45 is a portable vacuum tester used to check how well an engine valve is sealing against its seat. The cone faces of valve and seat decide whether the cylinder holds compression, and until they are tested the only evidence a rebuilder has is how the engine sounds once it is back together. The ZJ45 draws a vacuum on the port and reads the level reached: if the vacuum degree is below 600 mbar the valve and seat need repair. The valve cone is then refaced on a valve machine and the seat cone bored on a valve seat boring machine, and the same tester is used afterwards to confirm the repair has worked. Vacuum level is 900 mbar with an output of 36 L/Min at 50Hz from a 100W motor on a 220V single-phase supply. At 0.6 kg the unit is carried to the head rather than the head being carried to it, and it can be used to test other vacuum applications.
Why Buyers Choose This Machine
- Gives a measured pass or fail on valve and seat sealing instead of a judgement by eye
- 600 mbar is a clear decision threshold for whether the valve and seat need repair
- Tests before and after rebuilding so the repair is confirmed before the head is assembled
- Portable at 0.6 kg so the tester goes to the head on the bench or in the workshop
- Runs from an ordinary 220V single-phase supply with a 100W motor
- Can also be used for testing other vacuum applications in the shop
Where Vacuum Tester ZJ45 Earns Its Place
Problems It Solves
- Leaking valve seats are only discovered after the engine is assembled and running
- There is no objective way to tell whether a lapped valve actually seals
- Repair work cannot be signed off without a measurement of the result
- Stripping a head to find which valve leaks wastes time when the leak can be located first
- Bench vacuum equipment is too bulky to bring to the head on the workbench
Who It Is For
- Engine rebuilding workshops assembling cylinder heads
- Automotive and agricultural machinery repair shops
- Cylinder head reconditioning shops checking their own work
- Distributors supplying rebuild tooling to workshops in export markets
Application Scenarios
- Checking valve and seat sealing on a used cylinder head before deciding on a rebuild
- Verifying valve sealing after valve refacing and seat boring
- Spot checking each cylinder's valve seal during head assembly
- Diagnosing which cylinder in a head is leaking before stripping it
- General vacuum measurement tasks in a repair workshop
Technical Detail
Technical Features
- Portable vacuum measuring device for valve and valve seat leakproofness
- Vacuum level 900 mbar
- Output 36 L/Min at 50Hz
- Motor power 100W
- Power supply 220V single phase
- 600 mbar threshold for deciding repair is needed
- Usable for other vacuum testing applications
Specifications
| Machine type | Portable vacuum tester for engine valve and valve seat sealing |
|---|---|
| Models | ZJ45 |
| Vacuum level | 900 mbar |
| Output | 36 L/Min at 50Hz |
| Power | 100W |
| Power supply | 220V / 1PH |
| Repair threshold | Below 600 mbar the valve and seat need repair |
| Weight | 0.6 kg |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Vacuum testing
- Valve seal inspection
Quality Control
- Vacuum level verified against the 900 mbar figure before shipment
- Output flow checked against 36 L/Min at 50Hz
- Gauge reading cross-checked against a reference instrument
- Motor run tested at 220V single phase
- Unit function tested on a sample cylinder head before packing
Customisation Options
- Supply voltage and frequency confirmed for your market before shipment
- Test adaptors specified for the port shapes in the engines you work on
- Quantities packed for a workshop chain or a distributor's stock
- Manual prepared in your working language
- Supplied together with valve and seat machines as a package for a rebuild line
How It Compares With the Alternatives
| Pouring solvent into the port | A solvent check shows only a gross leak; the ZJ45 gives a vacuum reading you can compare against the 600 mbar threshold |
|---|---|
| Cylinder head pressure tester TPT1600 | The TPT1600 tests the coolant circuit for cracks; the ZJ45 tests the valve to seat seal, so the two check different faults on the same head |
| Running the engine to find the leak | Testing on the bench finds the leaking valve before assembly rather than after a full rebuild |
Running the Machine
Step 1
Connect the ZJ45 to a 220V single-phase supply
Step 2
Seal the tester head over the port above the valve being tested
Step 3
Run the unit and let the vacuum reading settle
Step 4
Treat a reading below 600 mbar as a valve and seat that need repair
Step 5
Reface the valve cone on a valve machine and bore the seat cone on a valve seat boring machine
Step 6
Retest the same valve after the repair and compare the reading
Step 7
Work through each valve in the head before assembly
Other Machines in Engine Rebuilding Machine
Related Applications and Guides
Engine Rebuilding Workshops
Engine rebuilding workshops recondition blocks heads crankshafts and valves to a geometry the engine will hold for a full service life. XAIMC supplies
Automotive Service and Fleet Workshops
Service centres and fleet depots keep vehicles moving. XAIMC supplies the lifting tyre wheel and fluid handling equipment those workshops use, includi
Cylinder Boring vs Honing - What Each Operation Does
Boring removes metal to bring a worn cylinder back to a round straight bore at a new oversize, while honing produces the final diameter, geometry and
How to Choose a Valve Seat Cutting Machine
A valve seat cutting machine machines the seat angles and the valve guide bore in a cylinder head so that the valve seals concentrically against the s
Exporting a Cylinder Block and Cylinder Head Pressure Tester
Pressure testing is the step that decides whether the hours about to be spent on a block or head are worth spending. Without it, a crack is found afte
Questions About Vacuum Tester ZJ45
What reading means the valve needs repair?
If the vacuum degree is below 600 mbar, the valve and valve seat need to be repaired.
What power supply does it need?
220V single phase, with a 100W motor. Confirm your supply on the order and we will set the unit for your market.
Can it be used after a repair as well as before?
Yes. It is used to test the seal level of the valve and seat before or after rebuilding, so the repair is confirmed before the head goes back together.
Can it test anything other than valves?
Yes. It can be applied to test other vacuum applications as well as valve and valve seat leakproofness.
How portable is it?
The unit weighs 0.6 kg, so it is carried to the cylinder head on the bench.
Do you supply it with valve machines?
Yes. It is commonly ordered with our valve grinding machines and valve seat boring machines as part of a head reconditioning package. Tell us what else you need and we will quote together.
What are your payment and trade terms?
FOB CFR and CIF. Payment is 30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
