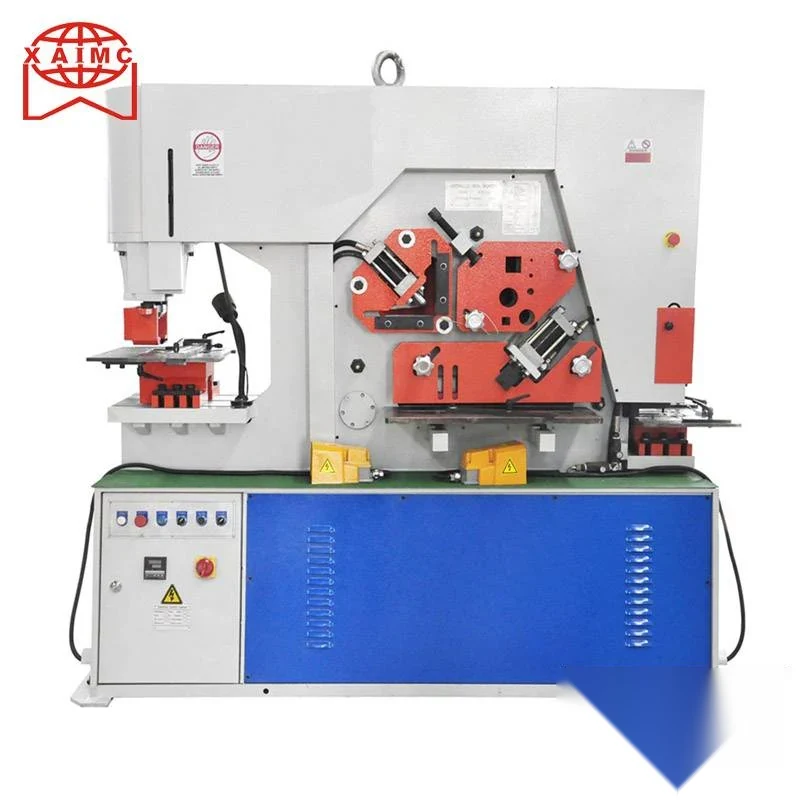

Q35Y-20 Hydraulic Ironworker Punching and Shearing Machine
The Q35Y-20 is a combined punching and shearing machine, the hydraulic ironworker that replaces four separate machines in a steel fabrication shop. Its five basic functions are punching, steel shearing, plate shearing, angle iron shearing and template shearing, and the tooling stations extend that to round and square b...
What This Machine Does

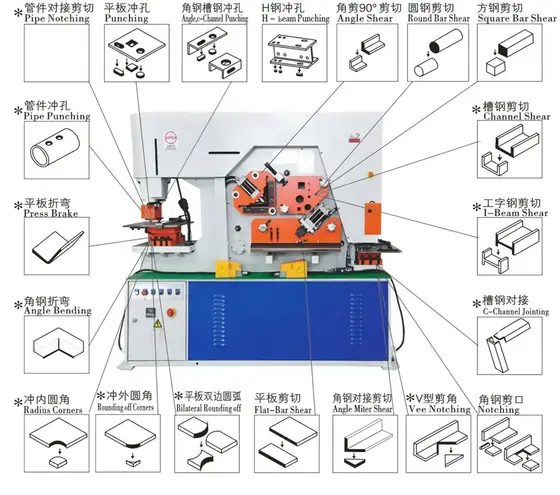

The Q35Y-20 is a combined punching and shearing machine, the hydraulic ironworker that replaces four separate machines in a steel fabrication shop. Its five basic functions are punching, steel shearing, plate shearing, angle iron shearing and template shearing, and the tooling stations extend that to round and square bar shearing, rectangular notching, V-notching, channel shear, I-beam shear, T-bar shearing, press braking, angle bending and pipe notching. Hydraulic drive holds force through the full stroke, which is what lets one machine punch a hole and then shear a section without changing its character. Standard equipment includes a quick-change coupling nut and sleeve for fast tool changes, a squaring arm with scale, an electronic back gauge, a gauging table with stops, a punching base table and safety guards. The machine is classified under HS 8462 and is made in the Q35Y series as Q35Y-16, Q35Y-20, Q35Y-25 and Q35Y-30.
Why Buyers Choose This Machine
- Five basic functions in one machine replace separate punch shear and notching equipment
- Quick-change coupling nut and sleeve makes punch changes fast between jobs
- Electronic back gauge and gauging table with stops repeat cut and hole positions
- Squaring arm with scale keeps cuts square without marking out every piece
- Hydraulic drive holds full force through the stroke across all the stations
- Angle bending press braking and pipe notching handled without a second machine
- Safety guards fitted as standard equipment rather than added afterwards
Where Q35Y-20 Hydraulic Ironworker Punching and Sheari Earns Its Place
Problems It Solves
- Buying separate punch shear and notching machines ties up floor space and capital
- Drilling bolt holes in section is far slower than punching them
- Cutting angle and channel with a saw or torch leaves an edge that needs dressing
- Marking out every hole and cut position is slow and introduces errors
- Notching and coping by hand with a grinder gives inconsistent joint fit
Who It Is For
- Steel fabrication and structural workshops
- Gate fence and grating manufacturers working in section
- Maintenance and plant workshops cutting and punching steel
- Distributors supplying ironworkers to fabrication shops
Application Scenarios
- Fabricating steel structures from angle channel and flat bar
- Punching bolt holes in plate and section before assembly
- Notching and coping sections for welded joints
- Cutting round and square bar to length in a fabrication shop
- Light press braking and angle bending without setting up a press brake
Technical Detail
Technical Features
- Combined punching and shearing hydraulic ironworker
- Five basic functions punching steel shearing plate shearing angle iron shearing and template shearing
- Stations for round and square bar shear rectangular notch V-notch channel shear I-beam shear and T-bar shearing
- Press brake and angle bending capability
- Pipe notching capability
- Quick-change coupling nut and sleeve
- Squaring arm with scale
- Electronic back gauge and gauging table with stops
- Punching base table and safety guards as standard
Specifications
| Machine type | Hydraulic combined punching and shearing machine ironworker |
|---|---|
| Models | Q35Y-16 Q35Y-20 Q35Y-25 Q35Y-30 |
| Basic functions | Punching steel shearing plate shearing angle iron shearing and template shearing |
| Additional stations | Round and square bar shear rectangular notch V-notch channel shear I-beam shear T-bar shear press brake angle bending pipe notching |
| Standard equipment | Quick-change coupling nut and sleeve squaring arm with scale electronic back gauge gauging table with stops punching base table and safety guards |
| Drive | Hydraulic |
| HS classification | 8462 machine tools for forging hammering bending and die-stamping |
| Origin | Xi'an Shaanxi China |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Punching
- Shearing
- Notching
- Press braking
- Angle bending
- Pipe notching
Quality Control
- Hydraulic system pressure tested and checked for leaks
- Punch and die alignment checked at each station
- Electronic back gauge position verified against test pieces
- Safety guards and interlocks function tested before despatch
- Test punching and shearing carried out on sample material before packing
Customisation Options
- Model specified from Q35Y-16 Q35Y-20 Q35Y-25 and Q35Y-30 for your section sizes
- Punch and die sets quoted for your hole sizes and section profiles
- Notching and coping tooling specified for your joint details
- Supply voltage phases and frequency built for your market
- Manual and control labelling in your working language
How It Compares With the Alternatives
| Separate shear punch and notching machines | Separate machines each need their own floor space power and operator; the Q35Y-20 covers punching shearing notching and bending in one station layout |
|---|---|
| QC12Y hydraulic swing beam shear | The QC12Y is the machine for wide plate cutting to full width; the Q35Y-20 is for section work bar cutting punching and notching rather than long plate cuts |
| Drilling holes and cutting with a saw or torch | Drilling and thermal cutting are slower per hole and per cut and leave edges that need dressing; punching and shearing produce a finished edge directly |
Running the Machine
Step 1
Choose the station for the operation punching shearing notching or bending
Step 2
Fit the punch and die or blade set using the quick-change coupling nut and sleeve
Step 3
Set the back gauge and the gauging table stops for the hole or cut position
Step 4
Use the squaring arm with scale to hold the piece square to the blade
Step 5
Make a test piece and check hole position and cut squareness before the batch
Step 6
Keep the guards in place and hands clear of the die and blade area
Step 7
Check hydraulic oil level and look for leaks as part of routine maintenance
Other Machines in Guillotine Shears
Related Applications and Guides
Sheet Metal Fabrication
Sheet metal shops cut, bend, roll and form. XAIMC supplies shears press brakes plate rolls tube benders and fibre laser cutting across the manual to C
Press Brake and Guillotine Shear Basics for Sheet Metal Shops
A guillotine shear cuts sheet to size and a press brake folds that sheet into the finished part, and the two machines together form the core of almost
Questions About Q35Y-20 Hydraulic Ironworker Punching and Sh
What can the Q35Y-20 actually do?
Its five basic functions are punching, steel shearing, plate shearing, angle iron shearing and template shearing. With the tooling stations it also handles round and square bar shearing, rectangular and V-notching, channel and I-beam shear, T-bar shearing, press braking, angle bending and pipe notching.
Which model in the series should I order?
The series covers Q35Y-16, Q35Y-20, Q35Y-25 and Q35Y-30. Send us the largest section and plate thickness you work and the biggest hole you punch and we will recommend the model.
What comes as standard with the machine?
A quick-change coupling nut and sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table and safety guards.
Can I get punches and dies for my hole sizes?
Yes. Send us the hole sizes and the material thickness you punch and we will quote the punch and die sets with the machine.
What supply voltage is the machine built for?
Tell us your voltage, phases and frequency with the order and the machine will be wired and tested to that supply.
How is it packed and shipped?
It is packed for sea freight from our storehouse in Xi'an. Tell us your destination port and we will quote FOB CFR or CIF.
What are your payment terms?
30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the Q35Y-20 Hydraulic Ironworker Punching and Sh
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
