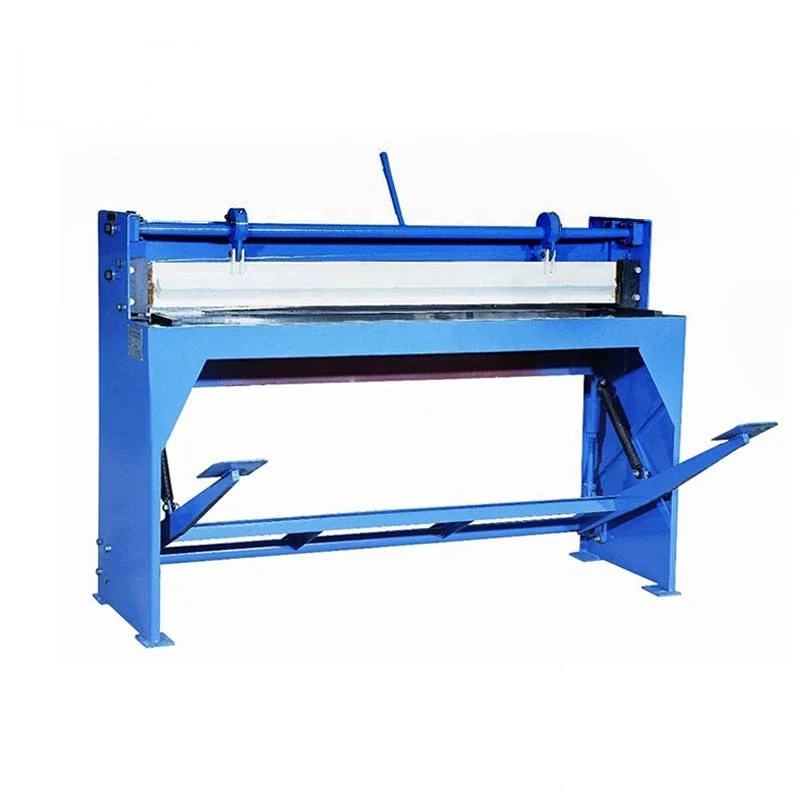

Foot Power Shearer Q11
The Q11 foot power shearer is a simple sheet shear built around a sliding guideway and a trap-pull spring return, with a fixed inside point method of control. There is little in it to go out of adjustment, which is what a duct shop wants from a machine that cuts blanks all day. The blade works at a cutting angle of 1 d...
What This Machine Does
The Q11 foot power shearer is a simple sheet shear built around a sliding guideway and a trap-pull spring return, with a fixed inside point method of control. There is little in it to go out of adjustment, which is what a duct shop wants from a machine that cuts blanks all day. The blade works at a cutting angle of 1 degree 30 minutes, the shallow angle that keeps the cut edge straight and limits the twist that pulls a long narrow strip out of shape. Three builds cover the usual duct and panel sizes: Q11 1x2000 with a 2000mm cutting length, Q11 1x1600 at 1600mm and Q11 1.2x1300 at 1300mm. Capacity is 0.5 to 1mm in mild steel on the two larger machines and 0.5 to 1.2mm on the 1300mm machine, with 0.5mm in stainless steel and 0.6mm on the 1300mm build. Machine weights are 650kg, 520kg and 380kg.
Why Buyers Choose This Machine
- Simple construction with a sliding guideway leaves little to drift out of adjustment
- Trap-pull spring return brings the blade back without a powered return circuit
- Cutting angle of 1 degree 30 minutes keeps long narrow strips from twisting as they are cut
- Cutting lengths of 2000mm 1600mm and 1300mm cover standard duct and panel blanks
- Rated for stainless steel as well as mild steel so one machine covers both jobs
- Machine weights from 380kg to 650kg give the frame mass that holds the cut line straight
Where Foot Power Shearer Q11 Earns Its Place
Problems It Solves
- Long strips twist during cutting when the blade angle is too steep
- Complex shears need constant adjustment to keep the cut square
- Cutting duct blanks by hand tools is slow and leaves uneven edges
- Undersized machines cannot take the full sheet width so blanks need two cuts
- Stainless steel work gap tears on machines not set for thin hard sheet
Who It Is For
- HVAC and ducting fabricators cutting daily blanks
- Sheet metal shops working in 0.5mm to 1.2mm material
- Stainless steel fabricators cutting thin sheet
- Distributors supplying duct machine lines
Application Scenarios
- Cutting duct blanks from coil sheet before folding
- Trimming panel and cladding sheet to width
- Stainless steel sheet cutting for catering and food equipment fabrication
- Preparing blanks for a folding machine in a sheet metal shop
- Straight cutting of light gauge sheet in a maintenance workshop
Technical Detail
Technical Features
- Simple construction with sliding guideway
- Trap-pull spring inside point fixed method control
- Cutting angle 1 degree 30 minutes on all models
- Cutting lengths of 2000mm 1600mm and 1300mm
- Rated for mild steel and stainless steel sheet
- Foot operated shearing action
Specifications
| Machine type | Foot power sheet shearing machine |
|---|---|
| Models | Q11 1x2000 Q11 1x1600 Q11 1.2x1300 |
| Max cutting material mild steel | 0.5 to 1mm on Q11 1x2000 and Q11 1x1600 0.5 to 1.2mm on Q11 1.2x1300 |
| Max cutting material stainless steel | 0.5mm on Q11 1x2000 and Q11 1x1600 0.6mm on Q11 1.2x1300 |
| Cutting length | 2000mm 1600mm or 1300mm according to model |
| Cutting angle | 1 degree 30 minutes |
| Machine size L x W x H | 2240x1100x1140mm 1800x1250x1150mm or 1500x1250x1150mm |
| Weight | 650kg 520kg or 380kg according to model |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Sheet shearing
- Straight cutting
- Duct blank cutting
Materials Handled
- Mild steel
- Stainless steel
Quality Control
- Blade straightness and clearance checked across the full cutting length
- Sliding guideway checked for free movement without play
- Spring return tested through repeated strokes
- Test cuts made in mild steel and stainless sheet before packing
Customisation Options
- Cutting length chosen from the 2000mm 1600mm and 1300mm models
- Capacity model selected according to whether you cut stainless sheet
- Spare blade set quoted with the machine
- Manual and machine markings in your working language
How It Compares With the Alternatives
| GS-1000 hand guillotine shear | The GS-1000 is a compact bench-scale foot shear for short cuts; the Q11 reaches 2000mm cutting length for full-width duct blanks |
|---|---|
| QC11K CNC hydraulic guillotine shear | The QC11K cuts heavier plate under CNC backgauge control for production work; the Q11 is a simple foot shear for thin sheet with nothing to program |
| Cutting blanks with a nibbler or angle grinder | Power tools leave a burred and uneven edge that then needs dressing; the Q11 shears a clean straight edge in one stroke |
Running the Machine
Step 1
Confirm the sheet grade and thickness are within the model rating
Step 2
Set the gauge to the blank width you need
Step 3
Feed the sheet flat against the gauge and hold it down through the cut
Step 4
Work the pedal through a complete stroke so the cut finishes cleanly at the far end
Step 5
Check the first blank for width and squareness before running the batch
Step 6
Clear swarf from the blade line between cuts
Step 7
Have the blades reground once the cut edge starts to burr
