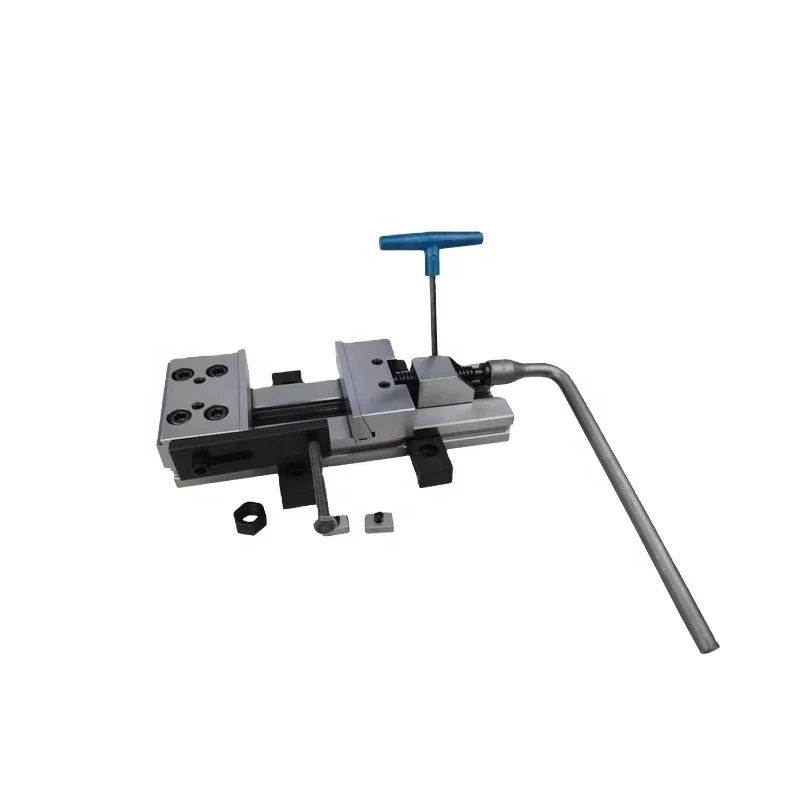

GT Modular Manual Clamping Milling Vise
The GT modular vise is a precision workholding vise for milling machines and for inspection and finishing work. The body is made from high grade steel and carburised to a surface hardness of HRC58 to 62, so the bed and jaw faces resist the wear that opens up a vise and lets the part rock. Parallelism is held at 0.005mm...
What This Machine Does
The GT modular vise is a precision workholding vise for milling machines and for inspection and finishing work. The body is made from high grade steel and carburised to a surface hardness of HRC58 to 62, so the bed and jaw faces resist the wear that opens up a vise and lets the part rock. Parallelism is held at 0.005mm per 100mm and squareness at 0.005mm, which is the accuracy a part needs if it is going to be machined on one face and measured from another. The vise is modular, so it can be mounted and combined in different positions on the table and still hold that accuracy in any position. Clamping is manual and quick to operate, which keeps the vise practical for setting single parts as well as short runs. Besides milling, it is used for precision measurement and inspection work and for holding parts on grinding, EDM and wire-cutting machines.
Why Buyers Choose This Machine
- Carburised body at HRC58 to 62 keeps jaw and bed faces from wearing out of accuracy
- Parallelism of 0.005mm per 100mm holds the part flat enough to machine and then measure
- Squareness of 0.005mm means a face machined in the vise is square to the reference face
- Modular construction keeps the stated accuracy in any mounting position
- Quick manual clamping suits single setups as well as short production runs
- One vise serves milling grinding EDM wire-cutting and inspection work
Where GT Modular Manual Clamping Milling Vise Earns Its Place
Problems It Solves
- Soft vise bodies wear at the jaw and the part sits differently every setup
- Parts lift off the bed during clamping so the machined face is not parallel
- Out-of-square vises put the machined face at an angle to the reference face
- Rebuilding a setup after moving the vise loses the accuracy you had
- Separate vises for milling grinding and EDM duplicate cost and setup work
Who It Is For
- Toolrooms and die shops needing accurate repeatable workholding
- CNC milling shops running precision components
- Inspection departments setting parts up for measurement
- Distributors supplying precision machine tool accessories
Application Scenarios
- Holding parts for precision milling on a machining centre
- Workholding on surface and precision grinding machines
- Clamping parts on EDM and wire-cutting machines
- Precision measurement and inspection setups on a surface plate
- Toolroom work where the same part is machined then checked
Technical Detail
Technical Features
- High grade steel body carburised to surface hardness HRC58 to 62
- Parallelism 0.005mm per 100mm
- Squareness 0.005mm
- Modular construction for mounting in multiple positions
- Quick manual clamping action
- Accuracy maintained in any mounting position
- Suited to milling grinding EDM wire-cutting and inspection
Specifications
| Machine type | Modular manual clamping precision milling vise |
|---|---|
| Models | GT modular vise series |
| Body material | High grade steel carburised |
| Surface hardness | HRC58 to 62 |
| Parallelism | 0.005mm per 100mm |
| Squareness | 0.005mm |
| Clamping | Manual quick clamping |
| Applications | Milling precision grinding EDM wire-cutting measurement and inspection |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Milling
- Grinding
- EDM
- Wire cutting
- Inspection setup
Quality Control
- Parallelism checked against the 0.005mm per 100mm figure after grinding
- Squareness checked against the 0.005mm figure on the assembled vise
- Surface hardness verified within the HRC58 to 62 range after carburising
- Clamping mechanism tested through full jaw travel before packing
Customisation Options
- Vise size and jaw width specified for the parts you hold
- Modular mounting arrangement prepared for your machine table
- Soft and special jaws quoted for particular workpiece shapes
- Packing and marking prepared to your requirement
How It Compares With the Alternatives
| 6 inch CNC hydraulic machine vise | The hydraulic vise clamps under power with consistent force for production; the GT modular vise is manually clamped and suits toolroom setups and inspection work |
|---|---|
| Standard cast machine vise | A general purpose vise is not ground to 0.005mm parallelism and squareness, so the part has to be indicated true every time it is reset |
| Clamping directly to the machine table | Table clamps hold the part but give no reference faces; the GT vise provides ground parallel and square references you can machine and measure from |
Running the Machine
Step 1
Clean the machine table and the vise base before mounting
Step 2
Mount the vise and indicate the fixed jaw parallel to the machine axis
Step 3
Set the part on parallels against the fixed jaw
Step 4
Clamp and tap the part down so it sits flat on the parallels
Step 5
Check the part for lift before cutting by trying the parallels for movement
Step 6
Keep the bed jaw faces and slideways clean of swarf between setups
Step 7
Oil the screw and slide to the maintenance schedule so clamping stays smooth
Related Applications and Guides
Engine Rebuilding Workshops
Engine rebuilding workshops recondition blocks heads crankshafts and valves to a geometry the engine will hold for a full service life. XAIMC supplies
General Machining Job Shops
Job shops take whatever work comes through the door, which means their equipment has to cover a wide range rather than do one thing perfectly. XAIMC s
Gear Hobbing Explained for Buyers of Gear Cutting Machines
Gear hobbing cuts gear teeth by rolling a rotating hob against a rotating blank so that the tooth form is generated rather than copied from a formed c
Radial Drilling Machine vs Bench Drilling Machine
A bench drilling machine brings the work to a fixed spindle, while a radial drilling machine moves the spindle over a heavy stationary workpiece on an
Questions About GT Modular Manual Clamping Milling Vise
What accuracy does the vise hold?
Parallelism is 0.005mm per 100mm and squareness is 0.005mm. Those figures are held in any mounting position because of the modular construction.
How hard are the working faces?
The body is high grade steel carburised to a surface hardness of HRC58 to 62, which is what stops the jaw and bed faces wearing out of accuracy.
Can it be used on a grinder or a wire cutter?
Yes. The vise is used on precision grinding, EDM and wire-cutting machines as well as on milling machines, and for measurement and inspection setups.
What sizes are available?
Tell us your jaw width requirement and the largest part you hold and we will confirm the size available and quote it.
Are special jaws available?
Soft and special jaws can be quoted with the vise. Send us drawings of the parts you clamp and we will advise.
How is the vise packed for shipment?
Vises are packed individually and shipped from our storehouse in Xi'an. Tell us your quantity and port and we will quote FOB CFR or CIF.
What are your payment terms?
30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
