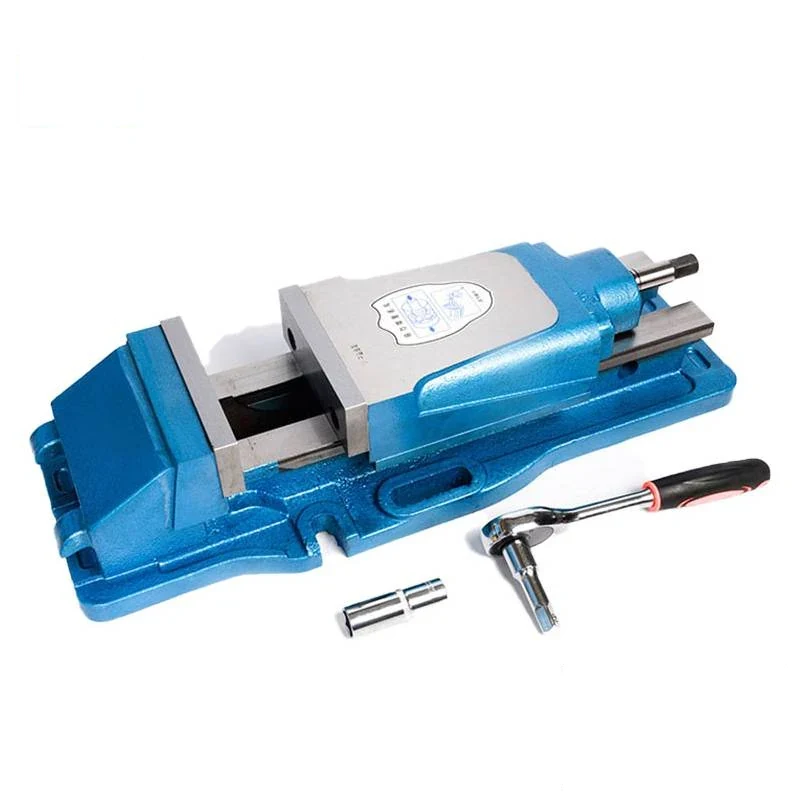

6 Inch CNC Hydraulic Machine Vise
The VH hydraulic machine vise clamps by hydraulic pressure rather than by how hard the operator pulls on the handle, which is the difference that matters on a CNC machining centre. Every part in a batch is held at the same force, so the part does not creep under a roughing cut and thin-walled work is not distorted by a...
What This Machine Does
The VH hydraulic machine vise clamps by hydraulic pressure rather than by how hard the operator pulls on the handle, which is the difference that matters on a CNC machining centre. Every part in a batch is held at the same force, so the part does not creep under a roughing cut and thin-walled work is not distorted by an operator leaning on the lever. Hydraulic clamping also reaches full force in a short handle movement, which takes time out of every load and unload in a production cycle. The vise is built with imported accessories for accurate assembly and stable performance over a long service life. Four body sizes are offered as VH-4, VH-5, VH-6 and VH-8, the 6 inch VH-6 being the common size on vertical machining centres. The vise is used for milling, drilling, boring and tapping work wherever repeatable clamping force is required.
Why Buyers Choose This Machine
- Hydraulic clamping applies the same force to every part regardless of who loads the machine
- Full clamping force from a short handle movement cuts load and unload time each cycle
- Consistent force stops thin-walled parts being distorted by over-tightening
- Imported accessories support accurate assembly and stable performance in service
- Four sizes VH-4 VH-5 VH-6 and VH-8 cover small parts through to larger workpieces
- Higher holding force allows heavier cuts without the part shifting in the jaws
Where 6 Inch CNC Hydraulic Machine Vise Earns Its Place
Problems It Solves
- Manual clamping force varies with the operator and between shifts
- Parts move under roughing cuts when the vise was not tightened enough
- Thin-walled parts are crushed out of shape when the vise is over-tightened
- Long handle movements on manual vises waste time on every load and unload
- Inconsistent clamping causes dimensional scatter across a production batch
Who It Is For
- CNC machining shops running repeat production batches
- Manufacturers machining thin-walled or deformation-sensitive parts
- Toolrooms upgrading from manual vises on machining centres
- Distributors supplying machine tool workholding
Application Scenarios
- Production milling on vertical machining centres
- Batch work where clamping force must repeat from part to part
- Holding thin-walled parts that distort under uneven manual clamping
- Heavy roughing cuts where a manual vise would let the part move
- Drilling boring and tapping setups on a mill table
Technical Detail
Technical Features
- Hydraulic clamping mechanism
- Model sizes VH-4 VH-5 VH-6 and VH-8
- Imported accessories for accurate assembly and stable performance
- Built for long service life under production use
- Designed for CNC machining centre workholding
Specifications
| Machine type | Hydraulic machine vise for CNC milling |
|---|---|
| Models | VH-4 VH-5 VH-6 VH-8 |
| Featured size | 6 inch VH-6 |
| Clamping | Hydraulic |
| Components | Imported accessories used in the assembly |
| Applications | Milling drilling boring and tapping on machining centres |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Milling
- Drilling
- Boring
- Tapping
Quality Control
- Hydraulic clamping mechanism tested for leaks and holding pressure
- Jaw faces checked for parallelism and squareness on assembly
- Clamping repeatability checked over successive clamping cycles
- Vise function tested through full jaw travel before packing
Customisation Options
- Vise size selected from VH-4 VH-5 VH-6 and VH-8 for your parts
- Jaw type specified hard or soft for the work you clamp
- Mounting arrangement prepared for your machine table slots
- Packing and marking prepared to your requirement
How It Compares With the Alternatives
| GT modular manual clamping milling vise | The GT vise is manually clamped and ground for toolroom and inspection accuracy; the hydraulic VH vise repeats clamping force for production batches |
|---|---|
| Standard manual machine vise | A manual vise depends on the operator for force, so clamping varies between parts and shifts; hydraulic clamping removes that variable |
| Clamping with table clamps and straps | Strap clamps are slow to set and reset for each part; the vise loads and unloads in seconds with a short handle movement |
Running the Machine
Step 1
Mount the vise on the machine table and indicate the fixed jaw parallel to the axis
Step 2
Fit jaws suited to the part and set the part on parallels
Step 3
Set the clamping pressure to suit the part and the cut
Step 4
Clamp and check the part is seated on the parallels before cutting
Step 5
Machine a first part and check dimensions before running the batch
Step 6
Keep the bed and jaw faces clear of swarf between parts
Step 7
Check the hydraulic mechanism for leaks as part of routine maintenance
Related Applications and Guides
Engine Rebuilding Workshops
Engine rebuilding workshops recondition blocks heads crankshafts and valves to a geometry the engine will hold for a full service life. XAIMC supplies
General Machining Job Shops
Job shops take whatever work comes through the door, which means their equipment has to cover a wide range rather than do one thing perfectly. XAIMC s
Gear Hobbing Explained for Buyers of Gear Cutting Machines
Gear hobbing cuts gear teeth by rolling a rotating hob against a rotating blank so that the tooth form is generated rather than copied from a formed c
Radial Drilling Machine vs Bench Drilling Machine
A bench drilling machine brings the work to a fixed spindle, while a radial drilling machine moves the spindle over a heavy stationary workpiece on an
Questions About 6 Inch CNC Hydraulic Machine Vise
Which size should I order?
The range covers VH-4, VH-5, VH-6 and VH-8. The 6 inch VH-6 is the usual choice on a vertical machining centre. Send us your part sizes and machine table and we will confirm.
Why choose hydraulic clamping over a manual vise?
Clamping force is set rather than applied by hand, so every part in a batch is held the same and thin-walled parts are not distorted by over-tightening.
What clamping force does the vise develop?
Clamping force depends on the size chosen and on the pressure set. Tell us the size and your application and we will confirm the working figures before you order.
Are soft jaws available?
Yes. Tell us the parts you clamp and we will quote hard or soft jaws with the vise.
Will it fit my machine table?
Send us your table slot spacing and size and we will confirm the mounting arrangement with the quotation.
How is the vise packed and shipped?
Packed individually and shipped from our storehouse in Xi'an. Tell us the quantity and your port and we will quote FOB CFR or CIF.
What are your payment terms?
30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the 6 Inch CNC Hydraulic Machine Vise
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
