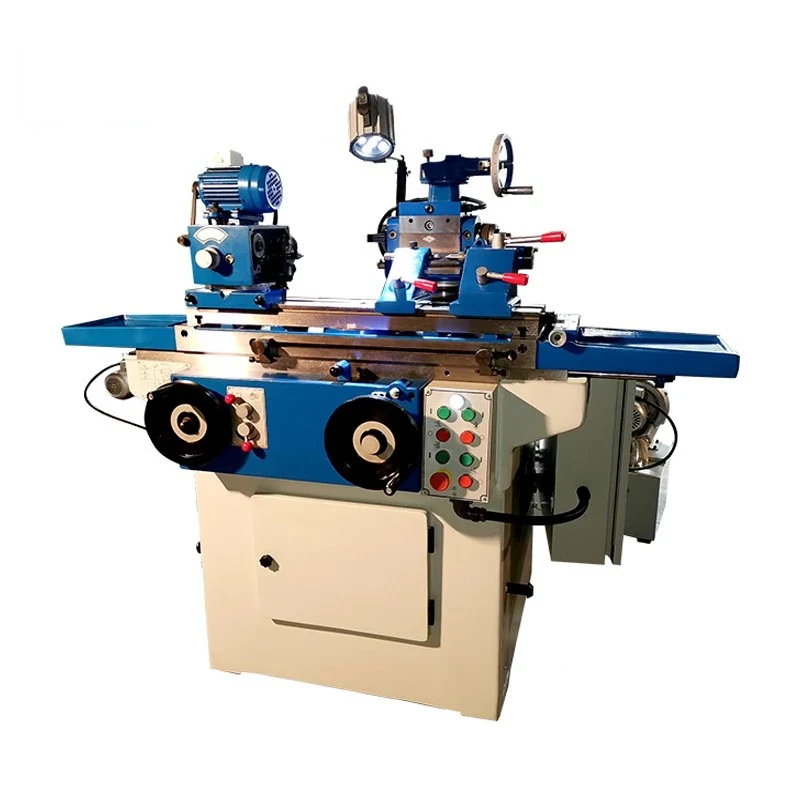

2M9120A Universal Cutter Tool Grinder
The 2M9120A is a multi-grinder: one machine with both the characteristics of a universal cylindrical grinder and those of a tool and cutter grinder. It handles external grinding, internal grinding and light surface grinding, and it sharpens general cutting tools including milling cutters, reamers, pinion cutters and st...
What This Machine Does
The 2M9120A is a multi-grinder: one machine with both the characteristics of a universal cylindrical grinder and those of a tool and cutter grinder. It handles external grinding, internal grinding and light surface grinding, and it sharpens general cutting tools including milling cutters, reamers, pinion cutters and straight fluted hobs. Taper grinding is within its range as well, so a tapered shank or a cone seat is done on the same machine. For a small plant that is the point: rather than buying a cylindrical grinder, a tool grinder and a small surface grinder, one machine covers all three and a shop fitter only has to learn one set of controls. Machine weight is 1285kg with overall dimensions of 1630x1173mm, so it fits a normal workshop bay. Typical estimated build time for a single unit is 30 days, with larger quantities negotiated. It is aimed at small machine plants, tool workshops, repair workshops and research institutes.
Why Buyers Choose This Machine
- One machine covers external internal taper and light surface grinding plus tool sharpening
- Sharpens milling cutters reamers pinion cutters straight fluted hobs and turning tools in house
- Removes the need to buy and floor three separate grinding machines in a small plant
- Taper grinding included so shanks and cone seats are ground without a second setup
- 1285kg machine in 1630x1173mm of floor so it fits an ordinary workshop bay
- Single set of controls for the operator to learn instead of three machines
- Estimated 30 days build time for a single unit so a shop can plan around it
Where 2M9120A Universal Cutter Tool Grinder Earns Its Place
Problems It Solves
- Sending cutters out for resharpening costs money and takes tools off the shelf for days
- Three grinding machines need three lots of capital floor space and operator training
- A dull cutter run on for too long wrecks the surface finish on the parts it makes
- Taper work has to be jobbed out when the shop only has a plain cylindrical grinder
- Occasional light surface grinding does not justify a dedicated machine
- A small plant has no way to grind an internal bore without a separate internal grinder
Who It Is For
- Small machine plants that cannot justify three separate grinders
- Tool workshops sharpening their own cutters
- Machine repair workshops handling varied grinding jobs
- Research institutes of science and technology
- Distributors supplying universal grinders to small and mid-size workshops
Application Scenarios
- Resharpening milling cutters and reamers instead of sending them out
- Grinding turning tool geometry in a toolroom
- External and internal cylindrical grinding of small components
- Taper grinding of shanks and cone seats
- Light surface grinding jobs in a shop without a dedicated surface grinder
- Teaching and research work where one machine has to show several grinding methods
Technical Detail
Technical Features
- Combined universal cylindrical grinder and tool and cutter grinder in one machine
- External cylindrical grinding capability
- Internal cylindrical grinding capability
- Taper grinding capability
- Light surface grinding capability
- Tool sharpening for milling cutters reamers pinion cutters and straight fluted hobs
- Turning tool sharpening
- Machine weight 1285kg with overall dimensions 1630x1173mm
Specifications
| Machine type | Universal cutter and tool grinder with cylindrical grinding capability |
|---|---|
| Models | 2M9120A |
| Grinding operations | External, internal, taper and light surface grinding |
| Tool sharpening | Milling cutters, reamers, pinion cutters, straight fluted hobs, turning tools |
| Overall dimensions | 1630x1173mm |
| Machine weight | 1285kg |
| Estimated build time | 30 days for one unit, larger quantities negotiated |
| Intended users | Small machine plants, tool workshops, repair workshops, research institutes |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- External cylindrical grinding
- Internal grinding
- Taper grinding
- Surface grinding
- Milling cutter sharpening
- Reamer sharpening
- Turning tool sharpening
Quality Control
- Spindle run-out measured on the assembled machine before release
- Swivel and index settings verified against a ground test piece
- Each grinding mode external internal taper and surface run through a test cut
- Tool sharpening fixtures checked for repeat positioning on a sample cutter
- Machine weight and overall dimensions confirmed against 1285kg and 1630x1173mm before crating
Customisation Options
- Tool holding fixtures specified for the cutter types you sharpen most
- Supply voltage phase and frequency built for your market
- Grinding wheel set chosen for the materials and tool steels you work with
- Internal grinding spindle specification matched to your bore sizes
- Manual and machine markings prepared in your working language
How It Compares With the Alternatives
| M1320 and M1420 cylindrical grinders | Those are dedicated cylindrical machines with more capacity and rigidity for production diameter work; the 2M9120A trades that for the ability to sharpen cutters as well |
|---|---|
| M7120 to M7140 surface grinders | Those are built for flat work all day; the 2M9120A handles light surface grinding as one of several jobs |
| Sending cutters out for resharpening | An outside sharpening service ties up spare tooling and adds days; grinding in house means the cutter goes back on the machine the same shift |
| Buying three separate grinders | One machine and one set of controls costs less capital and floor space, at the price of not being able to run three jobs at once |
Running the Machine
Step 1
Select and fit the wheel and the holding fixture for the operation you are doing
Step 2
Set up the workhead or tool fixture and check the swivel setting against the scale
Step 3
Dress the wheel before starting the component or cutter
Step 4
For tool sharpening index the cutter and take a light first pass to confirm the geometry
Step 5
For cylindrical work rough to within allowance then spark out on the final passes
Step 6
Keep coolant on the contact where the job calls for it
Step 7
Check the ground tool or component before running the rest of the set
Other Machines in Grinding
Related Applications and Guides
General Machining Job Shops
Job shops take whatever work comes through the door, which means their equipment has to cover a wide range rather than do one thing perfectly. XAIMC s
Heavy Equipment and Plant Maintenance
Mines quarries plantations and processing plants cannot wait for imported spares. XAIMC supplies the boring gear cutting turning and grinding machines
Surface Grinder vs Cylindrical Grinder - Selecting the Right Machine
A surface grinder finishes flat faces held on a table, while a cylindrical grinder finishes round diameters held between centres or in a chuck. This c
Questions About 2M9120A Universal Cutter Tool Grinder
What tools can it sharpen?
General cutting tools including various milling cutters, reamers, pinion cutters, straight fluted hobs and turning tools. Send us a list of what you sharpen and we will quote the holding fixtures with the machine.
Can it do cylindrical grinding as well?
Yes. It has the characteristics of a universal cylindrical grinder as well as a tool and cutter grinder, covering external, internal and taper grinding plus light surface grinding jobs.
What is the delivery time?
Estimated 30 days for a single unit. Quantities above one are negotiated, so tell us how many you need and when and we will confirm a date.
How big and heavy is the machine?
Overall dimensions 1630x1173mm and machine weight 1285kg. We confirm crated dimensions and gross weight at order stage for your forwarder.
What tolerance can it hold?
That depends on the operation, the wheel and the workholding. Send us the drawing or the cutter specification with the tolerance you need and we will confirm before you order.
Can it be built for our supply voltage?
Yes. Confirm your voltage phase and frequency at enquiry and the machine is wired for your market.
What are your payment and trade terms?
FOB CFR and CIF. Payment is 30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the 2M9120A Universal Cutter Tool Grinder
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
