11 models in this range
Industrial Trackball Mouse Units and Modules
Fixed ball pointing devices for operators wearing gloves or working on a surface where a mouse cannot travel.
Trackball units are offered in 25mm, 38mm and 50mm ball sizes, in panel mount assemblies with stainless steel bodies or as an embedded module for building into your own housing. Resolutions published across the range run from 400DPI on the 50mm resin module to above 800dpi on the metal units and above 10000dpi on the high resolution models. Interfaces include USB, RS232 and PS2, and an IP68 optical version is available.

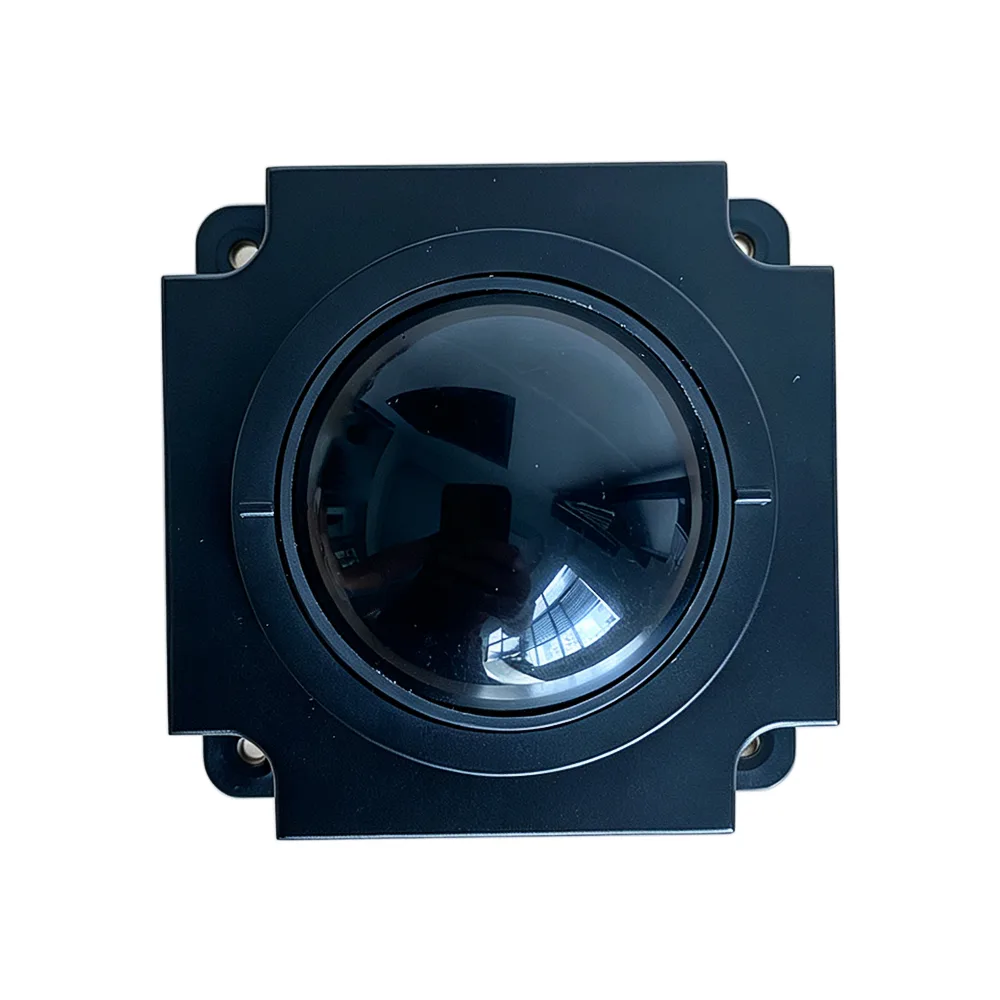

Industrial 50mm Trackball Module KY-MS-MH50-BRS-A
View Specification
KY-PC-25G 25mm Metal Trackball Module With Two Keys
View Specification
KY-FS38 IP68 Metal Industrial Optical Trackball
View Specification
KY-TB-25 Ergonomic 25mm USB Trackball Mouse
View Specification
KY-TB-38 Metal Trackball Mouse With 2 Keys
View Specification
KY-TB-38-B Panel Mounting Mechanical Trackball
View Specification
KY-TB-25-3 Industrial Metal Trackball With Three Keys
View Specification
KY-YG01 Stainless Steel Hula Point Joystick Cursor Module
View Specification
KY-TB-50G 50mm Stainless Steel Mechanical Trackball
View Specification
KY-TB-38-DESK Stainless Steel Trackball Mouse
View Specification
KY-TB-25-DESK Metal Optical Trackball Mouse
View SpecificationProblems This Range Solves
- A mouse needs desk space and a flat surface that a machine bay does not have.
- Gloved operators cannot work a small pointing device reliably.
- Public terminals need a pointer that cannot be pulled off or walked away with.
- Marine and washdown environments defeat a standard sealed mouse.
Who Specifies It
- Console designers replacing a mouse on a fixed operator station.
- Medical imaging equipment makers needing an ergonomic pointer.
- Marine and offshore equipment builders.
- OEMs embedding a trackball module into their own enclosure.
Where It Is Installed
- A 25mm trackball on a 59.6*73.6 mm front panel in a compact console.
- A 38mm two key metal trackball on an 83*110 mm front panel.
- A 50mm embedded resin ball module built into a marine cabinet.
- An ultrasound workstation needing an ergonomic high resolution ball.
- A kiosk pointer in an IP68 optical version for exposed locations.
- A desktop kit trackball beside an existing keyboard.
What You Get From This Range
- Ball sizes of 25mm, 38mm and 50mm across panel and module formats.
- Patented high resolution trackball with a rugged vandal proof design.
- 304 stainless steel front panel, ball housing and keys with aluminium back panel.
- Wear resistant resin ball on the 50mm module for smooth rolling and long life.
- IP68 metal industrial optical trackball available with a 38mm resin ball.
- Interfaces of USB, RS232 or PS2 with mounting kit and desktop kit options.
What To Specify When You Order
Give us these and the quotation comes back complete rather than with questions attached.
- Choose the ball diameter from 25mm, 38mm and 50mm for the operator's grip and glove use.
- State the resolution your software needs, as models range from 400DPI to above 10000dpi.
- Decide between a finished panel mount unit and an embedded module.
- Pick the interface from USB, RS232 or PS2.
- Confirm whether an IP68 sealed optical version is required.
Industries Using This Range
Related Reading
Backlit Trackballs for Work in Low Light Environments
A backlit trackball is a precision pointing device with illumination built into the ball, so the rolling surface stays visible in dark working…
Read ArticleBrushed Stainless Steel Keyboards Finish Hygiene and Applications
A brushed stainless steel keyboard combines a steel body with a brushed surface finish that resists scratching and everyday wear.
Read ArticleIndustrial Grade Trackballs for Harsh Operating Environments
In an industrial setting the reliability of the input device affects both output and safety.
Read ArticleTrackball Mouse Questions Buyers Ask
What ball sizes are available
25mm, 38mm and 50mm balls are published across the panel mount units and the embedded module.
What resolutions are offered
The 50mm resin module is 400DPI, metal trackball units are above 800dpi, and high resolution models are above 10000dpi.
Is there a sealed version
Yes. An IP68 metal industrial optical trackball with a 38mm resin ball is part of the range.
Can a module be embedded in our own housing
Yes. The 50mm trackball module is an embedded mechanical trackball intended for installation into industrial, medical, marine and cabinet equipment.
Which interfaces are supported
USB, RS232 and PS2 are offered depending on the model.
Get A Quote On Trackball Mouse
Tell us the key count, interface and mounting method and we will come back with the models that fit and the price.
