KY-YG01 Stainless Steel Hula Point Joystick Cursor Module

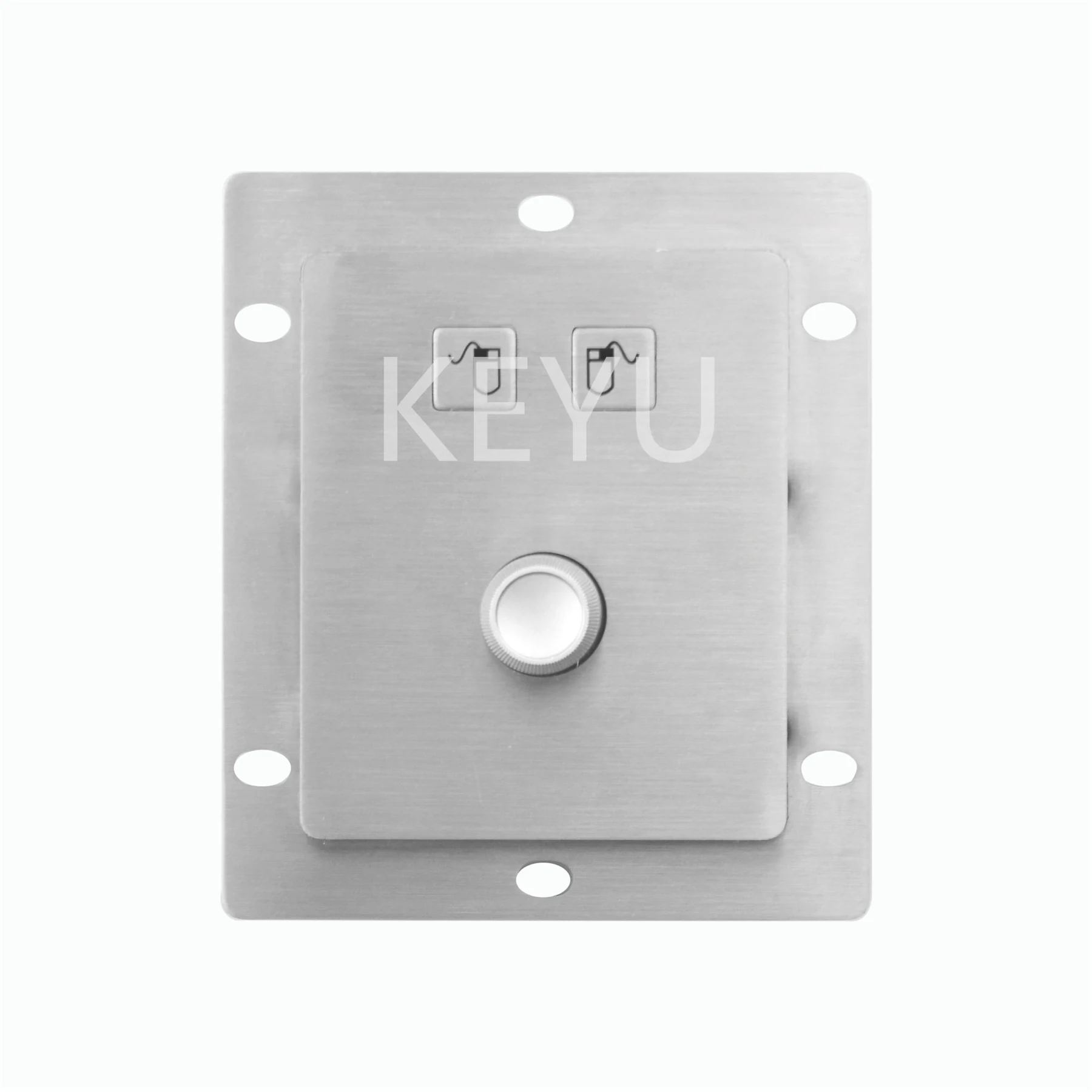

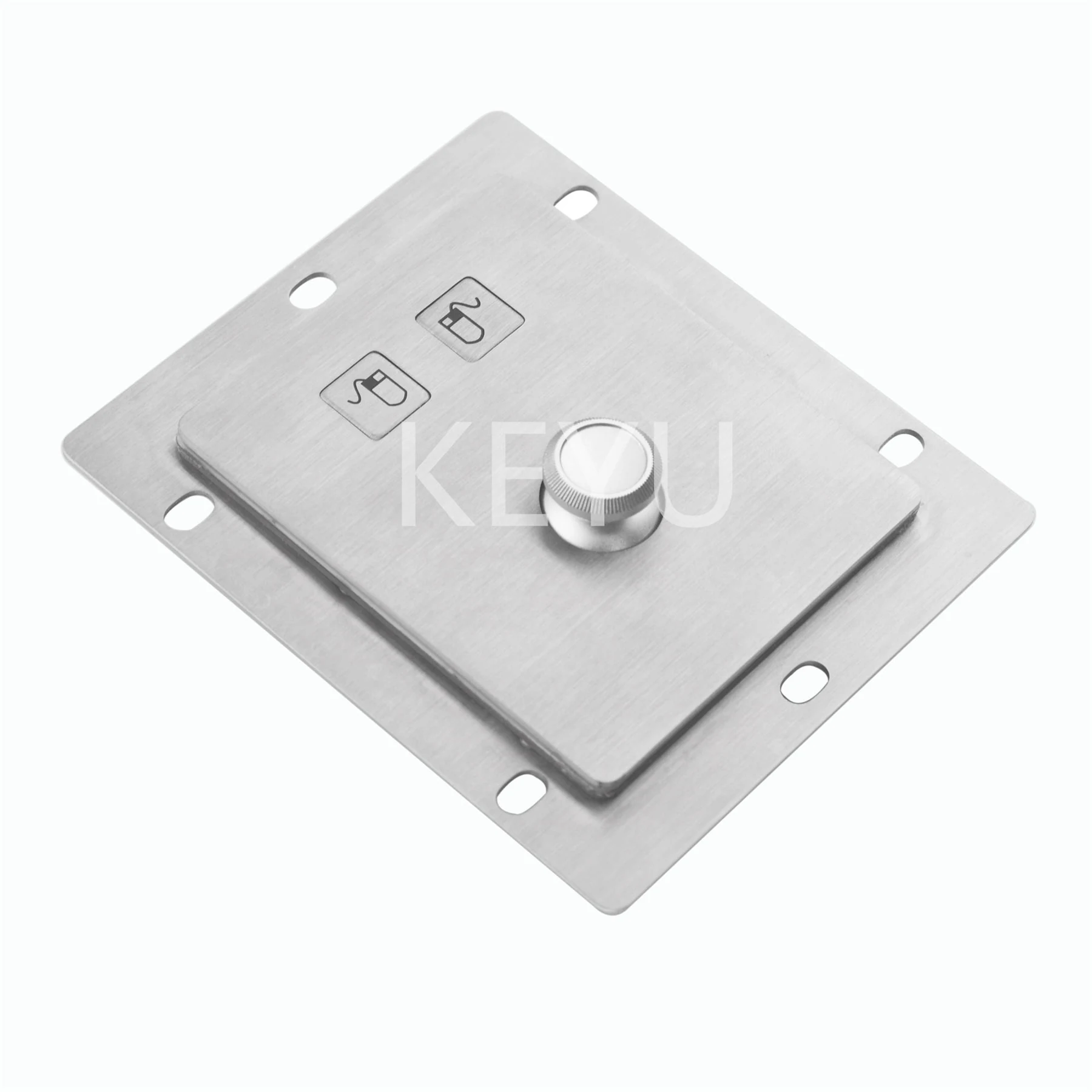

KY-YG01 is a hula point cursor module that uses metal shrapnel conductive contacts for its two function keys and a joystick for cursor positioning.
Product Overview
KY-YG01 is a hula point cursor module that uses metal shrapnel conductive contacts for its two function keys and a joystick for cursor positioning. It suits vending machines, self service kiosks, intelligent storage express cabinets and industrial or military control equipment where a full trackball is too large. At 0.25Kg net weight it drops into a small rear mounted cutout.
- Joystick positioning needs far less panel area than a trackball while still driving a cursor
- Metal shrapnel conductive contacts give a defined click without a moving mechanical switch stack
- SUS304 wire drawing stainless steel panel resists prying and corrosion on street side cabinets
- Laser etched black characters stay legible after repeated cleaning
- Works over PS/2 or USB so it fits both legacy and current controllers
Application Scenarios
- Self service vending machines
- Self service kiosks in public spaces
- Intelligent storage express cabinets and parcel lockers
- Industrial control equipment panels
- Military equipment consoles
Who It Is For
- Vending and locker equipment manufacturers
- Kiosk integrators short on front panel space
- Industrial and defence control panel builders
Problems It Solves
- Trackballs do not fit compact panels that still need cursor control
- Plastic pointer modules crack when public terminals are struck
- Printed legends wear off on high traffic outdoor equipment
- Mixed installed bases need both PS/2 and USB options
Technical Features
- Joystick cursor positioning plus two function keys
- Metal shrapnel conductive contact method for button input
- Power supply 5V±5% with working current under 100mA
- Key size 12mm*12mm*1.5mm with 0.45mm key trip
- Operation force 2N ± 10% and durability above 2 million operations
- Rear mounting with 0.25Kg net weight and 0.3Kg gross weight
- Working temperature -10℃~50℃ and storage -30℃~85℃
Specifications
| Model | KY-YG01 |
|---|---|
| Power Supply | 5V±5% |
| Working Current | <100mA |
| Durability | >2 Million |
| Interface | PS/2 /USB |
| Key Size | 12mm*12mm*1.5mm |
| Key Trip | 0.45mm |
| Operation Force | 2N ± 10% |
| Mounting Way | Rear mounting |
| Net Weight | 0.25Kg |
| Gross Weight | 0.3Kg |
| Working Temperature | -10℃~50℃ |
Materials
- SUS304 wire drawing stainless steel panel
- SUS304 drawing stainless steel keys
Manufacturing Process
- Wire drawing finish applied to the SUS304 panel
- CNC machining of the joystick aperture and key openings
- Laser etching of black characters on the keys
- Shrapnel contact layer lamination and joystick fitting
- Rear mounting hardware assembly and continuity test
Quality Control
- Contact resistance and click confirmation on both function keys
- Joystick centring and four direction travel check
- Key trip measured against the 0.45mm specification
- Cycle testing toward the 2 million operation rating
- Etch legibility inspection under raking light
Customisation Options
- Etched legend content and symbols for the two function keys
- Panel outline and cutout dimensions to your drawing
- Choice of PS/2 or USB termination
- Cable length and connector type
- Rear mounting stud pattern to match your chassis
How It Compares
| 50mm trackball module | The joystick occupies a much smaller panel footprint at 0.25Kg net weight |
|---|---|
| Plastic joystick pointer | SUS304 wire drawing stainless steel holds up to prying and corrosive air |
| Silk screened key legends | Laser etched black characters do not rub away during routine cleaning |
Use Guide
- Fit the module from the rear of your panel and secure the studs evenly
- Supply 5V±5% and confirm the port can source under 100mA
- Select PS/2 or USB to suit the controller before ordering
- Operate within -10℃~50℃ and store above -30℃
- Avoid solvent cleaners that would dull the drawn stainless finish
Solutions
Questions About This Model
How does the cursor move on KY-YG01?
Joystick movement achieves cursor positioning while metal shrapnel contacts handle the button input.
How many function keys are there?
Two function keys.
What is the key trip?
0.45mm with an operation force of 2N ± 10%.
How heavy is the module?
Net weight is 0.25Kg and gross weight is 0.3Kg.
Which systems are supported?
Windows XP, 7, 8 and 10 plus Linux, Ubuntu and Android.
How is it mounted?
Rear mounting behind your front panel.
Request A Quote On KY-YG01
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
