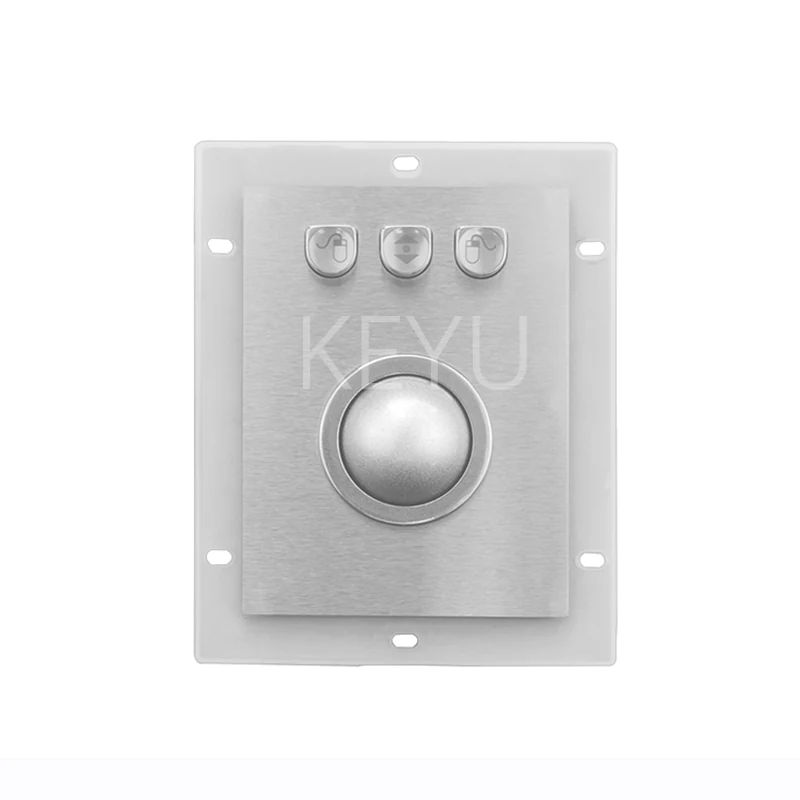

KY-FS38 IP68 Metal Industrial Optical Trackball
KY-FS38 is an IP68 rated optical trackball built on a SUS304 brushed stainless steel panel with a 38mm resin ball. Cursor positioning uses a silica gel carbon point conductive mode with three function keys so operators can point…
Product Overview
KY-FS38 is an IP68 rated optical trackball built on a SUS304 brushed stainless steel panel with a 38mm resin ball. Cursor positioning uses a silica gel carbon point conductive mode with three function keys so operators can point and click without a loose mouse. It is specified into kiosks express lockers and industrial control equipment that cannot expose a moving mechanical assembly.
- IP68 sealing for wet and dusty unattended installations
- 38mm resin ball gives usable travel without a desk surface
- SUS304 brushed stainless steel panel and keys resist riot damage and corrosion
- Laser etched black characters on the keys stay legible under heavy use
- Working current under 100mA leaves headroom on USB powered terminals
- Net weight 0.25Kg keeps panel loading low on thin fascias
Application Scenarios
- Self service vending machines
- Self service information kiosks
- Intelligent storage express cabinets
- Medical equipment consoles
- Industrial control equipment stations
- Military equipment operator panels
Who It Is For
- Kiosk and vending machine OEMs
- Express locker cabinet manufacturers
- Industrial control panel builders
- Defence and medical equipment integrators
Problems It Solves
- Loose mice are stolen or damaged at public terminals
- Optical mice need a clean flat surface that kiosks do not have
- Water and dust enter conventional pointing devices
- Printed key symbols fade on outdoor terminals
Technical Features
- Optical sensing with silica gel carbon point conductive key mode
- 38mm resin ball with 2 buttons plus 3 function keys
- U shape button size 13mm*13mm with 1.5mm key trip
- Operation force 2N plus or minus 10 percent
- Durability above 2 Million operations
- Operating temperature -10 to 50 degrees C and storage -30 to 85 degrees C
- Rear mounting with USB interface
Specifications
| Trackball | 38mm Resin Ball |
|---|---|
| Power Supply | 5V±5% |
| Working Current | <100mA |
| Durability | >2 Million |
| Interface | USB |
| Button Size | U shape 13mm*13mm |
| Key Trip | 1.5mm |
| Operation Force | 2N ± 10% |
| Mounting Way | Rear mounting |
| Net Weight | 0.25Kg |
| Gross Weight | 0.3Kg |
| Operating Temperature | -10℃~50℃ |
Materials

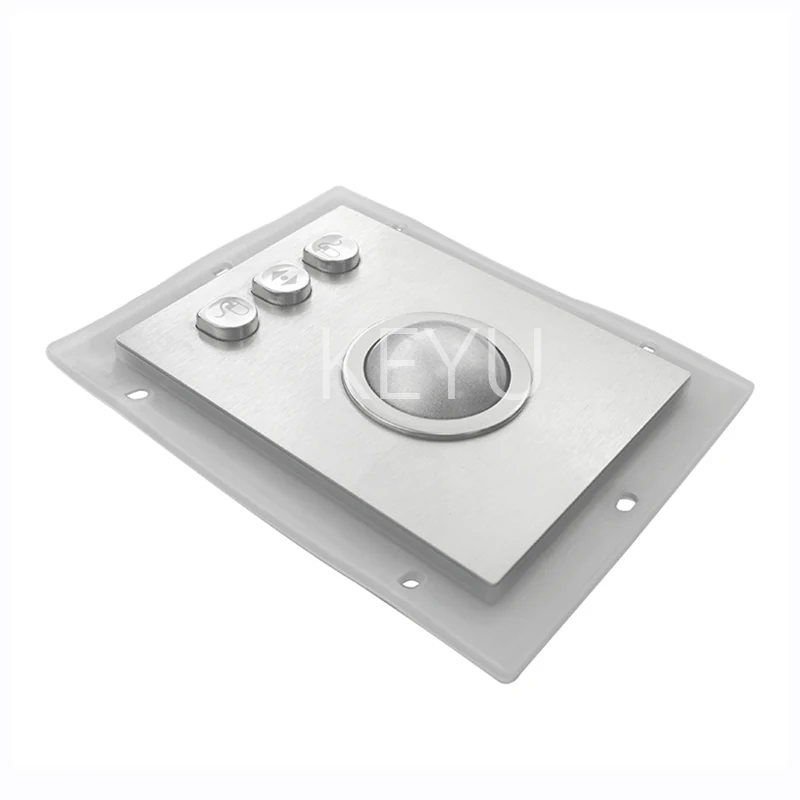

- SUS304 brushed stainless steel panel
- SUS304 brushed stainless steel keys
- Resin trackball
Manufacturing Process
- SUS304 panel forming and brushing
- CNC machining of the ball seat and key apertures
- Laser etching of black key characters
- Optical sensor alignment to the 38mm ball
- Sealing assembly to the IP68 level
- USB harness fitting and functional test
Quality Control
- Ball roll and cursor tracking test on every unit
- Key force verified at 2N plus or minus 10 percent
- Ingress testing of the sealed assembly
- Cycle sampling above the 2 Million figure
- Etch legibility inspection on brushed keys
Customisation Options
- Key character content by laser etching
- Panel cutout and fixing to the host fascia
- Function key assignment within the three key set
- Cable length and exit direction
- Brushed finish direction on the SUS304 panel
How It Compares
| Optical desk mouse | A panel mounted 38mm ball needs no desk surface and cannot be removed from the terminal |
|---|---|
| Mechanical trackballs | Optical sensing avoids roller contamination in dusty cabinets |
| IP65 pointing devices | IP68 sealing suits wetter installations than an IP65 rated unit |
Use Guide
- Mount from the rear of the fascia as designed
- Power from 5V plus or minus 5 percent over USB
- Keep ambient within -10 to 50 degrees C in service
- Wipe the 38mm ball and seat during routine cleaning
- Store units between -30 and 85 degrees C
Solutions
Questions About This Model
What size is the ball?
It is a 38mm resin ball.
How many keys does KY-FS38 have?
It has 2 buttons and there are 3 function keys.
What is the sealing rating?
The product is described as an IP68 metal industrial optical trackball.
What interface does it use?
USB.
How is it mounted?
Rear mounting.
What is the operating temperature range?
-10 to 50 degrees C with 20% to 85% relative humidity.
