KY-TB-25-3 Industrial Metal Trackball With Three Keys

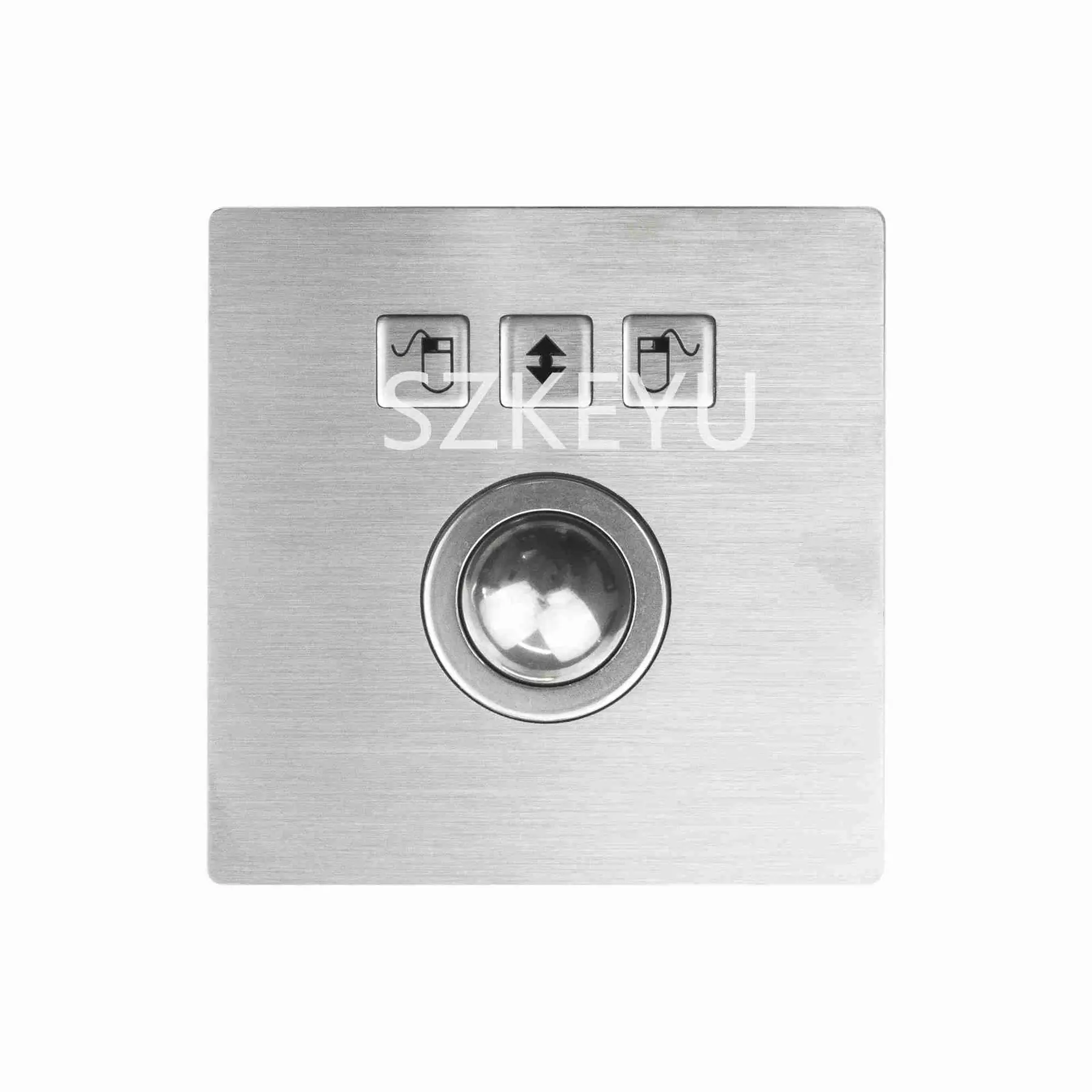

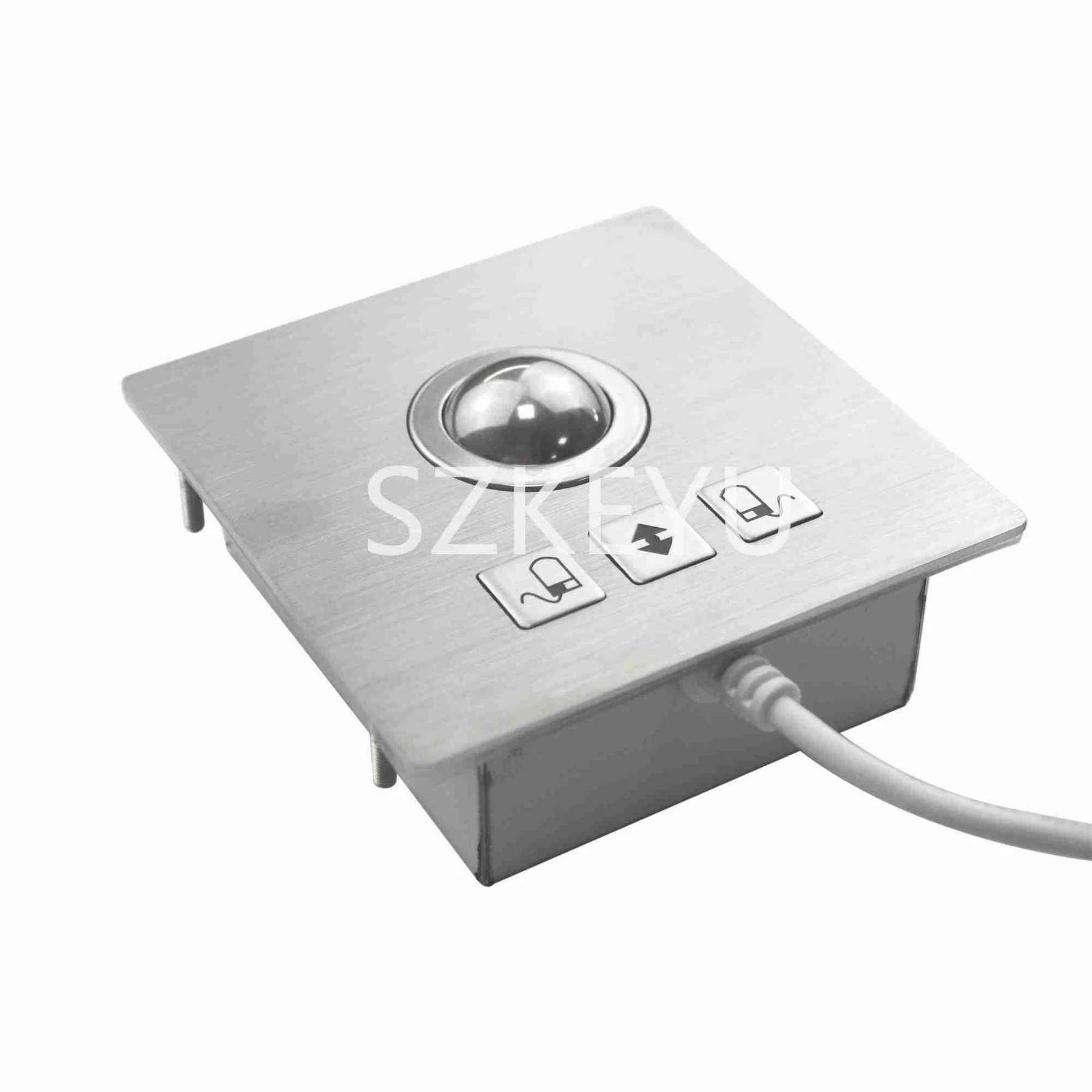

KY-TB-25-3 is a sealed optical trackball mouse with a 25mm ball and three keys including right and left buttons on a SUS304 brushed stainless steel panel.
Product Overview
KY-TB-25-3 is a sealed optical trackball mouse with a 25mm ball and three keys including right and left buttons on a SUS304 brushed stainless steel panel. Panel installation and water proof sealing let it replace a mouse on machines that are washed down or left unattended. It suits control platform builders who need a middle button as well as the standard pair.
- Three keys give right left and an extra function button in one device
- 25mm ball keeps the panel cutout small
- Sealed water proof construction for washdown areas
- SUS304 brushed stainless steel panel and buttons resist riot damage and corrosion
- PS/2 and USB output for old and new hosts
- Working current under 150mA at 5V plus or minus 5 percent
Application Scenarios
- Industrial control platform desks
- Machine operator stations washed down after shifts
- Self service terminals needing a third button
- Laboratory and inspection consoles
- Panel installed HMI stations
- Equipment where a mouse cannot be used
Who It Is For
- Machine builders adding HMI pointing
- Industrial control panel integrators
- Self service terminal OEMs
- Laboratory equipment manufacturers
Problems It Solves
- Two button pointing devices lack a middle function key
- Water used for cleaning enters unsealed trackballs
- Mice cannot be fixed to a vertical control panel
- Corrosive plant atmospheres attack plated finishes
Technical Features
- Optical trackball with 25mm trackball size
- KEY 3 configuration with 12mm*12mm key size
- Key trip 0.45mm and key strength 2N plus or minus 10 percent
- Durability above 2 million operations
- Panel installation mounting
- Operation temperature -10 to 50 degrees C and storage -30 to 85 degrees C
Specifications
| Trackball Size | 25mm |
|---|---|
| KEY | 3 |
| Power supply | 5V±5% |
| Working current | <150mA |
| Durability | >2 million |
| Product interface | PS/2, USB |
| Key size | 12mm*12mm |
| Key Trip | 0.45mm |
| Key strength | 2N ± 10% |
| Mounting Way | Panel installation |
| Operation Temperature | -10℃~50℃ |
| Storage Temperature | -30℃~85℃ |
Materials
- SUS304 brushed stainless steel panel
- SUS304 brushed stainless steel buttons
Manufacturing Process
- SUS304 panel forming and brushing
- CNC machining of the 25mm ball seat and three key windows
- Optical sensor alignment
- Water proof sealing assembly
- PS/2 and USB interface fitting
- Cursor tracking calibration
Quality Control
- Three key function test per unit
- Key strength checked at 2N plus or minus 10 percent
- Water ingress verification on the sealed body
- Ball positioning accuracy check
- Life sampling above 2 million operations
Customisation Options
- Customized panel and key arrangement
- PS/2 or USB interface build
- Key legend etching on the brushed keys
- Cable length and exit position
- Panel installation cutout to the host design
How It Compares
| Two key trackballs | A KEY 3 arrangement adds a middle function button without a second device |
|---|---|
| 38mm trackball modules | The 25mm ball allows a smaller panel cutout on crowded consoles |
| Unsealed pointing devices | Sealed water proof construction survives routine washdown |
Use Guide
- Prepare the cutout for panel installation
- Select PS/2 or USB before ordering
- Operate between -10 and 50 degrees C
- Clean around the 25mm ball regularly
- Supply 5V plus or minus 5 percent
Solutions
Questions About This Model
How many keys does KY-TB-25-3 have?
KEY 3.
What is the ball size?
25mm.
Is it optical or mechanical?
It is an optical trackball.
How is it installed?
Panel installation.
What interfaces are available?
PS/2 and USB.
What is the key strength?
2N plus or minus 10 percent with a 0.45mm key trip.
Request A Quote On KY-TB-25-3
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
