4 models in this range
PCI Certified Encrypting Pin Pads
Certified PIN entry devices for payment operators who must show a PCI evaluated keypad in the terminal build.
KEYU's PCI range is manufactured by Shenzhen Keyu Co Ltd as a PED class device using a physical keypad for PIN entry, evaluated for an online environment. Models are published against PCI 5.0, PCI 5.X and PCI 1.3 with CE, RoHS and FCC, and run an RS232 serial interface with MK/SK key management. The environmental rating spans -40C to 105C with 5 to 95 percent non condensing humidity.
Problems This Range Solves
- An uncertified pad blocks acquirer approval no matter how well the terminal is built.
- Outdoor and unheated payment points sit outside the range of an indoor rated pad.
- Chinese domestic and international algorithm requirements often force two products.
- Operators need accessible key caps without giving up the certification.
Who Specifies It
- Payment terminal manufacturers assembling a certified device.
- ATM and cash machine builders replacing the EPP module.
- Acquirers and deployers specifying compliant hardware for a rollout.
- Integrators needing the PIN entry device and metal fascia from one factory.
Where It Is Installed
- An 87.5*91.5 mm EPP built into a compact ATM fascia.
- A 145*100 mm EPP on a larger cash machine panel.
- An unattended outdoor terminal exposed to a wide temperature swing.
- A deployment needing SM2, SM3 and SM4 alongside DES and AES.
- A pin interface unit supplied with its control board for direct integration.
What You Get From This Range
- PCI certification published at 5.0, 5.X and 1.3 levels across the range, with CE, RoHS and FCC.
- PED class device with physical keypad PIN entry evaluated for the online environment.
- Algorithm support for DES, AES, RSA2048, SM2, SM3 and SM4.
- Meets ISO9564 and ANSI requirements as published on the KY3688L.
- Temperature range of -40C to 105C with 5 to 95 percent non condensing humidity.
- Braille or graphic key caps optional alongside embossing and custom etched legends.
What To Specify When You Order
Give us these and the quotation comes back complete rather than with questions attached.
- State the PCI level your programme requires, as published models differ between 1.3, 5.0 and 5.X.
- Confirm the size, since the range includes 87.5*91.5 mm and 145*100 mm devices.
- List the algorithms the host expects from DES, AES, RSA2048, SM2, SM3 and SM4.
- Say whether Braille or graphic key caps are needed.
- Confirm the RS232 serial interface suits your controller before ordering.
Industries Using This Range
PCI Encrypting Pin Pad Questions Buyers Ask
What PCI levels are published

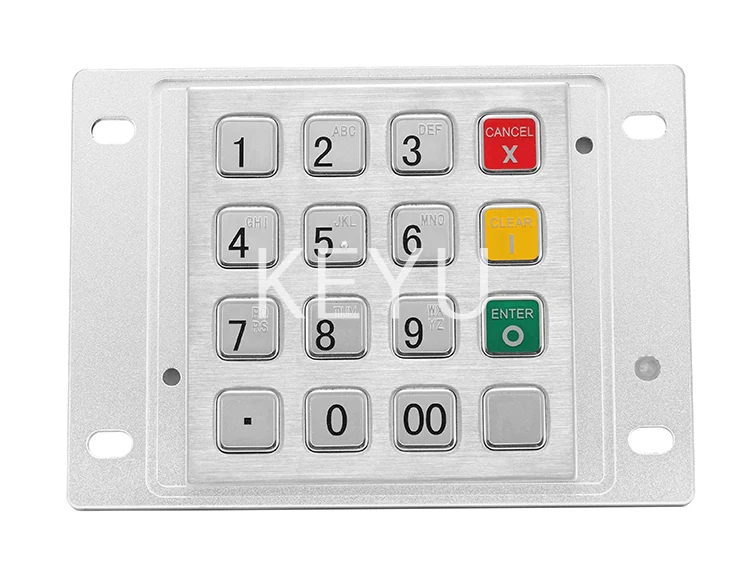

PCI 5.0 on the KY3688H, PCI 5.X on the KY3688L and PCI 1.3 on the KY3688A, each with CE, RoHS and FCC.
What is the key management scheme
MK/SK key management, with PIN entry evaluated for the online environment.
What temperature range do they cover
-40C to 105C with relative humidity of 5 to 95 percent non condensing.
Which algorithms are supported
DES, AES, RSA2048, SM2, SM3 and SM4, meeting ISO9564 and ANSI as published on the KY3688L.
What interface do these use
An RS232 serial port, with a pin interface version supplied with a control board.
Get A Quote On PCI Encrypting Pin Pad
Tell us the key count, interface and mounting method and we will come back with the models that fit and the price.
