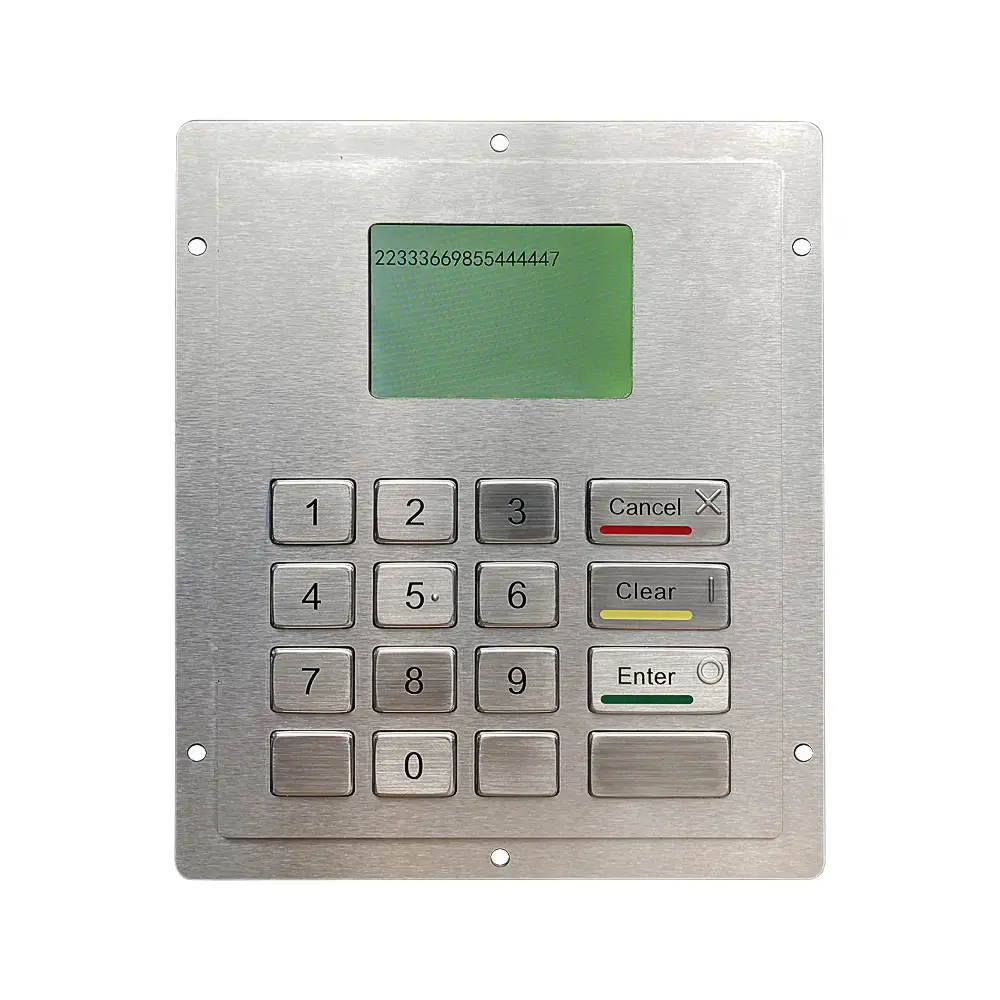

KY3688LP-F2 16 key stainless steel locker keypad with 3.5-inch TFT display screen

12 models in this range

Industrial Numeric Keypads for Digit Entry

Digit focused stainless pads for code entry, quantity input and PIN style tasks that do not need encryption.

Numeric keypads concentrate on number entry, with published formats including a standard 12 key 4 row by 3 column pad, 16 key units and a 20 key layout on a 107.3*89.8 mm front panel. Output can be USB HID, with matrix, PS2, RS485 and RS232 available as customised alternatives. Stainless steel buttons carry durability of 2 million operations or more and panel mount bodies are rated IP65.

Numeric Keypad

Problems This Range Solves

Operators entering codes all shift need a consistent grid, not a repurposed keyboard.
Plastic numeric pads on public equipment wear and get pulled off the panel.
Host software may expect HID while the controller expects a matrix output.
Locker and cabinet fronts need a numeric pad plus a display in the same opening.

Who Specifies It

Access and locker system builders specifying code entry.
Vending and self service manufacturers needing quantity or selection input.
Cabinet control integrators driving a pad from a PLC matrix input.
Medical equipment makers needing a cleanable numeric entry surface.

Where It Is Installed

A 12 key 4x3 pad on an access control entrance.
A 20 key pad at 107.3*89.8 mm for quantity entry on a machine.
A 16 key locker keypad with TFT display in a parcel cabinet.
A 20 key brushed stainless matrix pad in a medical cabinet.
A backlit 12 key pad at 68*90 mm for a dim lobby terminal.

What You Get From This Range

Standard 4 row by 3 column 12 key layout plus 16 and 20 key formats.
Solid stainless steel construction, anti rust and wear resistant.
USB HID output with matrix, PS2, RS485 and RS232 customisable.
Durability of 2 million operations or more per key.
IP65 waterproof and vandal proof panel mount design.
Customisable Braille layout available on the locker keypad with TFT display.

What To Specify When You Order

Give us these and the quotation comes back complete rather than with questions attached.

Confirm the grid, for example 4 rows by 3 columns, and the total key count.
Say whether the host expects USB HID or a matrix, PS2, RS485 or RS232 connection.
State if a display window shares the same fascia opening.
Specify laser or etching for key labelling.
Ask for a Braille layout at enquiry stage if accessibility is required.

Industries Using This Range

See all industry pages in the main menu

Related Ranges

Numeric Keypad Questions Buyers Ask

What is the standard numeric format

A standard 12 key pad arranged as 4 rows by 3 columns, with 16 and 20 key layouts also published.

What is the default interface

USB, including USB HID on selected models, with matrix, PS2, RS485 and RS232 available as customised options.

Are these sealed

Yes. The panel mount numeric keypads are IP65 waterproof and vandal proof.

Can a display be included

Yes. A 16 key industrial locker keypad is published with a TFT display in a 155*186 mm front panel.

Is Braille available

A customisable Braille layout is offered on the locker keypad with TFT display.

Get A Quote On Numeric Keypad

Tell us the key count, interface and mounting method and we will come back with the models that fit and the price.

Chat On WhatsApp Email Your Requirement All Products

Industrial Numeric Keypads for Digit Entry

16 Key Industrial Locker Keypad With TFT Screen KY3688LP-F2

12 Key Industrial Backlight USB Keypad KY2068A-LED

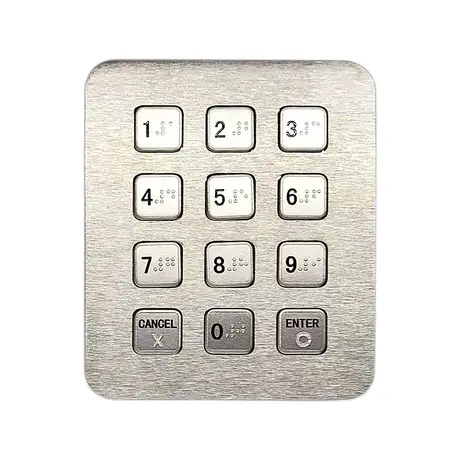

12 Key Industrial Numeric USB Keypad KY2073C-USB

20 Key Industrial Numeric Keypad KY2122-3

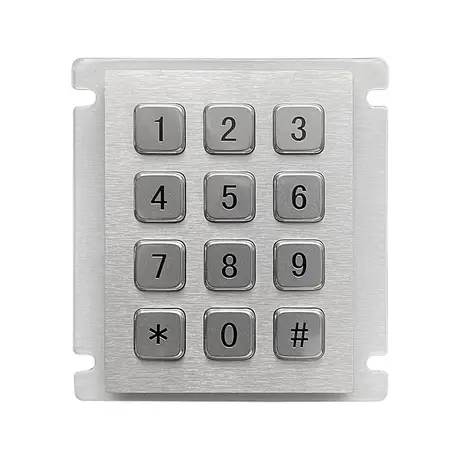

Industrial 4x3 Keypad KY2068A With Metal Dome Switches

20 Key Stainless Steel Matrix Keypad KY-2122-2

IP65 Mini Keyboard With Trackpad KY-PC-VG160T

22 Key Keyboard Touchpad Mouse KY3178A

16 Key IP65 Computer Keypad KY2088B-02

KY-2240B Metal Numeric Keypad With 11 Stainless Steel Keys

KY-3100B Embedded Metal Keypad With 35 Stainless Steel Buttons

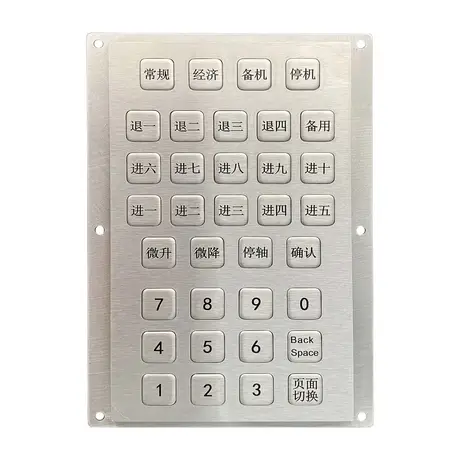

KY-3100A Brushed Stainless Steel Panel Keypad With 35 Buttons
