Trackball Mouse
KY-TB-38-B Panel Mounting Mechanical Trackball

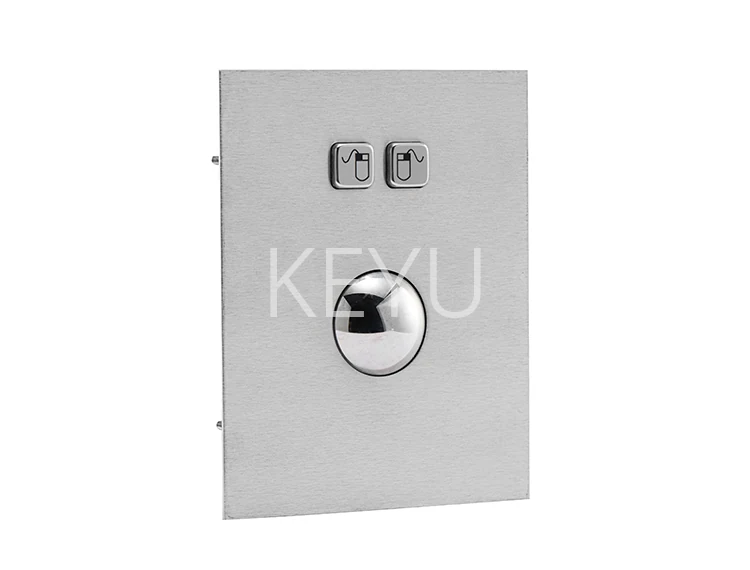

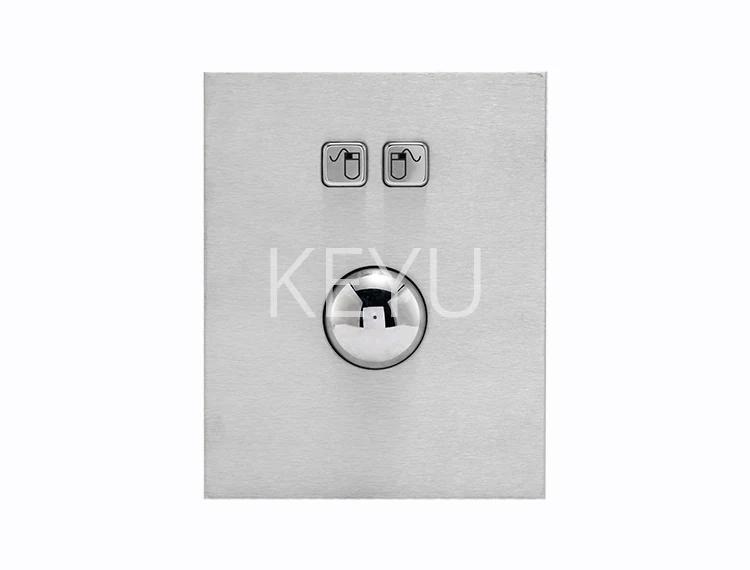

KY-TB-38-B is a panel mounting mechanical trackball with a flush 107*134 mm stainless steel face where the front panel and overall size are identical.
Product Overview
KY-TB-38-B is a panel mounting mechanical trackball with a flush 107*134 mm stainless steel face where the front panel and overall size are identical. It is a sealed dust proof pointing device with resolution above 800dpi that replaces a computer mouse on fixed terminals. Integrators use it on kiosks vending machines and library stations that need one flat fascia dimension to design around.
- Front panel and overall size are both 107*134 mm so the cutout calculation is simple
- Sealed dust proof construction keeps grit out of the mechanism
- Resolution above 800dpi for precise selection
- 304 stainless steel panel trackball and keys over an aluminum back panel
- Approvals cover ROHS IP65 FCC and CE
- Mounting kit and desktop kit optional for bench installations
Application Scenarios
- Kiosk terminals in public buildings
- Vending machines with menu navigation
- Self service terminals in retail
- Library search stations
- Industrial equipment consoles
- Bench test stations using the desktop kit
Who It Is For
- Kiosk manufacturers
- Vending and self service terminal OEMs
- Library and public sector suppliers
- Industrial equipment integrators
Problems It Solves
- Dust jams unsealed mechanical pointing devices
- A computer mouse cannot be secured to a public terminal
- Differing front and overall dimensions complicate fascia design
- Liquid spills reach the electronics of open pointing devices
Technical Features
- Mechanical trackball with EMC emission EN55022(B)
- Voltage 5.0VDC plus or minus 5 percent and working current under 150mA
- Operation force under 2N with durability of at least 2Million
- USB and PS/2 interface
- Rear mounting or front mounting
- Storage temperature -30 to 85 degrees C
Specifications
| Front Panel | 107*134 mm |
|---|---|
| Overall | 107*134 mm |
| Resolution | above 800dpi |
| Voltage | 5.0VDC+_5% |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB、PS/2 |
| Operation Force | <2N |
| Durability | ≥ 2Million |
| Mounting Way | Rear mounting or Front mounting |
| EMC Emission | EN55022(B) |
| Approvals | ROHS、IP65、FCC、CE |
Materials
- 304 stainless steel front panel
- 304 stainless steel trackball and keys
- Aluminum back panel
Manufacturing Process
- Stainless panel forming to the 107*134 mm face
- CNC machining of the ball housing
- Aluminum back panel machining
- Mechanical sensor assembly and sealing
- Dust proof gasket fitting
- USB and PS/2 functional test
Quality Control
- Roll and click test on every assembled unit
- Operation force checked under 2N
- Dust and liquid ingress verification
- Emission check to EN55022(B)
- Life sampling to at least 2Million operations
Approvals And Test Documentation
- ROHS
- IP65
- FCC
- CE
Customisation Options
- Rear or front mounting build
- Mounting kit or desktop kit on request
- USB or PS/2 interface
- Key legend on the stainless keys
- Cable length and exit position
How It Compares
| KY-TB-38 | Front panel and overall dimensions are both 107*134 mm for a flush single size fascia |
|---|---|
| Optical trackballs | The mechanical sealed design suits sites where a simple robust mechanism is preferred |
| Standard computer mice | A fixed panel device cannot be unplugged or stolen from an unattended terminal |
Use Guide
- Design the cutout around the single 107*134 mm dimension
- Choose rear or front mounting at installation
- Supply DC5V plus or minus 5 percent
- Clean the ball seat periodically to keep the roll smooth
- Store between -30 and 85 degrees C
Solutions
Questions About This Model
What is the panel size?
Both the front panel and the overall size are 107*134 mm.
Is it optical or mechanical?
It is a panel mounting mechanical trackball.
What resolution does it offer?
Above 800dpi.
Which approvals apply?
ROHS IP65 FCC and CE.
What interfaces are available?
USB and PS/2.
Can it be used on a desk?
Yes a mounting kit and desktop kit are optional.
Request A Quote On KY-TB-38-B
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
