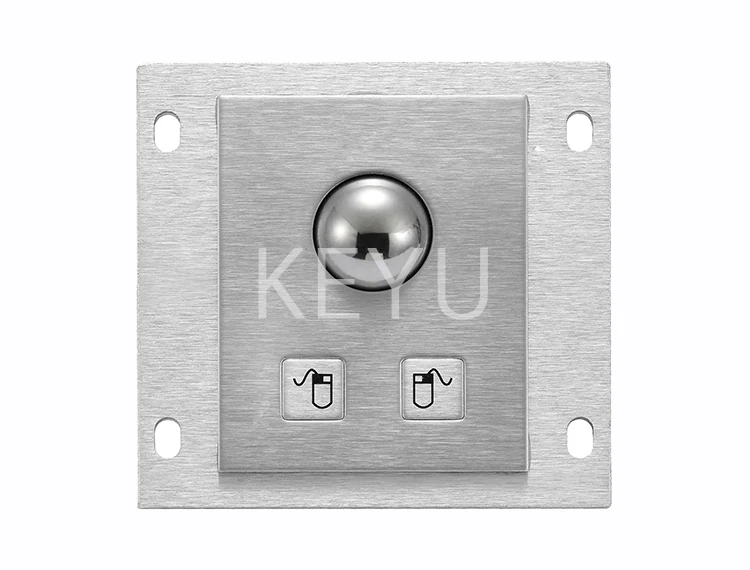

KY-PC-25G 25mm Metal Trackball Module With Two Keys
KY-PC-25G is a standalone 25mm metal trackball module with 2 keys, sized at a 59.6*73.6mm front panel for fascias with almost no spare room.
Product Overview
KY-PC-25G is a standalone 25mm metal trackball module with 2 keys, sized at a 59.6*73.6mm front panel for fascias with almost no spare room. It is a patent product with a high resolution trackball rated above 800dpi, built from 304 stainless steel over an aluminum back panel. Mechanical, optical and laser trackball versions are available.
- 59.6*73.6mm front panel fits fascias where a full pointing panel will not
- Mechanical, optical and laser trackball options let the sensing suit the environment
- Resolution above 800dpi gives usable cursor control from a small module
- Resistant to dirt, dust and liquid with a very rugged vandal proof design
- RoHS, IP65, FCC and CE approvals plus EN55022(B) EMC emission data
- Mounting kit and desktop kit are optional for panel or bench use
Application Scenarios
- Kiosks with an existing keyboard needing a pointing device
- Vending machines with graphical selection screens
- Self-service terminals in public halls
- Industrial equipment consoles
- Library catalogue terminals
Who It Is For
- Kiosk and vending machine OEMs
- Industrial console designers with limited panel area
- Self-service terminal integrators
- Retrofit teams adding pointing control to a fixed fascia
Problems It Solves
- No fascia room for a combined keyboard and trackball panel
- Mice removed or damaged on unattended machines
- Optical sensing failing on contaminated surfaces where a mechanical ball is preferred
- EMC compliance concerns near industrial equipment
Technical Features
- Patent product with high resolution trackball, resolution above 800dpi
- Keys 2, with front panel, trackball and keys in 304 stainless steel and an aluminum back panel
- Power supply DC5V±5% with working current <150mA
- Operation force <2N with durability ≥2 Million
- EMC Emission EN55022(B)
- Mechanical, optical and laser trackball optional
- Operation temperature -10℃~55℃ and storage temperature -30℃~85℃
Specifications
| Trackball Diameter | 25mm |
|---|---|
| Keys | 2 |
| Front panel | 59.6*73.6mm |
| Overall | 91.4*87.4mm |
| Resolution | above 800dpi |
| Power supply | DC5V±5% |
| Working current | <150mA |
| Interface | USB, PS/2 |
| Operation force | <2N |
| Durability | ≥2 Million |
| EMC Emission | EN55022(B) |
| Approvals | RoHS, IP65, FCC, CE |
Materials
- 304 stainless steel front panel
- 304 stainless steel trackball and keys
- Aluminum back panel
Manufacturing Process
- Sheet metal blanking of the 59.6*73.6mm front panel
- CNC machining of the 25mm ball seat
- Aluminum back panel machining
- Sensor fitting for the mechanical, optical or laser version
- Sealing and EMC shielding assembly
Quality Control
- Resolution verification above 800dpi
- Ball rotation and tracking test through full travel
- EMC emission check to EN55022(B)
- IP65 ingress testing
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Mechanical, optical or laser trackball selection
- Mounting kit or desktop kit
- Key arrangement around the ball
- USB or PS/2 harness and cable length
- Panel finish and logo etching
How It Compares
| Combined keyboard and trackball panel | A separate 25mm module lets the pointing device be placed where the fascia has room, independent of the keyboard |
|---|---|
| KY-TB-A-B touchpad module | KY-PC-25G occupies a 59.6*73.6mm front panel against 107*134 mm, and offers mechanical, optical or laser sensing |
Use Guide
- Check the 91.4*87.4mm overall size against the space behind the fascia
- Choose mechanical, optical or laser sensing based on contamination levels
- Order the mounting kit or desktop kit to match the install
- Operate within -10℃~55℃
Solutions
Questions About This Model
What ball size does KY-PC-25G use?
25mm.
How many keys does it have?
2 keys.
What are the dimensions?
Front panel 59.6*73.6mm and overall 91.4*87.4mm.
What sensing types are available?
Mechanical, optical and laser trackball are optional.
What resolution does it provide?
Above 800dpi.
Which approvals apply?
RoHS, IP65, FCC and CE.
Request A Quote On KY-PC-25G
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
