PP Panel
Pig PP Panel — Green
Green PP pen panel in the 900 and 850 mm heights — the most common pen wall and gate face in a weaner room.
Polypropylene (PP)1000×900 / 850×50 mm
Pig PP Panel
Pig PP Panel (Colour Range)

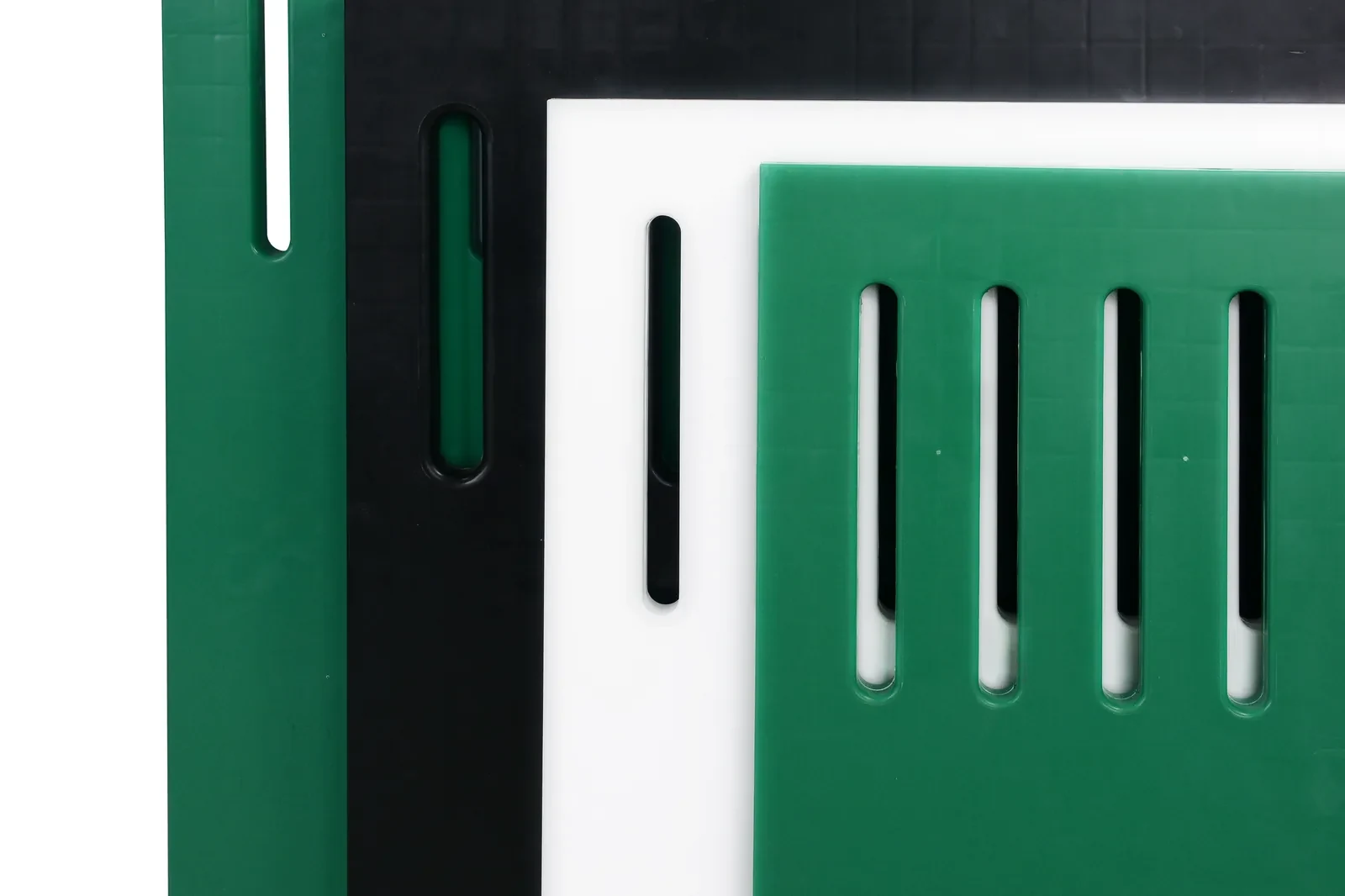

The full PP pen panel range — four sizes, five colours, solid or vented faces, in standard and reinforced grades.
Polypropylene (PP)Green / black / whiteVented slots
Product Overview
A pen panel takes more punishment than any other surface in a pig house. It is leaned on, bitten, kicked and washed. Polypropylene handles all four: it does not corrode, it does not absorb, and it flexes rather than shatters under impact.
The JGM range is built around four sizes — 1200 × 1000 × 50, 1000 × 900 × 50, 1000 × 850 × 50 and 1200 × 500 × 22 mm — each available closed or with a vented window, and in standard or reinforced grade. Green, black, white, blue and grey are the stocked colours.
Technical Features
- Injection-moulded polypropylene
- PP-1200: 1200 × 1000 × 50 mm
- PP-900: 1000 × 900 × 50 mm and PP-850: 1000 × 850 × 50 mm
- PP-500: 1200 × 500 × 22 mm
- Closed face or vented window; standard or reinforced grade
- Green, black, white, blue and grey
Made by the factory that sells it.
Injection-moulded polypropylene, produced on our own lines in Ningbo and shipped flat-packed for container export.
Application Scenarios
- Farrowing crates
- Weaner pens
- Grow-finish penning
Used In
Key benefits
Why Buyers Specify This Product
Impact goes in and comes back out
PP flexes under a knock and returns, where a rigid board would crack and a steel sheet would dent permanently.
Vented or solid on the same frame
The same panel size is produced closed for biosecurity separation and with a window where airflow between pens matters.
Colour all the way through
There is no coating to chip, so a scuffed panel is still the same colour underneath.
Four sizes cover the house
1200 and 1000 mm heights for pen walls, and the 1200 × 500 × 22 mm board for low fronts and make-up runs.
Problems It Solves
Steel penning rusts at the weld and the floor line
PP has no weld and no metal to corrode.
Solid walls between every pen block airflow
The vented (window) version separates the animals while letting air move.
Scuffed painted panels look old within a season
Colour is in the polymer, not on it.
Who It Is For
- Producers building farrowing, weaner and grow-finish pens
- Farms replacing rusted steel or rotted timber penning
- Distributors who need one panel family across several pen heights
One-factory supply
Flooring, penning, feeding, water and climate are made on the same site, so a room can be specified and shipped as one order.
See the turnkey packageSpecifications
Sizes Codes and Materials
Figures below are taken from the JGM product catalogue. Anything we cannot source from it is marked TBC and confirmed with your quotation rather than estimated.
| Item | Specification |
|---|---|
| PP-1200 | 1200 × 1000 × 50 mm |
| PP-901200 | 1000 × 1200 × 50 mm |
| PP-900 | 1000 × 900 × 50 mm |
| PP-850 | 1000 × 850 × 50 mm |
| PP-500 | 1200 × 500 × 22 mm |
| Face options | Closed or vented window |
| Grades | Standard or reinforced |
| Colours | Green, black, blue, white, grey |
| Material | Polypropylene (PP) |
| Packing | Quantity |
|---|---|
| Method | Palletised, bundled or loose according to panel size and length |
| Notes | Loading quantity confirmed with the quotation once sizes and colours are fixed |
Ask for the full size chart and carton-loading data for your order.
Materials and Manufacturing
Injection-moulded polypropylene. The Pig PP Panel (Colour Range) is injection-moulded on JGM's own presses in Ningbo. Polypropylene granulate is dried, dosed and shot into a steel tool, so the part that leaves the press is the part the tool was cut for — there is no secondary forming stage where the dimension can drift. Colour is added as masterbatch at the press, which is why colour goes all the way through the part instead of sitting on it as a coating.
Customisation Options
- Sizes and sections produced to customer requirement on a full-container order
- Colour matched to your existing equipment where the material allows
- Lengths cut to your room rather than to a catalogue dimension
- OEM and private-label production accepted
- Packing and carton marking to your import requirements
Quality Control
- First-off part from every tool change checked against the drawing before the run continues
- Shot weight monitored through the run as the check on wall thickness and fill
- Surface and edge inspection on every part as it is packed
- Assembled items function-checked before boxing
Certifications. We do not publish certification claims we cannot evidence.
Tell us what your market requires and we will confirm in writing what can be supplied for this product.
Comparison
How It Compares With Other JGM Products
| Alternative | When to choose it instead |
|---|---|
| PP Partition Panels | The partition panel page covers the same PP family sold as ready-made pen dividers. |
| PVC Partition Panel (Vented) | PVC is cheaper per square metre; PP takes repeated animal impact better. |
| PVC Panel (Herringbone Rib) | Use a herringbone PVC panel where the face is wide but the impact load is low. |
Use guide
Installing and Running It
Step 1
Choose the height from the animal stage — 1000 mm faces for weaner pens, 1200 mm where finishing pigs are penned.
Step 2
Use vented panels between pens in the same air space and closed panels where rooms are separated for biosecurity.
Step 3
Mount panels in posts and brackets rather than fixing through the face where possible.
Step 4
Wash with a normal gun; PP tolerates standard farm disinfectants without swelling.
Answers
Pig PP Panel (Colour Range) FAQs
What do the LA, LB, XA and XB suffixes mean?
They mark the face and grade combinations — closed or vented window, standard or reinforced build. Tell us the pen and we will quote the right combination.
Which colours are stocked?
Green, black, blue, white and grey are the usual production colours. Other colours are produced on a full-container order.
Is the 22 mm panel strong enough for a pen wall?
The 1200 × 500 × 22 mm board is for low fronts and make-up runs. Pen walls use the 50 mm panels.
Can you make a panel size that is not listed?
Sizes are produced to customer requirement. Send the pen drawing with your enquiry.
