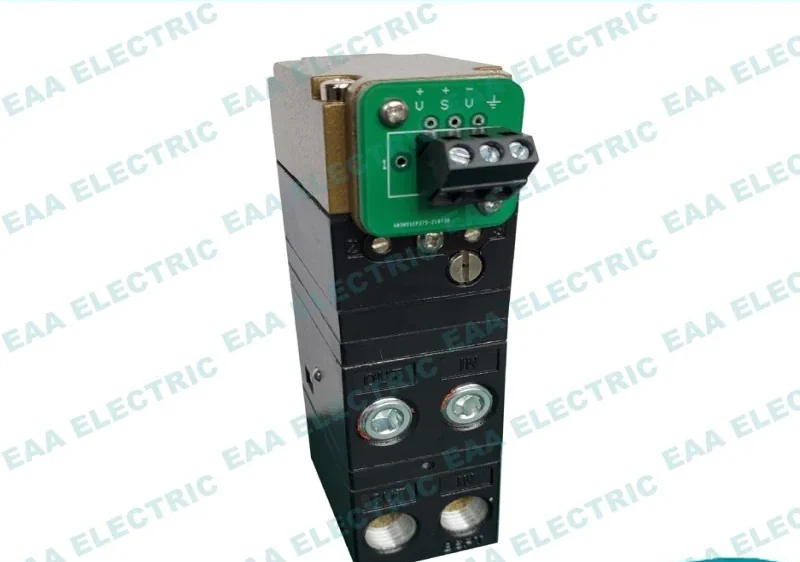

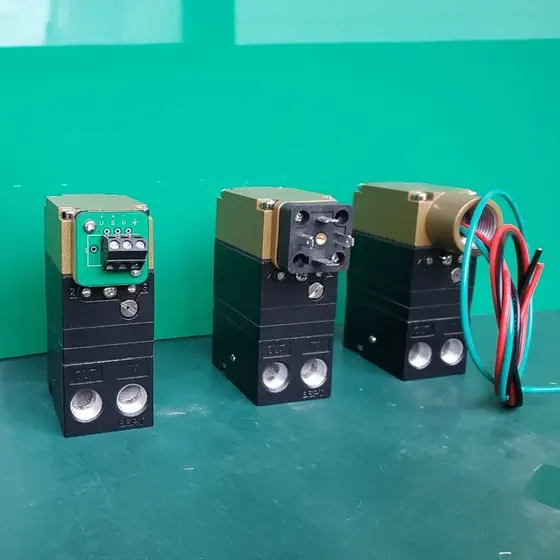

TT7800 Electro Pneumatic Transducer
The TT7800 electro pneumatic transducer converts a DC input signal into a linear proportional pneumatic output pressure for...
What This Model Does
The TT7800 electro pneumatic transducer converts a DC input signal into a linear proportional pneumatic output pressure for precision control applications. It uses a solid state controlled piezoelectric ceramic actuator that functions as a flapper against an air nozzle, paired with an internal electronic feedback loop to maintain output pressure regardless of plant vibration or mounting position. Built with a primary converting section and a pneumatic relay section, it delivers stable pressure control across restricted panels, process skids, and field valve installations. The TT7800 is a form fit and function replacement for Fairchild T7800 series transducers, allowing maintenance teams and instrument assemblers to replace existing units without reworking electrical or pneumatic lines.
| Model | TT7800 Series (T7800 type) |
|---|---|
| Product type | Electro pneumatic I/P, E/P transducer |
| Input signal | DC input signal, split range capable |
| Output | Linear proportional pneumatic output, field reversible |
| Actuator type | Piezoelectric ceramic actuator |
| Feedback | Internal electronic feedback |
| Adjustment | Damping adjustment |
| Enclosure rating | NEMA 4X, Type 4, IP65 |
| Certification | Canadian Registration Numbers (CRN) for all territories and provinces |
| Warranty | 18 months |
Why Buyers Specify This Model
- Internal electronic feedback maintains exact output pressure regardless of line vibration or physical orientation
- Piezoelectric ceramic actuator replaces conventional torque motors for fast response and solid state durability
- Field reversible feature allows switching to an output inversely proportional to the input signal
- RFI and EMI protection prevents radio interference and plant electrical noise from disturbing pneumatic output
- Damping adjustment allows precise tuning of loop response to eliminate downstream system oscillation
- Split range operation enables one common control signal source to operate two or more transducers
- NEMA 4X and IP65 rated housing ensures dependable performance in wet or outdoor process installations
Problems It Solves
- Pneumatic output drifts when the transducer is exposed to mechanical vibration or mounted at an angle
- Electromagnetic noise and plant two-way radio signals cause unpredictable pressure swings
- Long lead times on original-brand I/P transducers stall plant maintenance and scheduled turnarounds
- Control loops oscillate because the transducer response cannot be damped to match downstream volume
- Cabinet or skid space is too restricted to fit standard bulky electro pneumatic converters
Application Scenarios
- Replacing Fairchild T7800 series transducers on process skids without altering piping or brackets
- Process skids with high machine vibration where conventional coil transducers experience pressure drift
- Restricted control cabinets and machinery enclosures requiring a compact electro pneumatic converter
- Split range control loops where a single DCS output operates multiple valves in sequence
- Outdoor or washdown environments requiring NEMA 4X and IP65 enclosure protection
Who It Is For
- Plant instrument technicians replacing worn or failed Fairchild T7800 transducers
- Control valve and actuator OEMs requiring compact I/P and E/P transducers under their own brand
- EPC engineering contractors sourcing pneumatic converters for processing plant projects
- Instrumentation distributors supplying replacement transducers to chemical and energy plants
- Trading companies sourcing form fit replacements to bypass original manufacturer lead times

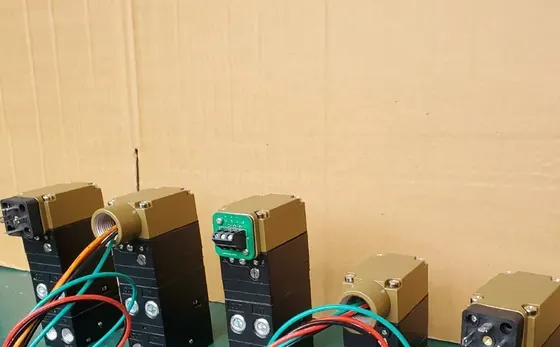

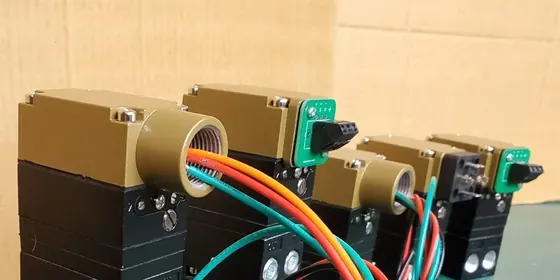

Technical Features
- Primary converting section with solid state controlled piezoelectric ceramic actuator functioning as a flapper
- Nozzle and flapper assembly working together to generate internal signal pressure
- Pneumatic relay section featuring upper and lower control diaphragms for proportional air output
- Internal electronic feedback system to stabilize output pressure during vibration
- Field reversible operation for direct or reverse proportional control action
- Built-in damping adjustment screw for tuning dynamic loop response
- Split range operation capability from a single DC control signal source
- Compact housing rated to NEMA 4X, Type 4, and IP65 standards
Materials and Construction
- Enclosure rated NEMA 4X and IP65 with protective finish
- Piezoelectric ceramic actuator element
- Full material and finish breakdown is given in the datasheet PDF

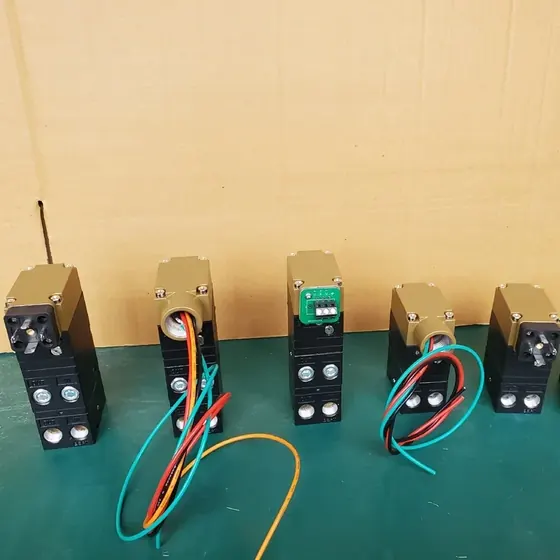

Dimensions and Connection Detail
Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control
Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Housing fabrication and precision machining
Piezoelectric ceramic actuator assembly and nozzle fitting
Electronic circuit board and internal electronic feedback integration
Pneumatic relay diaphragm and valve body assembly
Calibration across standard and split range signal profiles
Zero, span, and damping response adjustment testing
Housing painting and custom OEM branding
Packaging into individual cartons or custom OEM packaging
Quality Control
- Every transducer undergoes calibration and pressure response testing before packing
- Actual sample room or warehouse photos and video can be provided prior to dispatch
- Defective units under the 18 month warranty are replaced on photo or video evidence without return
- Replacement units are shipped with the next scheduled order or immediately for urgent plant shutdowns
Customisation Options
- Custom brand logo and part numbering on the nameplate
- Housing painted in custom colours including black, blue, yellow, and other shades
- Newly designed shape modules developed to client technical drawings
- Customized outer cartons and packaging layouts
How It Compares With the Alternatives
| Conventional voice coil transducer | The TT7800 uses a solid state piezoelectric actuator and electronic feedback to resist vibration drift |
|---|---|
| Standard unsealed I/P transducer | The TT7800 features a NEMA 4X, Type 4, and IP65 rated housing suitable for wet or outdoor plants |
| Fixed response transducer | The TT7800 includes an adjustable damping feature to match loop tuning and eliminate process hunting |
| Direct action only transducer | The TT7800 is field reversible to provide output inversely proportional to the input signal |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Mount the TT7800 using standard mounting configurations in an upright or suitable field position
Verify clean, dry, oil-free instrument air is connected to the supply port
Connect the pneumatic output port directly to the actuator or downstream pneumatic positioner
Connect the DC input signal wiring observing proper polarity and shielding against extreme interference
Set the field reversible switch if reverse proportional pneumatic output is required by the process
Adjust the damping screw to smooth out dynamic output if the control loop exhibits hunting
Check and calibrate zero and span settings across the intended standard or split range control span
TT7800 Electro Pneumatic Transducer FAQ
Is the TT7800 a direct replacement for the Fairchild T7800?
Yes. It is a form fit and function replacement matching the pneumatic and electrical principles of the T7800 series.
What is the lead time for standard and large orders?
Regular quantities ship in 2 to 3 days from stock. Large orders normally ship within 7 to 10 days.
Does the transducer resist machine vibration?
Yes. It uses a solid state piezoelectric actuator and internal electronic feedback to maintain output pressure under vibration.
Can I order units in custom colors with our own brand logo?
Yes. We supply OEM branding with custom nameplates, painted housing colors, and customized cartons.
What is the warranty policy if an instrument fails?
We provide an 18 month warranty. Faulty units are replaced rather than repaired upon photo or video evidence.
Can it be installed outdoors in rain or washdown areas?
Yes. The TT7800 features a NEMA 4X, Type 4, and IP65 rated enclosure suitable for indoor and outdoor environments.
