TD6000 Electro Pneumatic Transducer
The TD6000 is an electro pneumatic transducer designed for precision process control and automation applications.
What This Model Does

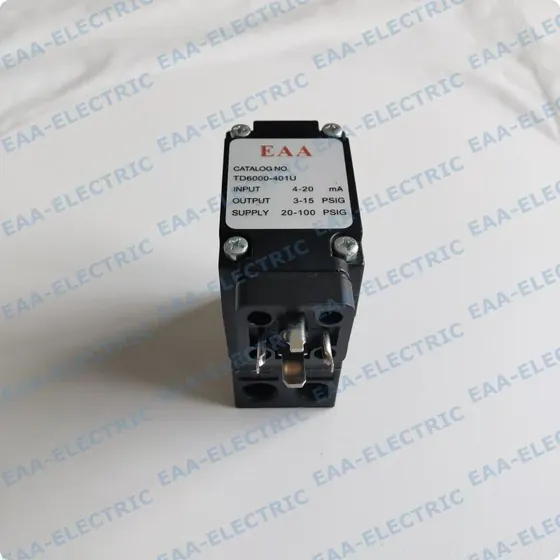

The TD6000 is an electro pneumatic transducer designed for precision process control and automation applications. Built as a Fairchild type transducer replacement, its modular construction allows installation across explosion-proof housings, racks, walls, pipes, panels, DIN rails, or multi-unit manifolds. It converts electrical input signals into precise pneumatic pressure across six standard input and six output ranges. With field-reversible direct or reverse proportional action, built-in RFI and EMI shielding, and pneumatic connections located on both front and bottom faces, the TD6000 integrates smoothly into tight control cabinets or field valve installations.

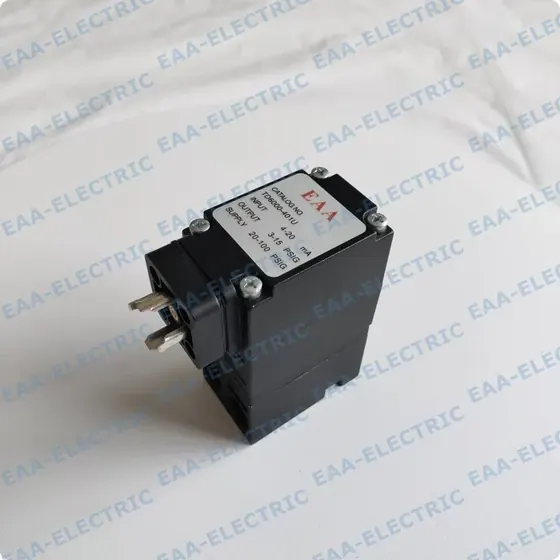

| Model | TD6000 |
|---|---|
| Type | Electro pneumatic transducer |
| Pattern | Fairchild type transducer |
| Enclosure ratings | Explosion-proof NEMA 4X, IP65, Type 4 available |
| Mounting options | Explosion-proof, rack, wall, pipe, panel, DIN rail, or 3, 5, 10, 15 unit manifold |
| Pneumatic ports | Front and bottom input and output ports |
| Input signal options | Six input signal ranges |
| Output pressure options | Six output pressure ranges |
| Output action | Field reversible (direct or inversely proportional) |
| Protection | RFI/EMI protection |
| Warranty | 18 months |
Why Buyers Specify This Model
- Modular construction allows installation in explosion-proof housings, racks, walls, pipes, panels, DIN rails, or multi-unit manifolds
- Pneumatic ports on front and bottom faces give flexible routing options in congested cabinets
- Field-reversible design switches between direct and inversely proportional pneumatic output
- Built-in RFI and EMI protection prevents interference from nearby electrical drives and radios
- Six available input ranges match standard analog machine and process controller outputs
- Six pneumatic output ranges align directly with final control element supply requirements
- Compact footprint fits into space-restricted control skids, valve brackets, and instrument enclosures
Problems It Solves
- Control valves failing to seal tightly at minimum signal due to inadequate initial zero adjustment
- Valve stems failing to stroke fully because transducer output cannot exceed nominal high-end pressure
- Signal drift and instability caused by electromagnetic interference or nearby radio frequency equipment
- Restricted enclosure space preventing standard-sized electro pneumatic transducers from fitting
- Piping layout headaches caused by rigid or single-orientation pneumatic port locations
Application Scenarios
- Converting analog 4 to 20 mA signals to pneumatic pressure on automated process control valves
- High-density cabinet installations using 3, 5, 10, or 15 unit manifold configurations
- Field mounting on pipe stands or control valve yokes requiring NEMA 4X and IP65 protection
- Direct replacement of Fairchild T6000 and TD6000 pattern transducers during routine maintenance
- DIN rail or wall panel mounting inside industrial instrumentation and control enclosures
Who It Is For
- Plant instrument technicians replacing worn or failed Fairchild T6000 series transducers
- EPC contractors sourcing electro pneumatic converters for skid instrumentation packages
- Control valve and actuator OEMs requiring custom-branded transducer units for new assemblies
- Distributors stocking replacement electro pneumatic converters for local process and chemical plants
- Instrumentation trading companies supplying field-proven I/P and E/P transducer models
Technical Features
- Modular design supporting explosion-proof, rack, wall, pipe, panel, DIN rail, and manifold mounting
- Available in 3, 5, 10, or 15 unit manifold configurations for multi-loop setups
- Field-reversible output providing direct or inversely proportional action
- Integrated RFI and EMI protection to eliminate susceptibility to electromagnetic noise
- Six distinct input signal ranges and six output pressure ranges
- Dual input and output port locations positioned on both front and bottom faces
- Explosion-proof enclosure ratings available in NEMA 4X, IP65, and Type 4 for outdoor or indoor service

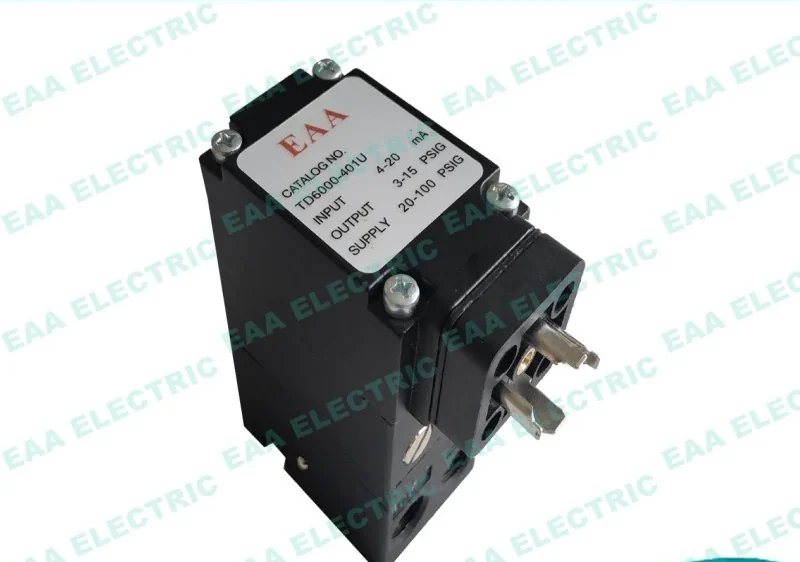

- Zero and full-scale adjustment knobs for fine-tuning low-end and high-end pneumatic cutoffs
Materials and Construction
- Explosion-proof housing rated NEMA 4X, IP65, Type 4
- Full material and finish breakdown is given in the datasheet PDF
Dimensions and Connection Detail

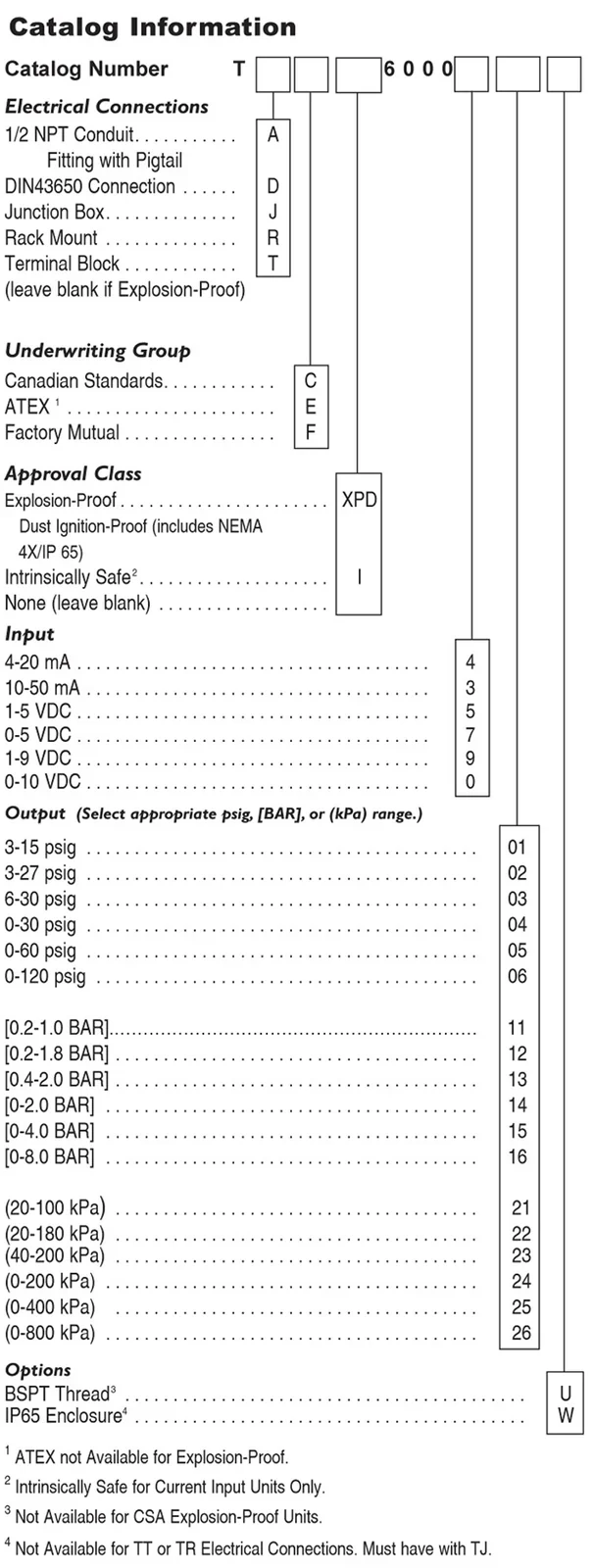

Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control
Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Transducer housing machining and surface coating
Coil, magnet, and pneumatic conversion module assembly
RFI and EMI shielding integration into the electronic circuit
Zero and span adjustment testing across operational pressure ranges
Pressure output verification at low-end and high-end signal limits
Custom housing painting and brand marking for OEM orders
Protective packing into standard or customized export cartons
Quality Control

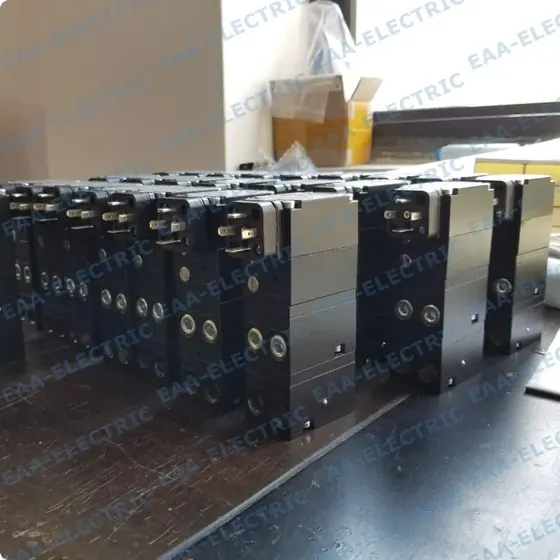

- Every unit is calibrated and pressure tested across its signal range before dispatch
- Real photos and video of the completed units can be supplied before packaging
- Defective units under the 18 month warranty are replaced on photo or video evidence without return
- Replacement units are shipped immediately for plant shutdowns or with the subsequent order
Customisation Options
- Customer logo and nameplate customisation
- Housing painted in custom customer colours such as black, blue, yellow, or others
- Newly designed shape modules developed to match specific customer requirements
- Customised carton and export packaging options
How It Compares With the Alternatives
| Standard fixed-port I/P transducers | The TD6000 offers ports on both front and bottom faces, giving greater installation flexibility |
|---|---|
| Unshielded basic transducers | The TD6000 incorporates RFI and EMI protection to eliminate electromagnetic and radio interference |
| Single-mount transducers | The TD6000 supports multi-unit manifold configurations of 3, 5, 10, or 15 units alongside individual mounts |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Select the appropriate mounting style including DIN rail, wall, panel, pipe, or manifold configuration
Connect clean, dry instrument air using either the front or bottom pneumatic supply ports
Connect the actuator or positioner pneumatic line to the chosen front or bottom output port
Wire the electrical input signal observing the polarity required for direct or reverse action
To improve shutoff seating, adjust the zero knob so output drops below 20 kPa at 4 mA
To ensure full open stroke, adjust the full-scale knob so output exceeds 100 kPa at 20 mA
Verify tight pneumatic connections and ensure enclosure covers are secured for IP65 and NEMA 4X protection
TD6000 Electro Pneumatic Transducer FAQ
What is the standard delivery lead time for the TD6000?
Regular quantities normally ship in 2 to 3 days from stock. Large project quantities ship in 7 to 10 days.
Can the TD6000 be mounted on a multi-station manifold?
Yes. The modular construction permits installation on 3, 5, 10, or 15 unit manifold configurations as well as individual mounts.
Is the pneumatic output action reversible in the field?
Yes. The unit features a field-reversible mechanism to deliver output that is directly or inversely proportional to the input signal.
Can we order this transducer with our own logo and paint colour?
Yes. We offer OEM branding, custom nameplate marking, and housing painting in black, blue, yellow, or other customer colours.
How does the warranty work if a unit malfunctions?
We provide an 18 month warranty. If a unit fails, send photo or video evidence and we send a replacement unit rather than repairing it.
Can I verify the product before shipment?
Yes. Real product photos and videos can be taken in our sample room or warehouse upon your request before shipping.
