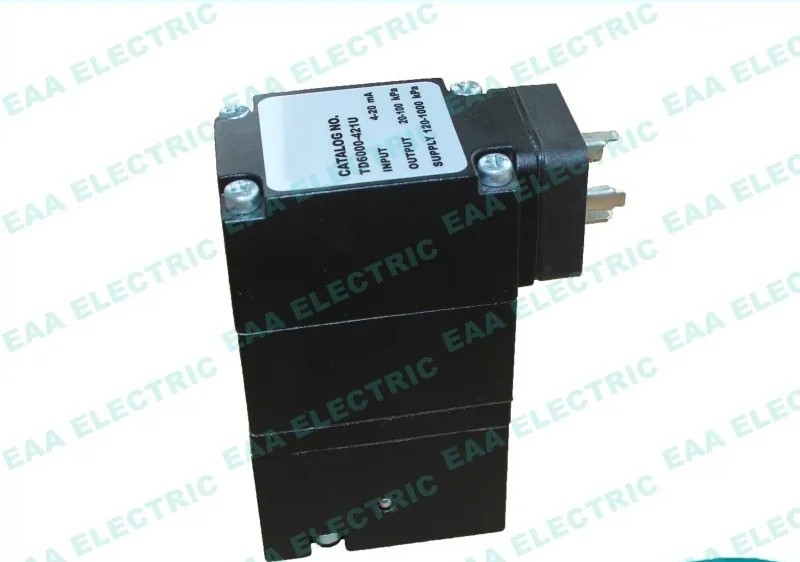

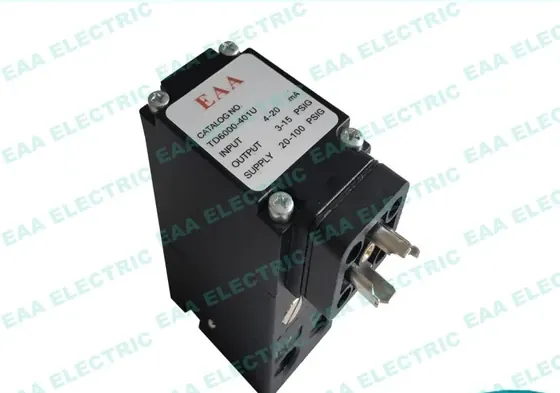

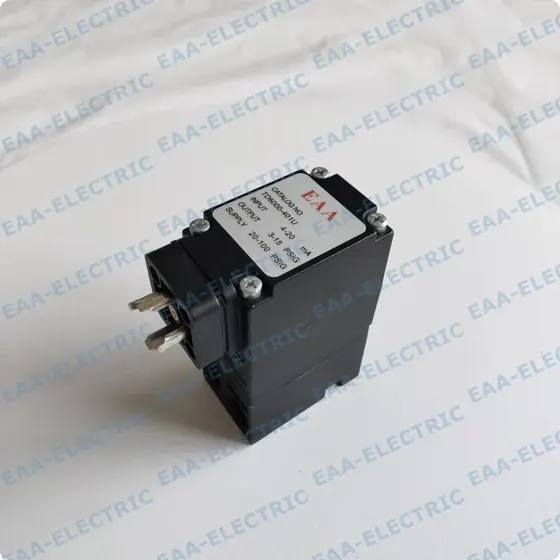

T6000 Electro Pneumatic Transducer
The T6000 is an electro pneumatic transducer designed for precision control applications where an electrical signal must be...
What This Model Does
The T6000 is an electro pneumatic transducer designed for precision control applications where an electrical signal must be converted into a proportional pneumatic output. Its modular construction allows the basic unit to be mounted on a pipe, panel, wall, DIN rail, rack, or across 3, 5, 10, or 15 unit manifolds, as well as in explosion-proof installations. With six input signal ranges and six output pressure ranges, it adapts to diverse final control elements in space-restricted installations. It serves as a direct form, fit, and function replacement for Fairchild type T6000 transducers used in process loops and control valve automation.

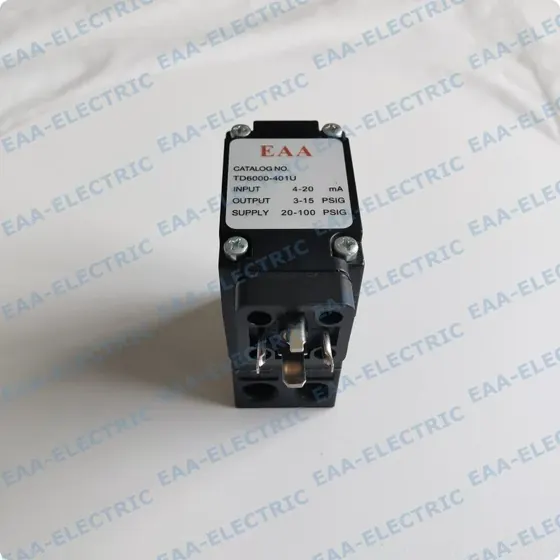

| Model | T6000 Series |
|---|---|
| Product type | Electro pneumatic transducer (I/P, E/P converter) |
| Design pattern | Fairchild type |
| Enclosure rating | NEMA 4X, IP65, Type 4, explosion-proof available |
| Input signal options | Six input signal ranges |
| Output pressure options | Six output pressure ranges |
| Pneumatic connections | Input and output ports on both front and bottom |
| Mounting options | Explosion-proof, rack, wall, pipe, panel, DIN rail, 3, 5, 10, or 15 unit manifold |
| Action | Field reversible (direct or inversely proportional) |
| Interference protection | RFI/EMI protection |
| Housing colour | Black, blue, yellow, or painted to customer requirement |
| Warranty | 18 months |
Why Buyers Specify This Model
- Modular build fits explosion-proof, rack, wall, pipe, panel, DIN rail, or multi-unit manifold configurations
- Field reversible action delivers direct or inversely proportional pneumatic output to match valve fail modes
- RFI and EMI protection prevents radio frequency and electromagnetic interference from causing signal drift
- Six input ranges and six output pressure ranges cover standard process control and machine requirements
- Pneumatic ports on front and bottom simplify tubing runs in crowded instrument cabinets and skids
- Compact enclosure allows installation inside tight instrument enclosures and restricted field locations
- Explosion-proof NEMA 4X, IP65, and Type 4 enclosure design supports reliable outdoor and indoor installations
Problems It Solves
- Transducer output drifts when walkie-talkies or electrical switchgear generate RFI and EMI nearby
- Restricted cabinet space makes installing bulky traditional pneumatic converters impractical or impossible
- Rigid piping layouts cause complex tubing runs because ports exist only on one side
- Long lead times on original-brand I/P transducers delay skid fabrication and routine maintenance turnarounds
- Process loop requires inverse output action but existing field transducers lack field reversibility
Application Scenarios
- Converting electrical control signals to proportional air pressure for pneumatic actuators and control valve accessories
- High-density control cabinets using 3, 5, 10, or 15 unit manifolds to run multiple transducers together
- Outdoor or harsh field locations requiring NEMA 4X and IP65 enclosure protection against environmental exposure
- Process lines near variable frequency drives or heavy electrical machinery requiring RFI and EMI protection
- Replacing legacy Fairchild T6000 transducers during plant maintenance outages without repiping mounting racks
Who It Is For
- Plant instrument technicians replacing worn or discontinued Fairchild type transducers on operating skids
- OEM valve automation assemblers integrating I/P converters into private-label pneumatic packages
- EPC contractors sourcing standardized electro pneumatic transducers for plant expansion projects
- Instrumentation distributors keeping replacement transducers in stock for local manufacturing plants
- Control panel builders who need modular DIN rail or manifold-mounted converters in tight enclosures
Technical Features
- Modular transducer construction compatible with individual mounting or multi-station pneumatic manifolds
- Front and bottom pneumatic input and output connections for flexible tubing routing
- Field reversible conversion providing directly or inversely proportional pneumatic output
- Integrated shielding to eliminate susceptibility to RFI and EMI electromagnetic interference
- Six selectable input signal ranges paired with six selectable pneumatic output pressure ranges
- Enclosure rating meeting NEMA 4X, IP65, and Type 4 requirements for harsh environments
Materials and Construction
- NEMA 4X, IP65, Type 4 rated housing with painted protective finish
- Precision pneumatic internal nozzle and coil components
- Full material and finish breakdown is given in the datasheet PDF
Dimensions and Connection Detail

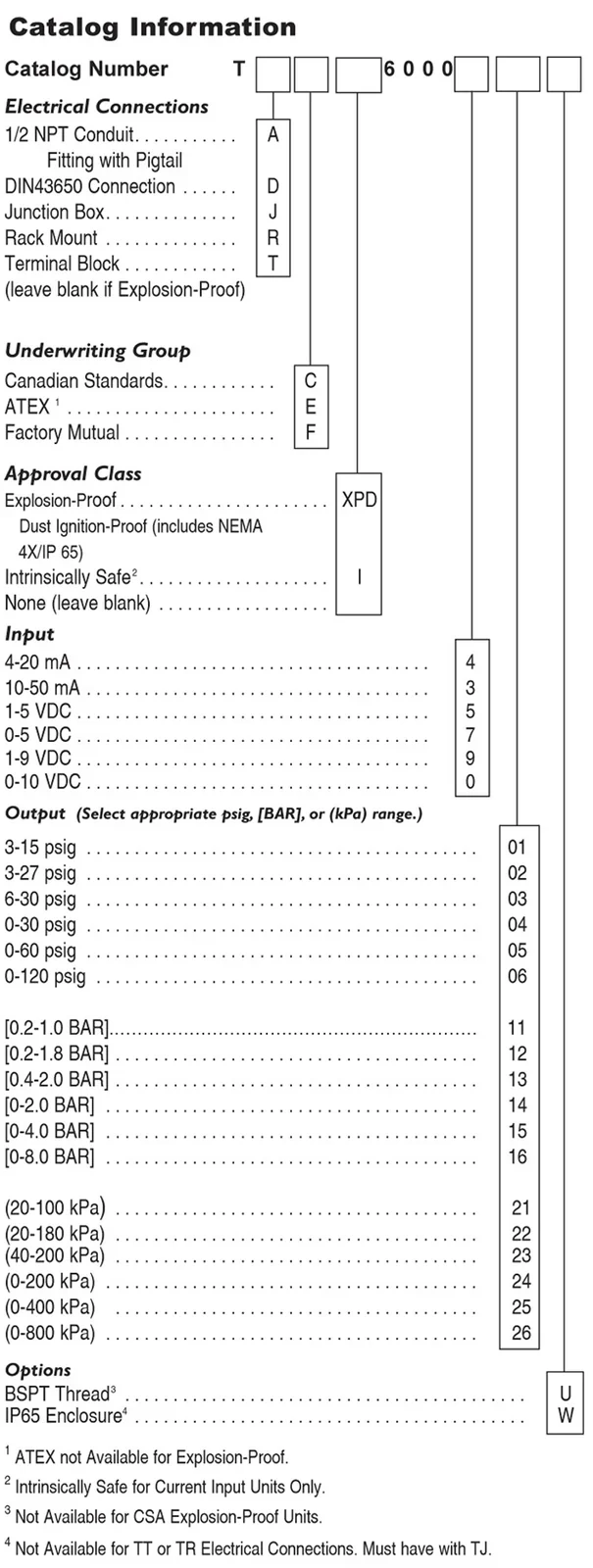

Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control

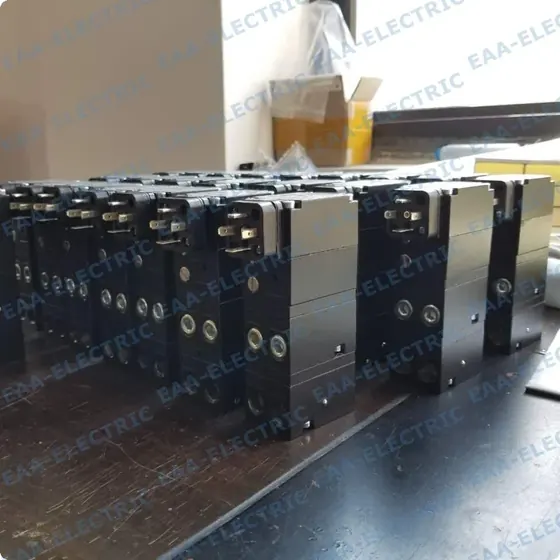

Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Housing machining and surface preparation for protective painting
Coil, magnet, and pneumatic conversion module assembly
Integration of RFI and EMI electromagnetic shielding components
Pressure calibration across specified input and output ranges
Direct and reverse action functional verification on clean air bench
Housing painting in specified colour and customer logo marking for OEM orders
Final visual check and packaging into standard or custom cartons
Quality Control
- Every transducer undergoes bench calibration and output verification before packing
- Real photos or videos of the completed units can be supplied from the warehouse before shipment
- Faulty units within the 18 month warranty are replaced on photo or video evidence rather than repaired
- Urgent replacement units ship immediately or travel with the customer next scheduled shipment
Customisation Options
- Customer logo and private label nameplate printing
- Housing painted in custom customer colours including black, blue, and yellow
- New shape modules developed to match customer installation requirements
- Carton and protective inner packaging customisation
- Supplied alongside matching pilot valves, actuators, or limit switch boxes
How It Compares With the Alternatives
| Valve positioner with stem feedback | The T6000 sets output air pressure without reading actual stem travel, making it simpler but unable to correct stem friction |
|---|---|
| Standard transducer without RFI/EMI protection | The T6000 incorporates electromagnetic shielding to eliminate signal distortion caused by nearby radios or electrical gear |
| Fixed-port pneumatic transducers | The T6000 provides pneumatic connections on both front and bottom, avoiding awkward pipe loops in tight cabinets |
| Single-mount transducers | The T6000 supports multi-station manifolds up to 15 units, significantly reducing mounting footprint in control rooms |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Select the required mounting arrangement such as pipe, panel, DIN rail, or multi-unit manifold
Mount the transducer securely in the enclosure or field bracket
Plumb clean dry instrument air into the supply port using either the front or bottom connection
Connect the pneumatic output port to the control valve actuator or pneumatic receiver
Terminate the electrical input signal wires into the terminal block observing correct polarity
Configure direct or reverse action in the field to match process fail-safe logic requirements
Perform zero and span calibration adjustments using the calibration points for quick loop verification
T6000 Electro Pneumatic Transducer FAQ
What is the standard delivery lead time?
Delivery is normally 2 to 3 days for regular order quantities from stock. Large orders take 7 to 10 days.
Can the T6000 replace a Fairchild brand transducer directly?
Yes. It shares the modular design, mounting configurations, and port locations of the Fairchild type T6000 for direct replacement.
Can we purchase units painted in our company colour with our logo?
Yes. We offer OEM and ODM customization including housing painting in black, blue, yellow, or custom colors, plus the nameplate marked with your logo.
What mounting styles does this transducer support?
The modular construction allows installation on a pipe, wall, panel, DIN rail, rack, or on 3, 5, 10, or 15 unit manifolds, as well as explosion-proof housings.
How is the 18 month warranty handled if a unit fails?
We replace faulty units rather than repairing them. Upon reviewing photo or video evidence, we ship a replacement unit, usually with your next order.
Can I inspect the units before they leave your factory?
Yes. Real product photos and videos can be taken in our sample room or warehouse and shared with you before dispatch.
Can the output action be changed in the field?
Yes. The T6000 features a field-reversible design, allowing output pressure to be set directly or inversely proportional to the input signal.
Applications Cases and Guides
Related Products
Get A Price on This Model
Tell us the quantity, the actuator it goes on and the destination port. We come back with price, lead time and confirmation that the model matches your valve.
