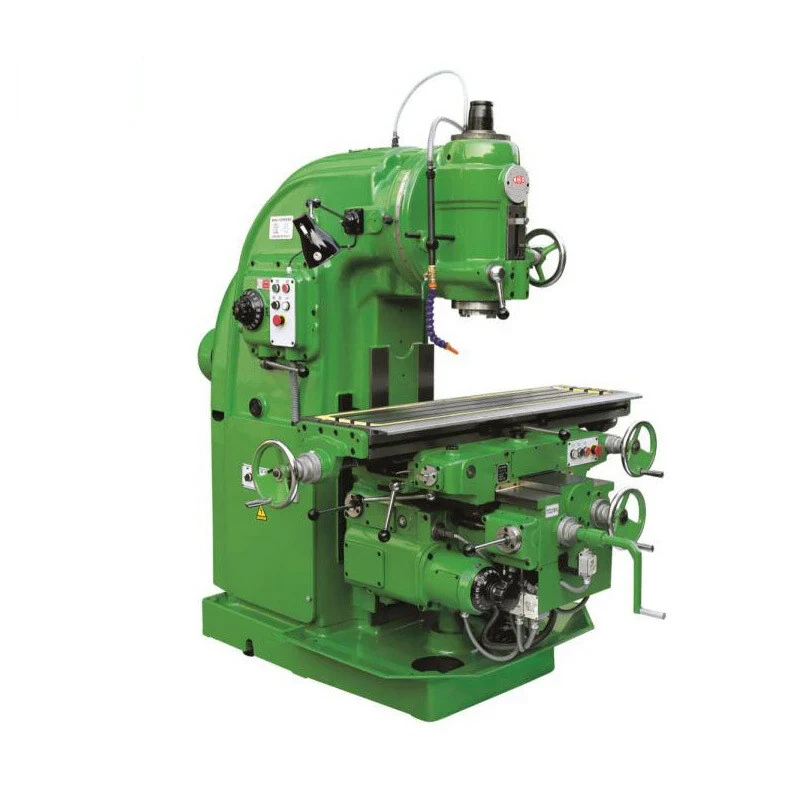

Heavy Duty Universal Vertical Milling Machine X5032
The X5032 is a knee type vertical milling machine built to take heavy cuts rather than just light finishing work. The structure is stiff enough to withstand heavy cutting, and the wear surfaces are cast in vanadium-titanium wear-resistant cast iron while the important transmission parts are made from alloy steel, so th...
What This Machine Does
The X5032 is a knee type vertical milling machine built to take heavy cuts rather than just light finishing work. The structure is stiff enough to withstand heavy cutting, and the wear surfaces are cast in vanadium-titanium wear-resistant cast iron while the important transmission parts are made from alloy steel, so the machine keeps its accuracy after years of chip load instead of wearing loose. The spindle motor has the power and the variable speed range to let the tool work at its proper cutting speed, including high-speed cutting where the job allows it. The spindle taper hole takes cylindrical milling cutters disc cutters forming cutters and end mills directly or through attachments, which makes it a general metal cutting machine tool for planes inclined planes grooves and holes on a wide range of small and medium parts. A complete lubrication system feeds the moving surfaces so the guideways and transmission stay protected through continuous production.
Why Buyers Choose This Machine
- Rigid structure withstands heavy cutting so the machine is not limited to light finishing passes
- Vanadium-titanium wear-resistant cast iron on wear surfaces holds accuracy through years of use
- Alloy steel in the important transmission parts keeps the drive train durable and stable
- Powerful spindle motor with a wide variable speed range lets each cutter run at its correct speed
- High-speed cutting is available where the material and tooling suit it
- Spindle taper accepts cylindrical disc forming and end milling cutters directly or through attachments
- Complete lubrication system protects the guideways and transmission in continuous production
Where Heavy Duty Universal Vertical Milling Machine X5 Earns Its Place
Problems It Solves
- Light knee mills chatter and stall under a heavy cut so the operator has to take many shallow passes
- Ordinary cast iron guideways wear and the machine loses accuracy within a few years
- A narrow spindle speed range forces the wrong cutting speed on part of the tool range
- Weak transmission parts fail under heavy cutting and stop production
- Buying separate machines for planes grooves and holes ties up floor space and capital
- Missed lubrication points cause guideway wear that cannot be undone
Who It Is For
- General machine shops with mixed small and medium part work
- Maintenance and repair workshops making replacement parts
- Production shops needing a knee mill that stands up to heavy cutting
- Technical schools teaching conventional milling
- Distributors supplying knee type milling machines to industrial buyers
Application Scenarios
- Machining planes and inclined planes on small and medium parts
- Cutting grooves keyways and steps on machined components
- Drilling and boring holes using the spindle taper and attachments
- Heavy roughing passes on castings before finishing
- General jobbing milling in a workshop handling mixed work
- Training and production milling where one machine has to cover many operations
Technical Detail
Technical Features
- Rigid machine structure capable of withstanding heavy cutting
- Vanadium-titanium wear-resistant cast iron used for the wear-resistant castings
- High-quality alloy steel in the important transmission parts
- Powerful spindle motor with a variable speed range for high-speed cutting
- Spindle taper hole accepting cylindrical milling disc forming and end milling cutters directly or through attachments
- Vertical lifting platform knee type construction
- Complete lubrication system
Specifications
| Machine type | Knee type heavy duty universal vertical milling machine |
|---|---|
| Models | X5032 / X5040 |
| Structure | Vertical lifting platform knee type with rigid construction for heavy cutting |
| Wear-resistant castings | Vanadium-titanium wear-resistant cast iron |
| Transmission parts | High-quality alloy steel |
| Spindle drive | Powerful motor with variable speed range |
| Tooling | Cylindrical milling cutters disc cutters forming cutters and end mills directly or through attachments |
| Lubrication | Complete lubrication system |
| Applications | Planes inclined planes grooves and holes on small and medium parts |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Milling
- Face milling
- Groove milling
- Inclined plane milling
- Hole machining
Materials Handled
- Vanadium-titanium wear-resistant cast iron
- Alloy steel
Quality Control
- Castings inspected before machining of guideway and mounting surfaces
- Spindle run-out measured at the taper hole after assembly
- Knee and table movement checked for squareness and backlash over full travel
- Spindle speed range run through every step under load
- Lubrication system checked for delivery at each point before shipment
- Test cut taken and the machined surface inspected before packing
Customisation Options
- X5032 or X5040 selected against your table size and travel requirement
- Cutter attachments specified for the operations you run
- Supply voltage frequency and phase built for your market
- Digital readout offered where your setting work needs it
- Manual and machine plates prepared in your working language
How It Compares With the Alternatives
| X715 bed type vertical milling machine | The X715 has a fixed bed and a 2000 kg table for large heavy parts; the X5032 knee type gives vertical table adjustment and more flexibility on small and medium work |
|---|---|
| X6140 universal knee type milling machine | The X6140 adds a swivelling worktable and horizontal universal working; the X5032 is the straightforward vertical machine where that flexibility is not needed |
| Light hobby or bench milling machines | A light machine cannot carry a heavy cut without chatter; the X5032 uses wear-resistant castings and alloy steel transmission parts specifically so heavy cutting is routine |
Running the Machine
Step 1
Clamp the workpiece on the table and check the clamps clear the cutter path
Step 2
Fit the cutter directly in the spindle taper or through the appropriate attachment
Step 3
Set the spindle speed for the cutter diameter and the material
Step 4
Raise the knee to bring the work to the cutter and lock the knee before cutting
Step 5
Check the lubrication system is delivering before starting a heavy pass
Step 6
Rough with a deeper cut and lighter feed then take a finishing pass for surface quality
Step 7
Clear chips from the table and ways at the end of each job to protect the guideways
Other Machines in Milling
Related Applications and Guides
General Machining Job Shops
Job shops take whatever work comes through the door, which means their equipment has to cover a wide range rather than do one thing perfectly. XAIMC s
Heavy Equipment and Plant Maintenance
Mines quarries plantations and processing plants cannot wait for imported spares. XAIMC supplies the boring gear cutting turning and grinding machines
Machine Tool Installation and Commissioning Checklist
Installing an imported machine tool correctly means preparing the site, unpacking and positioning the machine, levelling it, connecting services and p
Preventive Maintenance for Manual Lathes and Milling Machines
Manual lathes and milling machines keep their accuracy through lubrication, cleanliness, correct adjustment of gibs and backlash, and regular geometri
Questions About Heavy Duty Universal Vertical Milling Machin
What is the difference between the X5032 and the X5040?
They differ in working size. Send us the largest part you machine and the travels you need and we will confirm which model to quote.
Can it take heavy cuts or is it a finishing machine?
The structure is built with good rigidity to withstand heavy cutting, and the wear-resistant castings and alloy steel transmission parts are specified for that duty.
What cutters will the spindle take?
The spindle taper hole accepts cylindrical milling cutters disc cutters forming cutters and end mills, directly or through an attachment. Tell us the tooling you already own and we will confirm compatibility.
Why vanadium-titanium cast iron?
It is a wear-resistant grade used for the castings that carry the sliding surfaces, which is what keeps the machine durable and stable over its working life.
Can I add a digital readout?
Yes, tell us at enquiry whether you want a readout fitted and on which axes and we will include it in the quotation.
What power supply does the machine need?
Tell us your voltage frequency and phase and the machine will be built to your market supply.
What are your trade and payment terms?
FOB CFR and CIF are available. Payment is 30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the Heavy Duty Universal Vertical Milling Machin
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
