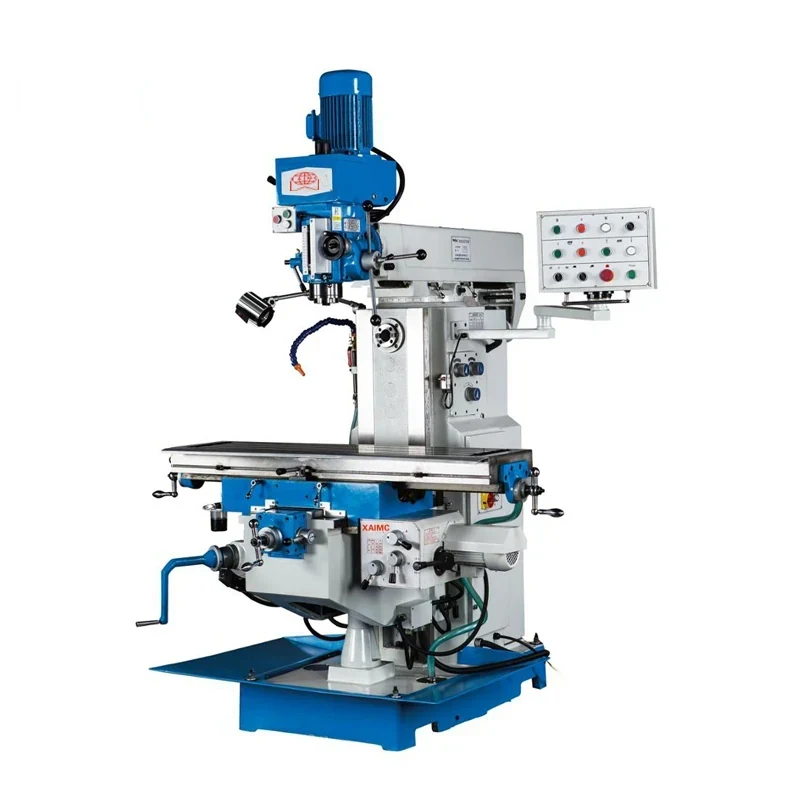

X6332Z Universal Vertical Horizontal Gear Head Drilling and Milling Machine
The X6332Z is an economical drilling and milling machine for shops that need both operations but cannot give the floor space or the budget to two machines. It is compact and small in footprint while staying flexible in what it can reach: the milling head rotates 90 degrees left and right so the machine works vertically...
What This Machine Does
The X6332Z is an economical drilling and milling machine for shops that need both operations but cannot give the floor space or the budget to two machines. It is compact and small in footprint while staying flexible in what it can reach: the milling head rotates 90 degrees left and right so the machine works vertically or horizontally, the head also turns through plus or minus 45 degrees for angled work, and the rocker arm extends and retracts to bring the spindle out over the workpiece. The body is high-grade cast iron. The main shaft is chrome-molybdenum alloy running in precision-grade angular contact bearings, and it is quenched and tempered then fine ground, which is what gives the spindle the stiffness to take a strong cutting force while holding accuracy. Nuts in the feed train are high-grade phosphor bronze for wear resistance. X and Y feed automatically through gear transmission and the Z direction lifts electrically.
Why Buyers Choose This Machine
- Drilling and milling on one compact machine so a small shop does not need two footprints
- Milling head rotates 90 degrees left and right covering vertical and horizontal work
- Head also swivels plus or minus 45 degrees for angled faces and holes
- Extending and retracting rocker arm brings the spindle over the work without moving the part
- Chrome-molybdenum main shaft quenched tempered and fine ground takes strong cutting force at accuracy
- Precision-grade angular contact bearings on the spindle hold running accuracy under load
- Phosphor bronze nuts resist wear so the feed train keeps its setting over a long service life
- Gear transmission auto feed on X and Y with electric lift on Z
Where X6332Z Universal Vertical Horizontal Gear Head D Earns Its Place
Problems It Solves
- Buying separate drilling and milling machines doubles the floor space and the capital cost
- Moving a part between machines for drilling and milling loses its setting and adds error
- Fixed-head machines cannot reach horizontal or angled features without a fixture
- Wide parts put features out of reach of a fixed column spindle
- Soft feed nuts wear and the machine develops backlash that shows on every cut
- A spindle without proper bearings and heat treatment deflects and loses accuracy under cutting force
Who It Is For
- Small and medium workshops needing drilling and milling from one machine
- Maintenance departments with mixed repair work
- Prototype and model shops with limited floor space
- Training workshops teaching drilling and milling
- Distributors supplying economical multi-function machines
Application Scenarios
- Drilling and milling the same part without moving it to another machine
- Horizontal milling by rotating the head 90 degrees
- Angled drilling and milling using the plus or minus 45 degree head rotation
- Small parts production in a workshop with limited floor space
- Maintenance work needing a flexible machine for varied one-off jobs
- Reaching features on a wide part by extending the rocker arm
Technical Detail
Technical Features
- Compact small structure with high flexibility
- Milling head rotating 90 degrees left and right for vertical and horizontal working
- Milling head rotation through plus or minus 45 degrees
- Rocker arm that extends and retracts
- Body in high-grade cast iron
- Main shaft in chrome-molybdenum alloy quenched tempered and fine ground
- Precision-grade angular contact bearings on the main shaft
- High-grade phosphor bronze nuts for wear resistance
- Automatic gear transmission feed on X and Y with electric lift on Z
Specifications
| Machine type | Universal vertical and horizontal gear head drilling and milling machine |
|---|---|
| Models | X6332Z of the Z series |
| Head rotation | 90° left and right and ±45° swivel |
| Rocker arm | Extending and retracting |
| Body material | High-grade cast iron |
| Main shaft | Chrome-molybdenum alloy quenched and tempered then fine ground |
| Spindle bearings | Precision-grade angular contact bearings |
| Feed nuts | High-grade phosphor bronze |
| Feeds | Automatic gear transmission on X and Y with electric lift on Z |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Drilling
- Milling
- Vertical milling
- Horizontal milling
- Angular machining
Materials Handled
- Cast iron
- Chrome-molybdenum alloy steel
- Phosphor bronze
Quality Control
- Main shaft heat treated then fine ground and checked for run-out before assembly
- Angular contact bearing preload set and checked on the assembled spindle
- Head rotation checked for accurate position at 90 degrees and at the 45 degree limits
- Auto feed on X and Y and the electric Z lift run through full travel
- Rocker arm extension checked for rigidity and clamping
- Test drilling and milling cuts taken before the machine is packed
Customisation Options
- Table size and travels confirmed against your part sizes at quotation
- Drill chucks collets and milling holders specified for your tooling
- Supply voltage frequency and phase built for your market
- Digital readout offered where setting accuracy needs it
- Manual and machine plates prepared in your working language
How It Compares With the Alternatives
| X6436 universal drilling and milling machine | The X6436 is the larger servo-driven machine with rapid feeds and an ISO 50 horizontal spindle; the X6332Z is the compact economical machine for shops with limited space and budget |
|---|---|
| A separate vertical mill and pillar drill | Two machines cost two footprints and force the part to be moved and re-set; the X6332Z drills and mills from one clamping |
| A light bench drill-mill without gear head | Belt-driven bench machines lose torque at low speed; the gear head and chrome-molybdenum spindle here are specified so the machine can hold cutting force |
Running the Machine
Step 1
Clamp the part on the table and set the datum before choosing the head orientation
Step 2
Rotate the milling head to vertical or horizontal and set any angle within plus or minus 45 degrees
Step 3
Extend the rocker arm to bring the spindle over the feature and clamp it
Step 4
Fit the drill or cutter and set the spindle speed for the tool and material
Step 5
Engage automatic feed on X or Y for milling or use the electric Z lift for drilling depth
Step 6
Take a trial cut and measure before running the rest of the part
Step 7
Check the lubrication points and clear chips from the ways at the end of the shift
Related Applications and Guides
General Machining Job Shops
Job shops take whatever work comes through the door, which means their equipment has to cover a wide range rather than do one thing perfectly. XAIMC s
Heavy Equipment and Plant Maintenance
Mines quarries plantations and processing plants cannot wait for imported spares. XAIMC supplies the boring gear cutting turning and grinding machines
Machine Tool Installation and Commissioning Checklist
Installing an imported machine tool correctly means preparing the site, unpacking and positioning the machine, levelling it, connecting services and p
Preventive Maintenance for Manual Lathes and Milling Machines
Manual lathes and milling machines keep their accuracy through lubrication, cleanliness, correct adjustment of gibs and backlash, and regular geometri
Questions About X6332Z Universal Vertical Horizontal Gear He
Can this machine really do both drilling and milling?
Yes. It is an economical drilling and milling machine whose head rotates 90 degrees left and right, so vertical and horizontal work are both available and drilling and milling are done from one clamping.
What angles can the head be set to?
The milling head rotates 90 degrees left and right and can also be turned through plus or minus 45 degrees.
What is the spindle made of?
The main shaft is chrome-molybdenum alloy, quenched and tempered and then fine ground, and runs in precision-grade angular contact bearings, so it holds accuracy under strong cutting force.
What are the working travels and table size?
Send us your typical workpiece dimensions and we will confirm the table size and travels for the X6332Z before you order.
Are the feeds automatic?
X and Y feed automatically through gear transmission, and the Z direction is by electric lift.
What voltage can you supply?
Tell us your supply voltage frequency and phase and the machine will be built for your market.
What are your trade and payment terms?
FOB CFR and CIF are available. Payment is 30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the X6332Z Universal Vertical Horizontal Gear He
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
