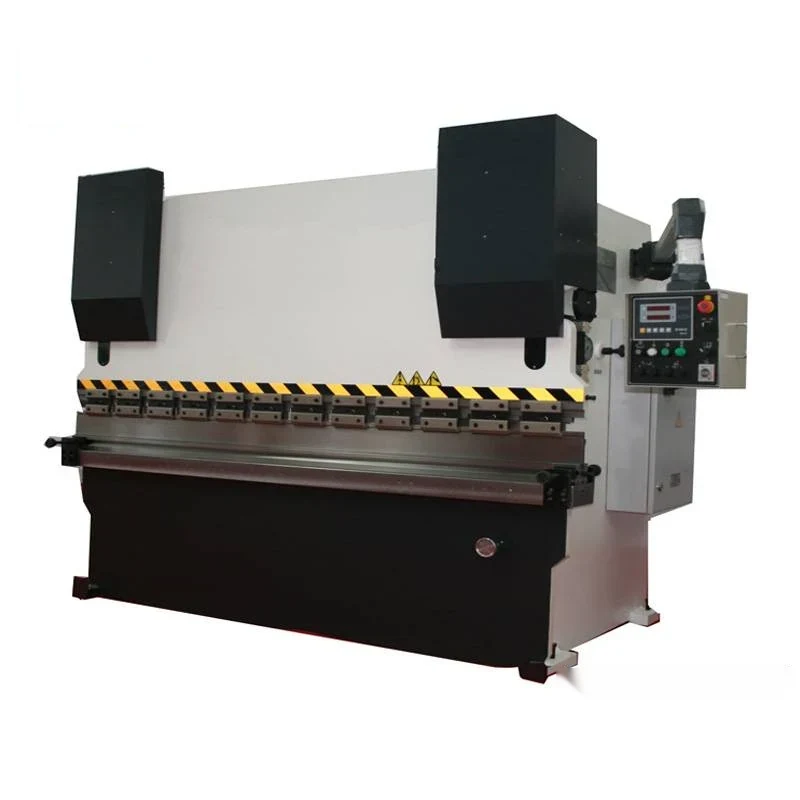

WC67Y Hydraulic Press Brake Machine
The WC67Y is a hydraulic press brake built as a welded monoblock frame, produced by welding robots and then stress relieved by annealing so the frame does not move once it is in service. The hydraulic system is integrated and uses Bosch-Rexroth components from Germany, which keeps the valve block compact and the mainte...
What This Machine Does
The WC67Y is a hydraulic press brake built as a welded monoblock frame, produced by welding robots and then stress relieved by annealing so the frame does not move once it is in service. The hydraulic system is integrated and uses Bosch-Rexroth components from Germany, which keeps the valve block compact and the maintenance work predictable. A mechanical synchronous mechanism with compensation keeps the two cylinders together across the bed, so the bend angle stays the same at both ends of a long part. Backgauge stroke and distance are set by motor with fine adjustment by hand, and the position is displayed on an E21 controller. Inch and single stroke modes are built in, with reversing and dwell time controlled by PLC. A safety fence and electric interlock are fitted to the machine. The WC67Y range runs from 30T to 500T and is used on carbon steel, stainless steel and aluminium sheet.
Why Buyers Choose This Machine
- Monoblock welded frame stress relieved by annealing so the frame does not distort in service
- Mechanical synchronisation with compensation holds the same angle at both ends of a long bend
- Bosch-Rexroth hydraulic components keep the system serviceable with parts you can source
- E21 display with motorised backgauge repeats bend positions without measuring each part
- Integrated hydraulic block reduces external pipework and the leak points that come with it
- Inch and single stroke modes let the operator creep into a die before committing a full bend
- Safety fence and electric interlock built into the machine rather than added afterwards
Where WC67Y Hydraulic Press Brake Machine Earns Its Place
Problems It Solves
- Unrelieved welded frames move after a few months and the bend angle drifts with them
- Cylinders out of synchronisation leave one end of a long bend at a different angle
- Scattered pipework on non-integrated hydraulics leaks and is slow to trace
- Measuring and marking every part for the flange width is slow and inconsistent
- Open bending stations expose the operator to the die area during the stroke
Who It Is For
- Sheet metal fabrication shops needing a reliable NC-controlled hydraulic brake
- Steel structure and enclosure manufacturers
- Shops upgrading from mechanical or manual bending equipment
- Machinery distributors supplying press brakes into export markets
Application Scenarios
- Bending carbon steel panels and brackets in general fabrication
- Stainless steel work for food catering and architectural fittings
- Aluminium sheet bending for enclosures and trims
- Long bends where angle consistency across the bed matters
- Subcontract sheet metal shops running mixed short-run work
Technical Detail
Technical Features
- Monoblock frame welded by robots with annealing stress relief
- Integrated hydraulic system with Bosch-Rexroth components from Germany
- Mechanical synchronous mechanism with complex compensation
- Motorised backgauge stroke and distance with hand fine adjustment
- E21 position display
- Inch and single stroke modes
- PLC-controlled reversing and dwell time
- Safety fence with electric interlock
Specifications
| Machine type | Hydraulic press brake NC controlled |
|---|---|
| Models | WC67Y series 30T 40T 50T 63T 100T 125T 160T 200T 250T 300T 400T 500T |
| Frame | Welded monoblock stress relieved by annealing |
| Hydraulic system | Integrated system with Bosch-Rexroth components Germany |
| Synchronisation | Mechanical synchronous mechanism with compensation |
| Backgauge | Motor driven with manual fine adjustment |
| Display | E21 controller |
| Operating modes | Inch and single stroke with PLC reversing and dwell control |
| Safety | Safety fence with electric interlocker |
| Bending materials | Carbon steel stainless steel and aluminium |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Sheet metal bending
- Press braking
- Forming
Materials Handled
- Carbon steel
- Stainless steel
- Aluminium
Quality Control
- Frame annealed for stress relief after robot welding
- Ram parallelism and synchronisation checked across the bed
- Hydraulic system pressure tested and checked for leaks
- Backgauge positioning verified against the E21 display
- Safety fence interlock function tested before despatch
- Test bends made on sample material before packing
Customisation Options
- Tonnage and bending length selected from the WC67Y range from 30T to 500T
- Top and bottom tooling specified for the radii and materials you bend
- Supply voltage phases and frequency set to your market
- Backgauge and safety arrangement configured for your working method
- Manual and control labelling in your working language
How It Compares With the Alternatives
| WC67K CNC hydraulic press brake | The WC67K adds CNC control of the Y and X axes with E210 or DELEM DA41; the WC67Y is NC controlled with an E21 display and suits shops bending simpler parts |
|---|---|
| FD series electric folding machine | A folder clamps and folds the sheet and suits straightforward flanges; the WC67Y bends in a die and handles thicker material and formed profiles |
| Mechanical or manual bending equipment | Manual bending cannot hold angle repeatably on long parts; the WC67Y synchronises both cylinders and repeats the backgauge position from the E21 |
Running the Machine
Step 1
Fit the top and bottom tooling for the material thickness and bend radius
Step 2
Set the backgauge position by motor and fine adjust by hand against the E21 reading
Step 3
Use inch mode to bring the ram down and check the part position in the die
Step 4
Bend a first part in single stroke mode and check the angle at both ends of the bend
Step 5
Adjust the compensation if the angle differs end to end then run the batch
Step 6
Keep the safety fence interlock in service and never bypass it
Step 7
Check hydraulic oil level and filter condition as part of routine maintenance
