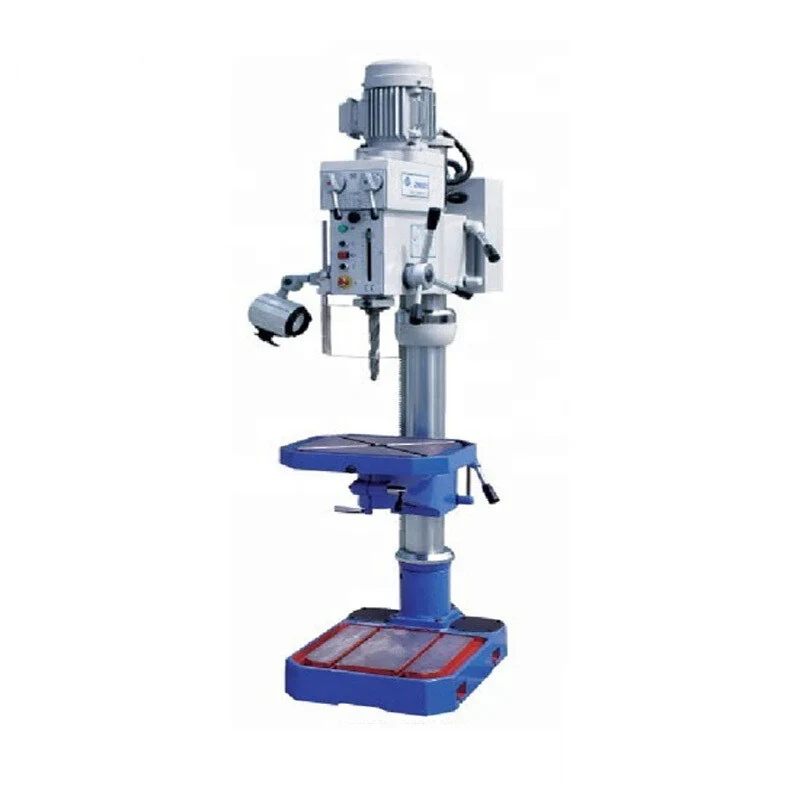

Pillar Type Vertical Drilling Machine Z5025 and Z5025B
The Z5025 and Z5025B are round column vertical drilling machines for holes up to 25 mm diameter. Speeds are changed through gears rather than belts, so the eight speeds across the 100 to 2900 r/min range are selected at a lever instead of by opening a guard and moving a belt. That top speed matters on small diameter dr...
What This Machine Does
The Z5025 and Z5025B are round column vertical drilling machines for holes up to 25 mm diameter. Speeds are changed through gears rather than belts, so the eight speeds across the 100 to 2900 r/min range are selected at a lever instead of by opening a guard and moving a belt. That top speed matters on small diameter drills in steel, where too little surface speed simply rubs the drill. The MT3 spindle has 150 mm of travel and sits 225 mm from the column generating line. Z5025 has a 440 mm diameter worktable with 560 mm of table travel and a maximum spindle nose to base distance of 1670 mm; Z5025B is the shorter bench form with 550 mm from spindle nose to base. Both carry a coolant system and a work lamp, and an automatic tool releasing device means the taper tool comes out without a drift and a hammer. The machines drill counterbore ream tap and spot face, for single pieces small batches and volume work.
Why Buyers Choose This Machine
- Gear change across eight speeds from 100 to 2900 r/min so speed is set at a lever not by moving belts
- 2900 r/min top speed keeps small drills cutting instead of rubbing in steel
- Automatic tool releasing device changes MT3 tooling without a drift and hammer
- Coolant system fitted as standard so hole quality and drill life do not depend on hand oiling
- Work lamp on the machine puts light where the drill meets the part
- One machine drills counterbores reams taps and spot faces so the part is finished in one setup
- Z5025 floor version and Z5025B short version cover both floor and bench installations
Where Pillar Type Vertical Drilling Machine Z5025 and Earns Its Place
Problems It Solves
- Belt change machines cost time every time the drill diameter changes
- Low top speeds burn small diameter drills instead of cutting
- Knocking taper tooling out with a drift damages the spindle taper over time
- Dry drilling shortens drill life and leaves torn hole walls
- Moving parts between separate drilling reaming and tapping stations adds handling and error
Who It Is For
- Jobbing machine shops and toolrooms
- Fabrication and sheet metal shops finishing machined parts
- Maintenance departments needing a general purpose drilling machine
- Technical schools and training workshops
- Distributors supplying general workshop drilling machines
Application Scenarios
- General hole drilling up to 25 mm in a jobbing machine shop
- Counterboring and spot facing bolt holes on machined plates and flanges
- Reaming pre-drilled holes to size on fixture components
- Tapping small and medium threads on the same setup as the drilled hole
- Small batch and repeat production of drilled parts in a fabrication shop
- Toolroom and maintenance work where one drilling machine covers everything
Technical Detail
Technical Features
- Pillar type vertical drilling machine with 100 mm diameter column
- Maximum drilling diameter 25 mm
- Gear speed change with eight speeds from 100 to 2900 r/min
- MT3 spindle taper with 150 mm spindle travel
- 225 mm from spindle axis to column generating line
- Automatic tool releasing device
- Coolant system and work lamp fitted
- 440 mm diameter worktable with 560 mm table travel on Z5025
- Base table 690 x 500 mm
Specifications
| Machine type | Pillar type vertical drilling machine |
|---|---|
| Models | Z5025 / Z5025B |
| Max drilling diameter | 25 mm |
| Column diameter | 100 mm |
| Spindle travel | 150 mm |
| Distance spindle axis to column generating line | 225 mm |
| Max distance spindle nose to table | 630 mm (Z5025) |
| Max distance spindle nose to base | 1670 mm (Z5025) / 550 mm (Z5025B) |
| Spindle taper | MT3 |
| Spindle speed range | 100-2900 r/min |
| Spindle speed series | 8 |
| Worktable surface | 440 mm diameter (Z5025) |
| Table travel | 560 mm |
| Base table dimensions | 690 x 500 mm |
| Equipment | Coolant system work lamp automatic tool releasing device |
| Operations | Drilling counter boring reaming tapping spot facing |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Drilling
- Counter boring
- Reaming
- Tapping
- Spot facing
Quality Control
- Spindle run-out measured at the MT3 taper on the assembled head
- All eight gear speeds engaged and run under power
- Table travel and spindle travel checked over the full stroke
- Coolant circuit pressure tested and the work lamp and electrics function checked
- Test holes drilled at the rated 25 mm capacity before packing
Customisation Options
- Z5025 floor height or Z5025B short version chosen by your bench or floor layout
- Supply voltage and frequency set for your market
- Machine vice and clamping kit supplied with the machine
- Drill chuck and MT3 sleeves specified for your tooling
- Operating language and manual prepared for your workshop
How It Compares With the Alternatives
| Pillar drilling machine Z5030 to Z5050 | The larger round column machines take 30 to 50 mm drills and add a powered table lift; Z5025 stops at 25 mm but reaches 2900 r/min which suits small diameter work better |
|---|---|
| Box type vertical drilling machine Z5140A and above | The square column machines are heavier and take 40 to 80 mm drills for production work; the Z5025 is the lighter general machine for a toolroom or a small shop |
| Bench top hobby drill press | A hobby press changes speed by belt and has no coolant or automatic tool release; the Z5025 is a gear head industrial machine built for continuous shop use |
Running the Machine
Step 1
Bolt the machine to a level floor or bench and connect the supply and coolant
Step 2
Select the gear speed for your drill diameter high for small drills low near 25 mm
Step 3
Fit the tool in the MT3 spindle and check the automatic release is engaged
Step 4
Clamp the part to the table or in a vice never hold it by hand
Step 5
Set the table height using the 560 mm of table travel so the spindle stroke covers the hole
Step 6
Start the coolant before the drill enters and feed evenly through the hole
Step 7
Change to the counterbore reamer or tap without moving the part to finish the hole
Other Machines in Drilling
Auto-Feed Drilling Machine ZB4116G ZB4120G ZB4132G ZB4132GP ZB5032B & ZB5032GP
View Machine →
Bench Strong Drilling Machine Z4006G Z4116G Z4120G Z4132G Z5032G & Z5032GP
View Machine →
Pillar Type Vertical Drilling Machine Z5030 Z5035 Z5040 and Z5050
View Machine →
Box-Type Vertical Drilling Machine Z5140A Z5150A Z5140B Z5150B Z5163B and Z5180B
View Machine →Related Applications and Guides
General Machining Job Shops
Job shops take whatever work comes through the door, which means their equipment has to cover a wide range rather than do one thing perfectly. XAIMC s
Heavy Equipment and Plant Maintenance
Mines quarries plantations and processing plants cannot wait for imported spares. XAIMC supplies the boring gear cutting turning and grinding machines
Radial Drilling Machine vs Bench Drilling Machine
A bench drilling machine brings the work to a fixed spindle, while a radial drilling machine moves the spindle over a heavy stationary workpiece on an
Questions About Pillar Type Vertical Drilling Machine Z5025
What is the difference between Z5025 and Z5025B?
Height. Z5025 is the tall version with 1670 mm maximum spindle nose to base and a 440 mm round worktable. Z5025B is the short version with 550 mm spindle nose to base for bench mounting.
What is the largest hole it will drill?
25 mm diameter. If you regularly drill larger holes look at the Z5030 to Z5050 range or the box type Z5140 series.
Can it tap threads?
Yes. The listed operations include tapping along with drilling counter boring reaming and spot facing. Tell us your thread sizes and we will confirm a tapping attachment.
Does it come with coolant and lighting?
Yes. A coolant system and a work lamp are part of the machine as listed.
What voltage is the machine supplied at?
We build to the supply in your market. Send us the voltage frequency and number of phases with the order and we will confirm the electrical specification.
How is the machine packed for export?
In a wooden case. Tell us the model and quantity and we will confirm case dimensions net and gross weight on the proforma invoice.
What are your trade and payment terms?
We quote FOB CFR and CIF. Payment is 30 percent by T/T with the order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the Pillar Type Vertical Drilling Machine Z5025
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
