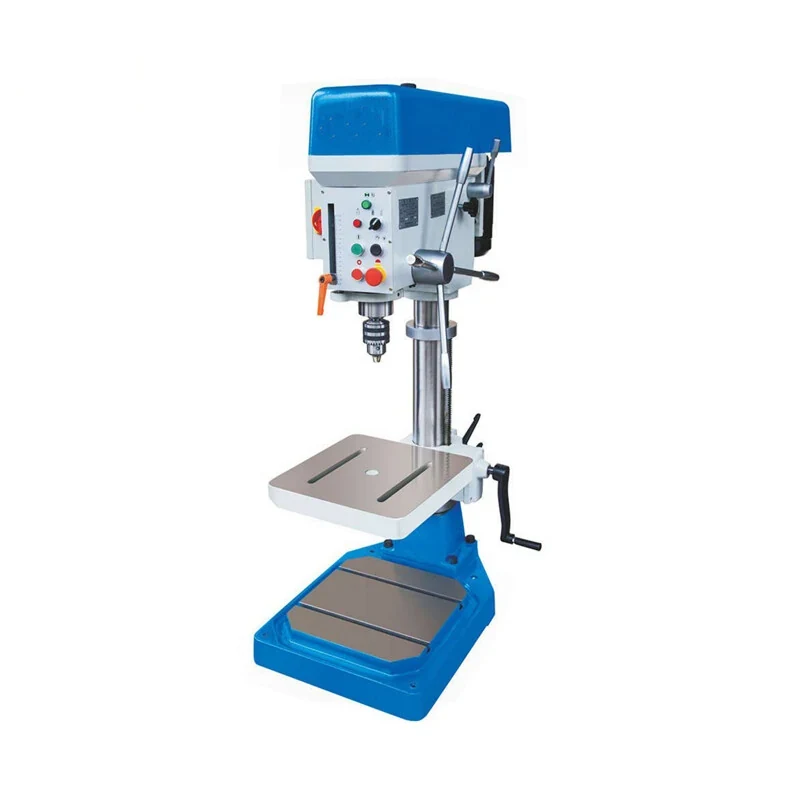

Bench Strong Drilling Machine Z4006G Z4116G Z4120G Z4132G Z5032G & Z5032GP
This bench drilling range runs from the Z4006G, a 6mm capacity machine that spins from 2000 to 12000 r/min on a 0.37kw motor for small precision holes, up to the Z4132G and Z5032G at 31.75mm capacity with a 1.5kw motor and 280 to 1875 r/min. Between them sit the Z4116G at 16mm and the Z4120G at 20mm. Long spindle trave...
What This Machine Does
This bench drilling range runs from the Z4006G, a 6mm capacity machine that spins from 2000 to 12000 r/min on a 0.37kw motor for small precision holes, up to the Z4132G and Z5032G at 31.75mm capacity with a 1.5kw motor and 280 to 1875 r/min. Between them sit the Z4116G at 16mm and the Z4120G at 20mm. Long spindle travel is the practical benefit through the range, from 65mm on the smallest to 150mm on the largest, which means deeper holes are drilled without repositioning the head. The worktable rotates through 360 degrees, so a part can be presented from any side without unclamping it, and every model above the Z4006G taps as well as drills, from M12 in cast iron up to M24. The Z5032G and Z5032GP stand tallest at 1235mm from spindle nose to base, against 745mm on the Z4132G.
Why Buyers Choose This Machine
- Six capacities from 6mm to 31.75mm so a shop can match the machine to the hole size it drills
- Z4006G reaches 12000 r/min for small diameter holes that larger machines cannot drill cleanly
- Spindle travel from 65mm to 150mm drills deeper holes without repositioning the head
- Worktable rotates 360 degrees so parts are presented from any side without unclamping
- Tapping from M12 in cast iron up to M24 on the larger models
- Z5032 builds give 1235mm spindle nose to base for tall workpieces
- Net weights from 55kg to 310kg let each model be mounted where it is needed
Where Bench Strong Drilling Machine Z4006G Z4116G Z412 Earns Its Place
Problems It Solves
- Small drills need high spindle speed that a general drilling machine cannot reach
- Short spindle travel forces the head to be repositioned part way through a deep hole
- Unclamping a part to present another face loses the setting and the alignment
- Sending drilled work to a separate tapping machine costs handling and hole alignment
- Tall workpieces will not fit under machines with limited spindle nose to base clearance
- One size of drilling machine either cannot reach the largest hole or is clumsy for the smallest
Who It Is For
- Small workshops needing a dependable bench drill
- Electronics and instrument shops drilling small holes at high speed
- Fabrication and maintenance shops drilling and tapping steel and cast iron
- Training workshops equipping a bench drilling bay
- Distributors supplying general engineering and repair trades
Application Scenarios
- Small precision hole drilling at high speed on the Z4006G
- General bench drilling in plate section and castings
- Tapping threads after drilling at the same station
- Deep hole drilling using the full 150mm spindle travel
- Presenting awkward parts from several sides on the rotating table
- Tall workpiece drilling on the Z5032G and Z5032GP
Technical Detail
Technical Features
- Maximum drilling capacity 6mm 16mm 20mm and 31.75mm across the range
- Tapping capacity from M12/M10 to M24/M20 in cast iron and steel
- Spindle speed range 2000-12000 r/min on the Z4006G and 280-1875 r/min on the largest models
- Spindle travel 65mm to 150mm
- Worktable with 360 degree rotation
- Column diameters from 55mm to 100mm
- Spindle tapers B10 MT2 and MT3
- Motors from 0.37kw 2P to 1.5kw 6P
- Net weights from 55kg to 310kg
Specifications
| Machine type | Bench drilling and tapping machine |
|---|---|
| Models | Z4006G Z4116G Z4120G Z4132G Z5032G Z5032GP |
| Max drilling capacity | 6mm / 16mm / 20mm / 31.75mm / 31.75mm |
| Max tapping capacity cast iron and steel | M12/M10 / M20/M16 / M24/M20 / M24/M20 |
| Diameter of column | 55mm / 70mm / 85mm / 100mm |
| Spindle travel | 65mm / 100mm / 135mm / 150mm |
| Spindle axis to column generating line | 140mm / 193mm / 240mm / 265mm |
| Max distance spindle nose to worktable | 330mm / 365mm / 390mm / 820mm |
| Max distance spindle nose to base | 215mm / 610mm / 675mm / 745mm / 1235mm |
| Spindle speed range | 2000-12000 / 320-2730 / 320-1820 / 280-1875 r/min |
| Spindle taper | B10 / MT2 / MT2 / MT3 |
| Worktable size | 265 x 285mm / 300 x 320mm / 380 x 400mm / 390 x 390mm |
| Motor power | 0.37kw 2P / 0.75kw 4P / 1.1kw 6P / 1.5kw 6P |
| Net weight | 55kg / 145kg / 170kg / 225kg / 310kg |
| Worktable rotation | 360 degrees |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Drilling
- Tapping
- Reaming
- Counterboring
Quality Control
- Spindle run-out measured at the B10 MT2 or MT3 taper
- Speed range checked against the plate values on each model
- Table rotation and locking checked through a full 360 degrees
- Spindle travel verified over the full stroke of the model
- Motor and switchgear tested at the supply voltage stated on the order
Customisation Options
- Model selected by your usual hole and thread size
- Z5032GP variant specified where that configuration suits your work
- Supply voltage frequency and phase built for your market
- Chucks arbors and tapping attachments supplied with the machine
- Packing arranged to suit the net weight and your freight route
How It Compares With the Alternatives
| Auto-Feed Drilling Machine ZB4116G ZB4120G ZB4132G | The auto-feed range adds powered spindle feed for production drilling; this bench range is hand fed, which suits varied jobbing work and costs less |
|---|---|
| Hand-held power drill | A bench machine holds the drill square to a clamped part, which a hand drill cannot do repeatably |
| Using a milling machine for holes | A bench drill takes far less floor space and capital for work that needs no contouring |
| Fixed-table drilling machines | The 360 degree rotating table lets a clamped part be presented from any side without breaking the setting |
Running the Machine
Step 1
Choose the model whose drilling and tapping capacity covers your largest hole and thread
Step 2
Bolt the machine to a rigid bench before use
Step 3
Clamp the workpiece to the table rather than holding it by hand
Step 4
Set the spindle speed for the drill diameter and material within the model range
Step 5
Rotate the table to present a new face rather than unclamping the part
Step 6
Ease the feed near break-through and use cutting fluid in steel
Step 7
Keep the column clean and the table lock tight so the head and table stay square
Other Machines in Drilling
Pillar Type Vertical Drilling Machine Z5025 and Z5025B
View Machine →
Pillar Type Vertical Drilling Machine Z5030 Z5035 Z5040 and Z5050
View Machine →
Box-Type Vertical Drilling Machine Z5140A Z5150A Z5140B Z5150B Z5163B and Z5180B
View Machine →
Drill Machine DP30013B (1213B) and DP30016B (1216B)
View Machine →Related Applications and Guides
General Machining Job Shops
Job shops take whatever work comes through the door, which means their equipment has to cover a wide range rather than do one thing perfectly. XAIMC s
Heavy Equipment and Plant Maintenance
Mines quarries plantations and processing plants cannot wait for imported spares. XAIMC supplies the boring gear cutting turning and grinding machines
Radial Drilling Machine vs Bench Drilling Machine
A bench drilling machine brings the work to a fixed spindle, while a radial drilling machine moves the spindle over a heavy stationary workpiece on an
Questions About Bench Strong Drilling Machine Z4006G Z4116G
Which model suits small hole work?
The Z4006G, with 6mm capacity and a spindle speed range of 2000 to 12000 r/min on a 0.37kw motor. The larger models run slower and are built for bigger drills.
Can these machines tap threads?
Every model above the Z4006G taps, from M12 in cast iron and M10 in steel on the Z4116G up to M24 and M20 on the 31.75mm machines.
How deep a hole can I drill without moving the head?
Spindle travel is 65mm on the Z4006G, 100mm on the Z4116G, 135mm on the Z4120G and 150mm on the 31.75mm models.
Which model takes tall workpieces?
The Z5032G and Z5032GP, with 1235mm from spindle nose to base and 820mm to the worktable.
What chucks and arbors do I need?
The spindle taper is B10 on the Z4006G, MT2 on the Z4116G and Z4120G and MT3 on the 31.75mm models. Tell us the model and we will supply matching chucks and arbors.
What voltage and how are they packed?
Motors are wired to the voltage frequency and phase on your order. Net weights run from 55kg to 310kg and the machines are packed for export and shipped FOB CFR or CIF.
What are your payment terms?
30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the Bench Strong Drilling Machine Z4006G Z4116G
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
