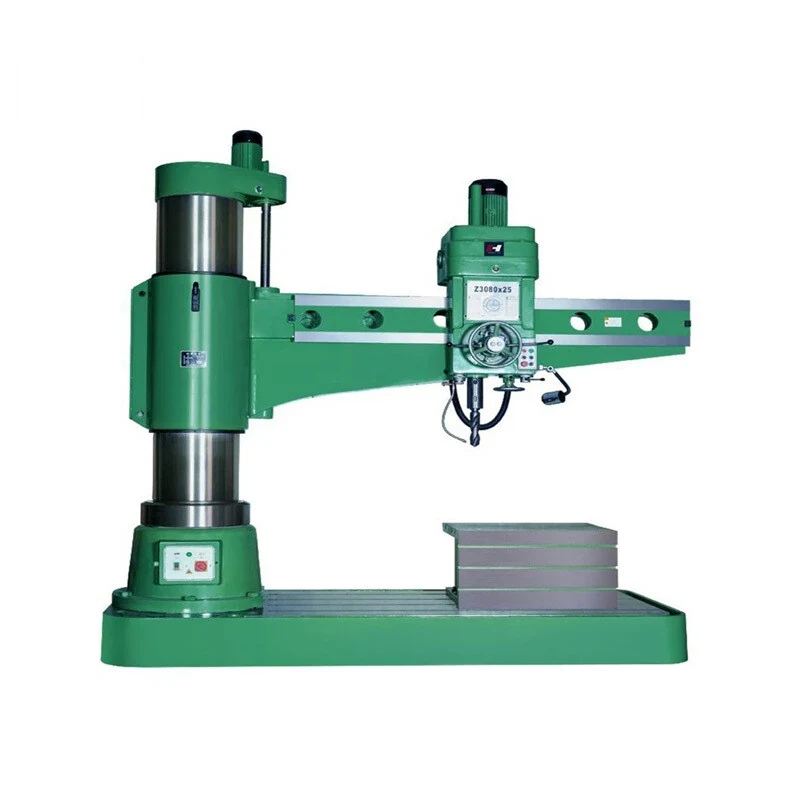

Radial Drilling Machine Z3080x25 and Z3063x20A
These are the heavy machines in the radial drilling range, for holes of 80 mm and 63 mm on arms of 2500 mm and 2000 mm. At that size the hole is not the difficulty, the rigidity is, and the construction is where the money goes: the castings are produced on casting equipment to control the quality of the basic parts, th...
What This Machine Does
These are the heavy machines in the radial drilling range, for holes of 80 mm and 63 mm on arms of 2500 mm and 2000 mm. At that size the hole is not the difficulty, the rigidity is, and the construction is where the money goes: the castings are produced on casting equipment to control the quality of the basic parts, the main parts are machined on machining centres so the bores stay in line, the main gears are machined to specification, and the spindle parts are made from special steel and heat treated for strength and durability. The machine brings mechanical electrical and hydraulic functions together. Clamping of the assemblies and spindle speed changing are hydraulic and all controls sit on the head stock, so the operator works from one position on a machine this size. The speed and feed range is wide and includes manual power and fine feeds, the feed can be engaged and disengaged at any point in a stroke, and a feed safety device is fitted.
Why Buyers Choose This Machine
- 80 mm drilling capacity on Z3080x25 takes holes that most radial drills cannot
- 2500 mm and 2000 mm arms reach across large fabrications without moving the part
- Spindle parts made from special steel and heat treated for life under heavy cutting
- Main parts machined on machining centres so gear and bearing bores stay aligned
- Castings produced on casting equipment to control the quality of the basic structure
- Feed engaged and disengaged at any time with a feed safety device fitted
- Hydraulic clamping and speed change with all controls on the head stock
Where Radial Drilling Machine Z3080x25 and Z3063x20A Earns Its Place
Problems It Solves
- Holes above 50 mm stall or deflect machines built for lighter work
- Large fabrications cannot be repositioned for every hole without a crane lift
- Untreated spindle parts wear rapidly under heavy continuous drilling loads
- Misaligned bores in a heavy head run hot and shorten bearing life
- A drive without a feed safety device breaks tooling when a large drill binds
Who It Is For
- Heavy engineering and fabrication workshops
- Pressure vessel boiler and tube plate manufacturers
- Machine tool and heavy machinery builders
- Shipyards and heavy plant repair shops
- Distributors supplying large radial drilling machines
Application Scenarios
- Large diameter holes in heavy plate and structural weldments
- Bolt patterns on large flanges tube plates and end covers
- Drilling and tapping on machine bases and heavy frames
- Reaming and counter boring large holes after drilling
- Heavy continuous drilling in a shop running full shifts
- Repair drilling on heavy equipment and plant components
Technical Detail
Technical Features
- Maximum drilling diameter 80 mm on Z3080x25 and 63 mm on Z3063x20A
- Arm length 2500 mm on Z3080x25 and 2000 mm on Z3063x20A
- Combined mechanical electrical and hydraulic functions
- Hydraulic clamping of assemblies and hydraulic spindle speed changing
- All controls centralised on the head stock
- Wide speed and feed range with manual power feed and fine feeds
- Feed engaged and disengaged at any time
- Feed safety device fitted
- Main parts machined on machining centres and main gears machined to specification
- Spindle parts of special steel with heat treatment
- Castings produced on casting equipment
Specifications
| Machine type | Heavy hydraulic radial drilling machine |
|---|---|
| Models | Z3080x25 / Z3063x20A |
| Max drilling diameter | 80 mm (Z3080x25) / 63 mm (Z3063x20A) |
| Arm length | 2500 mm (Z3080x25) / 2000 mm (Z3063x20A) |
| Clamping | Hydraulic clamping of assemblies |
| Speed change | Hydraulic |
| Controls | Centralised on the head stock |
| Feed | Wide range with manual power feed and fine feeds; engaged and disengaged at any time |
| Feed protection | Feed safety device |
| Main part manufacture | Machined on machining centres |
| Spindle parts | Special steel with heat treatment |
| Basic parts | Castings produced on casting equipment |
| Operations | Drilling counter boring reaming tapping spot facing |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Drilling
- Counter boring
- Reaming
- Tapping
- Spot facing
- Heat treatment
Materials Handled
- Cast iron basic parts
- Special steel spindle parts
Quality Control
- Castings inspected before machining for the basic structural parts
- Spindle parts checked after heat treatment for hardness and run-out
- Main gears checked for tooth form and backlash on assembly
- Hydraulic clamping and speed change circuits pressure tested
- Feed engagement disengagement and the feed safety device tested
- Arm level and head traverse checked over the full arm length before shipment
Customisation Options
- Z3080x25 or Z3063x20A selected by drilling diameter 80 or 63 mm and arm length
- Coolant system and work light specified with the machine
- Tooling adaptors and sleeves supplied for your existing taper tooling
- Supply voltage frequency and phase built for your market
- Operating language manual and control plate text prepared for your workshop
How It Compares With the Alternatives
| Radial drilling machines Z3050x16/1 and ZQ3050x20/1 | Those cover 40 and 50 mm drilling on arms to 2000 mm; these are heavier machines built for 63 and 80 mm holes with heat treated spindle parts for the loads that come with them |
|---|---|
| Mechanical radial drilling machines Z3032x8/1 and Z3040x8 | The mechanical machines are simpler and clamp by hand for medium parts; these are hydraulic machines several capacity classes above them |
| Flame cutting or plasma cutting the hole | Thermal cutting is fast but leaves a heat affected edge and poor position accuracy; a drilled hole is round on size and ready for a fitted bolt |
Running the Machine
Step 1
Set the machine on a foundation suited to its weight and check the arm is level
Step 2
Clamp the workpiece on the base plate before swinging the arm over it
Step 3
Position the head along the arm and clamp the assemblies hydraulically
Step 4
Select the spindle speed and feed at the head stock controls
Step 5
Use a pilot hole before a full 63 or 80 mm drill in solid material
Step 6
Engage the feed and disengage it at any point if the cut needs checking
Step 7
Leave the feed safety device set rather than overriding it to force a heavier cut
Other Machines in Drilling
Radial Drilling Machine ZQ3040x10/1 Z3040x10 and Z3032x10
View Machine →
Radial Drilling Machine Z3050x12/1 Z3040x13/1 Z3040x10/1 and Z3032x10/1
View Machine →
Radial Drilling Machine Z3040x16/1 Z3050x16/1 and ZQ3050x20/1
View Machine →
Radial Drilling Machine Z3040x16/2 Z3050x16/2 and ZQ3050x20/2
View Machine →Related Applications and Guides
General Machining Job Shops
Job shops take whatever work comes through the door, which means their equipment has to cover a wide range rather than do one thing perfectly. XAIMC s
Heavy Equipment and Plant Maintenance
Mines quarries plantations and processing plants cannot wait for imported spares. XAIMC supplies the boring gear cutting turning and grinding machines
Radial Drilling Machine vs Bench Drilling Machine
A bench drilling machine brings the work to a fixed spindle, while a radial drilling machine moves the spindle over a heavy stationary workpiece on an
Questions About Radial Drilling Machine Z3080x25 and Z3063x2
What is the largest hole these machines drill?
80 mm on Z3080x25 and 63 mm on Z3063x20A. Arm lengths are 2500 mm and 2000 mm respectively.
How are the spindle parts made?
From special steel and heat treated on first class equipment, which is what gives the strength and durability needed at this drilling capacity.
Are the clamping and speed change hydraulic?
Yes. Clamping of the assemblies and spindle speed changing are both achieved by hydraulic power, and all controls are grouped on the head stock.
Can the feed be disengaged during a cut?
Yes. The feed is easily engaged and disengaged at any time, and a feed safety device is fitted to protect the machine and the tooling.
What foundation does a machine this size need?
These are heavy machines with long arms. Send us the model and your floor details and we will provide the foundation drawing before delivery.
How are they packed and shipped?
In wooden cases, usually with the arm and column handled separately. We confirm case dimensions net weight and gross weight on the proforma invoice and can quote FOB CFR or CIF.
What are your trade and payment terms?
We quote FOB CFR and CIF. Payment is 30 percent by T/T with the order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the Radial Drilling Machine Z3080x25 and Z3063x2
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
