Radial Drilling Machine Z3050x12/1 Z3040x13/1 Z3040x10/1 and Z3032x10/1
These are the hydraulic radial drills. Clamping of the assemblies and spindle speed changing are both done by hydraulic power, which means the arm and head lock and release at a lever instead of by winding a mechanical clamp, and the speed changes without the head being stopped and opened. All the controls are grouped ...
What This Machine Does

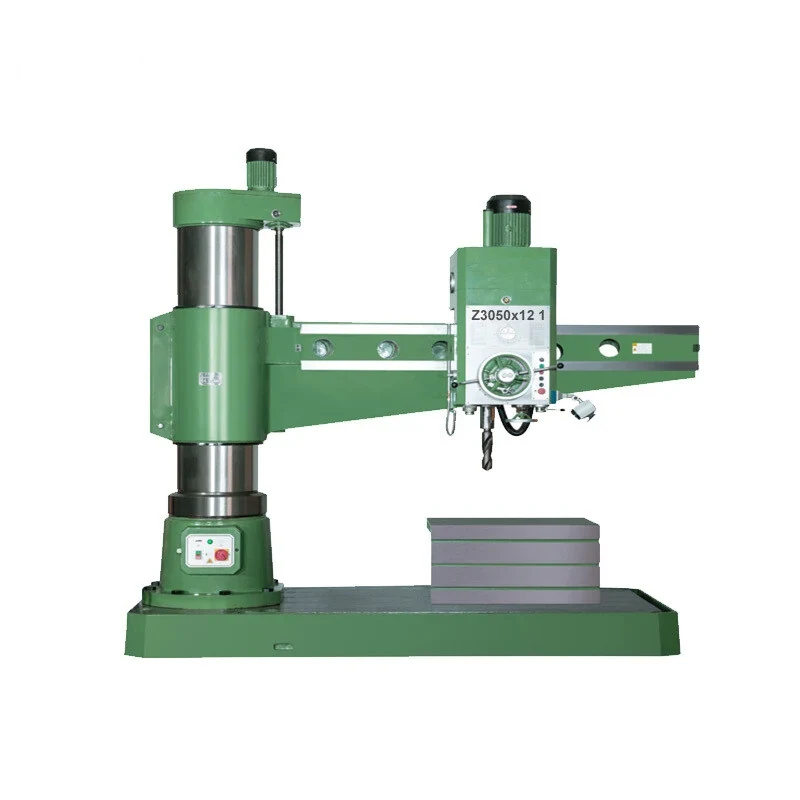

These are the hydraulic radial drills. Clamping of the assemblies and spindle speed changing are both done by hydraulic power, which means the arm and head lock and release at a lever instead of by winding a mechanical clamp, and the speed changes without the head being stopped and opened. All the controls are grouped on the head stock, so the operator stands in one place through a hole. Every model in the group has 16 spindle speed steps: Z3050x12/1 runs 25 to 2000 r/min with 16 feed steps from 0.04 to 3.2 mm/r on a 350 mm column with an MT5 spindle and 50 mm drilling capacity, while Z3040x13/1 Z3040x10/1 and Z3032x10/1 run 32 to 2500 r/min with 8 feed steps from 0.10 to 1.25 mm/r on MT4 spindles with 280 mm of travel. Reach runs from 300 mm out to 1300 mm on Z3040x13/1, the longest arm in this group. The worktable measures 630 x 500 mm.
Why Buyers Choose This Machine
- Hydraulic clamping locks and releases the arm and head at a lever which speeds up repositioning
- Hydraulic spindle speed changing selects a new speed without opening the head
- 16 spindle speed steps on every model cover small drills through to full capacity
- 0.04 to 3.2 mm/r in 16 feed steps on Z3050x12/1 for fine and heavy feeds on one machine
- All controls centralised on the head stock so the operator works from one position
- Z3040x13/1 reaches 1300 mm which covers wide parts on a 40 mm capacity machine
- 315 mm manual and 115 mm automatic spindle travel on Z3050x12/1 for deep holes
Where Radial Drilling Machine Z3050x12 Earns Its Place
Problems It Solves
- Mechanical clamping is slow when the head has to be moved for every hole in a pattern
- Stopping to change spindle speed mechanically interrupts a drilling sequence
- Controls spread around the machine make the operator walk around it between holes
- Too few feed steps force a compromise feed on thin sections and heavy cuts alike
- Short spindle travel means the head has to be reset part way through a deep hole
Who It Is For
- Machine shops drilling large multi-hole components
- Pressure vessel and heavy fabrication workshops
- Machinery and equipment manufacturers
- Repair shops handling large assemblies
- Distributors supplying hydraulic radial drilling machines
Application Scenarios
- Multi-hole drilling on large plates and weldments where the head repositions constantly
- Bolt circles on large flanges and covers using the long arm models
- Deep hole drilling using the 315 mm manual spindle travel on Z3050x12/1
- Fine feed work on thin sections using the 0.04 mm/r feed step
- Tapping and reaming after drilling without moving the workpiece
- Production drilling where the speed changes between holes on the same part
Technical Detail
Technical Features
- Hydraulic clamping of assemblies
- Hydraulic spindle speed changing
- All controls centralised on the head stock
- Maximum drilling diameter 50 mm on Z3050x12/1 and 40 or 32 mm on the other models
- Column diameter 350 mm 300 mm and 240 mm by model
- Spindle taper MT5 on Z3050x12/1 and MT4 on the other models
- Spindle travel 315 mm manual and 115 mm automatic on Z3050x12/1 and 280 mm on the others
- 16 spindle speed steps on every model
- Spindle feed 0.04 to 3.2 mm/r in 16 steps or 0.10 to 1.25 mm/r in 8 steps
- Worktable 630 x 500 mm
Specifications
| Machine type | Hydraulic clamping radial drilling machine |
|---|---|
| Models | Z3050x12/1 / Z3040x13/1 / Z3040x10/1 / Z3032x10/1 |
| Max drilling diameter | 50 mm / 40 mm / 40 mm / 32 mm |
| Distance spindle axis to column generating line | 350-1250 mm / 300-1300 mm / 300-1000 mm / 300-1000 mm |
| Column diameter | 350 mm / 300 mm / 240 mm / 240 mm |
| Spindle taper | MT5 / MT4 / MT4 / MT4 |
| Spindle travel manual / automatic | 315 / 115 mm (Z3050x12/1); 280 mm (other models) |
| Spindle speed range | 25-2000 r/min (Z3050x12/1); 32-2500 r/min (other models) |
| Number of spindle speeds | 16 steps |
| Spindle feed range | 0.04-3.2 mm/r (Z3050x12/1); 0.10-1.25 mm/r (other models) |
| Number of spindle feeds | 16 steps (Z3050x12/1); 8 steps (other models) |
| Distance spindle nose to base plate working surface | 350-1250 mm / 300-1320 mm / 220-1000 mm / 220-1000 mm |
| Worktable dimensions | 630 x 500 mm |
| Clamping and speed change | Hydraulic |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Drilling
- Counter boring
- Reaming
- Tapping
- Spot facing
Quality Control
- Hydraulic clamping pressure tested on the arm and head
- All 16 spindle speed steps run and the hydraulic speed change checked at each
- Every feed step engaged and the feed rate verified
- Arm reach and spindle nose to base distance checked against the model specification
- Test drilling at the rated capacity of the model before packing
Customisation Options
- Model selected by drilling diameter 32 40 or 50 mm and by arm reach up to 1300 mm
- MT4 or MT5 spindle depending on the model and your tooling
- Coolant system and work light specified with the machine
- Supply voltage frequency and phase built for your market
- Operating language manual and control plate text prepared for your workshop
How It Compares With the Alternatives
| Mechanical radial drilling machines Z3032x8/1 and Z3040x8 | Mechanical clamping has less hydraulic plumbing; these hydraulic machines clamp and change speed at a lever which pays off when the head moves for every hole |
|---|---|
| Radial drilling machines Z3040x16/1 and ZQ3050x20/1 | Those models take the arm out to 1600 and 2000 mm on a 350 mm column; this group stops at 1300 mm and includes the lighter 240 mm column machines |
| Radial drilling machine Z3040x16/2 with digital readout | The /2 series adds a digital readout for hole positioning; this group positions by the machine scales and the operator |
Running the Machine
Step 1
Clamp the workpiece on the 630 x 500 mm worktable or directly on the base plate
Step 2
Swing the arm and traverse the head over the hole then clamp hydraulically
Step 3
Select one of the 16 spindle speeds from the head stock controls
Step 4
Select the feed step fine for thin sections and heavy for full capacity drilling
Step 5
Engage the automatic feed and drill the hole
Step 6
Use the manual spindle travel for deep holes beyond the automatic stroke
Step 7
Release the hydraulic clamp and move to the next hole without unclamping the part
