Automatic Power Hacksaw Machine G7025

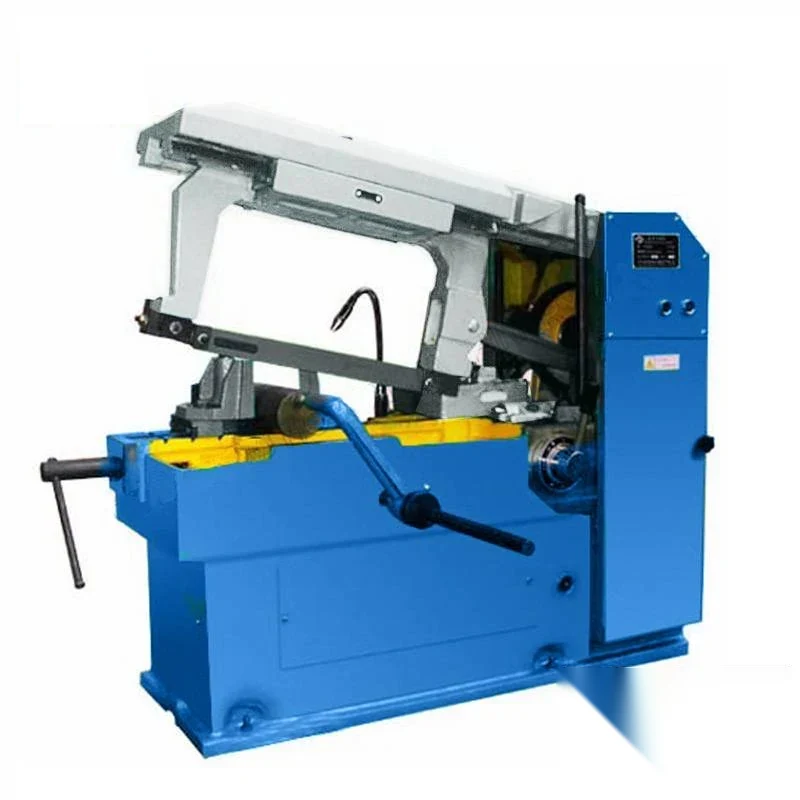

The G7025 is a horizontal bow sawing machine built for shops that cut stock to length all day rather than occasionally. The cutting cycle runs automatically once the bar is clamped and the length set, so an operator can load a piece, start the cut and go back to another machine instead of standing over the saw. Its arc...
What This Machine Does
The G7025 is a horizontal bow sawing machine built for shops that cut stock to length all day rather than occasionally. The cutting cycle runs automatically once the bar is clamped and the length set, so an operator can load a piece, start the cut and go back to another machine instead of standing over the saw. Its arc-push saw action is the reason for the output: it is one and a half times more efficient than a conventional sawing action, because the blade is pushed through an arc that keeps the teeth cutting instead of dragging on the return. Three speeds and a wide cutting scope let one machine handle the mixed sections a jobbing shop actually buys, from small bar up to the top of its range. A new-style V-shaped transmission belt keeps working noise no louder than 74 db, and the main electrical components are mounted inside the body, which keeps swarf and coolant off them. The design is drawn from three decades of bow saw production at the XAIMC factory.
Why Buyers Choose This Machine
- Automatic cutting cycle frees the operator once the bar is clamped and the length is set
- Arc-push saw action cuts one and a half times more efficiently than a conventional sawing action
- Three speeds and a wide cutting scope let one saw cover a mixed stock list
- New-style V-shaped transmission belt holds working noise to no louder than 74 db
- Electrical components mounted inside the body where swarf and coolant cannot reach them
- Simple bow saw mechanics mean maintenance can be done by the shop's own fitter
Where Automatic Power Hacksaw Machine G7025 Earns Its Place
Problems It Solves
- A manual saw ties an operator to the machine for the whole cut
- Conventional sawing action wastes stroke time on the non-cutting return
- One fixed speed cannot suit both soft and alloy stock on a mixed stock list
- Repeat cut lengths drift when every piece is set by eye
- Open electrical gear on a sawing machine fails early from swarf ingress
Who It Is For
- Machine shops feeding lathes and machining centres with cut billets
- Steel stockholders cutting customer lengths from mill bar
- Fabrication shops with a steady volume of section cutting
- Distributors supplying automatic sawing equipment to production workshops
Application Scenarios
- Cutting repeat batches of bar to a set length for a turning cell
- Breaking down incoming mill lengths in a stores or preparation area
- Stock preparation for forging and heat treatment work
- Cutting section and tube for fabrication in a steel workshop
- Running unattended cuts while the operator works a second machine
Technical Detail
Technical Features
- Horizontal bow sawing type construction
- Automatic cutting cycle
- High-efficiency arc-push saw action
- Three selectable speeds
- Wide cutting scope
- New-style V-shaped transmission belt drive
- Working noise no louder than 74 db
- Internally mounted main electrical components
Specifications
| Machine type | Automatic horizontal bow power hacksaw machine |
|---|---|
| Models | G7025 / G7025B |
| Saw action | High-efficiency arc-push saw |
| Cutting cycle | Automatic after clamping |
| Speeds | Three speeds |
| Drive | New-style V-shaped transmission belt |
| Noise level | No louder than 74 db |
| Machine weight | 550kg to 600kg depending on configuration |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Sawing
- Automatic cut-off
- Cutting to length
Quality Control
- Automatic cycle run end to end before packing including clamp and stop functions
- Bow travel and vice squareness checked so cut faces come off perpendicular
- All three speeds confirmed under load on a test cut
- Belt tension and drive noise checked against the 74 db working level
- Electrical enclosure earthing and interlocks inspected before shipment
Customisation Options
- Supply voltage phase and frequency built for your market
- Blade specification matched to the material and section you cut most
- Coolant supply arrangement specified with the machine
- Length stop arrangement suited to the cut lengths you repeat
- Manual and control markings prepared in your working language
How It Compares With the Alternatives
| Manual hack saw machine G7016 | G7016 needs an operator on the machine for each cut; G7025 runs the cutting cycle automatically, which is the difference once you are cutting batches |
|---|---|
| XAIMC band sawing machines | A band saw gives a narrower kerf and faster cut on large sections; the G7025 is the simpler machine to maintain and keeps blade cost lower on mid-size stock |
| Abrasive cut-off saw | Abrasive cutting burns the end face and eats discs; the G7025 gives a clean cut and its consumable is a blade that cuts many pieces |
Running the Machine
Step 1
Clamp the bar in the vice and support long stock behind the machine
Step 2
Set the length stop for the batch you are cutting
Step 3
Select the speed that suits the material and section
Step 4
Check blade tension and coolant flow before starting
Step 5
Start the automatic cycle and check the first cut for length and squareness
Step 6
Let the cycle run the batch and clear swarf between pieces
Step 7
Change the blade once cutting time per piece begins to lengthen
Related Applications and Guides
General Machining Job Shops
Job shops take whatever work comes through the door, which means their equipment has to cover a wide range rather than do one thing perfectly. XAIMC s
How to Choose a Metal Band Saw for a Fabrication Shop
A metal band saw cuts bar, tube, section and plate to length ahead of machining, welding and assembly, and the right one depends on section size, mate
Questions About Automatic Power Hacksaw Machine G7025
Is the cutting cycle fully automatic?
The cutting process is automatic once the material is clamped and fed. Clamping and feeding the next piece is the operator's part of the cycle.
How much faster is it than an ordinary sawing machine?
The arc-push saw action is one and a half times more efficient than normal sawing machinery. Actual cut times depend on your material and section, so send us a typical part and we will estimate.
What sizes will it cut?
The machine has a wide cutting scope across its three speeds. Tell us the largest and smallest section on your stock list and we will confirm it sits inside the range.
What is the machine weight for shipping?
550kg to 600kg depending on configuration. That figure is what your freight forwarder needs along with the crated dimensions we supply on order.
Can it be built for our voltage?
Yes. Give us your voltage phase and frequency with the enquiry and the machine is wired for it before it ships.
What are your trade and payment terms?
FOB CFR and CIF. Payment is 30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
How do we order spare blades?
Quote the model G7025 with your enquiry and tell us the material you are cutting. We supply blades matched to the section and material rather than a single generic pitch.
Request a Quote on the Automatic Power Hacksaw Machine G7025
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
