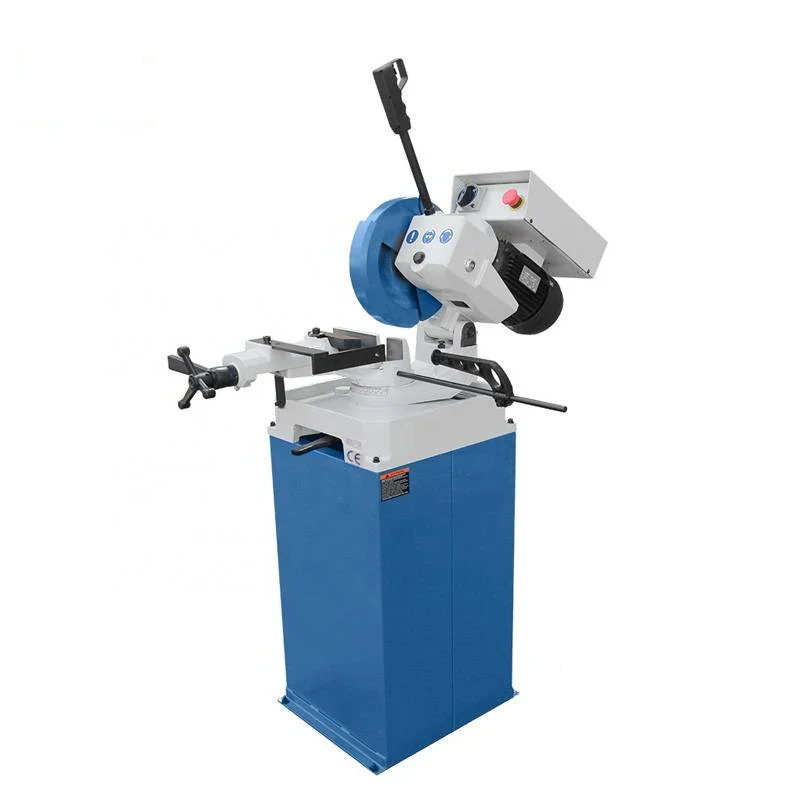

CS-275 Electric Circular Sawing Machine
The CS-275 is an electric circular saw built around an HSS blade and a worm and gear reduction, so the blade turns slowly enough to cut metal properly and quietly rather than grinding through it. A double speed motor lets the operator drop the speed for harder sections, and the reduction unit runs in an oil bath so the...
What This Machine Does
The CS-275 is an electric circular saw built around an HSS blade and a worm and gear reduction, so the blade turns slowly enough to cut metal properly and quietly rather than grinding through it. A double speed motor lets the operator drop the speed for harder sections, and the reduction unit runs in an oil bath so the gearing stays lubricated through continuous cutting. Material is held by a double clamp that grips quickly and swings 45 degrees to either side for mitre work, with the movable head also able to swing 45 degrees right and left. Control is by a 24 V low-voltage hand switch, which keeps mains voltage away from the operator's hands. A membrane pump supplies coolant, which holds workpiece accuracy and extends blade life, and the blade safety hood opens and closes according to the cut so the blade is covered whenever it does not need to be exposed. The vice carries an anti-burr device.
Why Buyers Choose This Machine
- HSS blade with worm and gear reduction cuts metal at low speed and low noise instead of burning it
- Double speed motor lets the operator match cutting speed to the section being cut
- Double clamp grips material quickly and rotates 45 degrees to either side for mitre cutting
- 24 V low-voltage hand switch keeps mains voltage out of the operator control
- Coolant supplied by membrane pump extends blade life and improves workpiece precision
- Safety hood opens and closes with the cut so the blade is not left exposed
- Anti-burr device on the vice means fewer parts go to the bench for deburring
Where CS-275 Electric Circular Sawing Machine Earns Its Place
Problems It Solves
- High-speed abrasive cutting overheats the cut and leaves an edge that has to be reworked
- A single motor speed cuts some materials badly and wears blades quickly
- Material shifts in a single clamp and gives an out-of-square or out-of-angle cut
- Mains-voltage hand controls on wet cutting machines are a risk to the operator
- Dry cutting shortens blade life and loses workpiece precision
- Burrs left by the cut add a separate deburring step to every part
Who It Is For
- Small fabrication and machining workshops
- Maintenance departments in industrial and mining enterprises
- Frame and railing fabricators cutting mitres
- Workshops cutting stock ahead of turning and milling operations
- Distributors supplying entry-level metal sawing equipment
Application Scenarios
- Cutting bar tube and section to length in a small workshop
- Mitre cutting frame and railing components at 45 degrees
- Precision cutting of metal stock ahead of machining or welding
- Cutting parts to length in an industrial or mining enterprise maintenance shop
- Repeat cutting of the same section across a production run
- Cutting where noise must be kept down in a shared or enclosed workshop
Technical Detail
Technical Features
- HSS saw blade
- Double speed motor with worm and gear speed reduction
- Reduction unit running in an oil bath
- 24 V low-voltage controlled hand switch
- Double clamp structure rotating 45 degrees side to side
- Movable head swivelling 45 degrees right and left
- Blade safety hood that opens and closes with the cut
- Coolant system with membrane pump
- Vice complete with anti-burr device
Specifications
| Machine type | Electric circular metal sawing machine |
|---|---|
| Models | CS-275 |
| Blade | HSS saw blade |
| Drive | Double speed motor with worm and gear reduction in oil bath |
| Control | 24 V low-voltage hand switch |
| Clamping | Double clamp rotating 45° side to side with anti-burr device |
| Head movement | Movable head 45° right and left |
| Coolant | Membrane pump coolant system |
| Safety | Blade safety hood opening and closing with the cut |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Circular sawing
- Cutting to length
- Mitre cutting
Quality Control
- Blade arbor run-out checked after the reduction unit is assembled
- Both motor speeds run under load and checked for noise and temperature
- Head swivel checked square and at the 45 degree positions on both sides
- Coolant delivery from the membrane pump verified at the blade
- Safety hood operation and 24 V switch function tested before packing
- Test cuts taken and checked for squareness and burr
Customisation Options
- Supply voltage frequency and phase built for your market
- HSS blade specification matched to the materials you cut
- Length stop or roller support supplied where you cut repeat lengths
- Manual and machine plates prepared in your working language
- Export packing arranged for your shipping route
How It Compares With the Alternatives
| CS-315 cold cutting saw | The CS-315 takes a larger 315 mm blade and heavier sections; the CS-275 is the compact machine for smaller stock in workshops with limited floor space |
|---|---|
| Hand-held angle grinder cutting | A grinder cut is neither square nor repeatable and needs deburring; the CS-275 clamps the material and cuts to a set angle with an anti-burr device on the vice |
| Bandsaw cutting of the same sections | A bandsaw suits large solid sections and long cuts; the circular saw is faster on tube and light section and gives a cleaner finish straight off the blade |
Running the Machine
Step 1
Select the motor speed to suit the material you are cutting
Step 2
Set the head angle square or at 45 degrees left or right and lock it
Step 3
Clamp the section in the double clamp and check it is seated against the fixed jaw
Step 4
Check the coolant is being delivered by the membrane pump before starting
Step 5
Lower the head with steady pressure and let the blade feed at its own rate
Step 6
Let the safety hood close over the blade before removing the cut piece
Step 7
Check the oil bath level in the reduction unit at the interval given in the manual
Other Machines in Sawing
Related Applications and Guides
General Machining Job Shops
Job shops take whatever work comes through the door, which means their equipment has to cover a wide range rather than do one thing perfectly. XAIMC s
How to Choose a Metal Band Saw for a Fabrication Shop
A metal band saw cuts bar, tube, section and plate to length ahead of machining, welding and assembly, and the right one depends on section size, mate
Questions About CS-275 Electric Circular Sawing Machine
What sizes can the CS-275 cut?
Capacity depends on the section shape and whether you are cutting square or at 45 degrees. Send us the largest round and rectangular sections you cut and we will confirm the capacity before you order.
Can it cut mitres?
Yes. The double clamp rotates 45 degrees side to side and the movable head swings 45 degrees right and left.
Why does it have a double speed motor?
Different materials need different cutting speeds. The lower speed is used for harder and heavier sections so the HSS blade is not overloaded.
Is a coolant system included?
Yes. A membrane pump supplies coolant to the blade, which prolongs blade life and improves the precision of the workpiece.
What voltage is the operator control?
The hand switch is controlled at 24 V low voltage, so the operator is not handling a mains-voltage control on a wet machine. Tell us your mains voltage and frequency and the machine will be built to it.
Do you supply replacement blades?
Yes. Tell us the materials and sections you cut most and we will quote the HSS blade specification with the machine and for resupply.
What are your payment and trade terms?
FOB CFR and CIF are available. Payment is 30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the CS-275 Electric Circular Sawing Machine
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
