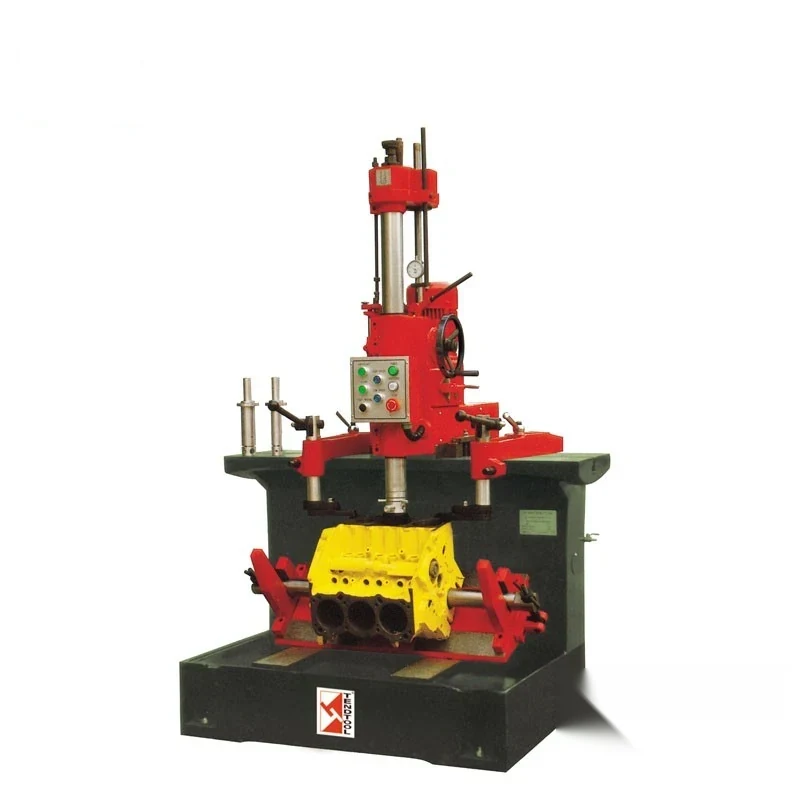

Cylinder Vertical Air-Floating Fine Boring Machine TB8016
The TB8016 is a vertical fine boring machine used mainly for reboring single line and V-engine cylinders of automobiles, motorcycles and tractors, and for other machine element holes. Its defining feature is air-floating location with automatic pressure: the machine is floated into position over the bore quickly and pr...
What This Machine Does
The TB8016 is a vertical fine boring machine used mainly for reboring single line and V-engine cylinders of automobiles, motorcycles and tractors, and for other machine element holes. Its defining feature is air-floating location with automatic pressure: the machine is floated into position over the bore quickly and precisely, then set down, rather than being cranked into place. On a V-engine that saves the operator from wrestling the setup for every bank. A tool setting and measuring device is fitted so the boring tool is set to size at the machine, and a separate vertical measuring device covers depth. Spindle speed is chosen to suit the boring work rather than left at one value, and the machine is rigid enough to take a real amount of cutting. Standard and optional accessories are listed separately, so a buyer can specify what actually gets used in their shop rather than paying for a full set.
Why Buyers Choose This Machine
- Air-floating location with automatic pressure puts the spindle over the bore quickly and precisely
- Handles V-engine cylinders as well as single line cylinders, so both banks are bored on one machine
- Tool setting and measuring device means the boring tool is set to size at the machine
- Vertical measuring device controls boring depth without a separate gauge
- Suitable spindle speed for the boring work rather than a single fixed value
- Good rigidity allows a useful amount of cutting per pass
- Standard and optional accessory lists let the buyer specify only what the shop will use
Where Cylinder Vertical Air-Floating Fine Boring Machi Earns Its Place
Problems It Solves
- Repositioning a boring machine by hand over every cylinder of a V-engine is slow and awkward
- Setting the boring tool away from the machine adds a round trip on every size change
- Boring depth drifts without a vertical measuring device on the machine
- A machine without rigidity chatters and spoils the bore on a heavier cut
- Paying for a full accessory set wastes money when only part of it is used
Who It Is For
- Engine rebuild shops working on both inline and V-engine blocks
- Automobile motorcycle and tractor repair workshops
- Machine shops taking in precision hole boring alongside engine work
- Distributors equipping engine reconditioning workshops in export markets
Application Scenarios
- Reboring V-engine cylinders where each bank must be reached in turn
- Single line automobile engine cylinder reboring
- Motorcycle and tractor cylinder work in a mixed repair shop
- Boring other machine element holes to the same accuracy as engine work
- Batch cylinder work where fast repositioning between bores drives the cycle time
Technical Detail
Technical Features
- Vertical air-floating fine boring construction
- Air-floating location, quick and precise, with automatic pressure
- Suitable spindle speed for boring work
- Tool setting and measuring device
- Vertical measuring device
- Good rigidity for a useful amount of cutting
- Easy and flexible operation
- Standard and optional accessory table
Specifications
| Machine type | Vertical air-floating fine boring machine |
|---|---|
| Models | TB8016 |
| Location system | Air-floating with automatic pressure |
| Measuring | Tool setting and measuring device plus vertical measuring device |
| Applications | Single line and V-engine cylinders of automobiles motorcycles and tractors, other machine element holes |
| Accessories | Standard and optional accessory sets available |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Boring
- Fine boring
- Reboring
Quality Control
- Bore diameter and cylindricity checked on a test cylinder before shipment
- Air-floating location repeatability verified on the assembled machine
- Tool setting and measuring device checked against a known gauge
- Vertical measuring device calibrated against spindle movement
- Machine run in under a test cut in our assembly workshop
Customisation Options
- Standard or optional accessory set specified against the cylinders you rebore
- Boring tooling supplied for your bore diameter range
- Fixturing specified for inline or V-engine blocks as needed
- Supply voltage frequency and manual language set to your market
How It Compares With the Alternatives
| XAIMC T8014A and T8016A cylinder boring machines | Those are clamped boring machines set on the block; the TB8016 is a floor machine with air-floating location that moves to each bore quickly |
|---|---|
| XAIMC FT7 cylinder boring machine | The FT7 uses a floating table with 4-point automatic centring; the TB8016 uses air-floating location with automatic pressure and adds a vertical measuring device |
| Boring without a tool setting device | Without on-machine tool setting every diameter change means measuring away from the machine, which adds time to every size |
Running the Machine
Step 1
Mount the cylinder block on the machine
Step 2
Float the spindle into position over the first bore and let the automatic pressure set it
Step 3
Set the boring tool to size on the tool setting and measuring device
Step 4
Set the boring depth using the vertical measuring device
Step 5
Select a spindle speed suited to the bore diameter and material
Step 6
Bore the cylinder and measure before moving on
Step 7
Float to the next bore, including the opposite bank on a V-engine
Other Machines in Engine Rebuilding Machine
Vertical Cylinder Honing Machine 3MB9808
View Machine →
Cylinder Honing Machine SHM100
View Machine →
Vertical Air-Floating Cylinder Honing Machine THM170
View Machine →
M4215 Hydraulic Vertical Cylinder Honing Machine
View Machine →Related Applications and Guides
Engine Rebuilding Workshops
Engine rebuilding workshops recondition blocks heads crankshafts and valves to a geometry the engine will hold for a full service life. XAIMC supplies
Automotive Service and Fleet Workshops
Service centres and fleet depots keep vehicles moving. XAIMC supplies the lifting tyre wheel and fluid handling equipment those workshops use, includi
Cylinder Boring vs Honing - What Each Operation Does
Boring removes metal to bring a worn cylinder back to a round straight bore at a new oversize, while honing produces the final diameter, geometry and
How to Choose a Valve Seat Cutting Machine
A valve seat cutting machine machines the seat angles and the valve guide bore in a cylinder head so that the valve seals concentrically against the s
Questions About Cylinder Vertical Air-Floating Fine Boring M
Can it bore V-engine cylinders?
Yes. It is used for reboring single line cylinders and V-engine cylinders of automobiles motorcycles and tractors, as well as other machine element holes.
What bore diameters and depths does it cover?
Send us the bore diameter range and depth of the cylinders you rebore and we will confirm the machine capacity before you order.
How is the tool set to size?
A tool setting and measuring device is fitted on the machine, so the boring tool is set at the machine rather than at a separate bench.
How is boring depth controlled?
A vertical measuring device is fitted for depth.
Which accessories are standard and which are optional?
The machine comes with a standard accessory set and further items are available as options. Tell us the work you plan to do and we will list exactly what is included in your quotation.
What voltage will it be supplied for?
We set supply voltage and frequency to your market. Confirm your shop supply when you place the order.
What are your payment and trade terms?
FOB CFR and CIF. Payment is 30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the Cylinder Vertical Air-Floating Fine Boring M
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
