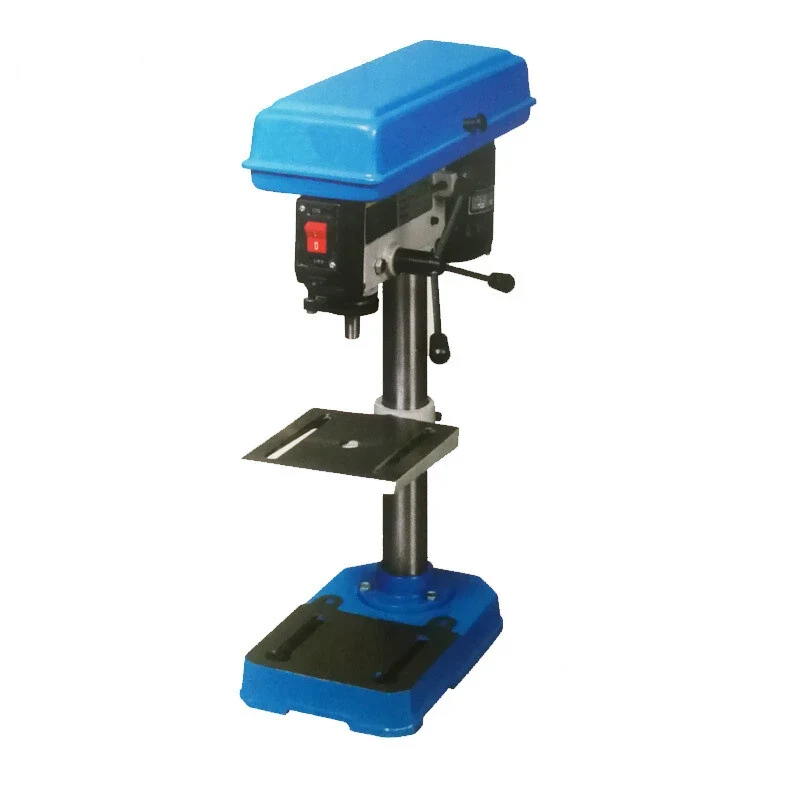

Drill Machine DP30013B (1213B) and DP30016B (1216B)
These are bench drilling machines built the way a shop machine should be built: spindle head worktable column and base are all cast iron, which is where the rigidity and the working life come from, rather than pressed steel that flexes under a 16 mm drill. DP30013B takes 13 mm drills and DP30016B takes 16 mm, both on a...
What This Machine Does
These are bench drilling machines built the way a shop machine should be built: spindle head worktable column and base are all cast iron, which is where the rigidity and the working life come from, rather than pressed steel that flexes under a 16 mm drill. DP30013B takes 13 mm drills and DP30016B takes 16 mm, both on a 60 mm column with 60 mm of spindle travel and a 152.4 mm distance from spindle axis to the column generating line. Spindle taper is JT33 or MT2, so both drill chucks and taper shank tooling can be used. Speeds are offered as either a five step 515 to 2580 r/min arrangement or a twelve step 180 to 2740 r/min arrangement, the latter being worth having if you work across a wide range of drill diameters and materials. The 220 x 220 mm worktable travels 400 x 250 mm, overall height is 820 mm and the machine weighs 31 kg net. Packed at 67 x 45 x 28 cm, 330 units load in a 20 foot container.
Why Buyers Choose This Machine
- Cast iron spindle head worktable column and base give rigidity that pressed steel benches do not
- Twelve speed option from 180 to 2740 r/min covers small drills in steel and large drills in soft material
- JT33 or MT2 spindle takes both drill chucks and taper shank tooling
- 13 mm and 16 mm capacities from one machine design so a shop can buy either without retraining
- 31 kg net means the machine sits on a normal bench without special support
- 330 units per 20 foot container keeps freight cost per machine low for distributors
- 820 mm overall height fits under standard workshop shelving
Where Drill Machine DP30013B (1213B) and DP30016B (121 Earns Its Place
Problems It Solves
- Light sheet metal bench drills flex and wander when the drill loads up
- A narrow speed range burns small drills or stalls on larger ones
- Machines that take only a chuck exclude taper shank tooling already in the shop
- Tying up a floor standing drilling machine for small holes wastes its capacity
- High freight cost per unit erodes margin when a bench machine packs badly
Who It Is For
- Small machine shops and workshops
- Instrument and electronics assembly operations
- Machinery manufacturing and repair shops
- Maintenance departments needing a bench drill
- Distributors and hardware wholesalers buying by the container
Application Scenarios
- General hole drilling up to 13 or 16 mm on a workshop bench
- Instrument and light assembly work requiring accurate small holes
- Machinery production and repair shops needing a second drilling station
- Maintenance drilling on small components and brackets
- Training and school workshops
- Retail and distributor supply of bench drilling machines
Technical Detail
Technical Features
- Cast iron spindle head worktable column and base
- Maximum drilling capacity 13 mm on DP30013B and 16 mm on DP30016B
- Column diameter 60 mm
- Spindle travel 60 mm
- Distance spindle axis to column generating line 152.4 mm
- Spindle taper JT33 or MT2
- Spindle speed range 515-2580 r/min in 5 steps or 180-2740 r/min in 12 steps
- Worktable surface 220 x 220 mm with 400 x 250 mm table travel
- Motor 180 W one quarter horsepower or 250 W one third horsepower
Specifications
| Machine type | Bench drilling machine |
|---|---|
| Models | DP30013B (1213B) / DP30016B (1216B) |
| Max drilling capacity | 13 mm / 16 mm |
| Column diameter | 60 mm |
| Spindle travel | 60 mm |
| Distance spindle axis to column generating line | 152.4 mm |
| Max distance spindle nose to table | 395 mm / 405 mm |
| Max distance spindle nose to base | 520 mm / 530 mm |
| Spindle taper | JT33 / MT2 |
| Spindle speed range | 515-2580 r/min or 180-2740 r/min |
| Spindle speed series | 5 or 12 |
| Worktable surface | 220 x 220 mm |
| Table travel | 400 x 250 mm |
| Overall height | 820 mm |
| Motor | 180 W (1/4 HP) or 250 W (1/3 HP) |
| Gross / net weight | 34 / 31 kg |
| Packing dimensions | 67 x 45 x 28 cm |
| Loading quantity | 330 units per 1 x 20 foot container |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Drilling
Materials Handled
- Cast iron
Quality Control
- Spindle run-out checked at the JT33 or MT2 nose
- All speed steps run under power and motor current checked
- Spindle travel verified over the 60 mm stroke
- Table travel checked over the 400 x 250 mm range
- Test holes drilled at the rated 13 mm or 16 mm capacity before packing
- Packing checked against the 67 x 45 x 28 cm case and 34 kg gross weight
Customisation Options
- 13 mm or 16 mm capacity selected for your drilling work
- 5 speed or 12 speed drive selected for the range of materials you drill
- 180 W or 250 W motor specified with the supply voltage and frequency for your market
- JT33 chuck or MT2 taper spindle supplied to match your tooling
- Colour carton artwork and labelling prepared for retail distribution
How It Compares With the Alternatives
| Pillar type vertical drilling machine Z5025 | Z5025 is a floor machine with gear speed change coolant and 25 mm capacity; this bench machine stops at 16 mm but needs only a bench and 31 kg of support |
|---|---|
| Hand held electric drill | A hand drill cannot hold the hole perpendicular or repeat a position; the bench machine fixes the spindle axis relative to the table |
| Sheet metal bodied bench drill | The cast iron head column and base here resist the deflection that makes a light bench drill wander at full capacity |
Running the Machine
Step 1
Bolt the machine to a solid bench and check the column is vertical
Step 2
Fit a drill chuck on the JT33 nose or taper shank tooling in the MT2 spindle
Step 3
Set the belt position for the drill diameter and material
Step 4
Clamp the part to the 220 x 220 mm table rather than holding it by hand
Step 5
Set the table height so the 60 mm spindle stroke covers the hole depth
Step 6
Feed steadily and clear chips on deeper holes
Step 7
Keep the column and table ways clean and lightly oiled
Other Machines in Drilling
Pillar Type Vertical Drilling Machine Z5025 and Z5025B
View Machine →
Pillar Type Vertical Drilling Machine Z5030 Z5035 Z5040 and Z5050
View Machine →
Box-Type Vertical Drilling Machine Z5140A Z5150A Z5140B Z5150B Z5163B and Z5180B
View Machine →
Mechanical Radial Drilling Machine Z3032x8/1 and Z3040x8
View Machine →Related Applications and Guides
General Machining Job Shops
Job shops take whatever work comes through the door, which means their equipment has to cover a wide range rather than do one thing perfectly. XAIMC s
Heavy Equipment and Plant Maintenance
Mines quarries plantations and processing plants cannot wait for imported spares. XAIMC supplies the boring gear cutting turning and grinding machines
Radial Drilling Machine vs Bench Drilling Machine
A bench drilling machine brings the work to a fixed spindle, while a radial drilling machine moves the spindle over a heavy stationary workpiece on an
Questions About Drill Machine DP30013B (1213B) and DP30016B
What is the difference between DP30013B and DP30016B?
Drilling capacity. DP30013B takes 13 mm drills and DP30016B takes 16 mm. Column diameter spindle travel and table size are the same.
How many speeds does it have?
Either 5 steps from 515 to 2580 r/min or 12 steps from 180 to 2740 r/min. The 12 speed version is the better choice if you drill across a wide range of diameters and materials.
What tooling fits the spindle?
The spindle is JT33 or MT2, so a drill chuck on a JT33 nose or MT2 taper shank tooling can be used. Tell us which you prefer when ordering.
How many units fit in a container?
330 units in a 1 x 20 foot container, packed at 67 x 45 x 28 cm with 34 kg gross and 31 kg net per machine.
What motor and voltage is supplied?
180 W (1/4 HP) or 250 W (1/3 HP). Send us your voltage frequency and plug type and we will confirm the electrical build.
What is the minimum order quantity?
For export we normally quote by container load or by carton quantity. Send us the model and quantity you want and we will confirm the minimum order with the price.
What are your trade and payment terms?
We quote FOB CFR and CIF. Payment is 30 percent by T/T with the order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the Drill Machine DP30013B (1213B) and DP30016B
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
