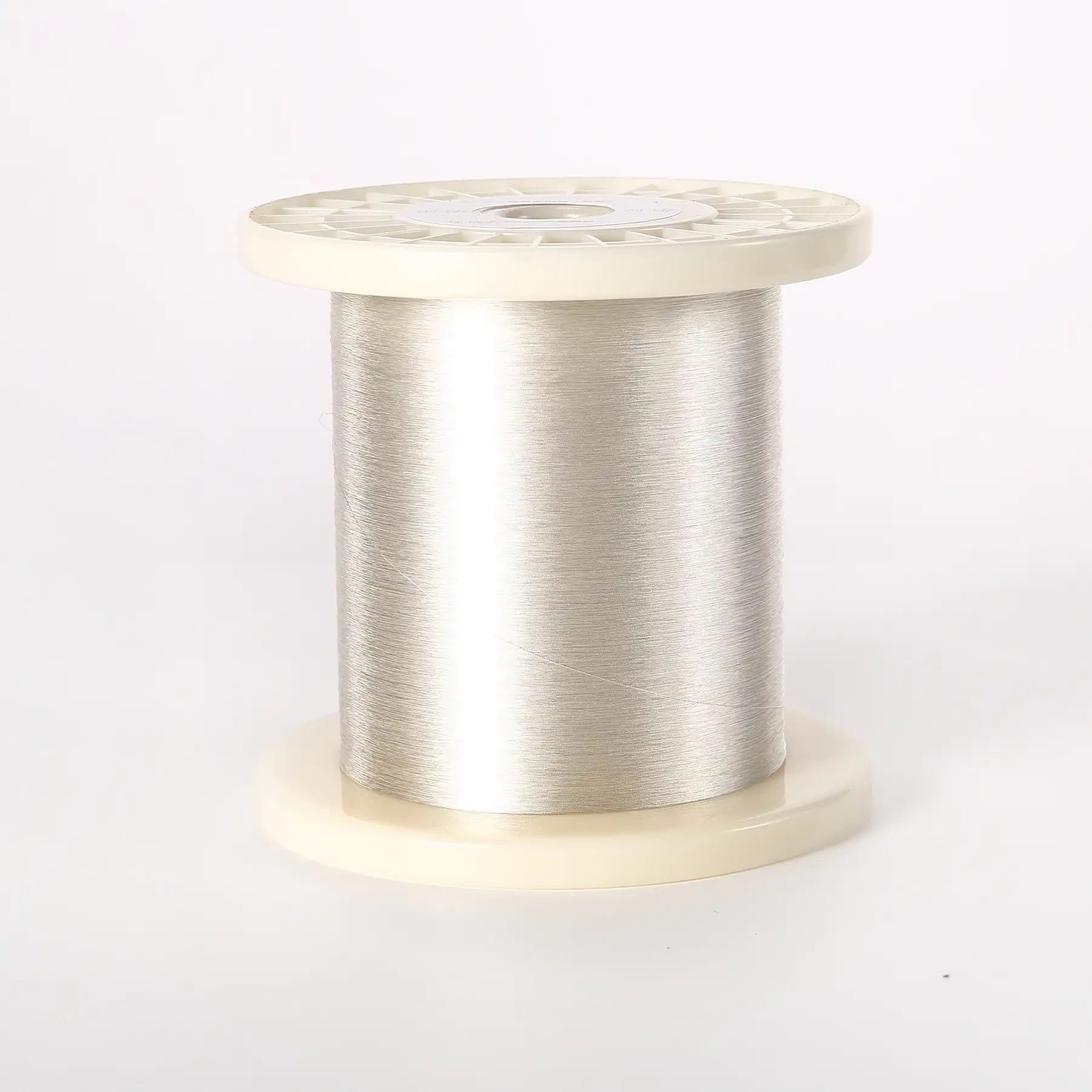

Silver Stranded Wire
Silver surface for stable contact and termination resistance over a long service life.
Overview
What Silver Stranded Wire Is For
Silver stranded wire is the specification for flexible conductors where surface conductivity and long-term stability have to hold up better than plain copper manages. It is supplied as silver-plated stranded copper or in silver-copper alloy, and pure silver wire can also be supplied where the application justifies it. The stranding gives the flexibility; the silver gives a surface that stays conductive and solderable, which is why it turns up in high-end audio, in aerospace and military special equipment cable, and in medical cable built to stay in service for years.
Value
Why Engineers Choose This Construction
Key benefits
- Silver surface for stable contact and termination resistance over a long service life.
- Available as silver-plated copper, silver-copper alloy or pure silver wire.
- Full flexibility of a stranded construction.
- Plating thickness customizable from 0.3 um to 2 um.
Problems it solves
- Copper surfaces oxidize and contact resistance drifts over the service life of the cable.
- Termination quality has to stay consistent across years of field service.
- Flexibility is required without compromising surface conductivity.
Fit
Where It Is Used
Application scenarios
- High-end audio cable
- Aerospace cable
- Military special equipment cable
- Medical cable with long service life
Who it is for
- High-end audio manufacturers
- Aerospace and defence cable suppliers
- Medical device makers
- Engineers specifying contact resistance as tightly as conductor resistance
Engineering
Construction And Materials
Technical features
- Stranded construction in silver-plated copper or silver-copper alloy.
- Pure silver wire available where the application requires it.
- Plating uniform and continuous with strong adhesion, smooth and free of discoloration.
- Can be combined with tinsel wire for additional bending strength.
Materials
- Silver-copper alloy, silver-plated copper, pure silver wire
Specifications
Silver Stranded Wire Technical Data
Values that depend on your application are set against your targets rather than fixed here.
| Construction | Multi-strand conductor |
|---|---|
| Base Material | Silver-plated copper, silver-copper alloy, or pure silver wire |
| Plating | Silver |
| Plating Thickness | 0.3 um - 2 um, customizable |
| Conductor Resistance | Customized to your target |
| Minimum Order For Samples | None |
Production
How It Is Made And Checked
Manufacturing process
- Draw the copper or silver-copper alloy to strand diameter.
- Apply silver plating where specified, at 0.3 um to 2 um.
- Strand to the agreed construction.
- Test resistance, tensile strength and elongation, then pack with a loading report.
Quality control
- DC resistance measured on a resistance tester to confirm the conductor lands on the agreed value.
- Tensile testing for tensile strength, yield strength, elongation and elongation after fracture.
- Elongation rate measured during stretching to evaluate mechanical properties and mechanical strength.
- Salt spray testing where the finished cable will face a corrosive environment.
- A comprehensive loading report issued with every shipment.
Customization
What You Can Change
Customization options
- Conductor resistance set to your target value.
- Outer diameter held to your ceiling.
- Tensile strength and breaking load specified to the application.
- High swing performance tuned to the flex life the cable has to reach.
- Solderability matched to your termination process.
Certifications
No third-party certification is published for this product line. Test data from our own resistance, tensile, elongation and salt spray equipment is supplied with samples and with every shipment loading report.
Related
Other Conductors To Compare
Reference
Background Reading
process guide
Plating Fine Conductors: Tin, Silver, Nickel And Why Thickness Is A Decision
What plating does for a fine conductor, how thickness is chosen between 0.3 and 2 microns, and what a good coating looks like.
Read the guide
quality guide
How We Test A Conductor Before It Ships
The four instruments behind our inspection, what each one measures, and what leaves with the shipment.
Read the guide
Questions
Silver Stranded Wire: Frequently Asked Questions
Do you supply pure silver wire or only silver plating?
Both. Pure silver wire is one of the special materials we can supply, alongside silver-copper alloy and silver-plated copper.
How thick is the silver layer?
The coating thickness is customizable to the performance requirement, in a range of roughly 0.3 um to 2 um.
Is the plating checked for defects?
Yes. The coating has to be uniform, continuous, strongly adhered and smooth, with no discoloration and no harmful defects such as particles or mechanical damage.
Quote Silver Stranded Wire
Tell us the resistance, outer diameter and flex life you need. Samples on conventional and customized products carry no minimum order quantity.
