LED Sign Letters · Frontlit LED Channel Letters

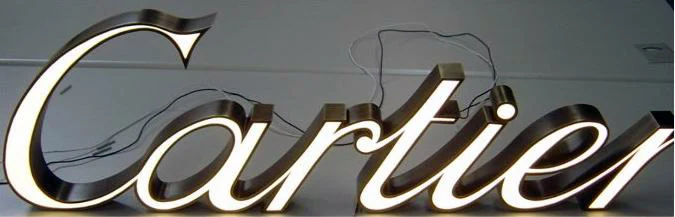

A frontlit channel letter with a metal return and rim in stainless, aluminium or painted metal, and a translucent acrylic face available in different colours. The internal waterproof LED carries CE, RoHS and UL approval and the set ships with a transformer and a 1:1 template for back stud fixing.
A frontlit channel letter with a metal return and rim in stainless, aluminium or painted metal, and a translucent acrylic face available in different colours. The internal waterproof LED carries CE, RoHS and UL approval and the set ships with a transformer and a 1:1 template for back stud fixing.
Best for. Export projects where the electrical components have to satisfy a local inspector before the sign is switched on.
Watch out. Stud fixing needs the wall drilled to the template, so the template has to survive the trip to site.
Export projects where the electrical components have to satisfy a local inspector before the sign is switched on. It sits in our retail and shopping malls work more often than anywhere else.
A frontlit letter has to be readable at noon and at midnight, which means the acrylic colour, the LED density and the return depth all have to agree with each other. Shallow returns need tighter LED spacing. Saturated acrylic colours cut output. Faces over 400mm need a rim to stay flat.
Retail signage is bought against a landlord specification, a fit-out date and a fascia that already exists. Those three constraints decide the build more often than the design does. See the exact brand colour matching route for how this is specified on a live job.
These points are reproduced from our own production specification for Frontlit LED Channel Letters 08. Nothing has been added to them.
| Construction | Fabricated sheet metal, folded and soldered into a closed letter |
|---|---|
| Material | Stainless steel, aluminium alloy, translucent or solid acrylic |
| Face material | Translucent acrylic, standard stock colours or film matched to a brand colour |
| Return material | Stainless steel, aluminium or painted metal |
| Surface finish | Specified per order: polished or brushed stainless, aluminium, or powder coated metal |
| Illumination | Frontlit, through a translucent acrylic face |
| LED module | Built-in high quality waterproof LED, described by our supplier as CE, RoHS and UL approved |
| Transformer | Supplied with the letters |
| Return rim | Metal rim over the acrylic face |
| Fixing method | Back stud |
| Supplied with the order | 1:1 scale mounting template, transformer |
| Environment | Outdoor and indoor use |
| Production time | 5 to 7 days |
| Shipping | DHL or UPS express door to door, approximately 4 to 5 days |
| Payment terms | T/T, Western Union, PayPal |
| Minimum order quantity | None; any order quantity accepted |
TBC means the figure is not stated on our original specification and has not been estimated.
Stainless steel, aluminium alloy, translucent or solid acrylic Finish: specified per order: polished or brushed stainless, aluminium, or powder coated metal.
Fabricated sheet metal, folded and soldered into a closed letter. Artwork in AI, EPS or CDR fixes the geometry before anything is cut.
Joints are dressed before finishing, and illuminated builds are wired and lit before the back is closed. Formal QC documentation is TBC.
The internal LED module is described by our supplier as CE, RoHS and UL approved. Factory level certification is TBC and is not claimed on this site.
Twenty-six builds where the light comes out of the front. A metal return, a translucent acrylic face, and waterproof LED on a PVC, stainless or aluminium back plate.
The alternative constructions in this catalogue are set out in fabricated or flat cut which construction to use, and the illumination choices in frontlit backlit or edge lit.
Stud fixing needs the wall drilled to the template, so the template has to survive the trip to site.
Buyers replacing a damaged sign who need the shortest realistic turnaround on an illuminated letter.
View specification
Shopfront wording that has to be legible from across a car park at night.
View specification
Fascia sets that mix large and small letters and need a consistent build rule across both.
View specification
Night-time branding where a perforated dot pattern is the intended look rather than a solid glow.
View specificationThe sign had to sit on one brand colour during trading hours and run a colour sequence in the evening, from a single installation and a single power feed.
Product GuideA small construction detail that decides whether a long wordmark still looks flat after a year on a sunlit fascia.
DownloadsMaterials, finishes, fixings and lead times in one PDF, plus the full catalogue as a CSV.
Stainless steel, aluminium alloy, translucent or solid acrylic. The construction is fabricated sheet metal, folded and soldered into a closed letter. Surface finish: specified per order: polished or brushed stainless, aluminium, or powder coated metal.
Production runs 5 to 7 days. Add roughly 4 to 5 days for DHL or UPS express door to door, and allow time for artwork approval before production starts.
Fixing is by back stud. The order includes 1:1 scale mounting template, transformer. Set the letters out from the template rather than by eye.
Stud fixing needs the wall drilled to the template, so the template has to survive the trip to site.
Yes. There is no minimum order quantity on this catalogue and any order quantity is accepted. Shipping cost per letter falls sharply once several travel in the same carton, so order a full word together where you can.
Send the artwork and the finished letter height and the quotation comes back with the production window and the shipping estimate attached.
