LED Sign Letters · Frontlit LED Channel Letters

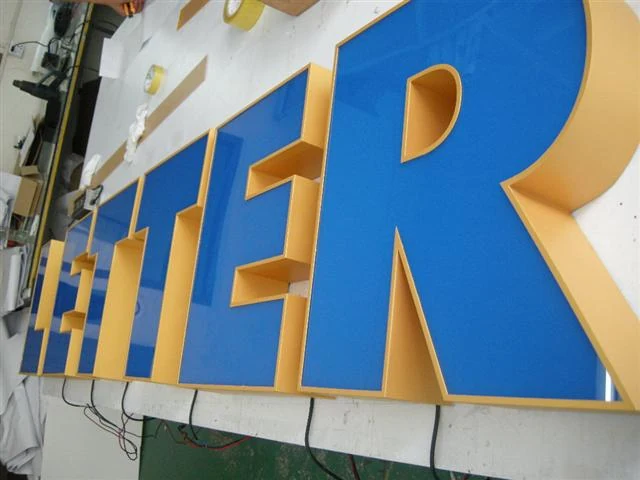

A frontlit LED channel letter shown in a heavy sans face with a deep return, built with waterproof LED mounted on a PVC, stainless or aluminium backing plate. Standard colour acrylic is stocked; a specific brand colour is achieved by gluing coloured film to the acrylic.
A frontlit LED channel letter shown in a heavy sans face with a deep return, built with waterproof LED mounted on a PVC, stainless or aluminium backing plate. Standard colour acrylic is stocked; a specific brand colour is achieved by gluing coloured film to the acrylic.
Best for. Shopfront wording that has to be legible from across a car park at night.
Watch out. Filmed colour and solid coloured acrylic age differently, so keep one method across a multi-site rollout.
Shopfront wording that has to be legible from across a car park at night. It sits in our retail and shopping malls work more often than anywhere else.
A frontlit letter has to be readable at noon and at midnight, which means the acrylic colour, the LED density and the return depth all have to agree with each other. Shallow returns need tighter LED spacing. Saturated acrylic colours cut output. Faces over 400mm need a rim to stay flat.
Retail signage is bought against a landlord specification, a fit-out date and a fascia that already exists. Those three constraints decide the build more often than the design does. See the exact brand colour matching route for how this is specified on a live job.
These points are reproduced from our own production specification for Frontlit LED Letters 02. Nothing has been added to them.
| Construction | Fabricated sheet metal, folded and soldered into a closed letter |
|---|---|
| Material | Genuine 304 or 316 grade stainless steel, aluminium alloy, translucent or solid acrylic |
| Face material | Translucent acrylic, standard stock colours or film matched to a brand colour |
| Return material | 304 or 316 polished or brushed stainless steel, aluminium or powder coated metal |
| Surface finish | Specified per order: polished or brushed stainless, aluminium, or powder coated metal |
| Illumination | Frontlit, through a translucent acrylic face |
| LED module | Built-in high quality waterproof LED |
| Transformer | Supplied with the letters |
| Return rim | Rim or rimless; rim recommended above 400mm letter height |
| Fixing method | Back screw bolt |
| Supplied with the order | 1:1 scale mounting template, fixing screws, transformer |
| Colour matching | Any colour from a Pantone or RAL code confirmed before production |
| Production time | 5 to 7 days |
| Shipping | DHL or UPS express door to door, approximately 4 to 5 days |
| Payment terms | T/T, Western Union, PayPal |
| Minimum order quantity | None |
TBC means the figure is not stated on our original specification and has not been estimated.
Genuine 304 or 316 grade stainless steel, aluminium alloy, translucent or solid acrylic Finish: specified per order: polished or brushed stainless, aluminium, or powder coated metal.
Fabricated sheet metal, folded and soldered into a closed letter. Artwork in AI, EPS or CDR fixes the geometry before anything is cut.
Joints are dressed before finishing, and illuminated builds are wired and lit before the back is closed. Formal QC documentation is TBC.
Factory level certification is TBC and is not claimed on this site.
Twenty-six builds where the light comes out of the front. A metal return, a translucent acrylic face, and waterproof LED on a PVC, stainless or aluminium back plate.
The alternative constructions in this catalogue are set out in fabricated or flat cut which construction to use, and the illumination choices in frontlit backlit or edge lit.
Filmed colour and solid coloured acrylic age differently, so keep one method across a multi-site rollout.
Single-letter replacements on an existing fascia where the new letter has to match the old fixing centres.
View specification
Small independent retailers ordering a handful of letters rather than a full fascia.
View specification
Brands with a strong single accent colour that want the sign to read as that colour at night.
View specification
Fascia sets that mix large and small letters and need a consistent build rule across both.
View specificationThe sign had to sit on one brand colour during trading hours and run a colour sequence in the evening, from a single installation and a single power feed.
Product GuideA small construction detail that decides whether a long wordmark still looks flat after a year on a sunlit fascia.
DownloadsMaterials, finishes, fixings and lead times in one PDF, plus the full catalogue as a CSV.
Genuine 304 or 316 grade stainless steel, aluminium alloy, translucent or solid acrylic. The construction is fabricated sheet metal, folded and soldered into a closed letter. Surface finish: specified per order: polished or brushed stainless, aluminium, or powder coated metal.
Production runs 5 to 7 days. Add roughly 4 to 5 days for DHL or UPS express door to door, and allow time for artwork approval before production starts.
Fixing is by back screw bolt. The order includes 1:1 scale mounting template, fixing screws, transformer. Set the letters out from the template rather than by eye.
Filmed colour and solid coloured acrylic age differently, so keep one method across a multi-site rollout.
Yes. There is no minimum order quantity on this catalogue and any order quantity is accepted. Shipping cost per letter falls sharply once several travel in the same carton, so order a full word together where you can.
Send the artwork and the finished letter height and the quotation comes back with the production window and the shipping estimate attached.
