Industrial Keyboard

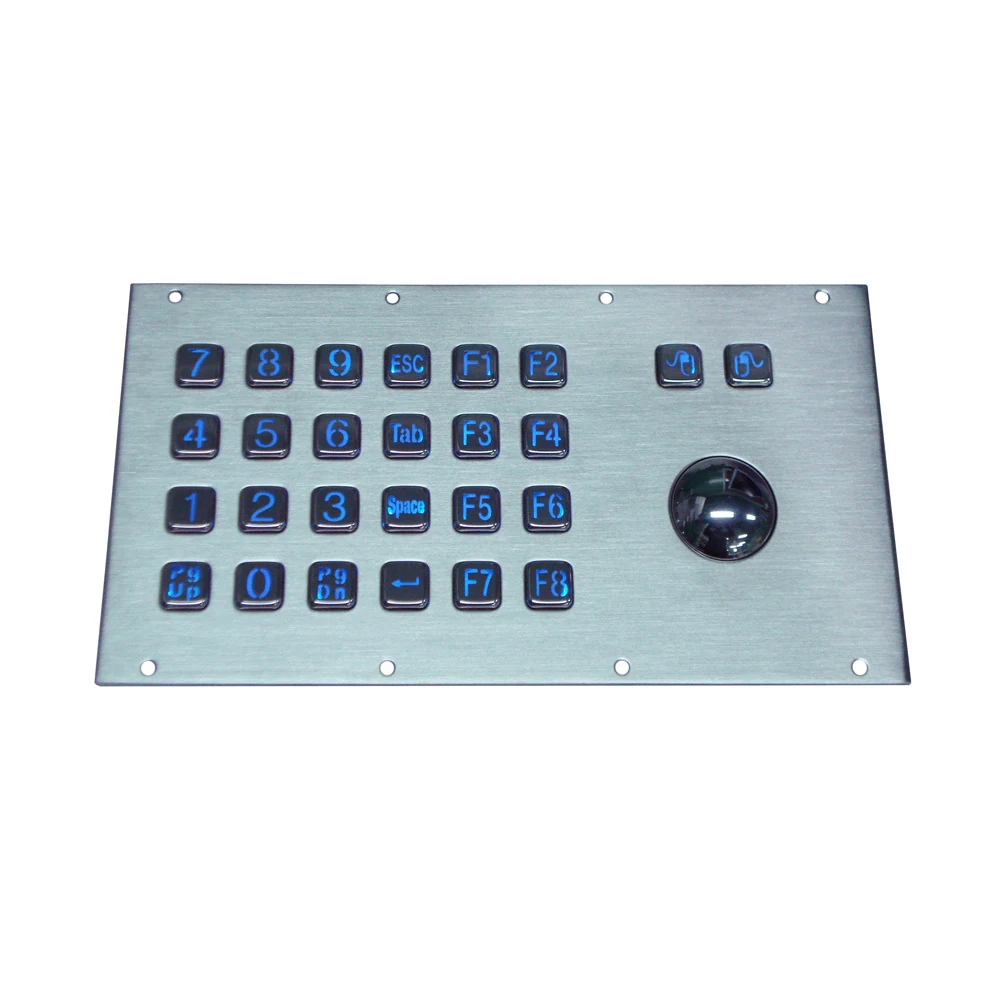

KY-PC-V 26 Key Waterproof Vandalproof Metal Keyboard
KY-PC-V is a 26 key waterproof and vandalproof metal keyboard on a 240*125mm panel, using 304 stainless steel keys over a 3mm aluminum alloy back panel.
Product Overview
KY-PC-V is a 26 key waterproof and vandalproof metal keyboard on a 240*125mm panel, using 304 stainless steel keys over a 3mm aluminum alloy back panel. Key trip is 1.5mm or 2mm with 280g±20g operation force, giving a firm press suited to gloved hands. It carries RoHS, IP65, FCC and CE approvals for kiosk, medical and oilfield deployment.
- 26 keys give a usable command set without a full alphanumeric footprint
- 3mm aluminum alloy back panel keeps the keyboard rigid under rough handling
- IP65 approval allows use where water and dust reach the panel
- 280g±20g operation force reduces accidental presses by gloved operators
- Key trip options of 1.5mm or 2mm tune the feel to the application
- 240*125mm front panel matches the overall size, simplifying the cutout
Application Scenarios
- Kiosk solutions in exposed public areas
- Medical equipment consoles requiring cleanable panels
- Industrial facilities with dust and washdown
- Prisons and secure facilities needing vandal resistance
- Food service equipment control panels
- Oil field equipment operated outdoors
Who It Is For
- Kiosk and self-service equipment manufacturers
- Medical device OEMs
- Secure facility and correctional equipment suppliers
- Oil and gas equipment integrators
Problems It Solves
- Plastic keyboards break under deliberate abuse in secure facilities
- Water ingress kills unsealed keyboards in washdown areas
- Thin panels flex and feel unreliable in the field
- Light key actions cause errors when operators wear gloves
Technical Features
- Keys 26 with 304 stainless steel key material
- 3mm aluminum alloy back panel
- Key size 14*14*4.5mm, 14*28*4.5mm and 14*100*4.5mm
- Key trip 1.5mm/2mm with operation force 280g±20g
- Power supply DC5V±5% and working current <150mA
- Interface USB and PS/2
- Front panel and overall dimension both 240*125mm
Specifications
| Keys | 26 |
|---|---|
| Back panel | 3mm aluminum alloy |
| Power supply | DC5V±5% |
| Working current | <150mA |
| Interface | USB, PS/2 |
| Key size | 14*14*4.5mm, 14*28*4.5mm, 14*100*4.5mm |
| Key trip | 1.5mm/2mm |
| Operation force | 280g±20g |
| Durability | ≥2 Million |
| Front panel | 240*125mm |
| Operation temperature | -10℃~55℃ (relative humidity 20%~85%, atmospheric pressure 60~106Kpa) |
| Approvals | RoHS, IP65, FCC, CE |
Materials
- 304 stainless steel keys
- 3mm aluminum alloy back panel
- IP65 sealing layer
Manufacturing Process
- CNC machining of the 3mm aluminum alloy back panel
- Sheet-metal forming of the 240*125mm front panel
- Brushing and finishing of the stainless steel keys
- Laser or etched legend marking
- IP65 sealing and assembly
- Force and keymap verification
Quality Control
- Operation force sampled against 280g±20g
- Key trip checked for the ordered 1.5mm or 2mm build
- IP65 ingress testing on assembled keyboards
- All 26 key outputs verified on a host PC
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Customized layout available
- Customized function keys or combination keys
- Key trip choice of 1.5mm or 2mm
- USB or PS/2 interface build
- Rear or front mounting hardware
How It Compares
| Full size metal keyboard | 26 keys cover machine commands in a 240*125mm panel instead of a full desk footprint |
|---|---|
| Unsealed industrial keypad | IP65 with a waterproof and vandalproof design allows direct exposure in washdown areas |
| Light-touch membrane panel | 280g±20g operation force and up to 2mm travel suit gloved operators |
Use Guide
- Cut the aperture to the 240*125mm panel dimension
- Select 1.5mm or 2mm key trip at order since it is built in
- Supply DC5V±5% with at least 150mA available
- Operate within -10℃~55℃
- Keep the seal intact when refitting after service
Questions About This Model
How many keys are fitted?
26 keys.
What are the panel dimensions?
Front panel 240*125mm and overall 240*125mm.
How firm is the key press?
Operation force is 280g±20g with key trip of 1.5mm or 2mm.
Which approvals does it carry?
RoHS, IP65, FCC and CE.
Can the layout be changed?
Yes, customized layout and customized function keys or combination keys are available.
What interfaces are supported?
USB and PS/2.
Request A Quote On KY-PC-V
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
