Metal Keyboard
Metal Blue LED Backlit Keyboard With Trackball KY-PC-F3-LED

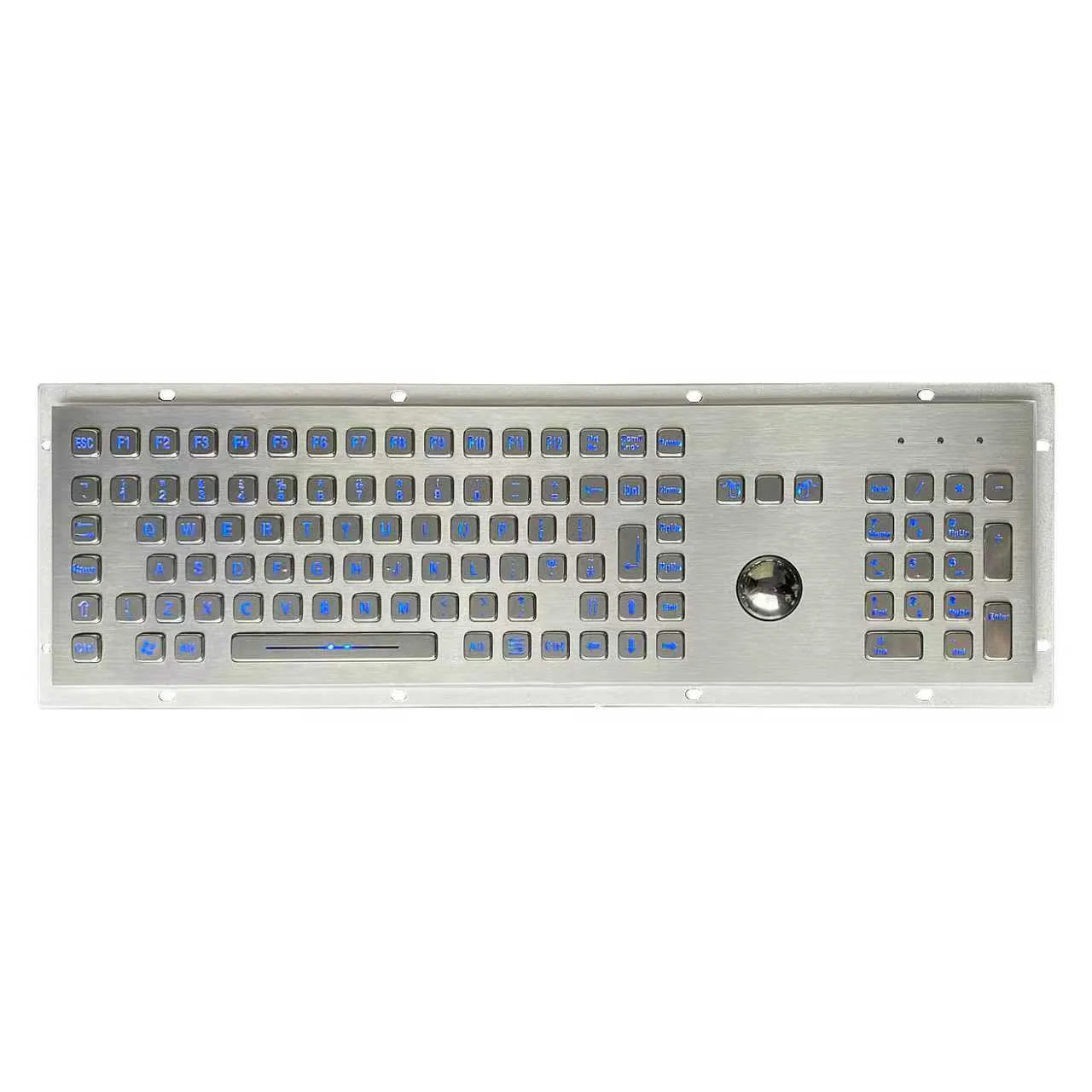

KY-PC-F3-LED is a 106 key stainless steel keyboard with hollowed keys lit by soft blue LED backlighting and a built-in mechanical trackball.
Product Overview
KY-PC-F3-LED is a 106 key stainless steel keyboard with hollowed keys lit by soft blue LED backlighting and a built-in mechanical trackball. It gives a full PC key set plus pointing in a single embedded unit for control consoles worked after dark. The SUS304 panel and 3mm aluminium alloy base plate stand up to impacts, splashes and oily air.
- Full PC key set of 106 keys plus a 38mm stainless steel trackball in one embedded unit
- Uniform non-glaring blue LED backlight lets operators identify buttons at night
- SUS304 stainless steel panel resists water, dust, corrosion and brute force damage
- 3mm aluminium alloy base plate keeps the keyboard rigid under heavy handling
- Precision metal contacts give crisp tactile feedback through prolonged high-frequency use
- Keyboard layouts for various countries can be customized to customer needs
Application Scenarios
- Factory workshop control stations
- Outdoor self-service terminals
- Security control consoles
- Financial equipment installations
- Communication and military equipment consoles
Who It Is For
- Security and surveillance console builders
- Self-service terminal OEMs
- Financial equipment manufacturers
- Defence and communication equipment integrators
Problems It Solves
- Dark control rooms make unlit keys unusable, solved by hollow key blue LED backlighting
- A separate mouse has nowhere to sit on a console, so a 38mm stainless steel trackball is built in
- Oily, humid and fluctuating temperature conditions are handled by the stainless steel panel
- Flexing housings misalign keys, prevented by the 3mm aluminium alloy base plate
Technical Features
- 106 keys including all the keys of a PC keyboard
- Hollowed out keys with LED backlighting for low light environments
- Mechanical trackball mouse function with a 38mm stainless steel trackball
- SUS304 stainless steel panel and buttons
- 3mm aluminium alloy base plate
- Customizable function keys or combination keys
Specifications
| Model | KY-PC-F3-LED |
|---|---|
| Keys | 106 |
| Backlight | Blue LED, hollow key |
| Trackball | 38mm stainless steel |
| Panel material | SUS304 stainless steel |
| Base plate | 3mm aluminium alloy |
| Layout | Country layouts customizable |
Materials
- SUS304 stainless steel panel and buttons
- 3mm aluminium alloy base plate
- 38mm stainless steel trackball
Manufacturing Process
- Sheet metal forming of the SUS304 panel
- Key hollowing for LED light transmission
- CNC machining of the 3mm aluminium alloy base plate
- Blue LED board fitting and light uniformity setting
- Trackball module assembly and cursor calibration
- Final assembly and full key function test
Quality Control
- Blue LED uniformity check across all 106 keys
- Trackball cursor tracking verification
- Key contact rebound sampling
- Panel and base plate rigidity inspection
Customisation Options
- Keyboard layouts for various countries
- Function keys or combination keys defined by the customer
- Key legend method and character set
- Panel finish to match the console
How It Compares
| Non-backlit metal keyboards | Hollow key blue LED backlighting enables blind operation during nighttime shifts |
|---|---|
| Keyboards without pointing devices | A 38mm stainless steel mechanical trackball is built into the same panel |
| Thin steel chassis keyboards | A 3mm aluminium alloy base plate keeps key alignment stable under heavy handling |
Use Guide
- Mount the keyboard as an embedded unit into the console face
- Confirm the country layout and any combination keys before production
- Clean the stainless panel with a damp cloth, avoiding abrasives around the trackball
- Rotate the 38mm trackball freely to check smooth cursor travel after installation
Related Products
Questions About This Model
How many keys does it have?
106 keys, including all the keys of a PC keyboard.
What colour is the backlight?
Soft blue LED, shining through hollowed out keys.
Does it include a mouse?
Yes, it has a mechanical trackball mouse function with a 38mm stainless steel trackball.
What is the base plate?
A 3mm aluminium alloy base plate.
Can the layout be changed?
Yes, keyboard layouts for various countries are customized to customer needs.
Where is it used?
Factory workshops, outdoor self-service terminals, security control consoles and financial, communication and military equipment.
