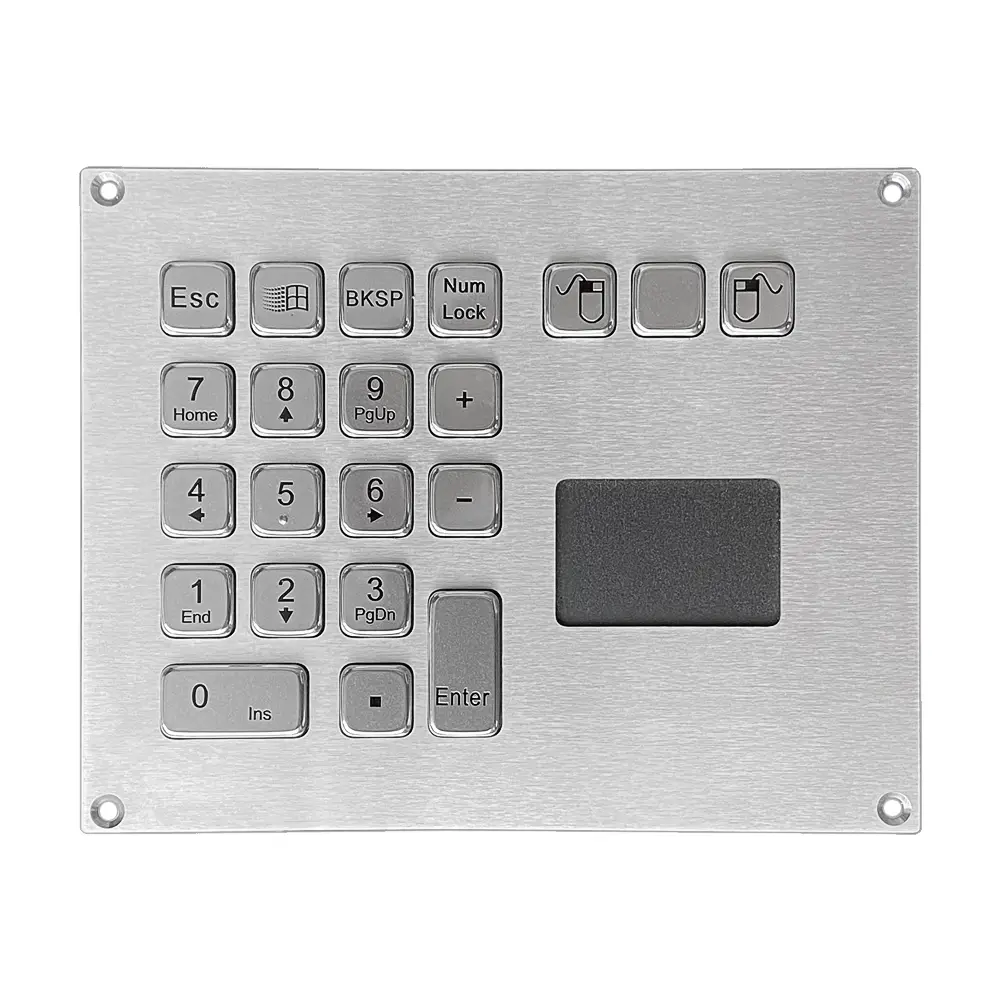

IP65 Mini Keyboard With Trackpad KY-PC-VG160T
KY-PC-VG160T combines a compact stainless steel keyboard and an integrated touch control area in one slim panel, so a separate pointing device is not needed.
Product Overview
KY-PC-VG160T combines a compact stainless steel keyboard and an integrated touch control area in one slim panel, so a separate pointing device is not needed. The shallow structure saves installation depth in control cabinets and embedded equipment. It is sealed to IP65 and works over USB or PS/2 across Windows, Linux, Ubuntu and Android.
- Keyboard and touch control in one panel remove the second cutout a separate pointer would need
- Compact slim structure saves installation space in shallow enclosures
- IP65 waterproof and dustproof sealing keeps input reliable in damp and dusty conditions
- 1.5mm key trip with 1.5N ± 10% key strength gives a defined press with gloves on
- USB / PS/2 output covers both current and legacy terminal hardware
- High-strength key cores support long-term frequent pressing without losing feel
Application Scenarios
- Industrial control cabinets
- Self-service kiosks
- Medical inspection instruments
- Automated terminals
- Embedded equipment consoles
Who It Is For
- Control cabinet builders with limited panel depth
- Kiosk and self-service terminal OEMs
- Medical inspection instrument makers
- Automation terminal integrators
Problems It Solves
- Two separate cutouts for keyboard and mouse waste fascia area, solved by the integrated trackpad
- Deep keyboards do not fit shallow embedded enclosures, addressed by the slim structure
- Damp and dusty rooms disable open keyboards, countered by IP65 sealing
- Legacy terminals without USB are supported through PS/2
Technical Features
- Power supply 5V±5% with working current <100mA
- Key size 14mm*14mm*4.5/14*28*4.5mm
- Key trip 1.5mm with key strength 1.5N ± 10%
- Panel mounting installation
- Operation temperature -20℃~65℃ with storage -30℃~85℃
- MTBF >20000 hour and MTTR <30 minute
- Compatible with Window XP, Window 7, Window 8, Window 10, Linux, Ubuntu and Android
Specifications
| Model | KY-PC-VG160T |
|---|---|
| Power supply | 5V±5% |
| Working current | <100mA |
| Key cores | High-strength, rated for frequent pressing |
| Interface | USB / PS/2 |
| Key size | 14mm*14mm*4.5/14*28*4.5mm |
| Key trip | 1.5mm |
| Key strength | 1.5N ± 10% |
| Mounting | Panel mounting |
| Net weight | 0.7Kg |
| Gross weight | 0.85Kg |
| Operation temperature | -20℃~65℃ |
Materials
- Stainless steel panel and key caps
- Sealed touch control surface
Manufacturing Process
- Sheet metal forming of the slim stainless panel
- CNC machining of the trackpad aperture and fixing holes
- Key stamping and legend marking
- Touch module bonding and sealing to IP65
- Panel mounting frame assembly and function test
Quality Control
- IP65 water and dust ingress test
- Trackpad cursor tracking check across the full surface
- Key travel and force sampling against 1.5mm and 1.5N ± 10%
- USB and PS/2 output verification on the listed systems
Approvals And Test Documentation
- IP65
Customisation Options
- Key layout and legend set
- Interface selection between USB and PS/2
- Panel size and fixing hole pattern
- Cable exit direction and length
How It Compares
| Separate keyboard and mouse | One panel carries both, so only one sealed cutout is required |
|---|---|
| Full size industrial keyboards | The compact slim structure fits shallow embedded enclosures at 0.7Kg net weight |
| Unsealed mini keyboards | IP65 protection keeps operation smooth in damp and dusty working conditions |
Use Guide
- Prepare a panel cutout for the mini keyboard body and fit by panel mounting
- Supply 5V±5% and allow for the <100mA working current
- Select USB or PS/2 at order to match the host terminal
- Keep operation inside -20℃~65℃ for rated performance
Questions About This Model
Does it include a pointing device?
Yes, touch control is integrated into the same panel as the keys.
What is the protection rating?
IP65 waterproof and dustproof.
Which interfaces are supported?
USB / PS/2.
What is the key travel?
1.5mm with 1.5N ± 10% key strength.
Which operating systems work with it?
Window XP, Window 7, Window 8, Window 10, Linux, Ubuntu and Android.
How is it mounted?
Panel mounting.
