Metal Keyboard
67 Key Metallic Keyboard With Braille KY-PC-NT3 BR
KY-PC-NT3(BR) is a 67 key stainless steel keyboard with Braille marked buttons for terminals that must be usable by visually impaired operators.
Product Overview
KY-PC-NT3(BR) is a 67 key stainless steel keyboard with Braille marked buttons for terminals that must be usable by visually impaired operators. The 330*100 mm front panel mounts from the rear so only the metal face is exposed at a kiosk or ticket machine. USB and PS/2 are both available, and the assembly is sealed to IP65.
- Braille button keys make self-service terminals usable without sighted assistance
- 67 keys give a full alphanumeric entry set in a 330*100 mm panel width
- IP65 sealing and 304 stainless steel resist water, dust and attempted vandalism
- Rear panel mount leaves no exposed fixings for tampering
- 2,000,000+ keystroke lifetime for high traffic public installations
- Laser or etching key labeling holds up better than printed legends
Application Scenarios
- Accessible ticket and information kiosks in transport hubs
- Access control and door entry systems
- Self-service payment kiosks
- Vending machines and car wash equipment
- Fuel dispensers and parking terminals
- Banking, medical and public outdoor terminal devices
Who It Is For
- Public transport ticketing integrators
- Banking and ATM terminal builders
- Kiosk manufacturers with accessibility requirements
- Government and municipal terminal suppliers
Problems It Solves
- Accessibility rules require tactile marking, which the Braille button keys provide directly on the metal
- Printed legends wear off in public use, so labeling is laser or etched
- Outdoor panels ingress water, so the keyboard is IP65 rated
- Legacy terminals lack USB, so PS/2 is available on the same unit
Technical Features
- Operating voltage 5V±5% with operating current <100mA
- Button travel 1.5mm and button pressure 1.2N+/-0.1N
- Button sizes 14*14*4.5, 28*14*4.5 and 100*14*4.5mm across the layout
- Button lifespan >2000000
- Installation from bottom to top with the base plate fixed and assembled
- Operating temperature -20℃~65℃ and storage -30℃~85℃
- MTBF >20000 hours with MTTR <30 minutes
Specifications
| Keys | 67 |
|---|---|
| Front panel | 330*100 mm |
| Overall | 354*124*46.5 mm |
| Operating voltage | 5V±5% |
| Operating current | <100mA |
| Button lifespan | >2000000 |
| Interface | USB / PS/2 |
| Button size | 14*14*4.5/28*14*4.5/100*14*4.5mm |
| Button travel | 1.5mm |
| Button pressure | 1.2N+/-0.1N |
| Net weight | 1Kg |
| Operating temperature | -20℃~65℃ |
Materials
- 304 stainless steel panel and buttons
- Braille marked stainless steel key caps
Manufacturing Process
- Sheet metal forming of the 330*100 mm stainless front panel
- Stamping of the three button sizes used across the 67 key layout
- Braille dot forming on the marked keys
- Laser or etching of key characters
- Base plate fixing and bottom-to-top assembly
- IP65 sealing and function test
Quality Control
- Braille dot height and spacing check on marked keys
- Keystroke endurance sampling against the >2000000 figure
- IP65 ingress test
- USB and PS/2 output verification on the listed operating systems
Approvals And Test Documentation
- IP65
Customisation Options
- Layout customization across the 67 key field
- Laser or etching procedure chosen for key labeling
- Braille marking extended to further keys
- Choice of USB or PS2 interface
How It Compares
| Standard metal keyboards without Braille | Tactile Braille keys let visually impaired users operate the terminal unaided |
|---|---|
| Plastic accessible keyboards | 304 stainless steel with IP65 sealing withstands outdoor public sites where plastic is broken or soiled |
| Silk screened legends | Laser or etched labeling stays readable after two million presses |
Use Guide
- Prepare the cutout for the 354*124*46.5 mm overall body and mount from the rear
- Fix the base plate from bottom to top as specified
- Select USB or PS/2 to match the terminal PC
- Confirm Braille key positions with your accessibility requirement before production
Related Products
Industrial RS485 Keyboard With 16 Stainless Steel Keys
View Specification
Metal Blue LED Backlit Keyboard With Trackball KY-PC-F3-LED
View Specification
Industrial USB PC Keyboard With Trackball KY-PC-N380
View Specification
Industrial Metal USB LED Backlit Keyboard KY-PC-F4-LED-BL
View SpecificationQuestions About This Model
How many keys does it have?
67 keys on a 330*100 mm front panel.
Which keys carry Braille?
Braille button keys are part of the layout and the marked positions can be set during layout customization.
Which interfaces are available?
USB and PS/2.
What is the key travel?
1.5mm with 1.2N+/-0.1N button pressure.
Is it sealed for outdoor use?
Yes, it is IP65 waterproof, dustproof and anti-corrosion.
How is it fixed to a panel?

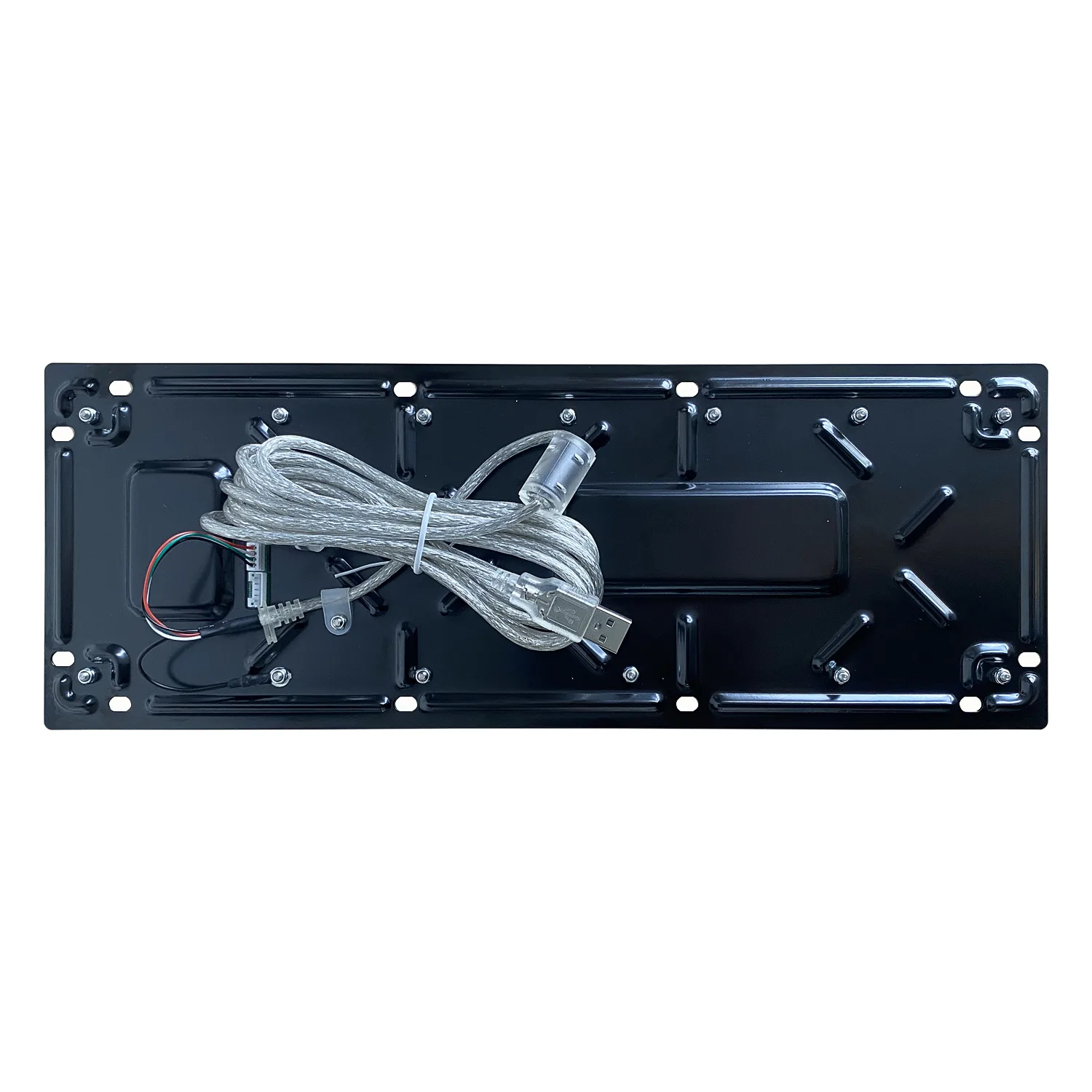

Panel mount from the rear, assembled from bottom to top with the base plate fixed.
Request A Quote On Metallic keyboard with braille
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
