Industrial Keyboard

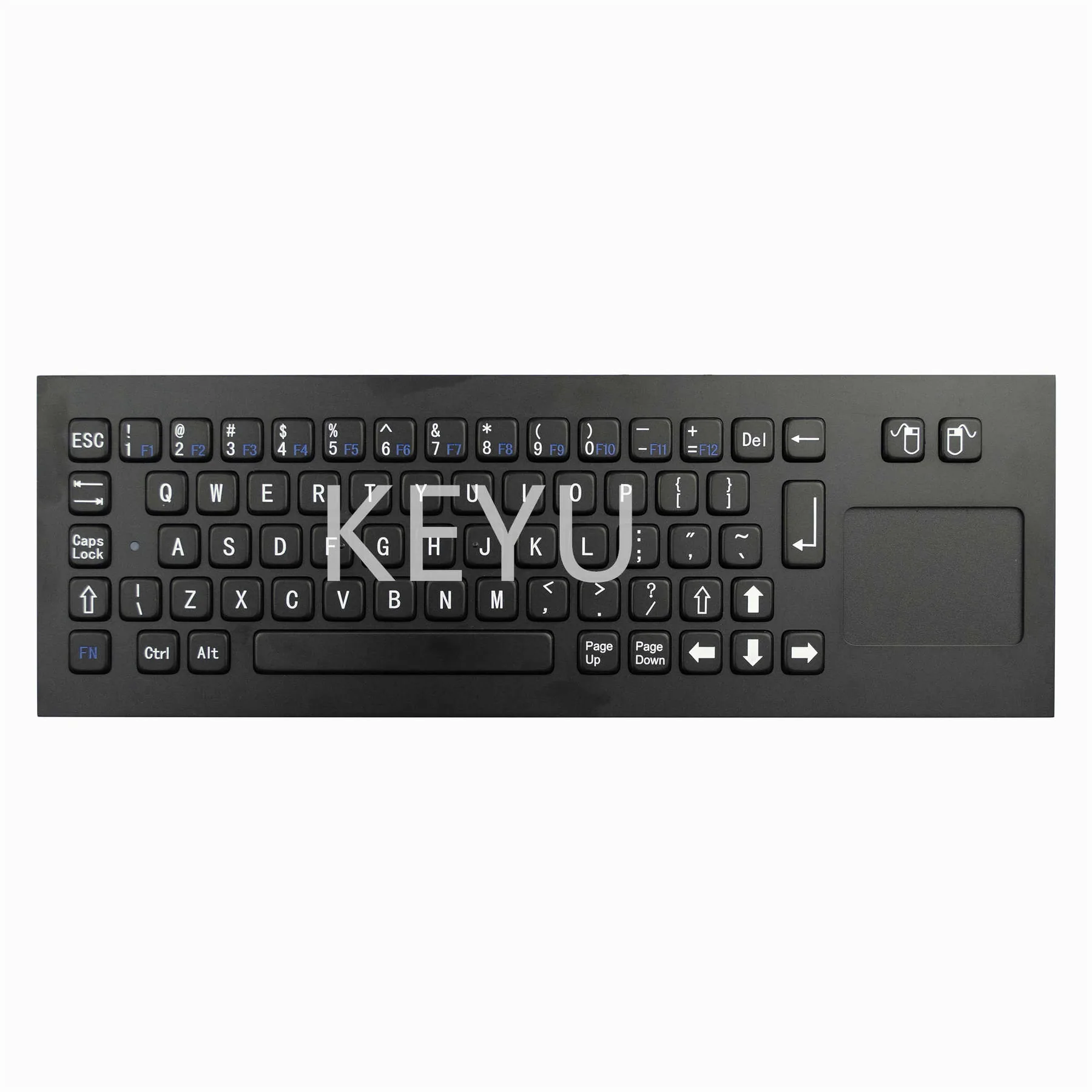

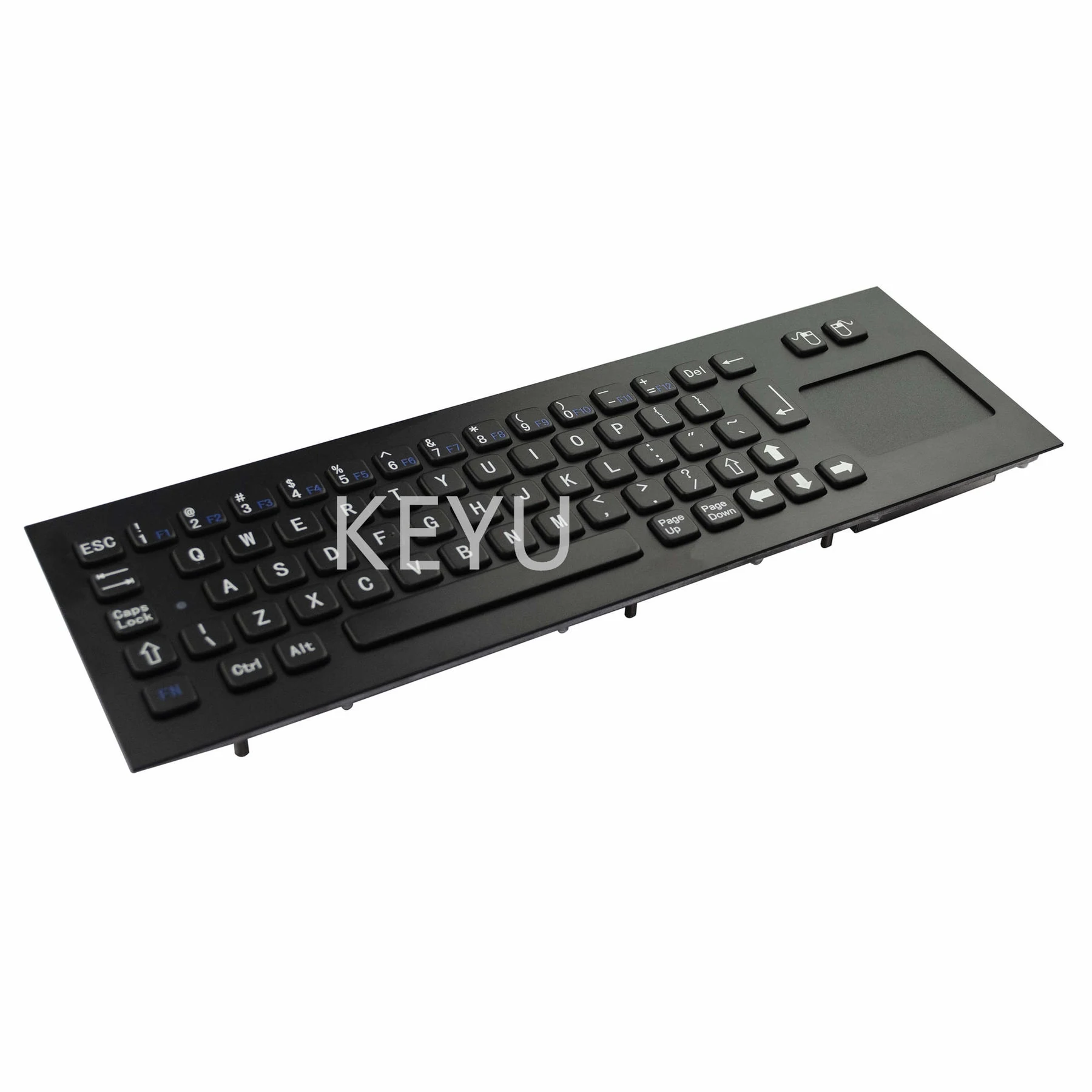

KY-PC-NT340-BL Black Metal Keyboard With Touchpad Mouse
KY-PC-NT340-BL is a black finished stainless steel panel keyboard with an integrated touchpad mouse, for fascias where a bright metal panel would clash with the machine styling.
Product Overview
KY-PC-NT340-BL is a black finished stainless steel panel keyboard with an integrated touchpad mouse, for fascias where a bright metal panel would clash with the machine styling. It is built on a SUS304 brushed stainless steel panel that is anti-riot and anti-corrosion, with a custom layout available. Working current stays under 60mA, so it fits kiosks with limited spare power.
- Black panel finish blends into dark kiosk and gaming machine fascias
- Integrated touchpad mouse removes the need for a separate pointing device
- Working current under 60mA leaves room on a shared kiosk supply
- SUS304 brushed stainless steel panel is anti-riot and anti-corrosion
- Custom layout on an anti vandal stainless keypad, panel mount format
- Net weight 1Kg keeps the fascia load manageable on a thin door
Application Scenarios
- Check-in kiosks at airports and hotels
- Boarding kiosks in transport terminals
- Info-kiosks in public buildings
- Medical kiosks in clinics and hospitals
- Industrial control platforms
- Gaming machines and entertainment terminals
Who It Is For
- Check-in and boarding kiosk manufacturers
- Information kiosk operators
- Medical kiosk suppliers
- Gaming machine and industrial control platform builders
Problems It Solves
- Bright stainless panels that clash with dark machine styling
- Separate mice that get removed on public kiosks
- Tight current budgets on kiosks with many peripherals
- Standard layouts that do not match a kiosk application
Technical Features
- Black metal keyboard panel on SUS304 brushed stainless steel, anti-riot and anti-corrosion
- Integrated touchpad mouse
- Anti vandal stainless steel keypad with custom layout, panel mount keyboard
- Key size 14*14*2/14*28*2/100*14*2mm with Key Trip 1.5mm
- Key strength 1.2N+/-0.1N contact force
- Power supply 5V±5% with working current <60mA
- Operation Temperature -10℃~45℃ and Storage Temperature -30℃~85℃
Specifications
| Panel Material | SUS304 brushed stainless steel |
|---|---|
| Power supply | 5V±5% |
| Working current | <60mA |
| Durability | >2 million |
| Interface | USB / PS/2 |
| Key size | 14*14*2/14*28*2/100*14*2mm |
| Key Trip | 1.5mm |
| Key strength | 1.2N+/-0.1N |
| Mounting Way | Rear mounting or Front mounting |
| Net weight | 1Kg |
| Gross weight | 1.15Kg |
| Operation Temperature | -10℃~45℃ |
Materials
- SUS304 brushed stainless steel panel in a black finish
- SUS304 brushed stainless steel buttons
Manufacturing Process
- Sheet metal forming of the panel and touchpad window
- CNC machining of the 14*14, 14*28 and 100*14 key apertures
- Black surface finishing over the brushed stainless panel
- Button silk screen or etching to customer requirements
- Touchpad mouse fitting and panel mount assembly
Quality Control
- Black finish adhesion and colour consistency check
- Key strength sampling at 1.2N+/-0.1N
- Touchpad tracking test across the working area
- Current draw confirmed under 60mA
Customisation Options
- Custom layout on the anti vandal stainless keypad
- Button silk screen or etching content to customer requirements
- Rear or front mounting hardware
- USB or PS/2 interface
- Panel outline matched to an existing kiosk door
How It Compares
| Bright stainless panel keyboard | The black finish disappears into dark fascias on gaming machines and check-in kiosks |
|---|---|
| Keyboard with trackball | A touchpad mouse has no ball to clean, which suits high traffic check-in and info kiosks |
Use Guide
- Confirm rear or front mounting before cutting the kiosk door
- Allow under 60mA on the 5V±5% rail
- Supply the layout and legend artwork before production
- Operate within -10℃~45℃
Questions About This Model
What finish is KY-PC-NT340-BL?
A black metal keyboard panel on SUS304 brushed stainless steel.
Does it include a pointing device?
Yes, a touchpad mouse is built in.
How much current does it use?
Less than 60mA at 5V±5%.
What is the key trip?
1.5mm, with key strength 1.2N+/-0.1N contact force.
Where is it typically used?
Check-in kiosks, boarding kiosks, info-kiosks, medical kiosks, industrial control platforms and gaming machines.
Can the layout be customized?
Yes, custom layout is available on the anti vandal stainless keypad.
Request A Quote On KY-PC-NT340-BL
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
