KY-PC-LT Hot Swappable Stainless Steel Industrial Keyboard With Touchpad

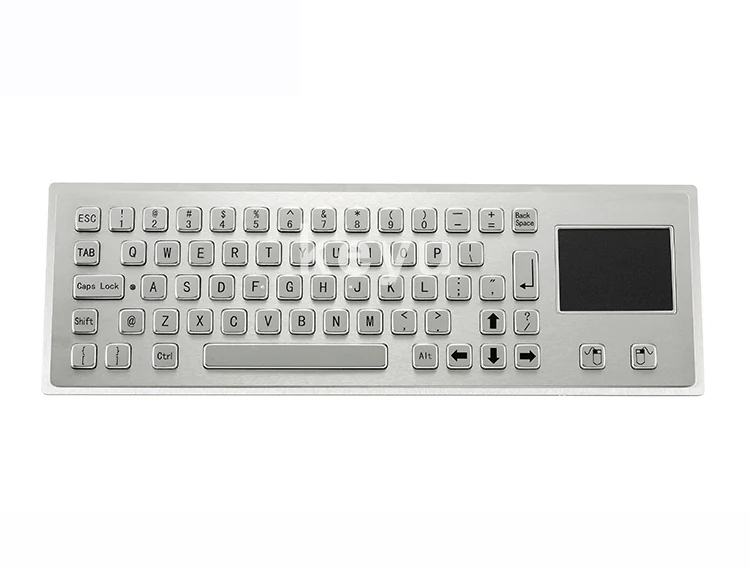

KY-PC-LT is a hot swappable stainless steel industrial keyboard with an integrated touchpad mouse, built for self-service terminals that cannot be powered down for a keyboard change.
Product Overview

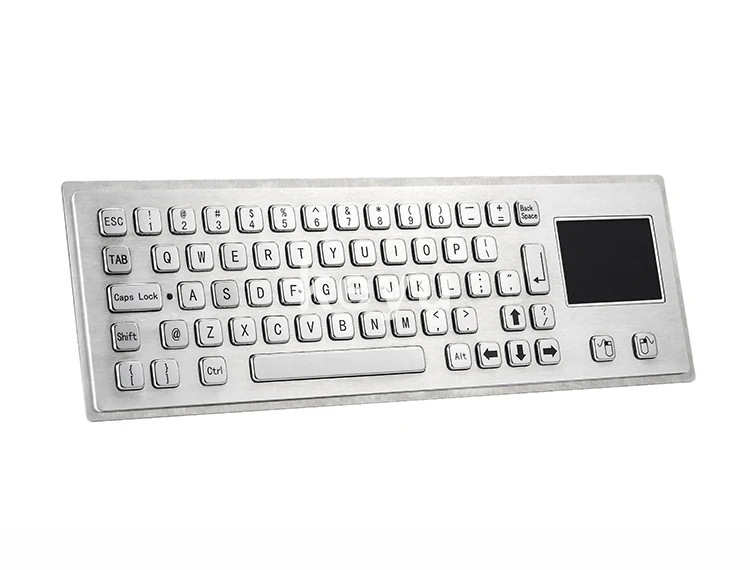

KY-PC-LT is a hot swappable stainless steel industrial keyboard with an integrated touchpad mouse, built for self-service terminals that cannot be powered down for a keyboard change. The 350*108 mm front panel fixes from bottom to top against the back panel, so service is done from inside the cabinet. It is rated for indoor and outdoor terminals and other extreme environments.
- Hot swappable construction lets a unit be exchanged without taking the terminal offline
- Integrated touchpad mouse removes a separate pointing device from the fascia
- Stainless steel keyboard with water and vandal proof design for outdoor terminals
- RoHS, IP65, FCC and CE approvals cover standard tender documentation
- Bottom to top back panel fixing keeps all hardware behind the fascia
- Operation force 2N±0.2N is consistent enough for confident gloved entry
Application Scenarios
- Indoor self-service terminals in transport and retail
- Outdoor self-service terminals in exposed locations
- Industrial equipment in extreme environments
- Round the clock terminals that cannot be powered down for service
- Control stations exposed to dust and washdown
Who It Is For
- Self-service terminal operators managing uptime targets
- Industrial equipment manufacturers
- Field service teams swapping units on site
- Kiosk integrators specifying sealed input
Problems It Solves
- Downtime required to replace a hard-wired keyboard
- Separate mouse hardware exposed on a public fascia
- Weather ingress on outdoor terminals
- Front-facing fixings that invite tampering
Technical Features
- Hot swappable metal keyboard in stainless steel with a water and vandal proof design
- Integrated touchpad mouse
- Power supply DC5V±5% with working current <150mA
- Operation Force 2N±0.2N with Key Trip 1.5mm
- Mounting from bottom to top, back panel fixing
- Operation temperature -10℃~55℃ and storage temperature -30℃~85℃
- USB and PS/2 interfaces with Window XP through Android support
Specifications
| Front Panel | 350*108 mm |
|---|---|
| Overall | 360*118.5 mm |
| Power supply | DC5V±5% |
| Working current | <150mA |
| Interface | USB, PS/2 |
| Operation Force | 2N±0.2N |
| Key Trip | 1.5mm |
| Mounting way | From bottom to top, back panel fixing |
| Operation Temperature | -10℃~55℃ |
| Storage Temperature | -30℃~85℃ |
| Approvals | RoHS, IP65, FCC, CE |
Materials
- Stainless steel panel
- Stainless steel buttons
Manufacturing Process
- Sheet metal forming of the 350*108 mm panel
- CNC machining of the key field and touchpad window
- Laser or etching procedure for key labeling
- Hot swappable switch socket fitting
- Back panel fixing assembly and IP65 sealing
Quality Control
- Hot swap cycle test on the switch sockets
- Operation force sampling at 2N±0.2N
- Key trip verification at 1.5mm
- IP65 ingress testing before shipment
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Compact layout customized for free
- Laser or etching key labeling
- Touchpad position within the panel
- USB or PS/2 harness selection
- Panel outline matched to a 360*118.5 mm cutout
How It Compares
| Fixed switch metal keyboard | Hot swappable sockets let a failed switch or unit be changed without a full rebuild |
|---|---|
| KY-PC-HT | KY-PC-LT uses a 1.5mm key trip on a 350*108 mm panel, where KY-PC-HT uses Cherry switches at a 2.5mm trip on a 372*102 mm panel |
Use Guide
- Plan the aperture around the 360*118.5 mm overall size
- Fit from bottom to top with back panel fixing
- Operate within -10℃~55℃
- Keep the touchpad surface free of standing liquid despite IP65 sealing
Questions About This Model
What does hot swappable mean here?
The keyboard is built so a unit can be exchanged without a full teardown of the terminal.
What are the dimensions?
Front panel 350*108 mm and overall 360*118.5 mm.
How is it fixed?
From bottom to top, back panel fixing.
What is the key trip?
1.5mm, with operation force 2N±0.2N.
Which approvals apply?
RoHS, IP65, FCC and CE.
Is a pointing device included?
Yes, a touchpad mouse is integrated in the panel.
Request A Quote On KY-PC-LT
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
